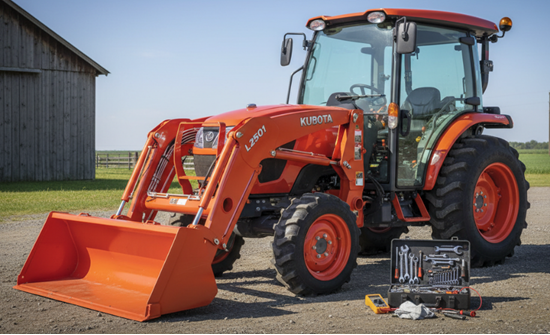

Kubota L2501 Problems: Troubleshooting Guide

Complete Problem Guide: Kubota L2501 tractors are generally reliable but commonly experience electrical issues (safety switches, alternator), HST transmission whining, hydraulic problems (loader drift, weak 3-point), and cold-starting difficulties. This comprehensive guide covers all major L2501 problems with symptoms, causes, DIY diagnostics, and repair costs – helping you fix issues in 20-60 minutes without expensive service calls.

Complete L2501 Problem Categories: Beyond Electrical

🔌 Electrical Issues

Safety switches, alternator failures, battery drain, wiring corrosion – detailed below

⚙️ HST Transmission

Whining noise, sluggish response, overheating, fluid contamination

🔧 Hydraulic System

Loader drift, weak 3-point hitch, hydraulic leaks, contaminated fluid

🚀 Starting & Fuel

Hard cold starts, glow plug failures, fuel system air leaks, filter issues

💡 Good News: The L2501’s 24.8 HP rating keeps it below the DPF threshold in most markets, avoiding the regeneration headaches common to larger models. Most problems are straightforward DIY fixes with basic tools.

Understanding Kubota L2501 Electrical Issues: The Complete Breakdown

The Kubota L2501 is a reliable workhorse, but like any complex machine, it can develop electrical problems over time. Most owners encounter three primary categories of electrical faults: safety switch failures, alternator and battery issues, and wiring problems. By understanding the warning signs and having the right diagnostic approach, you can quickly identify and resolve these issues without professional help. See our complete electrical troubleshooting guide.

Common Symptoms

Intermittent power loss during operation
Tractor fails to crank or suddenly stalls
Battery drains overnight
Dim lights or gradually weakening electrical systems
Inconsistent PTO engagement

Tools You’ll Need

Digital multimeter (essential for diagnostics)
Basic hand tools (screwdrivers, pliers)
Dielectric grease
Wire brush for cleaning connections
Heat-shrink tubing for repairs

Safety Switch Failures: The Most Common Culprit

Safety switches are designed to prevent accidents but often become the source of electrical problems in Kubota L2501 tractors. These switches create an interconnected safety system that can cause the entire tractor to lose power when just one component fails.

PTO Switch Issues

The Power Take-Off (PTO) switch is the most frequent source of electrical problems in the L2501. Debris accumulation or misalignment can prevent proper electrical contact, causing your tractor to stall unexpectedly or fail to start altogether.

Quick Fix: Cycle the PTO lever 3-4 times to dislodge debris. If problems persist, you may need to slightly bend the contact tab to ensure proper connection.

Testing Method: Use a multimeter to check for continuity across the switch terminals. When the PTO is disengaged, you should have an open circuit. When engaged, you should have continuity (0Ω reading).

Neutral and Seat Safety Switches

The seat safety switch and neutral position switch can develop corrosion at their connectors or become misaligned over time. These switches prevent the tractor from operating unless you’re properly seated and the transmission is in neutral.

Seat Switch Diagnosis

Look under the seat for the connector. Clean with compressed air and check for continuity when weight is applied to the seat.

HST Pedal Sensor

Check the hydrostatic transmission pedal sensor for proper alignment and clean connections.

⚠️ WARNING: While temporary bypassing of safety switches may help with diagnosis, never permanently bypass these critical safety features.

Alternator & Battery Problems: Power Generation Issues

When your Kubota L2501 experiences weak starting power, dimming lights, or battery drainage overnight, the charging system is likely at fault. Understanding how to test and replace alternator components can save you hundreds in repair costs.

Testing Alternator Output

A properly functioning charging system is critical for sustained operation. Your L2501’s alternator should produce specific voltage ranges at different RPMs:

At Idle

14V (±0.5V)

At 2,200 RPM

27-29V

Test Procedure:

Start the tractor and let it idle
Connect multimeter to battery terminals (set to DC Volts)
Record voltage at idle
Increase engine speed to 2,200 RPM
Record voltage again

Readings outside these ranges indicate alternator or voltage regulator problems.

Battery Drain Diagnosis

If your battery consistently drains overnight or between uses, a parasitic draw may be to blame. This happens when electrical components continue to draw power even when the tractor is turned off.

Battery Drain Test:

Disconnect the negative battery terminal
Set multimeter to DC amps
Connect multimeter between battery post and disconnected cable
A reading above 50mA indicates excessive parasitic draw

Common causes include faulty alternator diodes, damaged wiring, or accessories that don’t properly power down.

Alternator Replacement Options & Costs

OEM Alternator

Price: $320

Part Number: Kubota TC415-34650

Pros: Perfect fit, manufacturer warranty

Cons: Higher cost, same performance as original

Delco Remy 36SI HP

Price: $190

Output: 170A (higher than OEM)

Pros: 3-year warranty, better heat tolerance, lower cost

Cons: May require minor bracket modification

Wiring & Waterproofing: Preventing Future Problems

Many Kubota L2501 electrical issues stem from corroded connections or damaged wiring. Proper maintenance and waterproofing can prevent these problems before they start.

Common Wiring Fault Points

Inspect these high-failure areas first when troubleshooting electrical problems:

Ground connections near the battery – Corrosion here affects all electrical systems
Wiring under the seat – Movement and exposure can cause fraying
PTO lever connections – Mechanical stress leads to wire damage
Connector plugs – Water ingress causes corrosion

Waterproofing Techniques

Protecting electrical connections from moisture is critical for long-term reliability, especially for tractors stored outdoors or used in wet conditions.

Dielectric Grease

Apply to all electrical connectors to prevent moisture ingress and corrosion.

Heat-Shrink Tubing

Use on all wire splices to create waterproof connections that resist vibration.

Pro Tip: Create drip loops in wiring where possible – a downward bend in the wire before it enters a connector prevents water from flowing into the connection.

Wiring Diagram Reference

For complex electrical troubleshooting, refer to the L2501 workshop manual, particularly page G-4 for interlock circuits. Understanding the relationship between components in the electrical system can help isolate problems more quickly.

IMPORTANT SAFETY NOTE

Always disconnect the battery before performing electrical repairs to prevent shorts, damage to components, or personal injury. Reconnect the battery only after all connections have been properly secured.

HST Transmission Problems: Whining, Sluggish Response & Overheating

What to Know: The L2501’s hydrostatic transmission shares its fluid with the hydraulic system. Most HST problems trace back to fluid level, contamination, or operator technique rather than catastrophic failures. (see HST transmission article)

HST Whining and Noise Issues

Symptoms to Watch For

High-pitched whine that changes with pedal position and increases under load
Noise louder in high range or when climbing hills
Whining accompanied by sluggish ground speed or surging
Sound that disappears or lessens when switching to lower range

Important: Some HST noise is normal, especially at higher RPM. The swash-plate pump creates sound during operation – this is often mistaken for a problem on brand-new units.

Root Causes

Low/Wrong Fluid
Low fluid level or incorrect spec oil (must be Kubota UDT/Super UDT) causes cavitation and pump whine.

Aerated Fluid
Air leaks on suction side create foam, reducing hydraulic pressure and causing noise and weak performance.

Clogged Filter
Restricted HST/hydraulic filter or suction screen starves the pump, causing cavitation whine.

Pedal Linkage
Misadjusted or worn treadle pedal linkage prevents full stroke, creating “straining” sounds under load.

DIY Diagnostic Steps

Check fluid level: Park on level ground, let tractor warm to operating temp, check dipstick. Top off with Super UDT2 only.
Inspect for aeration: Look for foamy or milky fluid on dipstick – indicates air ingress or water contamination.
Verify filter service: When was the last HST/hydraulic filter change? Collapsed filters restrict flow.
Check pedal linkage: Crawl under and follow treadle pedal to HST – look for bent rods, worn joints, or limit stops preventing full travel.
Test in different ranges: If whine disappears in low range, you’re likely lugging the tractor in too high a gear for the load.

Typical Repair Costs

Service Item	OEM Cost	Aftermarket
Complete fluid change (10-15 gal)	$200-300	$120-180
HST/hydraulic filter set	$60-80	$35-50
Pedal linkage adjustment	FREE (DIY)

💡 Pro Tip: Don’t stretch the first oil change! Early wear metal from break-in loads the HST. Change at 50 hours, then follow Kubota’s schedule.

HST Overheating Problems

Symptoms

Hot oil smell and very warm transmission housing
Performance drops after 30-60 minutes of heavy work
HST whine that worsens as temperature climbs
Loss of ground speed under load after extended use

Root Causes

Operator Technique Issues:

Running in high range at low RPM with partial pedal (high slip)
Extended heavy loader work without dropping to medium/low range
“Riding the pedal” at partial travel under heavy loads

Maintenance Issues:

Dirty or blocked hydraulic/hydro oil cooler fins (in front of radiator)
Debris buildup preventing airflow through cooler stack

DIY Fix Steps

Clean cooler stack: Blow out oil cooler and radiator with compressed air or water from fan side outward. Do this seasonally if working in dusty conditions.
Adjust operating technique: Use lower range with higher engine RPM to reduce hydro slip and heat generation.
Avoid partial pedal: Either light load or full pedal travel – don’t ride the pedal at half-stroke under heavy loads.
Take breaks: On extended heavy jobs, let the tractor idle for a few minutes every hour to cool down.

Prevention: Make cooler cleaning part of your regular maintenance, especially during mowing or brush-hogging season. A clogged cooler is the #1 cause of HST overheating.

Starting & Fuel System Problems: Cold Starts, Glow Plugs & Air Leaks

Hard Starting When Cold

Symptoms

Extended cranking (10+ seconds) on cold mornings
White smoke during cranking, rough idle when it finally catches
Need to cycle glow plugs multiple times to start
Starts normally once engine is warm

Root Causes

Weak Glow Plugs
Failed or high-resistance glow plugs don’t heat combustion chambers adequately for cold starting.

Low Battery Voltage
Weak battery drops cranking RPM so injection pressure builds slowly.

Fuel Gelling
Thick winter fuel or waxing in lines/filters restricts flow in cold weather.

Failed Glow Plug Relay
No pre-heat even when cold – dash light may not come on.

DIY Diagnostics

Glow Plug System Test:

Turn key to preheat position – watch for dash light and listen for relay click
If no click or light, test relay with multimeter or jumper wire
For individual plugs: Disconnect and use ohmmeter – should read 0.5-2.0 ohms. High resistance (5+ ohms) = failed plug
Watch how long glow light stays on – should be 5-10 seconds in cold weather

Battery/Cranking Speed Test:

Check battery voltage before cranking – should be 12.6V or higher
Voltage drop test during crank – measure at battery terminals
Slow cranking (sluggish turnover) points to weak battery or bad cables
Clean battery terminals and check cable connections first

Repair Costs

Part	OEM Cost	Aftermarket
Glow plugs (set of 3)	$60-90	$30-50
Glow plug relay	$40-60	$20-35
Battery (Group 24)	$120-180	$80-120

Prevention: Use proper winter-grade diesel and fuel additives in cold climates. Keep battery on maintainer when parked long-term. Test glow plugs before winter hits.

Fuel System Air Leaks

Symptoms

Random stalling, especially after filter changes or when tank is low
Need to crack injector lines or bleed screws to restart
Hard starting that improves after running awhile (air purges)
Rough idle or surging RPM under no load

Common Air Leak Points

Loose hose clamps on suction side (tank to filter to pump)
Cracked plastic filter bowls or bad O-rings on filter head
Failed primer pump seals
Damaged fuel lines from aging or rodent chewing

DIY Detection

Visual Inspection:

Inspect all fuel lines from tank to injection pump – look for wetness or dirt stuck in seepage
Check hose clamps – tighten any that move easily
Look for cracks in plastic filter housing or discolored O-rings

Air Bubble Test:

Hand-prime the fuel system with primer pump
Watch clear fuel lines or filter bowl (if equipped) for bubbles
Bubbles appearing = air entering on suction side
Isolate by clamping off sections to find leak location

Repair Costs

New fuel hoses and clamps: $20-40
Filter head O-ring kit: $15-25
Complete filter head assembly: $80-150
Primer pump rebuild: $30-50

Prevention: When changing fuel filters, fill new filter with clean diesel and bleed air per manual. Tighten all clamps properly. Inspect fuel lines annually for cracks or hardening.

Real-World Case Studies: L2501 Electrical Problems Solved

Case #1: Intermittent No-Start Condition

Symptoms: 2017 L2501 would crank but not start, especially after sitting idle for several days.

Diagnosis: PTO switch contacts had corrosion buildup preventing proper circuit completion.

Solution: Owner cleaned PTO switch contacts and applied dielectric grease, resolving the issue completely.

Cost Savings: $210 (avoided dealer diagnostic fee and labor charges)

Case #2: Charging System Failure

Symptoms: 2021 L2501 battery would drain after a few hours of operation.

Diagnosis: Voltage test showed 0V output from alternator at all RPMs.

Solution: Faulty voltage regulator identified and replaced, restoring proper 14.4V charging.

Cost Savings: $280 (used aftermarket voltage regulator vs. complete OEM alternator)

Preventative Maintenance: Keep Your L2501 Electrical System Reliable

Regular maintenance can prevent most electrical issues before they cause downtime. Implement these simple practices to ensure your Kubota’s electrical system remains reliable:

Monthly: Clean battery terminals and apply terminal protectant
Quarterly: Inspect all accessible wiring for wear, especially under the seat and near moving parts
Bi-annually: Clean and grease all electrical connectors, particularly those exposed to weather
Annually: Test alternator output and battery capacity

Pro Tip: Keep a log of voltage readings at both idle and 2,200 RPM. Declining numbers over time can alert you to developing alternator issues before they leave you stranded.

Additional FAQ: L2501 Common Problems

Why does my L2501 HST whine in high range?

High-range whining is usually normal HST pump noise, especially under load. However, if accompanied by sluggish performance, check your hydraulic fluid level and filter condition. The whine can also indicate you’re lugging the tractor – try dropping to medium range and raising engine RPM. If noise persists with correct fluid and proper range selection, inspect the HST pedal linkage for binding or misadjustment that prevents full stroke.

Does the L2501 have DPF regeneration problems?

No – the L2501’s 24.8 HP rating keeps it below the DPF threshold in most markets, which is why many buyers choose this model specifically to avoid regeneration headaches. Unlike larger Kubota models with full aftertreatment systems, the L2501 uses a simpler emissions approach that doesn’t require active regeneration cycles. This makes it ideal for light-duty loader work and intermittent use where DPF-equipped tractors struggle.

How do I fix slow loader lift on my L2501?

First check your hydraulic fluid level and filter condition – low fluid or clogged filter restricts pump output. Next, verify you’re running at proper RPM (1800-2200) during operation – slow engine speed = slow hydraulics. If those are correct, look under the seat for the rate-of-drop adjustment knob – it may be set too restrictive, making the system feel sluggish. Finally, test with different load weights – if it lifts light loads fine but struggles with moderate weight, your hydraulic pump may be wearing out (common after 1,500+ hours).

What causes my L2501 to be hard starting when cold?

Cold-start problems typically trace to weak or failed glow plugs, low battery voltage, or gelled fuel. Start by testing your glow plug system – turn the key to preheat and listen for the relay click. If you hear no click or the glow plug light doesn’t illuminate, the relay or plugs have failed. Test individual glow plugs with an ohmmeter (should read 0.5-2.0 ohms). Also check battery voltage before cranking – should be 12.6V+. In winter, use winter-grade diesel fuel and fuel additives to prevent waxing in the lines. Replacing all three glow plugs costs $30-90 and typically solves the problem.

Are aftermarket alternators reliable for the Kubota L2501?

Yes, quality aftermarket alternators like the Delco Remy 36SI HP can be very reliable and often offer advantages over OEM parts. The Delco model provides 170A output and outperforms the OEM alternator in high-heat conditions. It also comes with a 3-year warranty compared to Kubota’s typical 1-year warranty. Some installers report these alternators handle heavy electrical loads better than the factory units while costing significantly less ($190 vs. $320 for OEM).

Summary: Fixing Your L2501 Electrical Issues

Most Kubota L2501 electrical problems can be diagnosed and fixed in under 20 minutes with basic tools and knowledge. Focus first on safety switches (particularly the PTO switch), then check alternator output and battery condition. Don’t overlook the importance of clean connections and proper waterproofing to prevent future issues. By following the structured approach in this guide, you can save hundreds in service costs and minimize downtime. Get L2501 compatible attachments

💡 Buying Used? Compare Generations First

Not sure if you should buy the older generation or save for the newer model? Check our generation comparison guide for real prices, recalls, and sweet spot years.

⛽ Fuel Pump Problems?

Hard starting, stalling after 30-60 minutes, or power loss? Check our complete fuel pump troubleshooting guide. Covers symptoms, pressure tests, mechanical vs electric pumps & replacement costs.

Need Kubota wiring harnesses? Get free troubleshooting help

Check us out for more at TractorPartsCentral.com
