Quick 2-Minute Diagnostic Test
Ground Test: Disconnect sending unit wire, turn key ON, briefly ground the wire to chassis
Result: If gauge jumps to full, your gauge works – replace sending unit. If no movement, gauge is faulty
Understanding Kubota Fuel System Basics

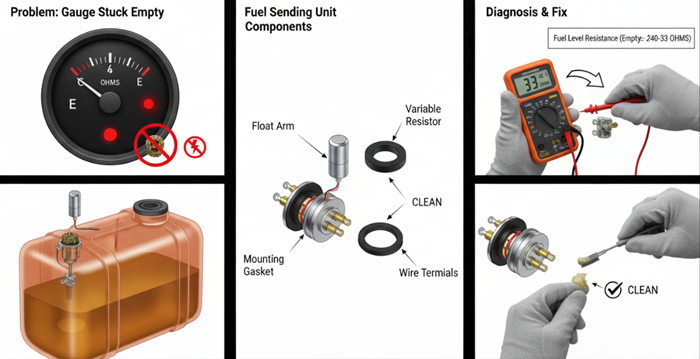

Kubota fuel gauge systems operate on a simple but effective principle. The sending unit contains a variable resistor connected to a float mechanism inside the fuel tank. As fuel levels change, the float moves, adjusting the resistance in the circuit. The dashboard gauge interprets these resistance changes and displays the corresponding fuel level.
System Components: The complete system includes the dashboard gauge, sending unit with float assembly, connecting wiring harness, ground connections, and power supply from the ignition switch. Understanding this relationship is crucial for effective troubleshooting. Water in Fuel light on?
Three Most Common Failure Patterns
1. Gauge Reads Empty When Tank is Full (35% of cases)
Primary Causes: Broken sending unit wire, failed float mechanism, or complete electrical failure. Alternator issue?
Quick Test: Ground the sending unit wire – if gauge moves, replace sending unit
Field Experience: This condition often develops gradually, starting with intermittent readings before complete failure. Check for corroded connections at the tank access point.
2. Gauge Stuck in One Position (45% of cases)
Symptoms: Gauge reads “full” constantly, only changes when key is off
Root Cause: Internal sending unit failure or wiring shorts to ground
Note: “Stuck full” is 3x more common than “stuck empty” readings
Advanced Diagnosis: This failure mode typically indicates the sending unit’s variable resistor has failed in the low-resistance position, causing the gauge to interpret the signal as a full tank regardless of actual fuel level.
3. Gauge Fluctuates Wildly (20% of cases)
Primary Issue: Poor grounding or voltage instability
Solution: Clean ground connections and verify secure chassis ground
Environmental Factors: Temperature changes, moisture infiltration, and vibration can exacerbate fluctuation problems. This issue is more common in equipment exposed to harsh operating conditions.
Professional Multimeter Testing Protocol
Resistance Specifications by Model
| Kubota Model | Full Tank (Ohms) | Empty Tank (Ohms) |
|---|---|---|
| L4400 | 0 | 120 |
| Standard L-Series | 0 | 90 |
| BX Series | 0 | 240 |
| B-Series (Older) | 0 | 73 |
Step-by-Step Testing Procedure
- Safety First: Disconnect battery and ensure proper ventilation
- Set Multimeter: Switch to resistance (ohms) mode
- Connect Leads: Attach to sending unit terminals
- Manual Test: Move float through complete range
- Record Values: Note resistance at multiple positions
- Compare: Check against manufacturer specifications above
- Document Results: Record findings for future reference
Advanced Wiring and Electrical Diagnosis
Wire Color Identification by Model Year
- Pre-2010 Models: Typically use pink wire for sending unit signal
- 2010-2015 Models: Yellow wire is standard for most L-series
- 2015+ Models: May use yellow or pink depending on specific model
- ZD Series: Solid yellow wire in main harness
Voltage Testing: With ignition ON and engine OFF, you should see 12 volts at the gauge power terminal and variable voltage (typically 2-10 volts) at the sending unit signal wire depending on fuel level.
Critical Grounding System Analysis
Warning: Poor ground connections cause 60% of erratic fuel gauge behavior. This step is often overlooked but critical for reliable operation.
Ground Testing Protocol
- Visual Inspection: Check for corrosion, loose connections, or damaged wires
- Continuity Test: Verify connection between sending unit ground and battery negative
- Voltage Drop Test: Any reading above 0.1 volts indicates problems
- Clean Connections: Use wire brush and apply dielectric grease
- Load Testing: Test ground integrity under operating conditions
Common Ground Problem Areas
- Tank Mounting Bolts: Corrosion at tank-to-chassis connection points
- Frame Ground Straps: Hidden corrosion under rubber protective covers
- Battery Ground Cable: Corrosion at battery terminal or engine block connection
- Sending Unit Flange: Poor metal-to-metal contact at tank opening
Model-Specific Case Studies
Case Study: L2501 Factory Defect Pattern
Multiple L2501 owners reported fuel gauges reading empty despite full tanks within the first 100 hours of operation. Investigation revealed a factory connector issue where the sending unit wire wasn’t properly crimped, causing intermittent connection failures.
Solution: Warranty replacement of entire sending unit harness. Kubota issued technical service bulletin TSB-2019-L2501-FG addressing this issue.
Case Study: B2910 Chronic Failure Pattern
A B2910 owner experienced recurring fuel gauge failures every 18-24 months. Investigation revealed inadequate tank ventilation causing internal corrosion of the sending unit. Moisture buildup accelerated component degradation.
Resolution: Upgraded tank ventilation system and installed more corrosion-resistant aftermarket sending unit. No failures reported in subsequent 4 years of operation.
Sending Unit Replacement Options
Method 1: Top Access (Preferred)
Models: Most L-series and newer BX models
Advantages: No tank removal required
Tools Needed: Socket set, fuel line tools, spanner wrench
Time Required: 1-2 hours for experienced DIYers
Method 2: Tank Removal
Models: Older B-series and early L-series
Requirements: Floor jack, 15+ gallon drain pan
Complexity: Higher difficulty, consider professional help
Time Required: 4-6 hours including fuel drainage
Safety Considerations and Best Practices
Critical Safety Warning: Working with fuel systems requires extreme caution. Always have a fire extinguisher readily available and work in well-ventilated areas. Avoid smoking, sparks, or open flames within 50 feet of the work area.
Essential Safety Equipment
- Fire Extinguisher: Class B rated for flammable liquids
- Eye Protection: Safety glasses or face shield
- Ventilation: Work outdoors or with adequate airflow
- Spill Protection: Absorbent materials and drain pans
- First Aid Kit: Readily accessible emergency supplies
Cost Analysis and Parts Availability
2025 Repair Cost Breakdown
| Component | Price Range |
|---|---|
| OEM Sending Unit | $65-$120 |
| Aftermarket Sending Unit | $35-$75 |
| Professional Labor | $150-$300 |
| DIY Total Cost | $35-$120 |
Preventive Maintenance Schedule
Annual Inspection Checklist
- Visual Inspection: Check fuel tank ventilation systems
- Electrical Connections: Clean and protect with dielectric grease
- Fuel Quality: Test for water contamination
- Ground Integrity: Verify all ground connections are secure
- Wire Harness: Inspect for chafing, rodent damage, or corrosion
Success Rate Statistics
Diagnostic Accuracy: Following proper procedures yields 90%+ success rates
Common Error: Skipping ground system testing leads to 40% of repeat failures
Professional vs DIY: Simple sending unit replacement has 85% DIY success rate
Seasonal Factors: Failures increase 40% during spring startup after winter storage
Frequently Asked Questions
Why does my Kubota fuel gauge read full all the time?
A gauge stuck on full typically indicates internal sending unit failure or a short circuit to ground. The sending unit’s variable resistor is likely damaged, maintaining a constant low resistance reading that the gauge interprets as “full tank.”
Can I use a universal sending unit in my Kubota tractor?
Yes, universal sending units can work with proper resistance matching. Ensure the ohm range matches your model specifications (0-90 ohms for most L-series, 0-240 ohms for BX series). You may need minor mounting modifications.
How long should a Kubota fuel sending unit last?
Quality OEM sending units typically last 8-12 years or 2000-3000 operating hours. Aftermarket units may have shorter lifespans (4-6 years). Proper fuel quality and tank ventilation significantly extend component life.
What tools do I need to replace a Kubota fuel sending unit?
Essential tools include: socket set (10mm and 12mm), fuel line disconnect tools, sending unit spanner wrench, multimeter for testing, and safety equipment including fire extinguisher and proper ventilation. Tank access varies by model.
Ready to Fix Your Kubota Fuel Gauge?
Follow these proven diagnostic steps for reliable results. Most fuel gauge problems can be resolved with basic tools and systematic testing.
Remember: Always disconnect the battery and ensure proper ventilation when working with fuel systems. When in doubt, consult a qualified technician.
