Complete DIY Guide for Kubota Common Rail Fuel Injector Replacement
Master the skills to diagnose, remove, and install Kubota fuel injectors safely and effectively

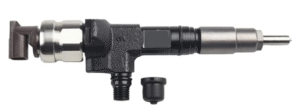

Understanding Kubota Common Rail Fuel Injection Systems
System Operation Principles
Common rail injectors perform multiple injections during a single combustion cycle, delivering significant benefits including lower emissions, improved fuel economy, and better drivability. The high-pressure common rail system maintains constant fuel pressure in a shared rail, allowing precise electronic control of injection timing and quantity.
Kubota Model Applications
Modern Kubota tractors equipped with common rail systems include:
- L-Series: L3901, L4701, L5740 (V2607-CR engines)
- M-Series: M5-111, M6-141, M7-151 (V3307-CR, V3800-CR engines)
- MX-Series: MX5400 (V2607-CR engine)
Precision Requirements
With sub-micron tolerances and operating pressures upwards of 2,000 bar (29,000 PSI), today’s common rail injectors are working harder, making them more vulnerable to wear and tear. These systems inject fuel through clearances as small as 1 micron, demanding exceptional precision in maintenance procedures.
Critical Symptoms Requiring Kubota Fuel Injector Replacement
Hard Starting and Cold Start Issues
A faulty fuel injector disrupts the spray of fuel into the combustion chamber, worst case preventing it altogether, significantly impacting vehicle performance. Primary starting symptoms include:
- Extended cranking time before engine fires
- Cold starting problems and rough initial idle
- Engine stumbling during warm-up period
- Complete failure to start in cold conditions
Misfiring and Rough Engine Operation
With disrupted fuel supply, the engine’s cylinders cannot provide enough power, causing misfiring. If the vehicle is not getting enough or an uneven supply of fuel, the RPM while idling will drop, resulting in rough idle. Indicators include:
- Rough idle with visible shaking
- Loss of power under load
- Hesitation during acceleration
- Engine knocking and detonation from timing issues
Exhaust Smoke Production
A bad injector causes uneven or incomplete fuel burn, resulting in increased emissions and visible exhaust smoke. Drivers notice either black or white smoke, depending on the injector failure mode:
White Smoke Characteristics:
- Thick white smoke at startup
- Continuous white smoke under load
- Sweet smell from unburned fuel
- White smoke diagnosis techniques
Black Smoke Indicators:
- Over-fueling from stuck-open injector
- Incomplete combustion patterns
- Excessive fuel delivery
- DPF regeneration problems
Professional Diagnostic Procedures
Electronic Diagnostic Scanning
The first step is to plug in an OBD diagnostic scan tool to confirm the fault code. Common codes for Kubota common rail systems include:
- P0201-P0204: Injector circuit malfunction (cylinders 1-4)
- P0087: Fuel rail pressure too low
- P0088: Fuel rail pressure too high
- P0262-P0265: Injector balance faults
Mechanical Testing Methods
Leak-Off Test (Back Leakage Test)
Check the injectors back leak flow to confirm which injector(s) is at fault:
Test Procedure:
- Connect clear tubing to each injector return line
- Route tubes into separate measuring containers
- Start engine and idle for 60 seconds
- Measure fuel returned from each injector
- Compare to service specifications
Typical Specifications: Normal return flow: 20-40ml/minute at idle, Maximum acceptable: 60ml/minute
Electrical Resistance Testing
For DC wound coil injectors (Delphi, Denso and some Bosch), use a multimeter to test the resistance of the injector’s electrical integrity. Typical specification: 0.3-0.8 ohms resistance across injector terminals.
Critical Safety: System Depressurization
🚨 EXTREME DANGER WARNING
Before starting any work, check there’s no residual pressure left in the system using a diagnostic tool. Common rail systems maintain extreme pressure even after engine shutdown. Fuel at 30,000 PSI can penetrate skin causing injection injuries, spray 10+ feet with force, and cause severe eye damage.
Electronic Depressurization Process
- Connect diagnostic scan tool
- Navigate to fuel system functions
- Select “Depressurize Fuel System”
- Follow on-screen prompts
- Wait for confirmation
Mechanical Depressurization Backup
- Disconnect battery negative terminal
- Remove fuel pump fuse/relay
- Attempt to start engine (will not run)
- Crank for 10-15 seconds
- Wait 10 minutes for system equilibrium
- Slowly crack high-pressure line fitting to verify no pressure

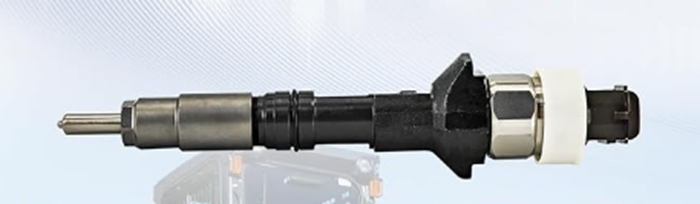

Step-by-Step Kubota Fuel Injector Replacement Process
Required Tools and Materials
Specialized Tools:
- Torque wrench (10-50 ft-lbs range)
- 17mm and 22mm deep sockets
- Injector puller tool (if seized)
- High-pressure line removal tools
- Injector seat cleaning kit
Replacement Parts:
- New injectors (OEM or premium aftermarket)
- Viton O-ring seal kits
- Copper crush washers
- High-pressure fuel lines (if damaged)
- Thread sealant (specific type)
Detailed Removal Process
Step 1: Fuel System Preparation
Remove the injector pipe – cap any exposed pipes to avoid contamination. Remove the back leakage, disconnect glow plug connector, remove electrical connector and holding clamp.
Step 2: High-Pressure Line Removal
Use proper flare nut wrench (17mm typically). Never use adjustable wrench. Loosen at both injector and rail ends. Cap lines immediately to prevent contamination.
Step 3: Injector Extraction
Use 22mm deep socket to remove injectors. Attempt hand removal first. If seized, use slide hammer with adapter. Never pry against cylinder head.
Critical Cleaning Procedures
Prior to fitting the replacement injector, proper cleaning is essential:
Injector Bore Cleaning Process:
- Initial Inspection: Examine bore for carbon buildup and scoring
- Carbon Removal: Use injector seat cutter and brass brush (never steel wire)
- Seal Surface Preparation: Stone or lap seal surface flat, remove pitting
- Final Cleaning: Compressed air and solvent wipe of all surfaces
Installation Process
Problems such as incorrect torque or missing or incorrectly seated sealing rings can cause unnecessary wear:
- Seal Installation: Lubricate new o-rings with clean diesel fuel
- Copper Crush Washer: Always use new washer (never reuse)
- Injector Positioning: Insert slowly and straight (no twisting)
- Hold-Down Installation: Refit retaining clamp and torque to specifications (15-25 ft-lbs)
- Fuel Line Installation: Install new high-pressure pipe and torque correctly (15-20 ft-lbs)
ECU Coding and Programming Requirements
Why Injector Coding is Essential
Reprogramme the ECU with the new correction code using a diagnostic tool. This ensures that the adjustment to the pulse times is made and the correct fuel delivery is maintained. Each common rail injector has unique flow characteristics due to manufacturing tolerances.
Coding Procedures
Equipment required includes factory diagnostic software, J1939 or OBD-II cable, and laptop with appropriate software. Electrical system diagnostics knowledge is essential for ECU access.
Programming Steps:
- Connect diagnostic tool and establish ECU communication
- Navigate to injector coding function
- Enter complete correction code exactly as shown on injector
- ECU confirms code acceptance
- Test drive to verify adaptation
Post-Installation and System Bleeding
Fuel System Priming
After injector replacement, air must be purged from fuel system. This critical step prevents hard starting and rough running:
System Priming Procedure:
- Fill fuel filter housing
- Activate lift pump (key on, engine off)
- Open bleed screws in sequence
- Close when bubble-free fuel flows
- Repeat until system fully primed
Bleeding the fuel system properly is essential for optimal performance.
Initial Start and Break-In
Extended cranking may be necessary (up to 30 seconds). Start and allow idle for 5 minutes, monitoring for leaks. First 10 hours require light loads only while ECU learns injector characteristics.
Cost Analysis for Kubota Fuel Injector Replacement
| Component | OEM Kubota | Aftermarket | Remanufactured |
|---|---|---|---|
| Common Rail Injector | $450-650 | $250-400 | $200-350 |
| Seal Kit | $25-40 | $15-25 | Included |
| Professional Labor | $600-1,200 | $400-800 | $400-800 |
Total Cost Comparison (Four-Cylinder Engine):
- DIY with OEM parts: $2,000-2,800
- DIY with aftermarket: $1,200-1,800
- Professional OEM: $3,200-4,500
- Professional aftermarket: $2,400-3,500
Prevention and Maintenance
Fuel Quality Management
Use premium quality fuel with added detergents to help keep engine parts clean from deposits. Critical fuel specifications include:
- Cetane rating: Minimum 45 (prefer 50+)
- Ultra-low sulfur diesel (ULSD)
- Water content: Less than 200 ppm
- Particulate contamination: Less than 10 microns
Injector clogging from contaminated fuel is a leading cause of premature failure.
Regular Maintenance Schedule
Replace air, oil and fuel filters regularly. Dirty or clogged filters allow contaminants into the engine, causing damage to key components:
- Fuel filter: Every 200 hours
- Water separator: Drain weekly
- Fuel additive: Every tank in winter
- Injector inspection: Every 500 hours
Follow the complete preventive maintenance schedule to maximize injector life and prevent costly repairs.
Troubleshooting Common Post-Installation Issues
Hard Starting After Replacement
Cause: Air in fuel system
Solution: Re-bleed system thoroughly using proper sequence
Prevention: Prime system before initial cranking attempt
Excessive White Smoke
Cause: Injector not fully seated or damaged copper washer
Solution: Verify proper installation depth and replace all seals
Check: Copper washer installation with chamfer facing nozzle
Rough Idle After Installation
Cause: Incorrect injector coding or incomplete ECU adaptation
Solution: Verify correction codes entered correctly and complete 10-20 drive cycles
Professional Help: May require factory diagnostic software
Related Resources
Essential Reading for Kubota Owners
- Complete Fuel System Bleeding Guide
Step-by-step air removal procedures essential after any fuel system work. - White Smoke Diagnosis and Solutions
Comprehensive troubleshooting for combustion-related performance issues. - Ultimate Maintenance Checklist
Complete preventive maintenance schedule to avoid costly repairs. - DPF Cleaning and Regeneration Guide
Address filter issues often caused by faulty fuel injection systems.
Frequently Asked Questions
How often should Kubota fuel injectors be replaced?
Kubota fuel injectors typically last 100,000-150,000 miles under normal conditions. However, factors like fuel quality, operating conditions, and maintenance intervals significantly impact lifespan. Inspect injectors regularly as a rule of thumb every 20,000 miles, but may be sooner if frequent shorter journeys are made.
Can I replace just one failed injector or must I replace all of them?
While single injector replacement is possible, replacing all injectors simultaneously is recommended for balanced fuel delivery, uniform age and wear patterns, and labor efficiency. Mixed old and new injectors can cause uneven performance and require more frequent ECU adaptations.
What happens if I don’t code new injectors to the ECU?
Uncoded injectors will cause rough idle, poor fuel economy, increased emissions, and potential check engine lights. Each injector has unique flow characteristics that must be programmed into the ECU for optimal performance. Without proper coding, the engine management system cannot compensate for manufacturing tolerances, leading to suboptimal fuel delivery.
Is it safe to work on high-pressure common rail systems?
Common rail systems operate at extremely high pressures (up to 30,000 PSI) and require proper depressurization procedures before any work begins. Improper handling can cause severe injuries including fuel injection wounds. Always use diagnostic tools to confirm system depressurization and follow manufacturer safety protocols with appropriate protective equipment.
