Kubota fuel system bleeding is an essential maintenance task to remove air trapped in diesel fuel lines, ensuring smooth engine operation and preventing fuel starvation. This guide provides step-by-step instructions for bleeding modern and traditional Kubota fuel systems, detailing symptoms of air locks, required tools, preventative maintenance, advanced troubleshooting, and safety best practices.

Primary Symptoms

• Hard starting or failure to start the engine
• Rough idling with uneven engine operation
• Power loss under load leading to engine stalling
• Engines starting briefly then dying within 30 seconds to 2 minutes

Advanced Diagnostic Signs

• Intermittent engine “chug and die” behavior under load
• Engines that struggle to fire, indicating trapped air
• Tractors that start cold but won’t restart after 15-30 minutes
• Case Study: Kubota B7200 owner experienced repeated shutdowns after injector change due to residual air

Primary Tools Required

• Hand primer pump or lever (manual fuel pump lever for priming)
• Clear tubing to observe fuel flow and detect air bubbles
• Collection container to catch expelled fuel safely
• 17mm wrench for injector line nuts
• Clean rags for cleanup and fuel spill management

Advanced Equipment

• Fuel pressure gauge for diagnostic verification
• Grease gun adapted to fuel for stubborn air locks
• Clear fuel lines for visual air bubble detection

Modern Kubota Systems (BX Series and Newer)

1. Turn the ignition key to the “ON” position for 30 seconds to activate the electric fuel pump.
2. Start the engine normally. Most modern diesels have electric lift pumps and are self-bleeding, so manual injector line bleeding is usually unnecessary.

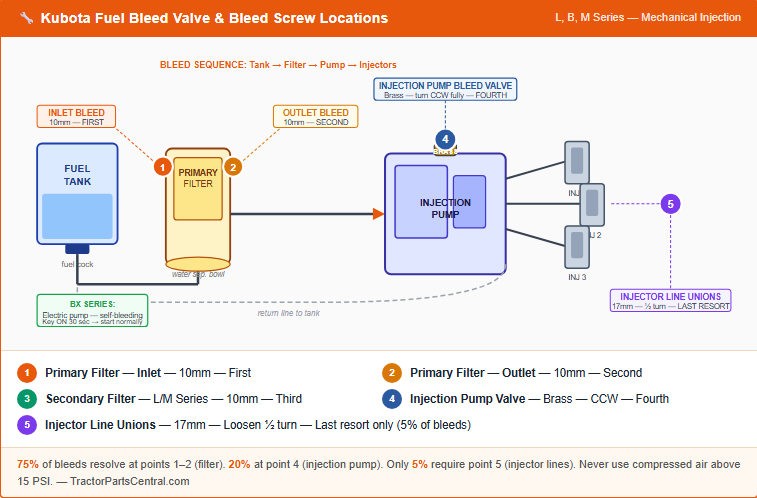

Traditional Kubota Systems (L, B, M Series)

• Primary filter inlet screw: First bleed point closest to fuel tank.
• Primary filter outlet screw: Second stage after inlet.
• Secondary filter housing: Last filtration before injection pump.
• Injection pump jet start valve: Rotate left to open for bleeding air, right to close after.
• Individual injector unions (17mm nuts): Final fuel spitting from these confirms complete air removal.

Filter Replacement Intervals

Replace fuel filters every 300-400 operating hours according to Kubota schedules. For infrequent use, annual replacement is recommended for safety.

Some operators report extended use beyond 1800 hours without issue when fuel quality is high, but adhering to recommended intervals prevents contamination risks.

Fuel Quality and Contamination Prevention

• Use Ultra Low Sulfur Diesel (ULSD) with sulfur content below 15 ppm.
• Maintain minimum cetane rating of 45; ratings above 50 preferred for cold or high-altitude operation.
• Biodiesel blends limited to B5 maximum to avoid moisture absorption and filter clogging.
• Drain water separators regularly to prevent microbial “diesel bug” growth causing sludge and engine stoppage.

Persistent Air Lock Solutions

If standard bleeding fails, bleed the filter first, then the fuel bleed valve on the injection pump. Crank until fuel flow solidifies at the bleed points, then tighten and test.

System Pressure Testing and Emergency Techniques

• Use steady air pressure under 15 psi carefully to release trapped air without damaging seals.
• Emergency field method: applying compressed air to the fuel tank filler can prime the system quickly—exercise extreme caution to avoid damage.

Time Efficiency and Success Rates

• Modern systems: average bleeding time 2-3 minutes
• Traditional systems: typical bleeding takes 5-10 minutes
• Complex air locks with full injector bleeding may require 15-30 minutes
• Success statistics: 75% resolved with primary bleeding, an additional 20% with secondary pump bleeding, and 5% require full injector line bleeding

Cost Impact

• Fuel filter replacement costs: $25-45 per service
• Professional fuel system bleeding service: $75-125
• Delayed maintenance can lead to costly injector pump repairs: $500-2,000

Expert Testimonials

“Water contamination can cause catastrophic damage, sometimes requiring engine replacement. Proper bleeding and maintenance prevent most failures.” — Kubota Dealer

“I’ve bled hundreds of Kubotas using high-rpm starting after filter priming, rarely needing to bleed injectors.” — Experienced Operator

Fuel Handling Safety

• Use approved containers for fuel collection and disposal. Fuel Gauge acting up?
• Ensure good ventilation to avoid inhalation of fumes
• Keep a fire extinguisher at hand near the working area
• Wear safety glasses to protect from fuel spray

Engine Protection

• Never overtighten injector nuts while engine runs to avoid dangerous fuel injection injuries
• Limit cranking to 20-second intervals to prevent starter overheating, with 10-minute rest periods
• Starting issues typically have five common causes under $100 to fix.

Efficient Kubota fuel system bleeding is a key maintenance step to prevent air lock-related performance problems. Modern Kubota engines have simplified bleeding through electric lift pumps, but traditional systems require a methodical approach from fuel tank to injectors. Regular fuel filter replacement, quality fuel use, and water contamination control minimize the need for major bleeding.

Use the recommended tools and follow manufacturer procedures carefully, supported by safety best practices to protect operators and equipment. When practiced regularly, these steps maintain reliable engine performance and can prevent costly repairs.

Always consult your specific Kubota model’s operator manual for detailed bleeding instructions as systems vary by series and age.

How often should I bleed my Kubota fuel system?

Bleeding is typically required whenever the fuel system is opened, such as after a filter change or running out of fuel. Regular maintenance reduces air lock occurrences.

Can I use biodiesel in Kubota engines?

Kubota approves biodiesel blends up to B5 (5%). Higher blends may cause water absorption and clog filters, requiring more frequent maintenance.

What tools do I need to bleed my Kubota fuel system?

A hand primer pump or lever, clear tubing, 17mm wrench, and collection container are essential. Advanced equipment like fuel pressure gauges can help diagnose stubborn air locks.

What are the consequences of not bleeding air from the fuel system?

Failure to remove air causes hard starting, rough running, power loss, and possible engine damage from fuel starvation or pump cavitation.
