Quick Answer: Kubota remote hydraulic valves control external implements from the operator station, requiring proper installation, regular maintenance, and systematic troubleshooting for optimal performance. These critical components enable precise flow direction, rate regulation, and system pressure management for enhanced tractor productivity.

⚠️ Important Notice: All hydraulic work should be performed with engine shut off and system pressure relieved. Always wear proper safety equipment including safety glasses and hydraulic-resistant gloves.

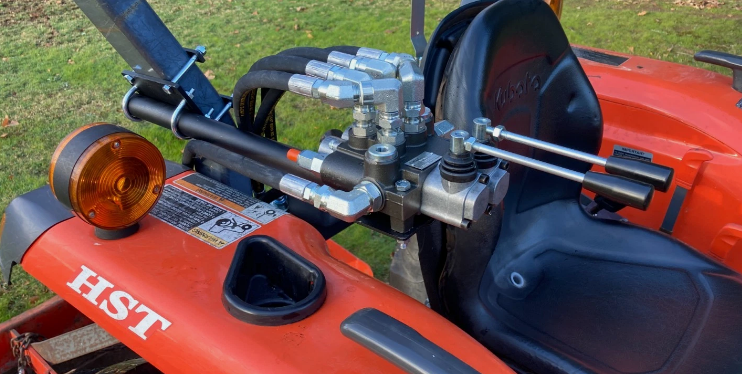

The Kubota remote hydraulic valve serves as the critical interface between your tractor’s hydraulic system and external implements like backhoes, grapples, hydraulic augers, and other hydraulically-powered attachments. These sophisticated components control multiple functions simultaneously, making them essential for modern agricultural and construction operations where precision and efficiency are paramount. Need to install a Hydraulic Thumb?

Primary Control Functions

Flow Direction Control represents the most fundamental function of remote hydraulic valves. These advanced spool-type mechanisms redirect pressurized hydraulic fluid from the tractor’s main hydraulic circuit to specific hydraulic cylinders or motors on implements. This directional control enables precise operation of extend/retract, raise/lower, and open/close functions across various attachments. The spool valve design allows for infinite positioning between fully open and closed positions, providing operators with unprecedented control over implement movement and positioning.

Flow Rate Regulation capabilities allow operators to adjust the speed of hydraulic implement operations with remarkable precision. Modern Kubota remote valves incorporate sophisticated flow control features particularly important for delicate operations requiring precise control, such as material handling, precision digging operations, or delicate lifting tasks. The flow control mechanism works through variable orifice technology that responds to joystick input, allowing operators to maintain consistent speeds regardless of load variations.

System Pressure Management protects both the tractor’s hydraulic system and connected implements through integrated pressure relief functionality. Each remote valve circuit includes pressure relief valves set to activate at predetermined pressure thresholds specific to each tractor model, typically around 2205psi for most Kubota systems. This protection prevents catastrophic system failures and extends component life by preventing over-pressurization during high-load operations.

Advanced Control Interface Features

Joystick Operation Systems utilize spring-centered joystick controls that provide intuitive operation for operators of all skill levels. The joystick position directly corresponds to valve spool position, allowing for proportional control of implement speed and direction. Neutral spring return ensures automatic system shutdown when the operator releases the control, providing an essential safety feature during emergency situations.

Detent Position Functionality allows operators to maintain hydraulic flow without constant joystick pressure. This feature is essential for implements requiring sustained hydraulic pressure, such as hydraulic augers, continuous-operation attachments, or holding loads in position for extended periods. The detent mechanism locks the valve in specific positions, reducing operator fatigue during long work sessions.

Safety Integration Systems incorporate multiple layers of protection including pressure relief integration and return circuit protection. All Kubota remote hydraulic valves include pressure relief valves calibrated to system specifications, while return line filtration and pressure regulation prevent contamination and maintain system integrity, extending service life of both tractor hydraulic components and connected implements.

Pre-Installation Planning and Preparation

Hydraulic System Integration

Main Hydraulic Circuit Integration involves connecting remote hydraulic valves to the tractor’s main hydraulic circuit through the loader valve’s power-beyond port or through dedicated rear remote circuits. The connection method varies by tractor model and existing hydraulic configuration. Power-beyond connections allow the remote valve to receive hydraulic flow after it passes through the loader valve, while dedicated circuits provide independent flow paths for enhanced performance.

High-Pressure Line Installation requires careful routing of hydraulic hose with pressure ratings exceeding system maximum pressure by at least 25% safety margin. All connections require proper torque specifications according to manufacturer guidelines and O-ring sealing to prevent system leakage. Improper torque can lead to connection failure or thread damage, while over-tightening can damage sealing surfaces.

Return Line Configuration must be routed back to the hydraulic reservoir through appropriate filtration while maintaining minimal back-pressure for optimal valve operation. Return circuit design significantly impacts system efficiency and component longevity. Proper return line sizing prevents excessive back-pressure that can cause sluggish valve response and premature component wear.

Electrical System Integration

Power Supply Connections for modern electronic remote valve systems require clean 12V DC power supply connections and control circuit wiring integrated with the tractor’s electrical system. Proper circuit protection through appropriately rated fused connections ensures system reliability and prevents electrical damage during voltage spikes or short circuit conditions.

Control Switch Installation requires mounting switches in accessible locations within the operator station while maintaining ergonomic operation principles. Switch wiring must follow Kubota’s specified color codes and connector types to ensure proper system integration and maintain warranty coverage. Consider operator comfort and line-of-sight to implements when positioning control switches.

Systematic Diagnostic Approach

No Operation Diagnosis requires systematic analysis when remote hydraulic valves fail to operate completely. Most owners report common issues including pressure valve leaks, sticking or binding spool valves, and slow response time when lifting or dropping the hitch. Additional symptoms include low oil pressure indicators, noisy operation during valve actuation, and jerky or erratic response during implement operation.

Begin comprehensive electrical system checks by verifying 12V power supply to valve solenoids using a calibrated digital multimeter. Check all electrical connections for corrosion buildup, loose terminals, or damaged wiring that may have occurred during normal operation. Verify control switch operation and electrical continuity through the entire control circuit, including ground connections that often cause intermittent operation problems.

Advanced Hydraulic Pressure Testing involves installing calibrated pressure gauges at multiple points in the valve inlet system to verify adequate system pressure throughout the hydraulic circuit. Insufficient pressure may indicate main hydraulic pump problems, severely clogged filters, or relief valve malfunctions in the primary hydraulic circuit. Document pressure readings at various engine RPMs to identify pump performance issues.

Comprehensive Slow Operation Analysis addresses performance issues that significantly impact productivity. Slow hydraulic implement operation typically results from reduced flow rates caused by system restrictions, valve malfunctions, or contaminated hydraulic fluid. If the hitch does not lift or lifts slowly, this may indicate a damaged relief valve, faulty hydraulic spool valve block, or inadequate system pressure caused by pump wear.

Check main relief valve settings using calibrated pressure testing equipment and compare readings to manufacturer specifications. Replace hydraulic filters and examine used filters for contamination indicators that suggest internal component wear or external contamination sources. Clean or replace clogged filters that significantly reduce system flow rates and cause slow implement operation across all hydraulic circuits.

Internal System Contamination Assessment involves analyzing hydraulic fluid samples for metal particles, water contamination, or chemical breakdown products that indicate system problems. Contaminated fluid can cause valve sticking, seal deterioration, and accelerated component wear throughout the hydraulic system.

Leakage Diagnosis and Repair

External Leakage Investigation addresses visible fluid loss that reduces system performance and creates safety hazards. External leaks occur due to worn-out seals, damaged hoses, loose connections, or improperly torqued fittings. Symptoms include reduced hydraulic fluid levels requiring frequent refilling, decreased implement performance, and visible fluid accumulation around valve areas or connection points.

Internal Leakage Detection requires more sophisticated diagnostic techniques since internal leakage within hydraulic valves results in pressure loss and reduced performance without visible fluid loss. Internal leakage occurs due to worn valve components, damaged internal seals, or contamination causing improper sealing between valve chambers. Symptoms include slow or weak hydraulic functions, excessive fluid consumption, and inability to maintain implement position under load.

Professional Seal Replacement Procedures require complete disassembly of valve components using proper hydraulic service tools. Replace O-rings and seals using genuine Kubota parts or equivalent specifications that meet or exceed original equipment standards. All sealing surfaces must be thoroughly cleaned and inspected for scratches, nicks, or damage that would prevent proper sealing. Apply appropriate hydraulic assembly grease to seals during installation to prevent damage and ensure proper sealing performance.

Factory Part Numbers and Components

Remote Valve Kit: 70000-30405 represents the complete factory remote hydraulic valve assembly including precision-manufactured spool valves, calibrated relief valves, and all necessary mounting hardware designed for seamless integration with compatible Kubota tractor models. This comprehensive kit ensures proper fit, function, and compatibility with existing hydraulic systems while maintaining warranty coverage.

Mounting Bracket: 70000-30410 provides the factory-engineered mounting bracket specifically designed for proper tractor model integration, ensuring optimal positioning and secure installation under all operating conditions. The bracket design considers stress distribution, vibration dampening, and accessibility for maintenance procedures.

Supporting Component Systems include pre-formed hydraulic hoses with appropriate end fittings engineered to meet Kubota’s stringent pressure and temperature specifications. Complete wiring harnesses feature weather-resistant connectors that ensure reliable electrical connections in harsh agricultural environments, while control switches are specifically designed for integration with existing tractor electrical systems.

Performance Specifications and Requirements

Most Kubota remote hydraulic valves require minimum flow rates of 3-5 GPM for proper operation, with standard valves capable of handling maximum flow rates up to 15 GPM depending on specific valve configuration and tractor model capabilities. Flow requirements vary significantly based on implement type, with larger implements requiring higher flow rates for acceptable performance levels.

Kubota hydraulic systems typically operate at 2205psi working pressure with relief valves set slightly higher to accommodate pressure spikes during normal operation. Connected implements must be designed for compatible pressure ranges, with some specialized installations requiring pressure increases up to 2600 psi for specific implement requirements. However, inlet pressure for backhoe applications should not exceed 2175 psi to prevent system damage and maintain safe operation.

Temperature Considerations play a critical role in valve performance, with hydraulic fluid temperature affecting viscosity and system efficiency. Operating temperatures should be maintained between 100-180°F for optimal performance, with overheating indicating system problems requiring immediate attention.

Preventive Maintenance Excellence

Comprehensive Maintenance Scheduling is crucial for preventing hydraulic valve problems and extending system life. This includes changing hydraulic fluid every 500 hours of operation or annually, whichever comes first, depending on operating conditions and environmental factors. Using high-quality hydraulic fluid meeting or exceeding Kubota specifications prevents contamination and ensures smooth valve operation under all conditions.

System Bleeding Procedures involve operating all hydraulic functions through their complete range of motion while maintaining adequate fluid levels in the hydraulic reservoir. Proper bleeding prevents air from entering the system and causing spongy or erratic operation that reduces productivity and may indicate more serious system problems. The bleeding process may require multiple repetitions for complete air removal, particularly after major service or component replacement.

Filter Service Protocols require regular inspection and replacement of hydraulic filters according to manufacturer schedules. Contaminated filters restrict flow and cause system problems including slow operation, overheating, and premature component wear. Monitor filter condition indicators and replace filters showing contamination regardless of hour intervals to maintain system performance.

Key Takeaways for Success

Kubota remote hydraulic valves significantly expand tractor implement capabilities when properly installed, maintained, and operated according to manufacturer specifications. Success depends on careful attention to installation details, comprehensive understanding of system requirements, proper maintenance procedures, and systematic troubleshooting approaches when problems arise. Regular maintenance including hydraulic fluid service, filter replacement, system inspection, and operator training ensures reliable operation and maximizes productivity while minimizing long-term operating costs and preventing costly system failures.

Frequently Asked Questions

What is the typical flow rate requirement for Kubota remote hydraulic valves?

Most Kubota remote hydraulic valves require minimum flow rates of 3-5 GPM for proper operation, with standard valves capable of handling up to 15 GPM depending on the specific valve configuration and tractor model. Larger implements may require higher flow rates for acceptable performance levels.

How often should hydraulic fluid be changed in systems with remote valves?

Hydraulic fluid should be changed every 500 hours of operation or annually, whichever comes first. Severe operating conditions may require more frequent changes, and always use high-quality hydraulic fluid meeting Kubota specifications to prevent contamination and ensure optimal valve performance.

What are the main causes of slow hydraulic operation in remote valve systems?

Slow hydraulic operation typically results from reduced flow rates caused by clogged filters, damaged relief valves, faulty hydraulic spool valve blocks, contaminated hydraulic fluid, or inadequate system pressure. Regular maintenance and systematic diagnosis can identify and resolve these issues effectively.

Can I install remote hydraulic valves myself, and what skills are required?

While experienced operators can install remote hydraulic valves, the process requires comprehensive hydraulic system knowledge, proper tools, safety precautions, and understanding of electrical systems. Installation typically involves fender removal, precise hydraulic line routing, electrical connections, and system testing following manufacturer specifications for safe and reliable operation.
