Overview: The Kubota V2203 engine is known for its reliability, but turbocharger failures can cause significant performance issues if ignored. This detailed guide covers how to identify turbo problems early, step-by-step diagnostics, complete replacement instructions, proactive maintenance tips, and troubleshooting advice to keep your turbocharged diesel engine running smoothly.
Understanding the Kubota V2203 Turbocharger System

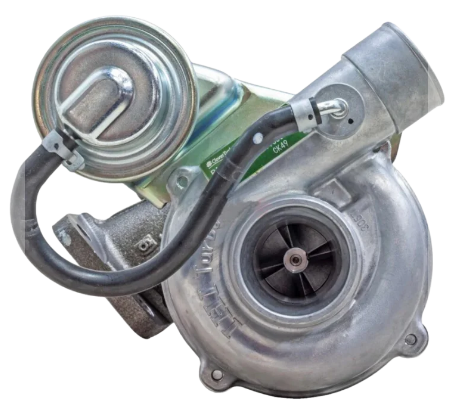

The Kubota V2203 is a 2.2L, 4-cylinder diesel engine widely deployed in construction, industrial, and generator applications. Its turbocharged variants utilize the robust and efficient IHI RHF3 series turbocharger, designed to deliver optimal boost performance at operating speeds from 1,800 to 2,800 RPM.
Key specifications and design features include:
- Power Range: Between 40 to 60 HP depending on configuration
- Turbo Model: IHI RHF3, variable geometry design optimized for diesel engines
- Boost Pressure: 6–10 PSI typical during full load
- Oil Pressure Requirements: 45–75 PSI at operating temperature
- Exhaust Side Temperatures: Up to 950°C, requiring quality materials and lubrication
The turbocharger spins at speeds exceeding 100,000 RPM and relies heavily on the engine’s oil system for lubrication. Thus, maintaining clean oil flow and proper operating pressures is essential to prevent failure.
Common Turbo Failure Symptoms & Early Warning Signs
Primary Symptoms Indicating Turbo Trouble
Signifies oil leaking past worn seals into combustion chambers. Most noticeable on cold starts or under heavy load.
Reduced power output and black smoke from incomplete combustion often follow turbo inefficiency or boost loss.
High-pitched noises under acceleration suggest compressor wheel damage or bearing wear.
Oil escaping from turbo mounts or housings points to seal failure or excessive oil pressure.
Secondary Symptoms to Monitor
- Increased Oil Consumption: More frequent top-offs indicate slow seal deterioration.
- Irregular Idle: Oil contamination in the intake system can cause uneven idling.
- Low Boost Pressure: Boost dropping below 6 PSI at load signals progressive turbo damage or system leaks.
How to Diagnose Turbocharger Problems
Step 1: Measuring Boost Pressure
Install a boost pressure gauge on the intake manifold. Monitor boost under load; normal operating pressure is 6 to 10 PSI. Readings consistently below 4 PSI with whistling noise indicate turbo damage or leaks. Confirm wastegate operation and piping integrity.
Step 2: Inspect Compressor Wheel & Bearings
- Remove air intake and visually inspect compressor blades for cracks, chips, or oil deposits.
- Check that the compressor wheel spins freely without rubbing the housing.
- Manually test for excessive shaft play by gently attempting to move the wheel radially and axially.
- Any grinding noise or loose play confirms bearing wear requiring turbo replacement.
Step 3: Oil Supply & Drain Inspection
Ensure oil feed and drain lines are free of obstructions and leaks. Verify oil pressure to the turbocharger is between 45 and 75 PSI at 2000 RPM. The crankcase ventilation system should keep pressure below 2 PSI to avoid seal damage.
Step-by-Step Turbo Replacement Procedure
Preparation Before Starting
Identify and correct causes such as oil contamination or air system leaks. Replace engine oil and oil filters before removal. Collect all required tools and replacement parts:
- Socket set (10mm to 17mm sizes)
- Torque wrench capable of 20-50 ft-lbs
- Penetrating oil and lithium grease
- Quality new engine oil (5W-40 or 15W-40 diesel grade)
- New turbocharger and full gasket/seal kit
- Clean shop rags and gloves
Removal Steps
- Drain engine oil completely to avoid contamination.
- Disconnect battery for safety precautions.
- Remove engine covers and entire air intake system.
- Disconnect oil supply and drain lines carefully catching residual oil.
- Unbolt exhaust downpipe from turbo; apply penetrating oil to stubborn bolts.
- Remove turbo mounting bolts; soak overnight if necessary.
- Carefully remove and support turbocharger assembly to prevent damage.
Installation Steps
- Clean turbo mounting surfaces to remove all old gasket residues.
- Fit new composite and metal gaskets ensuring exact alignment.
- Position new turbo carefully; finger-tighten mounting bolts evenly.
- Torque bolts to 32 ft-lbs in a crisscross pattern for even pressure.
- Reconnect oil feed/drain lines with new seals; torque to specs.
- Attach exhaust downpipe with a new gasket; tighten bolts securely.
- Reinstall charge air cooler and air intake components removed.
- Refill engine oil to recommended level with fresh, high-quality diesel oil.
Break-In Procedure After Installation
- Before starting, crank engine for 5-10 seconds without fuel to prime oil flow through turbo bearings.
- Upon startup, allow idle for 5 minutes monitoring for leaks or unusual noises.
- Avoid full engine load for 10 hours to properly seat turbo components.
- Regularly monitor oil pressure and boost during the break-in and monthly checks thereafter.
Proactive Maintenance to Extend Turbo Life
Oil and Filter Maintenance
Maintaining clean, high-quality oil is critical; change oil and filters every 250 hours or earlier in severe conditions. Always use manufacturer-recommended diesel engine oil grades.
Air Intake System Care
- Clean air filters every 50 hours of use; replace every 500 hours or when damaged.
- Inspect hoses and intercooler for cracks, leaks, or degradation.
- Ensure tight seals on all air system connections to prevent unfiltered air ingress.
Fuel Quality and Proper Shutdown
- Use clean, filtered diesel fuel; replace fuel filters regularly and drain water separators as necessary.
- Allow engine to idle 2-3 minutes after heavy load for turbo cooldown and oil circulation.
Troubleshooting Common Turbo Issues
Look for intake leaks, faulty wastegate function, or exhaust restrictions.
Check oil drain lines, turbo seals, and crankcase ventilation.
Whistling indicates leaks; grinding suggests imminent bearing failure.
Parts & Labor Cost Estimates
| Component | Estimated Cost (USD) |
|---|---|
| OEM Turbocharger | $1,200 – $1,800 |
| Aftermarket Turbocharger | $400 – $800 |
| Gasket & Seal Kit | $50 – $100 |
| Oil & Filter | $75 – $100 |
| Labor (Experienced Technician) | 2 – 3 hours |
| DIY Time (Experienced) | 3 – 4 hours |
Conclusion & Key Takeaways
The Kubota V2203 turbocharger can provide years of reliable service with regular attention to maintenance and early symptom detection. Boost monitoring, compressor inspection, and oil supply checks are critical diagnostics for preventing major failures. When replacement is necessary, following the correct removal, installation, and break-in procedures will maximize component longevity. Routine oil changes, air filter care, and proper shutdown behavior are the most economical ways to avoid turbo damage and costly downtime.
Frequently Asked Questions (FAQ)
Change oil every 250 hours or sooner if operating under high load or dusty conditions. Use high-quality diesel engine oil.
Blue smoke is caused by oil leaking past worn turbo seals into the combustion chamber.
Yes, with basic mechanical skills and proper tools, turbo replacement takes approximately 3-4 hours.
Idle the engine for 2-3 minutes after heavy operation to allow turbo to cool and oil to circulate properly.
