Master the essential Kubota clutch adjustment procedure for optimal performance
Quick Answer: Kubota clutch adjustment requires maintaining 1.0-1.75 inches of free play (depending on model) by adjusting the threaded rod under the tractor. Proper adjustment prevents premature wear and ensures reliable power transmission.
Kubota clutch adjustment is one of the most critical maintenance procedures for ensuring optimal tractor performance and preventing costly component failures. This comprehensive guide covers everything you need to know about checking and adjusting clutch free play on your Kubota tractor, from basic measurements to advanced troubleshooting techniques.
Why Proper Clutch Adjustment Matters
Correct Adjustment Benefits
- Extends clutch life up to 2,500 hours
- Prevents throw-out bearing failure
- Ensures smooth gear shifting
- Saves $800-$2,500 in replacement costs
Incorrect Adjustment Problems
- Clutch slippage and overheating
- Gear grinding and difficulty shifting
- Premature component wear
- Reduced clutch life by up to 70%
Understanding Kubota Clutch Systems
Kubota tractors utilize either single-stage or dual-stage clutch systems depending on the model. The clutch system serves two primary functions: controlling power transmission to the transmission and differential (main clutch) and controlling power to the Power Take-Off system (PTO clutch).
The adjustment mechanism relies on maintaining proper free play in the clutch pedal to ensure adequate clearance between the throw-out bearing and clutch fingers. This clearance is critical for preventing continuous pressure that leads to premature component failure.
Free Play Specifications by Model
| Model Series | Specified Range | Optimal Setting | Tolerance |
|---|---|---|---|
| B-Series (B5100, B6100, B7100) | 1.0-1.5 inches | 1.25 inches | ±0.25 inches |
| L-Series (L3000, L3901, L4300) | 0.75-1.25 inches | 1.0 inch | ±0.25 inches |
| M-Series (M5100, M7500) | 1.0-1.75 inches | 1.375 inches | ±0.25 inches |
Step-by-Step Free Play Measurement
⚠️ Safety First
Before starting: Park on level ground, engage parking brake, ensure engine is off and cool, and wear appropriate safety equipment.
Equipment Required
- ✓ Steel ruler or measuring tape (minimum 6-inch length)
- ✓ Flashlight or work light
- ✓ Safety equipment (gloves, eye protection)
- ✓ Clean cloth for wiping components
Measurement Process
Initial Setup
Position the tractor on level ground with parking brake engaged. Ensure the engine is completely off and cool before beginning measurements.
Locate Reference Point
Find the clutch pedal at its natural rest position. Position your measuring device at the pedal pad where you would normally place your foot.
Apply Pressure and Measure
Apply gentle downward pressure on the pedal until you feel resistance indicating the throw-out bearing has contacted the clutch fingers. Measure the distance traveled.
Record Results
Document your measurement and compare it to the specifications for your specific model. Record the date for future reference.
Complete Adjustment Procedure

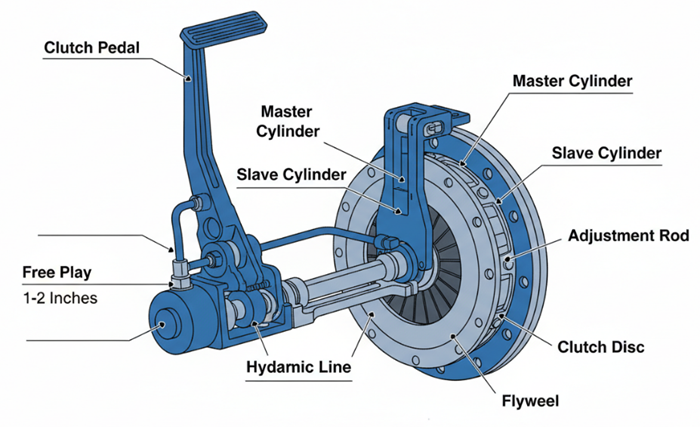

The primary adjustment point is located under the tractor, typically behind the operator platform. The adjustment mechanism consists of a threaded rod with clevis connection, lock nuts, and connecting pin with cotter pin retention.
Accessing the Adjustment Point
Position yourself under the tractor with adequate lighting to locate the clutch rod assembly between the pedal linkage and transmission. You’ll need to identify the threaded adjustment rod with clevis connection.
Critical Safety Note
Always use proper jack stands or blocks when working under the tractor. Never rely solely on the jack for support during adjustment procedures.
Adjustment Steps
Remove Hardware: Remove the cotter pin from clevis connection and remove the connecting pin to disconnect the linkage.
Loosen Lock Nuts: Loosen both lock nuts on the threaded rod to allow adjustment movement.
Make Adjustments: Turn the clevis to adjust rod length. Clockwise rotation reduces free play, while counter-clockwise increases it. Make small adjustments of 1/4 turn increments.
Test and Reassemble: Reconnect the clevis with pin and new cotter pin, tighten lock nuts securely, and test pedal free play measurement.
Advanced Adjustment Techniques
For tractors with dual-stage clutch systems, secondary adjustments may be necessary. The PTO clutch adjustment requires accessing the flywheel through removable inspection ports. Use a feeler gauge to maintain 0.016-0.024 inches clearance between the throw-out bearing and clutch fingers. This precision adjustment ensures proper PTO operation while maintaining main clutch functionality.
Environmental factors significantly impact clutch adjustment frequency. Tractors operating in dusty conditions require more frequent inspection as debris can affect linkage movement and accelerate component wear. Similarly, tractors used in wet conditions may experience increased corrosion of adjustment hardware, requiring more careful monitoring and potential lubrication schedule adjustments.
Diagnostic Symptoms and Troubleshooting
Primary Warning Signs
Gear Grinding
Occurs during shifting between gear ranges, most noticeable when shifting from neutral to gear. Indicates insufficient clutch disengagement.
Clutch Slipping
Engine RPM increases without corresponding speed increase. Most noticeable under load and may be accompanied by burning smell.
Difficult Shifting
Gear selector requires excessive force, grinding when moving between ranges. Often worse when tractor is warm.
Advanced Diagnostic Indicators
Temperature-Related Symptoms: Clutch problems often become more pronounced as operating temperature increases. If symptoms worsen after 30-45 minutes of operation, this typically indicates worn friction surfaces or insufficient free play causing continuous pressure on components.
Load-Dependent Issues: Symptoms that appear only under heavy load conditions suggest clutch disc wear or pressure plate problems. These issues may not be resolved through adjustment alone and often indicate the need for component inspection or replacement.
Vibration Patterns: Unusual vibrations through the clutch pedal or tractor frame during engagement can indicate warped pressure plates, worn pilot bearings, or misaligned components. These mechanical issues require professional diagnosis beyond simple adjustment procedures.
When Replacement is Required
Critical Failure Indicators
- Complete loss of engagement despite proper adjustment
- Clutch slips immediately under any load
- Free play cannot be maintained within specifications
- Visible mechanical damage to clutch components
- Persistent noise after proper adjustment
Preventive Maintenance Schedule
Implementing a regular maintenance schedule significantly extends clutch life and prevents unexpected failures. Monthly free play checks take only 15-30 minutes but can save thousands in repair costs.
Monthly Maintenance Tasks
- Measure and record clutch free play, check Transmission fluid level
- Visual inspection of linkage components for wear
- Check for unusual noises during operation
- Test clutch engagement under various load conditions
- Clean debris from clutch housing area
Annual Service Requirements
- Complete clutch system inspection
- Lubrication of all linkage points
- Hardware torque verification
- Comprehensive adjustment if required
- Documentation update and service record maintenance
Seasonal Considerations
Winter Preparation: Cold weather affects clutch hydraulic systems and linkage flexibility. Perform thorough adjustment checks before winter storage and again before spring startup. Consider using low-temperature lubricants for linkage points in cold climates.
Heavy Use Seasons: During intensive work periods like planting or harvest, increase inspection frequency to weekly checks. High-duty cycles accelerate wear and may require more frequent adjustments to maintain optimal performance.
Storage Periods: Extended storage can cause linkage components to seize or corrode. Exercise the clutch pedal monthly during storage and check free play before returning to service to ensure proper operation.
Cost-Benefit Analysis
Proper clutch adjustment and maintenance provides significant financial benefits:
- Clutch Life Extension: From 1,200 to 2,500+ hours with proper care
- Cost Savings: $800-$2,500 per replacement avoided
- Return on Investment: 300-500% through extended component life
- Downtime Reduction: Prevents unexpected equipment failures during critical work periods
Key Takeaways
Regular Kubota clutch adjustment is essential for optimal performance and longevity. Monthly free play checks prevent costly repairs and ensure reliable operation. When symptoms appear, address them immediately to avoid component damage and extended downtime.
***
Frequently Asked Questions
How often should I check my Kubota clutch free play?
Check clutch free play monthly as part of routine maintenance. This simple 15-30 minute check can prevent costly repairs and extend clutch life significantly. More frequent checks may be needed if you notice any symptoms like gear grinding or difficult shifting.
What happens if my clutch free play is incorrect?
Incorrect free play causes either insufficient clutch disengagement (too little free play) leading to gear grinding, or excessive pedal travel (too much free play) making shifting difficult. Both conditions can reduce clutch life by up to 70% and cause expensive component damage.
Can I adjust the clutch myself or do I need a professional?
Basic clutch adjustment can be performed by most tractor owners with basic tools and mechanical knowledge. However, if you’re uncomfortable working under the tractor or if the clutch requires replacement, professional service is recommended for safety and warranty considerations.
How long does a properly maintained Kubota clutch typically last?
With proper adjustment and maintenance, Kubota clutches can last 2,000-3,000 hours in light duty applications, 1,500-2,500 hours in medium duty, and 800-1,500 hours in heavy-duty applications. Proper free play maintenance is the single most important factor in achieving maximum clutch life.
