Picture this: you’re halfway through clearing a steep, muddy slope on your Kubota BX2380, loader bucket full of wet soil, when suddenly the front wheels spin uselessly despite the 4WD lever fully engaged. The rear pulls hard, but without front axle power, the tractor slides sideways into a ditch, risking rollover or hours of winch recovery. This nightmare hits thousands of Kubota owners yearly, especially on compact BX and B series models used for loader work, brush hogging, or property maintenance.

Or imagine navigating a snowy driveway on your B2601—the 4WD light glows green on the dash, but the front tires slip like they’re on ice while the rears dig in. Frustrating, right? These symptoms signal front axle disengagement, leaving you in 2WD when you need all four wheels most. Ignoring it leads to uneven tire wear, strained differentials, and eventual driveline failure costing over $2,000 in repairs.

What starts as a minor annoyance escalates quickly in demanding conditions like wet clay fields or rocky trails. Owners report the problem emerging after 300-500 hours, often post-winter storage or heavy muddy use. Early diagnosis prevents catastrophe—many fix it themselves for under $200, avoiding $500 dealer bills. This guide delivers model-specific steps for BX2380, B2601, L3901, and similar tractors, drawing from service insights and real-world fixes.

Kubota 4WD Fundamentals

Kubota tractors like the BX2380 and B2601 use a robust 4WD system where a shift collar slides inside the front differential to lock the front axle to the driveshaft. When you toggle the 4WD lever or switch, an actuator—mechanical on BX series, hydraulic on B and L models—pushes a fork to move this collar, engaging splines on the axle shafts. Without engagement, power flows only to the rear, fine for flat ground but deadly on slopes exceeding 15 degrees or loose gravel.

Front differential lock operates separately, locking both front wheels together for extreme traction, but basic 4WD engages hubs independently. BX series rely on cable-driven mechanical actuators with simple fork linkages, while B2601 and L3901 use hydraulic cylinders pressurized by the main system at 2,200 PSI. Proper lubrication with 0.9 quarts SAE 80W-90 gear oil in the front axle case keeps collars sliding freely; low fluid causes binding after dusty 300-hour seasons.

Real-world traction shines in mud over 6 inches deep or 20% grades—rear-only spins tires uselessly, but engaged 4WD distributes torque evenly. Cost of neglect? Drivetrain wind-up on pavement tears universals at $250 each, plus $1,200 axle rebuilds. For deeper fluid specs, see our Kubota front axle fluid change guide.

Engagement Sequence

Lever push signals switch, actuator extends 1-2 inches to slide collar over splines—test by jacking front end and spinning rear wheels.

Common Failure Causes

Actuator failure claims 60% of cases on BX2380 and BX2680 after 400 hours, where the motor or hydraulic piston seizes from mud ingress or dry forks. Shift collars bind next, warped by shock loads during hard turns on pavement—drivetrain wind-up twists them 1/4 inch out of spec. Low front axle fluid, down 30% from leaks at seals (part 6A320-22450, $15), starves lubrication, accelerating wear.

Hub corrosion hits muddy users; salt or clay packs splines, preventing collar slide despite actuator push. Linkage misadjustment stretches cables 1/8 inch over time, common on B2601 after loader abuse. Electrical gremlins like faulty switches (K1111-35110, $40) light the dash but skip mechanics. Seized forks from neglected grease zerks round out the list.

For broader drivetrain diagnostics, explore our Kubota transmission problems page. Symptoms overlap, but 4WD-specific grinding points to collars.

Model Differences

BX mechanical cables stretch; B/L hydraulics leak at O-rings. L4701 beefier forks handle 50 hp torque.

Diagnosis Steps

Begin parked on level ground with engine off: toggle 4WD switch and listen for actuator hum near front axle—silence points to electrical or seized motor. Verify dash light illuminates; dim or absent means bad switch (K1111-35110). Jack front end safely on stands, shift to neutral, and rotate rear tires by hand—both fronts should counter-rotate if engaged, confirming mechanical link.

Pop the front axle fill plug (top center housing)—fluid should drip out; low level starves collars. Wipe dipstick clean, reinsert, and check against full mark (0.9 qt BX2380). Run engine, engage 4WD, and probe actuator shaft with screwdriver—1-2 inch extension means it’s working; no move demands power test at connector with multimeter (12V key-on).

Lower tractor, inspect hubs for rust buildup blocking splines—clean with wire brush if packed. Tug linkage rods for play; bent tabs misalign forks. For electrical continuity, bypass switch temporarily. Learn systematic methods in our Kubota won’t start guide, applicable here.

Troubleshooting Errors

Don’t overlook breather hose clogs causing pressure loss. Test in 4WD-only terrain first.

Check our Kubota parts diagrams for exploded views pinpointing fork locations.

DIY Repair Guide

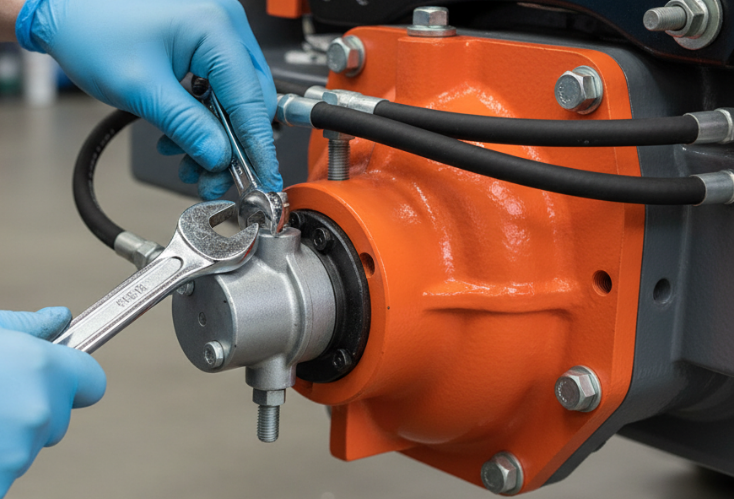

Drain front axle via bottom plug into pan—expect 0.9 quarts dirty 80W-90 from BX2380. Remove skid plate (four 12mm bolts), disconnect actuator wiring/hoses, and unbolt four 12mm mounts torqued at 20 ft-lbs. Clean mating surfaces razor-sharp, install new unit (HH164-29100 for BX/B), torque evenly. Refill to dipstick full, cycle 4WD 10 times to purge air. Test on stand first.

For shift collars, split axle case after draining (careful with shims), inspect fork for bends, replace if grooved (kit $45), reassemble with assembly lube on splines. Torque case halves 25 ft-lbs crisscross. Hubs service quicker: remove caps, clean splines with carb cleaner, repack grease, torque 35 ft-lbs. Linkage tweaks involve loosening jam nuts, centering collar, retightening to spec.

Grab tools from our must-have tools list. Total time: 45-60 minutes actuator, 30 minutes hubs. Hydraulic variants on L3901 need line bleeding post-repair.

Prevention & Upgrades

Change front axle fluid every 200 hours or annually with 0.9-1.2 quarts 80W-90, draining hot for best flow. Grease linkage zerks monthly (NLGI #2), cycle 4WD 5 times unused months to lube collars. After muddy jobs, hose hubs clear of clay. For L series, inspect hydraulic lines for chafing. See full schedules in our complete Kubota maintenance guide.

Upgrade to sealed hubs ($60/ea.) or electric actuators on BX for reliability. Hydraulic filters (HH1G0-32430) every 400 hours cut contamination. Storage tip: engage 4WD, block tires.

Related hydraulics covered in our Kubota hydraulic systems overview.
