Quick Answer: Kubota B3350 Problems

The most common Kubota B3350 problems are chronic DPF regen failures, parked regen that won’t initiate or complete, cold weather regen failures, high dealer repair costs from repeated DPF visits, alternator and wiring harness failures covered by a Kubota service bulletin, 3-point hitch drift after adding rear remotes, and intermittent extended regens that never complete. The B3350 runs the D1803-CR-TE4 common-rail engine at 30.8 PTO horsepower and does have a DPF — unlike the B2650 which is DPF-free. The DPF system is the defining characteristic of B3350 ownership and understanding how to manage it is the single most important thing a B3350 owner can do.

⚠️ The B3350 Has a DPF — The B2650 Does Not! This is the most important difference between these two B-series tractors. The B3350 uses the D1803-CR-TE4 common-rail engine with full DOC and DPF aftertreatment. The B2650 uses a simpler engine with no DPF. If you own a B3350 — DPF regen behavior, operating habits, and ECU software are central to troubleshooting any power or warning light complaint. If you own a B2650 — skip the DPF sections entirely and see our Kubota B2650 Problems guide instead.

B3350 Problems — Quick Reference

Problem	Key Symptom	First DIY Step	Est. DIY Cost
Chronic DPF Regen Failures	Frequent regen light, 30-40 min regens, limp mode	Run at rated RPM under load — complete regen	Free–$100
Parked Regen Won’t Start	Regen light flashing, buttons not responding	Follow updated Kubota regen procedure	Free
Cold Weather Regen Failure	Repeated failed regens in winter conditions	Increase load and RPM during regen	Free–$50
High Dealer Repair Costs	$1,000+ per dealer trip including transport	Master DIY regen procedures first	Free
Alternator / Wiring Harness	Regen and warning lights from charging issues	Check dealer for open service bulletin	$0 under bulletin
3-Point Hitch Drift	Hitch slowly drops after adding rear remotes	Adjust lever friction and stop screw	Free–$100
Extended Regens That Never Complete	Regen runs 30-40 min then returns within minutes	Longer high-load sessions during regen	Free

Problem 1: Chronic DPF Regen Failures

The most documented B3350 problem by a wide margin is chronic DPF regen failure. OrangeTractorTalks and TractorByNet have long threads specifically about B3350 regen issues — owners describe frequent regen requests, regens that run 30-40 minutes without clearing, and repeated limp mode events. This is the defining problem of B3350 ownership and it separates the B3350 sharply from the simpler B2650 which has no DPF at all.

Symptoms

• Regen warning light comes on within minutes of starting — sometimes daily
• Active regen runs 30-40 minutes without completing and clearing
• Repeated parked regen prompts even after completing previous regens
• Occasional limp mode or engine shutdown from excessive soot load
• Problem worse during light-load work — loader puttering, short runs

Causes

• Engine not reaching or holding exhaust temperature needed for regen completion
• Short runs and light loads — exhaust never gets hot enough to burn soot
• Early firmware logic on pre-update ECU calibrations
• Plugged DPF from accumulation of aborted regen cycles
• Faulty exhaust temperature or pressure sensors causing premature regen abort

DIY Fix

Run the B3350 at rated PTO RPM under a real load whenever a regen starts — mowing, tilling, or loader work at full throttle generates the exhaust temperature the DPF needs to complete the regen cycle. Never shut the tractor down during an active regen. Avoid the pattern that causes most B3350 regen problems — starting the tractor, doing 20 minutes of light loader work at low RPM, then shutting down. That pattern repeatedly fails to complete regens and gradually loads the DPF with soot. Have your dealer check ECU software level and apply the latest calibration update if regen behavior has been chronic. See our Kubota DPF cleaning guide and DPF regen failure guide for complete procedures.

When to Call the Dealer

If operating habit changes and ECU updates do not resolve chronic regen failures the dealer must perform a forced regen and check DPF differential pressure and sensor function. Dealer forced regen and diagnosis runs $300-$800 depending on shop rate and transport distance. DPF cleaning at a specialty shop runs $300-$600 — DPF replacement at the dealer runs $1,500-$2,500 in parts plus labor.

🔧 Recommended: Kubota B3350 Oil Filter HH150-32094

OEM replacement engine oil filter for the B3350 D1803-CR-TE4 engine. Replace every 200 hours. Keeping the engine in top condition reduces soot production and extends DPF service intervals — oil changes are the cheapest DPF protection you have.

Check Price on Amazon →

Problem 2: Parked Regen Won’t Initiate or Aborts

A specific and frustrating B3350 problem is the parked regen refusing to start or aborting partway through — even when the operator follows the procedure shown in their manual. The root cause is that Kubota updated the ECU software and button mapping on B3350 tractors and the operator manual and cab decals don’t always match the updated control scheme. Owners following the original inhibit/regen button sequence from their manual find it no longer works correctly after a dealer software update.

Symptoms

• Regen light flashing but inhibit and parked regen buttons do not respond as expected
• Parked regen sequence starts but aborts before completing
• Button behavior described in operator manual does not match actual tractor behavior
• Newer firmware renamed the inhibit function — older procedure no longer works

Causes

• ECU software updates changed the inhibit and auto-regen logic
• Newer firmware removes the separate inhibit mode described in early manuals
• Cab decals and operator manual not updated to match new button mapping
• Operator following original procedure which no longer applies to updated software

DIY Fix

Follow Kubota’s updated “Know Your Kubota — B3350 Regeneration Explained” procedure rather than the original operator manual sequence. The correct updated procedure requires: engine at operating temperature, PTO off, parking brake set, throttle at specific RPM position, then activate parked regen in the correct sequence per the updated ECU logic. Have your dealer confirm the current ECU software level installed on your tractor and verify you have the correct procedure for that software version. See our DPF regen failure guide for complete step-by-step procedures.

When to Call the Dealer

If the parked regen will not initiate at all after following the correct updated procedure the dealer must diagnose with the Kubota laptop — a sensor, ECU fault, or software issue may be blocking regen initiation. Dealer diagnosis runs 1-2 hours — typically $150-$300.

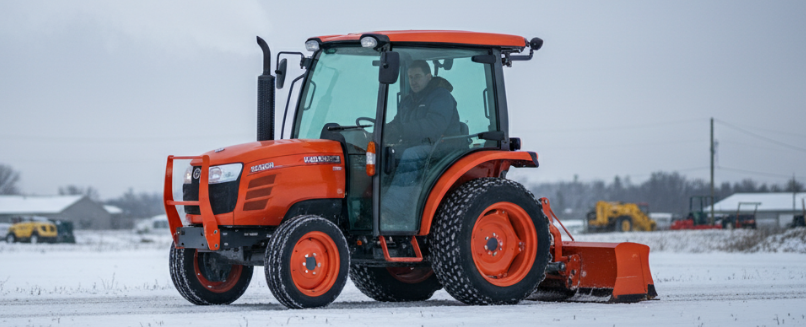

Problem 3: Cold Weather Regen Failures

The B3350 is significantly more sensitive to cold weather regen failures than the B2650 because of its DPF system. Owners in northern climates report that in winter the tractor cannot sustain the exhaust temperature window the ECU needs to complete a regen cycle — especially during light loader work or snow blowing at low RPM. Dealers have confirmed this diagnosis by noting the tractor “isn’t getting hot enough” during test drives in cold conditions.

Symptoms

• Repeated failed regens specifically during winter operation
• Regen starts but exhaust temperature never reaches or holds the required window
• Problem much worse during snow blowing, light loader work, or low-RPM operation in cold weather
• Dealer confirms “not getting hot enough” during cold-weather diagnosis
• Problem largely disappears in warmer months

Causes

• Cold ambient temperatures combined with light engine loads prevent exhaust from reaching regen temperature
• B3350 more sensitive to this than B2650 because of the DPF aftertreatment requirement
• Low-RPM loader or snow blower operation generates insufficient exhaust heat
• Engine coolant not reaching full operating temperature before regen is attempted

DIY Fix

When a regen starts during cold weather switch to a higher-load task immediately — run the tractor at full throttle with a real implement load to generate maximum exhaust temperature. Some owners report success temporarily restricting cooling airflow in very cold weather by placing a moving blanket or grille cover over part of the radiator while carefully monitoring the coolant temperature bar graph — remove immediately if temperature approaches the red zone. Always warm the engine fully before starting work in cold weather. Avoid extended low-RPM loader idling in winter — it is the fastest way to trigger a failed regen. See our cold weather tractor maintenance guide for complete winter operation tips.

When to Call the Dealer

If cold weather regen failures are chronic and operating habit changes do not resolve them the dealer should check EGT sensor calibration and DPF differential pressure. A DPF that has accumulated partial plugging from repeated cold-weather failures may need professional cleaning — $300-$600 at a specialty shop.

🔧 Recommended: Kubota Hydraulic Filter HH6C0-37710

OEM hydraulic filter for the B3350. Replace every 200 hours alongside the transmission fluid change. Clean hydraulic fluid is critical on the B3350 HST — contaminated fluid causes transmission performance issues that are easily mistaken for DPF-related power loss.

Check Price on Amazon →

Problem 4: High Dealer Repair Costs From Repeated DPF Visits

A pattern unique to B3350 ownership is the accumulated cost of repeated dealer visits for DPF-related issues. TractorByNet owners specifically cite transportation costs of $1,000 or more per dealer trip — before any parts or labor are billed. For owners in rural areas far from a Kubota dealer the transport cost alone can make DPF repairs financially devastating. Understanding what you can manage yourself versus what requires a dealer is the most important cost-saving strategy for B3350 owners.

Symptoms

• Multiple dealer visits for the same or similar DPF complaints
• Transportation charges of $1,000+ per trip for rural owners
• Repeat warranty and non-warranty visits within the same season
• Feeling that the tractor spends more time at the dealer than on the property

Causes

• Chronic regen failures from operating habits that don’t support DPF regeneration
• Early ECU calibration issues requiring multiple software updates
• Sensor faults that require dealer diagnostic laptop to identify
• DPF gradually plugging from accumulated aborted regen cycles

DIY Fix — Minimize Dealer Visits

Master the parked regen procedure before calling the dealer — most B3350 DPF issues that result in dealer trips can be resolved at home with the correct operating procedure. Run at rated RPM under load for extended periods regularly. Never inhibit regen repeatedly. Address warning lights immediately rather than working through them. If a DPF cleaning is needed consider a specialty shop rather than dealer replacement — cleaning costs $300-$600 versus $1,500-$2,500 for dealer replacement and restores full DPF function. See our Kubota DPF cleaning guide — professional cleaning can save $800 or more versus dealer DPF replacement.

When to Call the Dealer

Call the dealer when the tractor enters limp mode and will not exit, when parked regen will not initiate after following the correct procedure, or when DPF differential pressure readings from the dealer indicate a plugged filter beyond what cleaning can address.

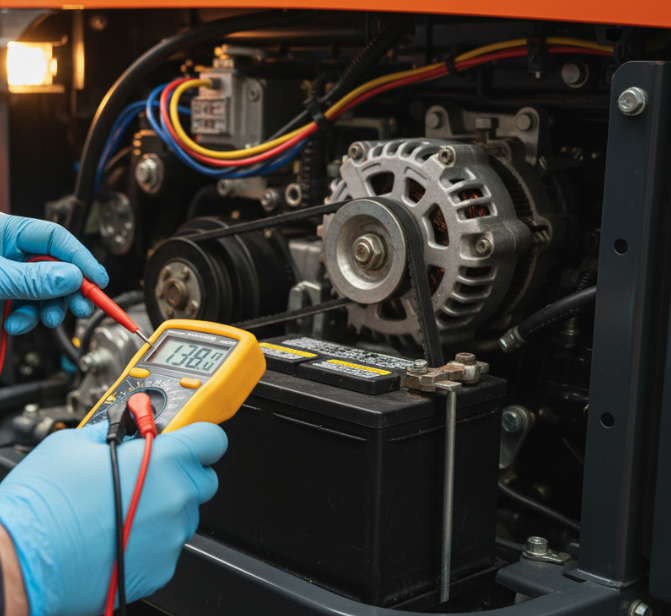

Problem 5: Alternator and Wiring Harness Failures — Service Bulletin

OrangeTractorTalks members specifically identified a Kubota service bulletin addressing alternator and wiring harness problems on affected B3350 serial ranges. The alternator and wiring issues cause the DPF control system to receive incorrect voltage and signal data — triggering regen and warning light problems that appear to be DPF failures but are actually electrical. This is an important diagnostic distinction — if your B3350 has regen problems and the dealer hasn’t checked for this bulletin your tractor may have the wrong repair attempted.

Symptoms

• Regen and warning light problems that persist even after DPF service
• Charging system irregularities — dim lights, slow cranking
• DPF warning codes that clear temporarily then return
• Problems that end up traced to charging and wiring rather than DPF core

Causes

• Alternator producing insufficient or intermittent voltage
• Wiring harness fault on affected serial ranges sending bad signals to DPF ECU
• Poor voltage during regen cycle causing ECU to abort regen prematurely
• Kubota issued a service bulletin specifically for this issue on affected B3350 units

DIY Fix

Check alternator output at operating RPM with a multimeter — should read 13.6-14.4V at the battery with the engine running. Clean and tighten battery terminals and chassis ground straps — corroded grounds cause phantom ECU codes on DPF-equipped tractors. Beyond basic electrical checks this repair requires the dealer to look up your serial number and confirm whether an open service bulletin applies to your tractor. See our Kubota alternator testing guide for complete diagnosis procedures.

When to Call the Dealer

This is a dealer-only repair once basic electrical checks are complete. Alternator and harness replacement if not covered by bulletin runs $600-$1,000 at the dealer. Always check for bulletin coverage before paying for this repair.

🔧 Recommended: Kubota Fuel Filter 6A320-59930

OEM replacement fuel filter element for the B3350 fuel/water separator assembly. Replace every 100 hours. Clean fuel is critical on the D1803-CR-TE4 common-rail injection system — contaminated fuel reaching the injection pump is an expensive repair that also increases soot production and worsens DPF loading.

Check Price on Amazon →

Problem 6: 3-Point Hitch Drift After Adding Rear Remotes

A specific B3350 owner complaint documented on OrangeTractorTalks is 3-point hitch drift after installing rear remotes and a hydraulic top link. The hitch holds position normally before the remote installation but slowly drifts downward afterward — holding position only when the lever is in the upper two-thirds of travel. This is a post-installation adjustment issue rather than a factory defect.

Symptoms

• 3-point hitch slowly drifts down from set position after installing rear remotes
• Hitch holds position only when lever is in upper two-thirds of travel range
• Problem appeared immediately after rear remote and hydraulic top link installation
• Hitch held position correctly before the remote installation

Causes

• Position control lever friction not set tightly enough — vibration walks lever down
• Rear remote plumbing incorrectly routed — partly open detented remote bleeding hitch circuit
• Linkage free play or mis-adjustment introduced during remote installation
• Internal position control valve bleed when lever is not fully in the raise position

DIY Fix

Start with the lever friction stop screw adjustment — tighten it so vibration cannot walk the lever down from its set position. Re-check the rear remote plumbing against the workshop manual schematic to ensure no detented remote valve is left partly open and bleeding into the 3-point circuit. If mechanical adjustments do not cure the drift the dealer can check position control linkage adjustment and internal lift valve condition. See our Kubota 3-point hitch troubleshooting guide for complete diagnosis.

When to Call the Dealer

Lever friction adjustment and remote plumbing check cost nothing to minimal. Dealer diagnosis of position control linkage and internal valve adjustment runs $200-$500 depending on shop minimum and what is found.

Problem 7: Intermittent Extended Regens That Never Complete

The most frustrating pattern reported by B3350 owners on OrangeTractorTalks is a regen light that comes on within minutes of startup, stays on for 30-40 minutes during work, then shuts off without clear completion — only to return again minutes later. This cycle repeats without the DPF ever fully clearing. This pattern indicates the regen is starting but being aborted by the ECU before completion — usually from marginal exhaust temperature, high existing soot load, or a failing sensor.

Symptoms

• Regen light appears within minutes of startup — sometimes immediately
• Regen runs 30-40 minutes then light goes out without clear completion signal
• Regen light returns again within minutes of clearing
• Cycle repeats continuously — tractor never operates without regen light
• No power loss necessarily — just continuous regen cycling

Causes

• Marginal exhaust temperature from insufficient load — regen starts but ECU aborts before completion
• Soot loading already very high from previous aborted regens — DPF needs more than one cycle to clear
• Failing exhaust temperature or differential pressure sensor causing premature ECU abort
• Short duty cycles between regens — tractor is shut down before soot burn is complete

DIY Fix

When this pattern appears switch immediately to an extended high-load task — mowing or tilling for 60-90 minutes at full throttle. The extended high-temperature operation gives the DPF the sustained heat it needs to complete the soot burn that multiple short regens could not. Do not shut the tractor down until the regen light clears and stays off. If the pattern persists after extended high-load operation the dealer must check DPF differential pressure, EGT sensor calibration, and ECU regen history to determine if the DPF is too heavily loaded for auto regen to clear. See our DPF cleaning guide for professional cleaning options.

When to Call the Dealer

If extended high-load operation does not clear the continuous regen cycling the DPF has likely accumulated soot beyond what auto regen can clear. Professional DPF cleaning runs $300-$600 and typically restores full function. Dealer replacement runs $1,500-$2,500 in parts plus labor.

🔧 Recommended: Kubota Glow Plugs 1G852-65512 — B3350 D1803 Engine

OEM-pattern glow plugs for the B3350 D1803-CR-TE4 engine. Replace as a set every 1,000 hours or when experiencing hard cold starts. Worn glow plugs increase white smoke on cold starts and contribute to incomplete combustion — both of which increase soot production and worsen DPF loading. Confirm part number against your serial number before ordering.

Check Price on Amazon →

Kubota B3350 OEM Parts Reference

Part	OEM Part Number	Notes	Buy
Engine Oil Filter	HH150-32094	Replace every 200 hrs — verify by serial number	Buy →
Hydraulic Filter	HH6C0-37710	Replace every 200 hrs — verify by serial number	Buy →
Fuel Filter Element	6A320-59930	Replace every 100 hrs — bleed fuel system after	Buy →
Air Filter Outer	TA040-93230	Replace every 200 hrs — dual element system	Buy →
Air Filter Inner	TA040-93220	Replace every 3rd outer change — verify by serial	Verify at dealer EPC
Glow Plugs (qty 3)	1G852-65512	D1803-CR-TE4 engine — confirm by serial number	Buy →
Battery	Group 24F	12V, 650 CCA — verify terminal orientation before ordering	Buy →
Engine Oil	—	API CF or higher, SAE 15W-40 — 5.1 US qt with filter	Shell Rotella 15W-40 →

⚠️ Important — B3350 Has DPF, B2650 Does Not: The B3350 uses the D1803-CR-TE4 common-rail engine with full DPF aftertreatment. The B2650 uses a simpler engine with no DPF. Parts and troubleshooting procedures are different between these two tractors — always confirm you are ordering parts for the correct model before purchasing.

Kubota B3350 Fluid Specifications and Capacities

System	Capacity	Fluid Type
Engine Oil	5.1 US qt with filter	15W-40, API CF or higher
Hydraulic / Transmission	16 US qt — fill to sight glass	Kubota Super UDT2 — never substitute
Front Axle	~4.5 US qt	80W-90 gear oil or Kubota Super UDT2 — verify in WSM
Engine Coolant	4.5 US qt	Long-life ethylene glycol, silicate-free
Fuel Tank	7.3 US gal	Ultra-low sulfur diesel (ULSD) only

B3350 vs B2650 vs L2501 — Key Differences for Troubleshooting

Model	HP	DPF	Transmission	Troubleshooting Bias
B2650	24.8 HP	None — DPF-free	HST only	Simpler emissions — no regen management needed
B3350	30.8 HP	Yes — DOC + DPF	HST only	DPF regen management is central — operating habits critical
L2501	24.8 HP	None — DPF-free	Gear or HST	Larger chassis — different hydraulics and loader — fewer regen issues

Dealer vs DIY Cost Comparison

Problem	DIY Cost	Dealer Cost	Potential Savings
Parked Regen — Correct Procedure	Free	$300–$800 + transport	Up to $800+
Cold Weather Regen Fix	Free–$50	$300–$600	Up to $600
DPF Professional Cleaning	$300–$600 specialty shop	$1,500–$2,500 replacement	Up to $2,000
Alternator Bulletin Check	Free — serial number check	$0 if covered by bulletin	Up to $1,000
3-PT Lever Friction Adjustment	Free	$200–$500	Up to $500
Extended Regen High Load Session	Free — fuel cost only	$300–$800 forced regen	Up to $800

Kubota B3350 Maintenance Schedule

Interval	Service Item	Part / Fluid
Every 100 hrs	Fuel filter replacement — bleed after	6A320-59930
Every 200 hrs	Engine oil and filter change	HH150-32094 + 15W-40 — 5.1 qt
Every 200 hrs	Hydraulic filter replacement	HH6C0-37710
Every 200 hrs	Air filter outer element	TA040-93230
Every 300 hrs	Hydraulic and transmission fluid change	Super UDT2 — 16 US qt
Every 1,000 hrs	Glow plug inspection and replacement	1G852-65512 — 3 plugs required
Every 2 years	Coolant flush — DPF sensor inspection	Long-life ethylene glycol silicate-free — 4.5 qt

❓ Frequently Asked Questions

QWhat are the most common Kubota B3350 problems?

The most common B3350 problems are chronic DPF regen failures, parked regen that won’t initiate or complete, cold weather regen failures, high dealer repair costs from repeated DPF visits, alternator and wiring harness failures covered by a Kubota service bulletin, 3-point hitch drift after adding rear remotes, and intermittent extended regens that never complete. The DPF system is the defining characteristic of B3350 ownership.

QDoes the Kubota B3350 have a DPF?

Yes — the B3350 uses the D1803-CR-TE4 common-rail engine with full DOC and DPF aftertreatment to meet EPA Tier 4 Final emissions. This is the most important difference between the B3350 and B2650 — the B2650 does not have a DPF. Understanding how to manage DPF regen cycles is the single most important skill for B3350 owners.

QWhy does my B3350 keep going into regen?

Frequent regen on the B3350 almost always traces to operating habits that don’t support regen completion — short runs, light loads, and low RPM operation that prevents exhaust from reaching regen temperature. Run the tractor at rated PTO RPM under a real implement load and never shut down during an active regen. Have your dealer check ECU software version and apply the latest calibration update if the pattern is chronic.

QIs there a recall on the Kubota B3350?

Kubota issued at least one service bulletin addressing alternator and wiring harness issues and updated ECU programming on B3350 tractors in affected serial ranges. Contact your Kubota dealer with your serial number and ask specifically about any open campaigns before authorizing paid DPF or electrical repairs — bulletin work is performed at no cost or reduced cost to the owner.

QB3350 vs B2650 — which is more reliable?

The B2650 is more straightforward to own because it has no DPF — operating habits don’t affect an emissions system that doesn’t exist. The B3350 is a more capable tractor with more horsepower but requires active DPF management. Both are mechanically reliable — the difference is the B3350 demands more attention to operating habits and duty cycle. If you primarily do light loader work and short runs the B2650 is the simpler choice.

QWhat hydraulic fluid does the Kubota B3350 use?

The B3350 uses Kubota Super UDT2 in the combined hydraulic and transmission system — capacity is 16 US quarts. The front axle uses 80W-90 gear oil or Super UDT2 at approximately 4.5 US quarts — verify in your workshop manual for your specific serial number. Never substitute generic hydraulic oil or ATF in the B3350 hydraulic system.

QHow do I do a parked regen on the Kubota B3350?

The B3350 parked regen procedure requires: engine fully warmed to operating temperature, PTO disengaged, parking brake set, throttle at the correct RPM position, then activate the parked regen function per the current ECU software procedure. Note that Kubota updated the ECU software and button mapping on B3350 tractors — the original operator manual procedure may not match your tractor’s current software. Ask your dealer to confirm the correct procedure for your specific software version.

Related Kubota Guides

Note: Part numbers and fluid specifications in this guide are based on Kubota B3350 workshop manual data, Messicks parts catalog, and confirmed dealer parts listings. The B3350 uses the D1803-CR-TE4 common-rail engine with DPF — the B2650 does not have a DPF. Kubota issued at least one service bulletin addressing alternator and wiring harness issues on B3350 tractors — always check with your dealer by serial number for open campaigns before authorizing paid DPF or electrical repairs. Air filter inner element TA040-93220 should be verified at your dealer EPC before ordering. Front axle capacity is approximate — confirm in your WSM before servicing.
