Quick Answer: Kubota BX1880 Problems

The most common Kubota BX1880 problems are HST surging and jerky ground speed, loader quick-coupler hydraulic leaks, 3-point hitch interference with the ROPS, PTO lever accidentally shifting position, electrical no-start from glow plug and battery issues, ballast and stability problems under loader work, and implement hookup difficulties from the compact chassis. The BX1880 runs the Kubota D722 3-cylinder engine at 16.6 horsepower and is completely DPF-free — no regeneration cycles, no DEF fluid, no regen warning light. Most BX1880 problems can be diagnosed and fixed at home for under $200.

🎉 No DPF on the BX1880! The BX1880 D722 engine produces just 16.6 horsepower — well below the emissions threshold that requires a diesel particulate filter. No forced regeneration cycles, no regen light, no DEF. This is one of the biggest maintenance advantages of the entire BX80 series. Keep fuel clean, air clean, and use the correct oil and this tractor will run reliably for thousands of hours.

BX1880 Problems — Quick Reference

Problem	Key Symptom	First DIY Step	Est. DIY Cost
HST Surging / Jerky Speed	Lunges with steady pedal	Check fluid level and HST filter	$150–$250
Quick-Coupler Hydraulic Leak	Drip at loader coupler block	Relieve pressure, clean, reseat	$20–$60
3-Point ROPS Interference	Implement hits folded ROPS	Inspect clearance before attaching	Free–$20
PTO Lever Accidentally Shifted	PTO disengages unexpectedly	Zip-tie lever, check detents	Free–$5
Electrical / No-Start Issues	Won’t crank or hard starting	Load-test battery, check glow relay	$90–$200
Ballast and Stability Problems	Rear wheels light under load	Add rear ballast, engage 4WD	Free
Implement Hookup Difficulty	Couplers won’t connect, hoses hard to attach	Level ground, relieve hydraulic pressure	Free

Problem 1: HST Surging and Jerky Ground Speed

The most frequently discussed BX1880 problem is the HST surging and lunging with the pedal held steady — especially noticeable when mowing on uneven ground or running the snowblower. Owners describe it as the tractor jumping forward unexpectedly instead of holding constant speed. Because the BX1880’s lighter chassis amplifies any HST irregularity, surging that might go unnoticed on a heavier BX2380 is very obvious on the BX1880.

Symptoms

• Tractor lurches or surges forward with the HST pedal held steady
• Difficult to maintain constant ground speed near obstacles or on slopes
• More noticeable when mowing on uneven surfaces or operating the snowblower
• Surging develops gradually — the tractor felt fine when new
• HST feels sluggish or hesitant when working the loader at low RPM

Causes

• HST pedal linkage out of adjustment — causing a non-linear response at the pedal
• Low or incorrect hydraulic fluid — non-Super UDT2 fluid causes HST performance loss over time
• Partially clogged or overdue HST filter (HHK20-36990) restricting flow
• Air in the hydraulic system from low fluid level
• Running the HST at low RPM under heavy load — causes heat buildup and glazing

DIY Fix

Start with fluid and filters before anything else. Verify the hydraulic and transmission fluid level with the engine running and warm on level ground — top up with Kubota Super UDT2 only. Replace the HST filter (HHK20-36990) and cut the old one open to check for metal particles. Purge air by cycling the loader fully up and down 10 times and the 3-point hitch fully up and down 10 times, then recheck fluid level. If fluid and filters are good, inspect the HST pedal linkage for binding, bent rods, or loose clevis pins — lubricate and adjust per the operator manual. Always operate the BX1880 at 75–100% rated RPM when doing loader or implement work. See our Kubota HST transmission guide for complete diagnosis steps.

When to Call the Dealer

If a full fluid and filter service and linkage inspection do not resolve the surging, the HST charge pump, swash plate, or a sensor may be worn or damaged. Dealer HST diagnosis runs 1–2 hours plus any pressure testing — repairs range from $500–$800 for sensors and valves up to $1,800–$3,000 if the HST unit itself requires replacement.

🔧 Recommended: Kubota HST & Hydraulic Filter HHK20-36990

OEM replacement HST and hydraulic filter for BX1880. Replace every 200 hours — or sooner if you’re experiencing surging or sluggish HST response. Cut the old filter open and inspect for metal particles before disposing of it.

Check Price on Amazon →

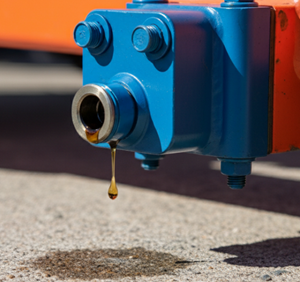

Problem 2: Loader Quick-Coupler Hydraulic Block Leaking

BX1880 owners with the LA344 loader consistently report drips at the blue quick-attach hydraulic coupler block — especially after connecting or disconnecting the loader, switching from the snowblower to the FEL, or when the loader is under side load. The BX1880’s compact frame and shorter loader arms make the coupler block more sensitive to misalignment than on larger tractors, and even a small contamination particle on one nipple can prevent a proper seal.

Symptoms

• Drip or puddle forming under the quick-coupler block after connecting or disconnecting
• Leak appears after loader use — particularly after side loads or uneven parking
• Hoses feel pressurized and difficult to connect even with the engine off
• Hydraulic fluid level slowly dropping with no other visible leak source

Causes

• Contamination on the coupler nipple preventing full sealing — even a small particle causes a drip
• Side pressure from the BX1880’s compact loader arms twisting the block and unseating an O-ring
• Trapped hydraulic pressure in the circuit making full seating difficult
• Worn or damaged O-rings inside the coupler body after repeated cycles

DIY Fix

Relieve hydraulic pressure completely before disconnecting — engine off, then move the loader joystick in all directions to release trapped pressure. Clean both male and female coupler ports thoroughly with a clean rag and inspect for contamination or damaged O-rings. Reconnect with the block fully latched and on level ground. If the leak continues, replace the O-rings — most owners stop the leak with fresh O-rings and careful alignment at a cost of under $20. Always park implements on level, solid ground and relieve pressure before disconnecting. See our Kubota hydraulic quick coupler guide for full repair steps.

When to Call the Dealer

If the coupler body is defective or the leak returns after O-ring replacement, dealers have replaced the entire block under warranty on BX80 series tractors. Out of warranty, expect 1.0–1.5 hours labor at $120–$150/hr plus the coupler assembly at $250–$400 — total dealer repair typically runs $375–$600 versus $20–$60 DIY in O-rings and fluid top-off.

🔧 Recommended: Kubota Super UDT2 Hydraulic & Transmission Fluid

OEM-spec fluid for the BX1880 combined hydraulic and transmission system. The BX1880 holds 3.0 US gallons in the rear case — always fill to the sight glass. Never substitute standard ATF or generic hydraulic oil. Keep a jug on hand for quick-coupler leak top-offs and scheduled service.

Check Price on Amazon →

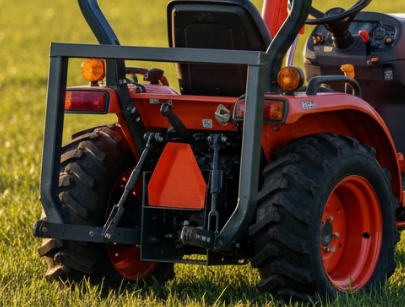

Problem 3: 3-Point Hitch ROPS Interference and Drop-Rate Lock

BX1880 owners report two distinct 3-point hitch frustrations — the folded ROPS crossbar interfering with tall rear implements, and the hitch appearing stuck in the raised position after backhoe or rear attachment use. Both are BX1880-specific because of its compact frame and low-mounted ROPS crossbar, and both are DIY-fixable without tools or parts.

Symptoms

• Upper link or top of implement contacts the folded ROPS, bending the top-link bracket
• 3-point hitch won’t lower — arms appear stuck in the up position
• Hitch lowers very slowly even with the control lever fully down
• Problem appeared after switching from the backhoe or another rear attachment

Causes

• Compact BX1880 frame and low ROPS crossbar create less clearance than the slightly taller BX2380 with larger tires
• Rate-of-drop knob under the operator seat turned fully closed — locks the hitch arms in the raised position
• Top-link length not adjusted for the implement height relative to the ROPS

DIY Fix

If the 3-point hitch won’t lower, check the rate-of-drop knob under the operator seat first — turn it counterclockwise to open it and the hitch will drop immediately. This is the most common BX1880 “hitch won’t drop” complaint and it costs nothing to fix. For ROPS interference, always raise the ROPS before attaching tall implements or adjust the top-link length to provide clearance — inspect the gap before lowering the implement the first time. See our Kubota 3-point hitch troubleshooting guide for complete diagnosis.

When to Call the Dealer

Bent top-link brackets or damaged rock-shaft components run $200–$500 in parts plus 1–2 hours labor. A simple adjustment costs nothing — inspect before buying parts.

Problem 4: PTO Lever Accidentally Shifted — Driveline Damage Risk

This is a BX1880-specific safety hazard that dealers have flagged directly to owners — the PTO selector lever on the compact BX1880 sits close to the operator area and external objects including swing chains, loose clothing, or brush can contact it during operation and shift the PTO position unexpectedly. One owner reported a dealer describing a case where a swing chain caught the lever mid-operation, causing major internal driveline damage. The fix costs under $5 and takes 30 seconds.

Symptoms

• PTO disengages unexpectedly during operation
• Implement stops suddenly with a grinding or clunking sound
• Broken shear pins on the PTO driveshaft after unexpected disengagement
• PTO selector lever found in a different position than when the engine started

Causes

• Exposed PTO selector lever on the compact BX1880 frame — positioned close to the operator area
• Swing chains, loose clothing, or vegetation contacting the lever during mowing or loader operation
• Worn detents no longer holding the lever firmly in position

DIY Fix

Install a stout zip-tie or a clip around the PTO lever to prevent it from being bumped unintentionally — particularly when mowing near obstacles or working with swing chains attached. This is a recommended owner precaution that costs under $5 and prevents potentially thousands of dollars in driveline damage. Regularly inspect the PTO lever detents for positive engagement and replace worn detent hardware before it becomes a problem. See our Kubota PTO troubleshooting guide for complete PTO diagnosis.

When to Call the Dealer

DIY shear pin and external driveline repair runs $20–$100. Internal PTO gear or shaft damage from an unexpected shift event can exceed $1,000–$2,000 in dealer repair costs — the zip-tie prevention is worth it.

🔧 Recommended: Kubota Glow Plugs BX/B Series 1G679-65512 — 3-Pack

OEM-spec glow plugs for the BX1880 D722 engine. Confirm part number against your serial number before ordering. Replace as a set every 1,000 hours or when hard starting in cold weather — worn glow plugs are the most common BX1880 cold-start complaint after a weak battery.

Check Price on Amazon →

Problem 5: Electrical No-Start — Glow Plug Circuit and Battery Issues

The BX1880 uses a compact Group 51R battery — the smallest battery in the BX lineup — and cold-weather no-start complaints trace almost entirely to a marginal battery or a failed glow plug relay and control module. Because the Group 51R has less reserve capacity than larger group batteries, CCA loss from age or cold temperatures pushes the BX1880 into hard-start territory faster than larger tractors.

Symptoms

• Glow plug indicator light comes on briefly or not at all before starting
• Glow plug relay chatters or buzzes when the key is turned on
• Starter cranks slowly in cold weather
• Engine cranks but won’t fire in temperatures below 40°F
• Hard starting that gets progressively worse over multiple seasons

Causes

• Weak Group 51R battery — CCA below 280–300 makes cold starts marginal
• Failed glow plug relay — indicator light goes out immediately, plugs never heat
• Corroded glow plug relay and control module connections from outdoor storage
• Worn glow plugs after 1,000+ hours — plugs heat slowly or not at all
• Corroded battery terminals and ground strap reducing available cranking power

DIY Fix

Load-test the battery first — if CCA has dropped below 280–300, upgrade to a 350–420 CCA Group 51R before spending time on anything else. Inspect and clean battery terminals and the engine block ground strap — corroded connections are common on BX1880 tractors stored outdoors. Check the glow plug relay operation — if the indicator light goes out immediately after key-on and plugs never heat, replace the relay and test the control module. If the relay and module test good, test individual glow plugs for resistance. See our Kubota battery replacement guide and Kubota glow plug diagnosis guide for step-by-step procedures.

When to Call the Dealer

Battery replacement is a straightforward DIY — $90–$150 for a quality Group 51R, $120–$200 dealer installed. Glow plug relay and module diagnosis runs 0.5–1.0 hours labor plus $50–$150 in parts — typically under $300 total at the dealer.

🔧 Recommended: Battery Group 51R — BX1880 Replacement

The BX1880 uses a Group 51R battery — 12V, 560 CCA per Kubota spec sheet. For reliable cold-weather starting, target 350–420 CCA minimum. Verify tray dimensions before ordering — compact Group 51R dimensions vary slightly between manufacturers.

Check Price on Amazon →

Problem 6: Ballast and Stability Problems Under Loader Work

The BX1880 is the lightest tractor in the BX80 series and owners consistently describe it as a machine that “runs out of weight before power.” With no rear implement installed, the front-heavy balance under a loaded bucket makes rear wheels light, braking unpredictable on downhill slopes, and front tires prone to sliding on hard surfaces. This is a design characteristic of the BX1880’s short wheelbase and small tires — not a fault — but ignoring it leads to accidents.

Symptoms

• Rear wheels become noticeably light when the loader bucket is full
• Poor braking performance on downhill slopes under load
• Front tires sliding or breaking traction when pushing into piles
• Tractor feels unstable — particularly when turning with a loaded bucket
• More noticeable on the BX1880 than on the heavier BX2380

Causes

• Short wheelbase and small tires — BX1880 is more sensitive to ballast than the slightly heavier BX2380
• No rear implement installed — nothing to counterweight the loaded front bucket
• Operating with the bucket elevated — raises the center of gravity dramatically

DIY Fix

Always engage 4WD when doing loader work — this is non-negotiable on the BX1880. Add rear ballast whenever the loader is in use — a filled box blade, ballast box, or rear wheel weights significantly improve stability and braking. Keep the bucket as low as possible when traveling — never drive with a raised loaded bucket. Avoid downhill travel with a heavy front load and no rear ballast. This costs nothing and prevents expensive accidents. See our tractor ballast guide for recommended ballast weights by tractor size.

When to Call the Dealer

Ballast and technique issues cost nothing to fix. If an accident has bent loader arms or damaged axle components, expect $500–$2,000 in dealer repair depending on the extent of damage.

Problem 7: Implement Hookup Difficulty From Compact Chassis

Because of the BX1880’s compact size, lower ground clearance, and shorter loader arms, owners report more difficulty reconnecting the loader quick-coupler block and aligning 3-point hitch arms than on larger tractors. Parking surface sensitivity and trapped hydraulic pressure are the two root causes — and both are easily prevented with the right technique.

Symptoms

• Loader quick-coupler hoses won’t connect — excessive resistance even with engine off
• 3-point hitch arms won’t line up with implement pins
• Coupler block drips after reconnection even when it seemed fully seated
• Hose ends feel pressurized and hard to push together

Causes

• Trapped hydraulic pressure in loader circuits — disconnecting with the system still pressurized
• Parking implement on uneven ground — even slight grade misaligns the compact BX1880 coupler block
• Lower clearance on BX1880 making 3-point implement alignment more sensitive to ground level

DIY Fix

Always park implements on level, solid ground before disconnecting. With the engine off, cycle the loader joystick in all directions to release trapped pressure before attempting to disconnect hoses. If hoses still feel pressurized after cycling, slightly crack the coupler fitting with a rag and PPE to vent residual pressure before full disconnection. For 3-point alignment, park the tractor on level ground and use the position control to set the hitch arms at implement pin height before backing in. These habits cost nothing and eliminate most BX1880 hookup complaints entirely.

When to Call the Dealer

Technique issues cost nothing to resolve. Damaged couplers or bent loader stands from forced connections typically run $100–$400 in parts at the dealer.

Kubota BX1880 OEM Parts Reference

Part	OEM Part Number	Notes	Buy
Engine Oil Filter	HH150-32430	Replace every 50 hrs — verify by serial number	3-Pack →
HST / Hydraulic Filter	HHK20-36990	Replace every 200 hrs	Buy →
Fuel Filter	12581-43012	Replace every 100 hrs — bleed fuel system after	Buy →
Air Filter	K1211-82320	Replace every 200 hrs or when restricted	Buy →
Glow Plugs (qty 3)	1G679-65512	D722 engine — confirm by serial number	3-Pack →
Battery	Group 51R	12V, 560 CCA spec — target 350–420 CCA minimum	Buy →
Engine Oil	—	API CD/CE, SAE 10W-30 or 15W-40 — 3.2 qt with filter	Shell Rotella 15W-40 →

⚠️ Important — Recall Notice for BX1880 Serial Range 10002–14813: Kubota issued a safety campaign for BX1880 tractors in this serial range involving a blocked coolant reserve tank cap that could expel coolant during an overheat event. If your tractor falls in this range, contact your Kubota dealer with the serial number to confirm the remedy has been completed — the replacement cap is provided free of charge.

Kubota BX1880 Fluid Specifications and Capacities

System	Capacity	Fluid Type
Engine Oil	3.2 qt with filter / 2.9 qt without	SAE 10W-30 or 15W-40, API CD/CE or higher
Hydraulic / Transmission	3.0 US gal — fill to sight glass	Kubota Super UDT2 — never substitute
Front Axle	~0.8–1.0 qt total (check manual)	Kubota UDT or Super UDT2
Engine Coolant	3.4 qt (D722 cooling system)	50/50 long-life ethylene glycol
Fuel Tank	6.6 US gal	Ultra-low sulfur diesel (ULSD) only

BX1880 vs BX2380 — Key Differences for Troubleshooting

Feature	BX1880	BX2380
Engine	D722, 3-cyl, 16.6 HP, 719 cc	D902, 3-cyl, ~23 HP, 898 cc
DPF / DEF	None — DPF-free	None — DPF-free
Tires	Smaller diameter	Larger diameter — more clearance
Ballast sensitivity	High — runs out of weight before power	Moderate — heavier chassis helps
ROPS clearance	Lower — more implement interference risk	Slightly taller with larger tires
HST surging	More noticeable — lighter chassis amplifies it	Present but less noticeable
Troubleshooting bias	Traction, ballast, compact chassis limits	PTO load capacity, implement sizing

Dealer vs DIY Cost Comparison

Problem	DIY Cost	Dealer Cost	Potential Savings
HST Fluid and Filter Service	$150–$250	$400–$600	Up to $450
Quick-Coupler O-Ring Repair	$20–$60	$375–$600	Up to $580
3-PT Drop Rate Knob Adjustment	Free	$60–$180	Up to $180
PTO Lever Prevention (zip-tie)	Under $5	$1,000–$2,000+ if damage occurs	Up to $2,000
Battery Replacement	$90–$150	$120–$200 installed	Up to $110
Ballast and Stability Fix	Free — technique	$500–$2,000 if accident damage	Up to $2,000
Hookup Technique Fix	Free	$100–$400 if couplers damaged	Up to $400

Kubota BX1880 Maintenance Schedule

Interval	Service Item	Part / Fluid
Every 50 hrs	Engine oil and filter change	HH150-32430 + 15W-40 — 3.2 qt with filter
Every 100 hrs	Fuel filter replacement — bleed after	12581-43012
Every 200 hrs	HST and hydraulic filter replacement	HHK20-36990
Every 200 hrs	Air filter inspection and replacement	K1211-82320
Every 300 hrs	Hydraulic and transmission fluid change	Super UDT2 — fill to sight glass
Every 1,000 hrs	Glow plug inspection and replacement	1G679-65512 — confirm by serial
Every 2 years	Coolant flush and refill	50/50 long-life ethylene glycol — 3.4 qt

❓ Frequently Asked Questions

QWhat are the most common Kubota BX1880 problems?

The most common BX1880 problems are HST surging and jerky ground speed, loader quick-coupler hydraulic leaks, 3-point hitch ROPS interference, PTO lever accidentally shifting position, electrical no-start from battery and glow plug issues, ballast and stability problems under loader work, and implement hookup difficulty from the compact chassis. Most can be diagnosed and fixed at home without dealer involvement for under $200.

QDoes the Kubota BX1880 have a DPF?

No — the BX1880 is completely DPF-free. The D722 engine produces just 16.6 horsepower, well below the emissions threshold that requires a diesel particulate filter. There are no forced regeneration cycles, no regen warning light, and no DEF fluid required. This applies to the entire BX80 series including the BX2380 and BX2680 — all three are DPF-free.

QWhy is my BX1880 HST surging and jerky?

BX1880 HST surging almost always traces to wrong fluid, overdue filter service, or a pedal linkage adjustment issue. Drain and refill with fresh Kubota Super UDT2, replace the HST filter (HHK20-36990), and inspect the pedal linkage for binding. The BX1880’s lighter chassis amplifies any HST irregularity — always operate at 75–100% rated RPM when doing implement work. Never use generic hydraulic oil or ATF in the BX1880 hydraulic system.

QMy BX1880 3-point hitch won’t lower — what should I check first?

Check the rate-of-drop knob under the operator seat first. If it was turned fully closed — which can happen after backhoe or rear attachment use — the hitch arms will appear stuck in the raised position. Turn the knob counterclockwise to open it and the hitch will drop immediately. This is the most common BX1880 “hitch won’t lower” complaint and it costs nothing to fix.

QWhat battery does the Kubota BX1880 use?

The BX1880 uses a Group 51R battery — 12V, 560 CCA per Kubota specification. For reliable cold-weather starting, target 350–420 CCA minimum when replacing. The Group 51R is the smallest battery in the BX series, so CCA loss from age or cold temperatures affects starting performance faster than on larger tractors with bigger batteries.

QIs the Kubota BX1880 reliable?

Yes — the BX1880 is widely regarded as a reliable, low-maintenance compact tractor. The DPF-free D722 engine is proven across thousands of machines and the BX80 platform is extremely well established. Most reported problems trace to fluid and filter maintenance, ballast technique, or compact-chassis awareness rather than mechanical failures. Owners who use Kubota Super UDT2 exclusively, follow the service schedule, and add rear ballast when doing loader work consistently report excellent reliability well past 1,500 hours.

QWhat hydraulic fluid does the Kubota BX1880 use?

The BX1880 uses Kubota Super UDT2 in the combined hydraulic and transmission system — capacity is 3.0 US gallons in the rear case. Always fill to the sight glass rather than a fixed volume. The front axle uses Kubota UDT or Super UDT2. Never substitute generic hydraulic oil, ATF, or non-OEM fluid — incorrect fluid has been directly linked to HST surging and premature wear on BX80 series tractors.

Related Kubota Guides

Note: Part numbers and fluid specifications in this guide are based on Kubota workshop manual data for the BX1880 and confirmed against dealer parts listings. The BX1880 oil filter (HH150-32430) is different from the HH150-32094 used on L-series and larger B-series tractors — always verify by serial number before ordering. A Kubota safety campaign covers BX1880 tractors with serial numbers 10002–14813 involving the coolant reserve tank cap — contact your dealer with your serial number to confirm the remedy has been applied. Always fill the hydraulic and transmission system to the sight glass, not the published book capacity.
