Quick Answer: Kubota L2501 Problems

The most common Kubota L2501 problems are HST slowing down on hills, tachometer and hour meter failure, hydraulic fluid confusion after service, no-start from loose connectors, filter confusion at the 50-hour service, loader feeling weak under heavy use, and jerky 3-point hitch with light implements. The L2501 runs the D1703 3-cylinder engine at 24.8 gross horsepower and is completely DPF-free — rated just under the emissions threshold that requires a diesel particulate filter. Most L2501 problems can be diagnosed and fixed at home for under $200.

🎉 No DPF on the L2501! Kubota deliberately rated the L2501 at 24.8 horsepower to stay below the emissions threshold that requires a diesel particulate filter. No DPF, no forced regeneration cycles, no regen light on the dashboard. This is one of the most significant maintenance advantages of the L2501 over the larger L3301 and L3901 which use full DPF systems with mandatory regen service.

L2501 Problems — Quick Reference

Problem	Key Symptom	First DIY Step	Est. DIY Cost
HST Slowing Down	Weaker on hills over time	Change fluid and filters	$200–$300
Tach / Hour Meter Failure	Needle dead, hours not advancing	Check harness connectors	Free–$300+
Hydraulic Fluid Confusion	Sight glass full with less than spec	Fill by sight glass not book	Free
No-Start / Loose Connector	Won’t crank, battery tests good	Check all harness connectors	Free
50-Hour Filter Confusion	Missing a filter at service	Confirm HST vs hydraulic filter	$50–$100
Loader Feels Weak	Stalls in Low charging piles	Operate at rated RPM	Free
Jerky 3-Point Hitch	Abrupt raise/lower with light loads	Adjust rate-of-drop knob	Free

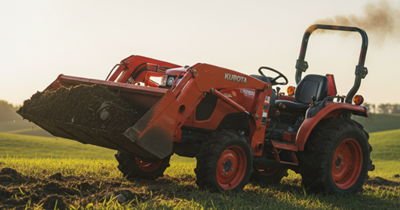

Problem 1: HST Slowing Down — Loss of Power on Hills

The most discussed L2501 problem is gradual HST performance loss — owners describe it as “Medium now feels like Low” and the tractor needing more throttle than before to maintain speed on hills under load. This is the most common complaint on L2501 HST models and almost always traces to fluid and filter maintenance rather than a mechanical failure.

Symptoms

• Tractor feels noticeably weaker climbing hills compared to when it was new
• Medium range now performs like Low range used to
• Needs more throttle to maintain speed under load
• HST feels sluggish or hesitant when working the loader
• Problem develops gradually over hundreds of hours

Causes

• Wrong hydraulic fluid — non-Super UDT2 oil causing HST performance loss over time
• Partially clogged HST filter (HHK70-14073) from overdue service
• Running HST at low RPM under heavy load — glazing the HST plates and causing heat buildup
• Overdue 50 or 200-hour service interval

DIY Fix

Drain and refill the entire hydraulic and transmission system with fresh Kubota Super UDT2 and replace both the HST filter and hydraulic filter at the same time. Purge air from the system by cycling the loader and 3-point hitch 10 times then re-check the fluid level at the sight glass. Always operate the L2501 at 75-100% rated RPM when doing loader or implement work — lugging the HST at low RPM under heavy load is the fastest way to accelerate performance degradation. See our Kubota HST transmission guide for detailed diagnosis steps.

When to Call the Dealer

If a full fluid and filter service does not restore HST performance the HST pump or motor may be worn. Dealer HST service runs 2-3 hours labor plus fluids and filters — typically $400-600 total.

🔧 Recommended: Kubota HST Filter HHK70-14073 — 2-Pack

Current superseding OEM HST filter for L2501 HST models. Replace every 200 hours — or sooner if experiencing HST performance loss. The L2501 HST also requires a separate hydraulic return filter — replace both at the same service interval.

Check Price on Amazon →

Problem 2: Tachometer and Hour Meter Not Working

The L2501 has a higher than average rate of instrument cluster issues compared to other Kubota compact models — the tach needle going dead and hours no longer advancing show up repeatedly in L2501 threads on TractorByNet. This is particularly frustrating because hour meter accuracy matters for tracking service intervals.

Symptoms

• Tachometer needle sits at zero even with engine running
• Hour meter no longer advancing during operation
• Intermittent — sometimes works, sometimes doesn’t
• Both tach and hours fail simultaneously

Causes

• Failed instrument cluster or signal pickup on L-series dash
• Loose or corroded harness connector at the instrument panel
• Failed tach signal sender on the engine

DIY Fix

Start by inspecting and reseating all harness connectors at the instrument panel — a loose connector is often the cause and costs nothing to fix. Clean any corroded pins with electrical contact cleaner. If the connectors are good and the cluster still does not work, the instrument cluster itself likely needs replacement. Keep a written log of your service hours as a backup while the cluster is being diagnosed — never let a dead hour meter become an excuse to miss a service interval. See our Kubota instrument cluster guide for diagnosis steps.

When to Call the Dealer

Cluster replacement requires dealer parts ordering and is often handled at the dealer for warranty documentation purposes. Dealer diagnosis runs 1-2 hours plus cluster cost — typically $300-500 total.

Problem 3: Hydraulic Fluid Confusion After Service

This is a uniquely L2501 problem that trips up even experienced owners — after a 50-hour hydraulic fluid change the sight glass reads full with only about 5.5 gallons added versus the published 6.2 gallon capacity. Owners worry the system is underfilled but it is actually correct. Understanding why prevents unnecessary overfilling which can be just as damaging as underfilling.

Symptoms

• Sight glass reads full after adding only 5.5 gallons during service
• Published spec says 6.2 gallons but system appears full earlier
• Concern about whether the system is properly filled

Causes

• The published 6.2 gallon capacity is for a completely dry system — galleries and lines retain fluid during a normal drain
• Not all fluid drains out during a standard service — some remains in the HST, loader lines, and hydraulic galleries

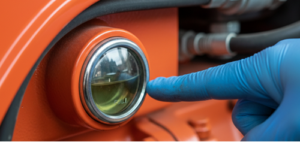

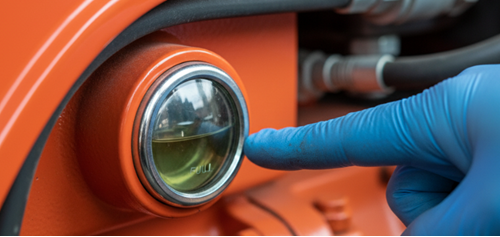

• The sight glass is the definitive fill indicator — not the book capacity

DIY Fix

Always fill gradually and use the sight glass as the definitive fill indicator — not the published book capacity. Add fluid slowly, run the tractor and cycle the loader fully up and down 5-10 times and cycle the 3-point hitch fully up and down 5-10 times, then park on level ground and check the sight glass again. Top off as needed. The sight glass is your friend — trust it over the book number every time. Never overfill to the book capacity if the sight glass already reads full.

When to Call the Dealer

This is a DIY fix — no dealer involvement needed. Just fill by sight glass and cycle the functions before taking the final reading.

🔧 Recommended: Kubota Super UDT2 Hydraulic Fluid

OEM-spec transmission and hydraulic fluid for L2501. The L2501 holds approximately 6.2 gallons in the combined hydraulic and transmission system when dry — always fill to the sight glass. Never substitute standard ATF or generic hydraulic oil — non-OEM fluid has been directly linked to L2501 HST performance loss.

Check Price on Amazon →

Problem 4: No-Start From Loose Wiring Connectors

One of the most frustrating L2501 problems is a no-start that resists diagnosis for days — the battery tests good, the fuses look fine, and everything appears normal but the tractor either won’t crank or cranks without firing. Multiple L2501 owners report that the fix was simply finding a wiring harness connector that had worked loose under the hood. This costs nothing to fix and should always be the first check on an L2501 no-start.

Symptoms

• Tractor cranks but won’t fire despite good battery
• Completely dead — won’t crank at all
• Problem appeared suddenly with no warning
• Battery load test passes — battery is not the issue
• Fuses appear intact

Causes

• Under-hood wiring harness connectors working loose from vibration during off-road use
• Connectors near the throttle or HST pedal area particularly prone to loosening
• Blown fuse under the hood or near the steering column

DIY Fix — Check This First

Before doing anything else on an L2501 no-start — open the hood and physically push and twist every wiring harness connector you can find. Check connectors under the hood, near the throttle body, near the HST pedal area, and along the main harness routing. Push each one firmly until it clicks. Check all fuses under the hood and near the steering column — replace any blown fuses. This five-minute check has resolved L2501 no-start complaints that owners spent days diagnosing. See our complete Kubota won’t start guide for full diagnosis steps.

When to Call the Dealer

If all connectors are secure and fuses are good and the tractor still won’t start, dealer diagnosis is needed. Minimum dealer charge for a no-start diagnosis runs 0.5-1.0 hours — $60-180 depending on shop rate.

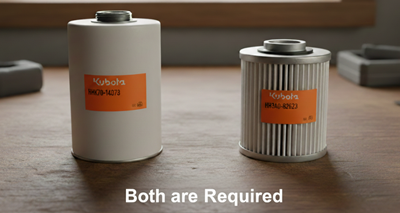

Problem 5: 50-Hour Service Filter Confusion — HST vs Hydraulic

The L2501 owner manual mentions both a “transmission oil filter” and a “hydraulic oil filter” at the 50-hour service but many dealers sell only one filter at the parts counter — leading owners to miss a critical filter change. This documentation versus parts counter mismatch is a known L2501 frustration and skipping a filter is a direct path to the HST slowdown described in Problem 1.

Symptoms

• Confusion at the parts counter — dealer says you only need one filter
• Owner manual references two filters but only one is ordered
• Gradual HST performance loss after service due to missed filter

Causes

• Documentation and parts counter mismatch on early L2501 HST models
• Some dealers not familiar with the two-filter requirement on L2501 HST

DIY Fix

The L2501 HST requires two filters — confirm by checking your parts diagrams against your serial number. The HST filter is HHK70-14073 and the hydraulic return filter is HH3A0-82623 on gear models. Order both filters before every 200-hour service and replace both at the same time. Do not rely on the dealer parts counter to tell you how many filters you need — verify with the parts diagram for your specific serial number. See our Kubota hydraulic filter replacement guide for step by step procedures.

When to Call the Dealer

If you are unsure which filters apply to your specific L2501 serial number call your dealer with the serial number and ask them to pull the exact parts list — this is a free service at any Kubota dealer.

🔧 Recommended: Kubota Hydraulic Filter HH3A0-82623

OEM hydraulic return filter for L2501 gear models. Replace every 200 hours alongside the HST filter. Verify this is the correct filter for your specific serial number before ordering — HST and gear L2501 models use different filter configurations.

Check Price on Amazon →

Problem 6: Loader Feels Weak or Stalls When Charging Piles

L2501 owners frequently report the LA525 loader feeling weak — particularly when trying to fully load a 66-inch bucket or when driving into piles in Low range. The tractor stalls or the loader can not fill the bucket completely. Understanding the L2501’s design limits prevents frustration and mechanical damage.

Symptoms

• Tractor stalls when trying to charge into piles in Low range
• Can not fully load a 66-inch bucket in a single pass
• Loader feels weak compared to larger tractor loaders
• Engine bogs down under combined steering and loader load

Causes

• The L2501 produces 24.8 gross horsepower with 8.26 gpm total hydraulic flow — this is appropriate for the compact L-series chassis but has real limits
• Kubota deliberately de-rated the engine to stay under the DPF emissions threshold — conservative tuning limits peak torque
• Loader relief pressure may be set below factory maximum
• Operating at too low an RPM multiplies the perceived weakness

DIY Fix

Always operate at rated RPM when doing loader work — the L2501 hydraulic system is designed to work at 2,200 RPM and performance drops significantly at lower speeds. Feather into piles gradually rather than charging at full speed. Keep the bucket cutting edge sharp — a dull edge dramatically increases the force needed to fill the bucket. Add rear ballast on the 3-point hitch when doing heavy loader work to improve traction and reduce front wheel lift. If loader performance seems abnormal ask your dealer to verify the loader relief pressure is set to factory specification.

When to Call the Dealer

Loader relief pressure check and adjustment runs 0.5-1.0 hours labor. If performance remains poor after adjustment and proper technique, hydraulic pump pressure testing is needed — dealer diagnosis runs $150-300.

Problem 7: Jerky 3-Point Hitch With Light Implements

The L2501’s 3-point hitch position control is notably coarser than some BX and B-series models — owners describe it as raising or lowering abruptly instead of smoothly when working with light implements. This is a design characteristic of the Standard L-series position control valve rather than a fault but there are adjustments that significantly improve the feel.

Symptoms

• 3-point hitch raises or lowers in abrupt jumps rather than smooth motion
• Difficult to make fine height adjustments with light implements
• More noticeable at low engine RPM
• Smoother with heavier implements attached

Causes

• Standard L-series position control valve is relatively coarse — design characteristic not a fault
• Rate-of-drop knob under the seat partially closed — causing chatter on raise
• Low hydraulic fluid level reducing system pressure
• Operating at too low an RPM when making fine adjustments

DIY Fix

Start with the rate-of-drop knob located under the operator seat — open it fully counterclockwise and test the hitch. Set it to roughly halfway and fine-tune from there. Operate at slightly higher RPM when making fine height adjustments — the position control responds more smoothly at higher engine speeds. Adding weight to light implements significantly improves hitch feel. If the problem is severe at all RPM levels and fluid levels are good, the position control valve may need dealer calibration or replacement. See our Kubota 3-point hitch guide for full diagnosis steps.

When to Call the Dealer

If rate-of-drop adjustment and RPM changes do not resolve the jerkiness the position control valve may need dealer replacement or adjustment. Dealer valve work runs 1-2 hours — typically $150-350.

🔧 Recommended: Kubota Oil Filter HH150-32094 — 6-Pack

OEM replacement engine oil filter for the L2501 D1703 engine. Replace every 50 hours. Buying a 6-pack means you always have filters on hand for scheduled service without a dealer run.

Check Price on Amazon →

Kubota L2501 OEM Parts Reference

Part	OEM Part Number	Notes	Buy
Engine Oil Filter	HH150-32094	Replace every 50 hrs	6-Pack →
HST Filter (HST models)	HHK70-14073	Replace every 200 hrs — supersedes HHK70-14070	2-Pack →
Hydraulic Filter (gear models)	HH3A0-82623	Replace every 200 hrs — verify by serial	Buy →
Fuel Filter	6A320-59930	Replace every 100 hrs — bleed after	Buy →
Air Filter	TA040-93230	Verify by serial number	Buy →
Glow Plugs (qty 3)	19077-65510	D1703 3-cyl — different from BX/B series plugs	3-Pack →
Battery	Group 26R	12V, 490 CCA minimum — verify tray dimensions	Buy →

⚠️ Important — L2501 Has Different Filters and Glow Plugs Than BX/B Series: The L2501 D1703 engine uses glow plugs 19077-65510 — different from the 1G679-65512 used in BX and B-series tractors. The HST and gear models also use different hydraulic filters. Always confirm parts by serial number before ordering.

Kubota L2501 Fluid Specifications and Capacities

System	Capacity	Fluid Type
Engine Oil	6.3 US qts (with filter)	15W-40 or 10W-30 API CF or higher
Hydraulic / Transmission	6.2 gal dry — fill to sight glass	Kubota Super UDT2 — never substitute
Front Axle	6.9 US qts	SAE 80W-90 gear oil (API GL-5) or Super UDT2
Coolant	7.3 US qts	50/50 long-life ethylene glycol
Fuel Tank	10.0 US gal	Ultra-low sulfur diesel (ULSD) only

Dealer vs DIY Cost Comparison

Problem	DIY Cost	Dealer Cost	Potential Savings
HST Fluid and Filter Service	$200–$300	$400–$600	Up to $400
Tach Cluster — Connector Check	Free	$120–$180 minimum	Up to $180
Hydraulic Fill — Sight Glass	Free	Included in service	Peace of mind
No-Start Connector Check	Free	$60–$180	Up to $180
50-Hour Filter Service	$50–$100 parts	$300–$500 dealer service	Up to $450
Loader Relief Check	Free — technique	$60–$180	Up to $180
3-PT Drop Rate Adjustment	Free	$60–$350	Up to $350

Kubota L2501 Maintenance Schedule

Interval	Service Item	Part / Fluid
Every 50 hrs	Engine oil and filter change	HH150-32094 + 15W-40 CK-4 — 6.3 qts
Every 100 hrs	Fuel filter replacement — bleed after	6A320-59930
Every 200 hrs	HST filter replacement (HST models)	HHK70-14073
Every 200 hrs	Hydraulic filter replacement (gear models)	HH3A0-82623
Every 300 hrs	Hydraulic and transmission fluid change	Super UDT2 — fill to sight glass
Every 500 hrs	Front axle fluid change	SAE 80W-90 GL-5 — 6.9 qts
Every 2 years	Coolant flush and refill	50/50 long-life ethylene glycol — 7.3 qts

❓ Frequently Asked Questions

QWhat are the most common Kubota L2501 problems?

The most common L2501 problems are HST slowing down on hills from overdue fluid and filter service, tachometer and hour meter failure, hydraulic fluid confusion after service, no-start from loose wiring connectors, filter confusion at the 50-hour service, loader feeling weak under heavy use, and jerky 3-point hitch with light implements. Most can be diagnosed and fixed at home without dealer involvement.

QDoes the Kubota L2501 have a DPF?

No — the L2501 is completely DPF-free. Kubota deliberately rated the D1703 engine at 24.8 horsepower to stay below the emissions threshold that requires a diesel particulate filter. There are no forced regeneration cycles, no regen warning light, and no DEF fluid. This is one of the biggest maintenance advantages of the L2501 over the larger L3301 and L3901 which use full DPF systems.

QWhy is my L2501 HST slowing down on hills?

HST performance loss on the L2501 almost always traces to wrong fluid or overdue filter service. Drain and refill with fresh Kubota Super UDT2 and replace both the HST filter (HHK70-14073) and hydraulic filter at the same time. Never use generic hydraulic oil or ATF in the L2501 — non-OEM fluid has been directly linked to HST performance degradation on this model.

QMy L2501 won’t start and the battery is fine — what should I check?

Check every wiring harness connector under the hood first — push and twist each one to make sure it is fully seated. Multiple L2501 owners have solved no-start complaints that lasted days by finding a single loose connector. Also check all fuses under the hood and near the steering column. This five-minute check should always be the first step on an L2501 no-start before any other diagnosis.

QHow many hydraulic filters does the L2501 need?

The L2501 HST model requires both an HST filter (HHK70-14073) and a hydraulic return filter at each 200-hour service. The L2501 gear model requires a hydraulic filter (HH3A0-82623). The owner manual mentions both filters but many dealers only sell one at the parts counter — always verify which filters apply to your specific serial number before each service.

QWhat hydraulic fluid does the Kubota L2501 use?

The L2501 uses Kubota Super UDT2 in the combined hydraulic and transmission system. The published dry capacity is 6.2 gallons but always fill to the sight glass rather than the book number — not all fluid drains during a normal service. The front axle uses SAE 80W-90 gear oil or Super UDT2 at 6.9 US quarts. Never substitute generic hydraulic oil — non-OEM fluid causes HST performance loss on this model.

QIs the Kubota L2501 reliable?

Yes — the L2501 is widely regarded as one of Kubota’s most reliable compact tractors. The DPF-free D1703 engine is proven across thousands of machines and the L-series platform is extremely well established. Most reported problems trace to fluid and filter maintenance rather than mechanical failures. Owners who use Kubota Super UDT2 exclusively and follow the service schedule consistently report excellent reliability well past 2,000 hours.

Related Kubota Guides

Note: Part numbers and fluid specifications in this guide are based on Kubota workshop manual data for the L2501 and confirmed against dealer parts listings. The L2501 D1703 engine uses glow plugs 19077-65510 — different from the plugs used in BX and B-series tractors. HST and gear L2501 models use different hydraulic filters — always verify by serial number. The published 6.2 gallon hydraulic capacity is for a dry system — always fill to the sight glass during service. Always confirm part numbers against your serial number before ordering.
