Kubota L6060 Problems: Complete Troubleshooting Guide (2026)

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

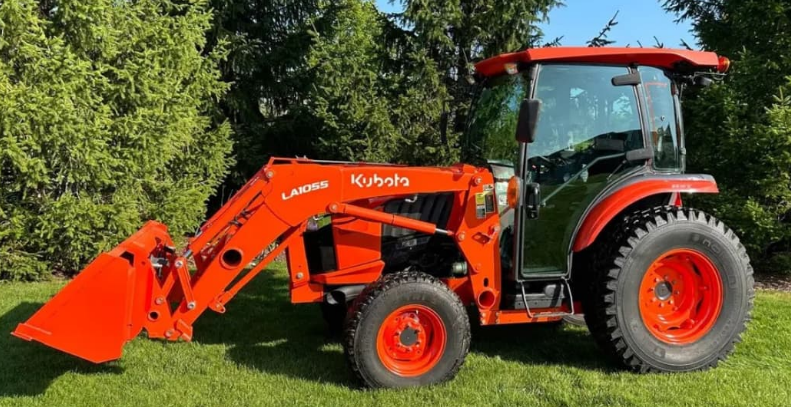

The Kubota L6060 is a capable 62-hp utility tractor, but owners consistently report the same cluster of problems: DPF clogging from ignored regens, HST jerking from faulty solenoids, hydraulic weakness from contaminated fluid, and PTO solenoid failure. The good news — most of these are DIY-fixable for under $200. This guide covers all 7 common issues with confirmed part numbers, fluid specs, step-by-step fixes, and a dealer vs. DIY cost breakdown.

The L6060 runs a V2403-CR-TE4B 2.4L 4-cylinder diesel (64.7 gross HP, 53.7 PTO HP) and shares Kubota’s Tier 4 Final emissions package with the rest of the Standard L lineup. That Tier 4 system is the source of the most common — and most expensive — owner frustrations. But hydraulics, HST, PTO, and electrical faults round out the full picture.

Everything below is drawn from TractorByNet, OrangeTractorTalks, Reddit, and Kubota service manual data. Real owner quotes, real part numbers, real repair costs.

L6060 Problems — Quick Reference

Problem	Most Likely Cause	DIY Fix Cost
DPF clog / warning lights	Short run cycles, ignored regens	$0 — run regen procedure
HST jerking / slipping	Fwd/rev solenoid fault	~$150–200
Hydraulic / 3PH weak or dead	Contaminated fluid, clogged filter	~$50–75
PTO won’t engage	PTO solenoid failure	~$100–150
Hard start / no start	Fuel air lock, weak battery	~$50–120
Overheating / power loss	Blocked radiator, fuel filter clog	~$20–50
Electrical faults (cab)	HVAC wiring, alternator output	~$20–80

Problem #1 — DPF / Emissions Issues (Tier 4)

This is the most common L6060 complaint on forums — and the most misunderstood. The Tier 4 DPF requires active regeneration cycles to burn off accumulated soot. Operators who don’t understand the regen system end up with clogged filters, fault codes, and bills that start at $3,000. Most of it is preventable.

Root cause: Short run cycles under 30 minutes, frequent idle use, and ignoring the amber warning light all prevent passive regeneration from completing.

DPF Warning Light Levels

Level	Display	Action Required
Level 1	No light — passive regen	None — normal operation
Level 2	Solid amber smoke puff icon	Increase load/RPM — regen needed soon
Level 3 ⚠️	Flashing amber smoke puff + DPF light	Parked regen required — run procedure now
Level 4 🔴	Solid red DPF light + buzzer	Dealer diagnostic tool required
Level 5 🔴	Blinking red + power loss	DPF replacement required — tow to dealer

Level 3 Parked Regen Procedure

Park outdoors away from flammables — exhaust reaches extreme temperatures
Stay seated throughout — seat switch must remain active
Confirm the regen inhibit button (slash/cancel icon) is OFF and not lit
Raise throttle to high idle (above 1,800 RPM)
Press the regen button (smoke icon, no slash) — solid amber DPF light confirms start
Allow 20–40 minutes of continuous run — do not interrupt
Lights extinguish when complete — lower RPM

Common DPF Fault Codes

Code	Meaning	Action
P2002	DPF efficiency below 85%	Run parked regen
P242F	Soot load above 100g	Parked regen — urgent
P2463	DPF pressure sensor fault	Check/replace pressure sensor
P2BAB	Critical soot level	Dealer — Level 4+
P3001	High soot accumulation	Dealer — possible DPF replacement

🔧 DPF & Fuel System Parts

Kubota Fuel Filter (1J800-43170)

Replace every 200 hrs or at first sign of slime buildup on pre-filter screen.

View on Amazon →

Kubota Super UDT2 Hydraulic Fluid

OEM-spec fluid for the L6060’s 11.9-gallon shared reservoir. The #1 thing to have on hand before the 50-hour service.

View on Amazon →

OBD2 Diesel Scan Tool

Read DPF fault codes before they escalate to dealer service. Essential for any Tier 4 tractor owner.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

For a complete DPF walkthrough see our Kubota DPF Cleaning Guide — Save $800+ →

Problem #2 — HST Transmission Jerking & Slipping

L6060 HST owners report an unnerving jerking or lurching sensation at low speeds — especially during precision loader work or slow creeping. The tractor may also drift backward on slopes with the pedal in neutral. This is almost always a solenoid or sensor issue, not a transmission rebuild.

Diagnose with the Solenoid Swap Test

The fastest diagnostic: swap the forward and reverse solenoids. If the jerking moves to the opposite direction of travel, the original solenoid is confirmed bad.

Locate the forward and reverse solenoids on the HST pump body
Label both connectors before disconnecting
Swap solenoids to opposite positions
Test drive — if jerk now occurs in reverse (was forward), solenoid is confirmed faulty
Replace faulty solenoid — parts run $100–200 from Kubota dealers or online

Other HST Causes

Pedal position sensor fault — Service manual page 9-S55; test with multimeter for out-of-range voltage
Swashplate sensor — Less common; requires dealer scan tool for live data
Under-torqued internal bolt (TSB) — Confirmed service bulletin; have dealer verify torque if solenoid replacement doesn’t resolve
Low HST fluid — Check reservoir before anything else

Gear vs HST Reliability

Gear drive has no solenoid/sensor issues — fewer electronics
HST preferred for loader work — infinite variability
Solenoid and pedal sensor faults are HST-only problems
Both transmissions are durable when properly maintained

“HST jerky at low speeds — swapped the fwd/rev solenoids and the issue moved to the opposite direction. Ordered a new solenoid, $150 later it was fixed.” — OrangeTractorTalks owner

Fluid spec: Transmission/hydraulic shares a common 11.9-gallon reservoir — use Kubota Super UDT2 only. Change every 400 hours. For a full HST walkthrough see our HST Transmission Troubleshooting Guide →

Problem #3 — Hydraulic & 3-Point Hitch Failures

Hydraulic problems account for roughly 35% of L6060 owner complaints, driven almost entirely by contaminated fluid or a neglected filter. The L6060 uses a shared transmission/hydraulic reservoir — dirty fluid affects loader, remotes, 3-point hitch, and power steering simultaneously.

Quick Checks First

Draft Control Lever

Must be at least 1/3 open — fully closed kills 3-point lift. Fixes 25% of cases immediately.

Engine RPM

Minimum 1,800–2,000 RPM required for full hydraulic pressure. Test at high idle before diagnosing further.

Fluid Color

Dark brown or black fluid means immediate change. Gritty texture or metallic particles = change now regardless of hours.

Hydraulic Fluid Change Procedure

The L6060 3-point hitch is rated at 2,860 lbs lift capacity at 24 inches behind the hitch pins. If you’re struggling below that threshold with clean fluid and a working filter, suspect the relief valve or internal pump wear.

Warm tractor to operating temp to thin the fluid for faster draining
Drain the common transmission/hydraulic reservoir — 11.9 US gallon capacity
Replace hydraulic filter — Part # HHTA0-37710 (confirmed for L6060 HST)
Refill with Kubota Super UDT2 only — viscosity 32.1 cSt @ 40°C
Cycle all hydraulic functions (loader, remotes, 3PH) to purge air
Recheck level and top off

“3-point was slow and weak. Checked the fluid — it was black and gritty. Changed fluid and filter, issue completely gone.” — Common TractorByNet report

🔧 Hydraulic Service Parts

Hydraulic Filter (HHTA0-37710) ⭐

Replace at 50 hours initially, then every 400 hours. Confirmed part number for L6060 HST.

View on Amazon →

Kubota Super UDT2 Fluid

OEM-spec fluid for the L6060 common reservoir. Do not substitute — viscosity and additive package are specific to Kubota’s system.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

Problem #4 — PTO Won’t Engage

The L6060 runs rear PTO at 540 RPM (at 2,400 engine RPM) and mid-PTO at 2,000 RPM (at 2,430 RPM). When the PTO won’t spin despite the switch showing 12V, the solenoid is the first replacement. Clutch slippage and low hydraulic pressure are secondary causes.

Diagnose Before You Replace

Test for 12V at the PTO solenoid connector with switch engaged
12V present but no spin → solenoid bad — replace Part # TD170-59893
No 12V → trace to PTO switch, fuse, or safety switch wiring
Check air ride seat tilt switch — stationary PTO is disabled if seat tilts forward

Mid-PTO Warning

The mid-PTO shaft sits low and is vulnerable to ground strikes during loader work or rough terrain. If mid-PTO fails suddenly after rough ground, inspect the shaft and housing for physical damage before assuming electrical failure.

💡 Cost Comparison: PTO solenoid replacement — Dealer: $800–1,200 | DIY: ~$150 + 2 hours. You save $650–$1,050.

Problem #5 — Hard Start / No Start

L6060 no-start complaints cluster around two root causes: fuel system air locks and weak batteries. Cold weather amplifies both significantly.

Fuel Air Lock — How to Purge

Locate the 10mm hex fitting on top of the fuel filter housing
Loosen slightly — do not remove fully
Allow air to bleed out with fuel until only fuel flows (no bubbles)
Tighten fitting and crank — starts within 2–3 attempts

Repeated air locks: inspect and clean the pre-filter screen — slime buildup is common on older or biodiesel fuel.

Battery & Electrical Checks

OEM spec: 80D26R (BCI Group 27/27F) — minimum 582 CCA
OEM batteries fail within 6–8 years — upgrade to AGM for cold climates

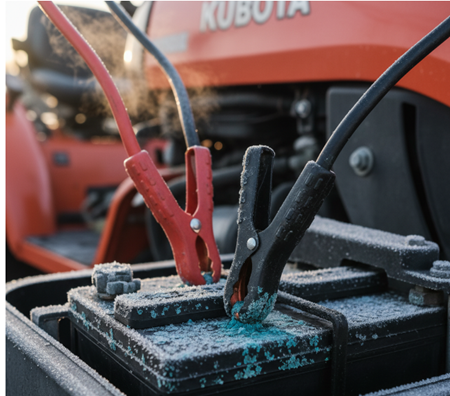

Solenoid click with no crank → check wiring corrosion at starter and ground points
Glow plug failure causes hard cold starts — test resistance with multimeter
Code P0563 (high voltage) = alternator fault; test output (13.8–14.4V at operating RPM)

🔧 Starting System Parts

Shell Rotella T6 15W-40 Full Synthetic

OEM-spec viscosity for the L6060 V2403 engine. Full synthetic handles temperature extremes and extends oil change intervals.

View on Amazon →

Glow Plug (1G852-65510)

Replace as a complete set when hard cold starts appear. One failing plug affects the whole starting sequence.

View on Amazon →

Multimeter

Essential for battery, alternator, glow plug, and solenoid testing. The single most useful diagnostic tool you can own.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

Problem #6 — Overheating & Power Loss

Engine overheating on the L6060 is usually environmental rather than mechanical. Blocked radiator fins from chaff and debris are the most common trigger during summer field work.

Overheating Checklist

Radiator fins — Blow out with compressed air every 10 hrs during heavy use
Coolant level — 6.6 US gal (25L), 50/50 long-life antifreeze
Thermostat — Erratic temp gauge = stuck thermostat
Fan belt — Inspect for wear and slippage

Power Loss Under Load

Fuel filter clog (1J800-43170) — Pre-filter slime restricts flow
SCV calibration — Hillside power loss; dealer check advised
Water in fuel — Most expensive failure at $10K+ in injector damage

⚠️ Water in Fuel — The $10,000 Mistake

“Water in the fuel rusted the rail and damaged the injectors — $10,000 dealer bill.” — Complete Turf Care, TractorByNet

A $30 in-line water separator prevents this entirely. It is the single best insurance you can buy for the L6060’s fuel system.

Engine oil spec: 15W-40, 8.7 US quarts (8.2L). Engine oil filter: HH164-32430. Change every 400 hours (200-hour initial change).

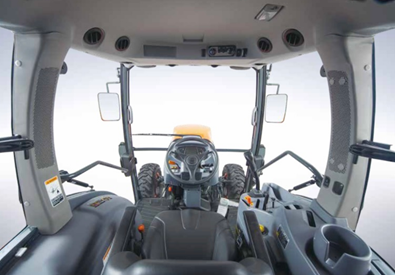

Problem #7 — Electrical & Cab Faults

The Grand Cab (HSTC) variant adds climate control and additional wiring that creates its own failure points. Open-station L6060 owners see primarily instrument cluster and charging system faults.

Fault	Likely Cause	First Check
HVAC failure (cab)	Wiring harness abrasion or AC clutch belt slip	Check 14mm belt tension bolt
Cluster MPH/KMH toggle	Cluster connector issue	Reseat cluster harness connector
P0500 speed sensor fault	Wheel speed sensor corrosion	Inspect and clean sensor connector
P0563 high voltage	Alternator output fault	Test voltage at battery (should be 13.8–14.4V)
Battery drain	Alternator or parasitic draw	Test alternator output first; check belt tension

Key Part Numbers & Fluid Specs

Component	Part Number	Notes
Hydraulic Filter	HHTA0-37710	Confirmed for L6060 HST — replace at 50 hrs initially
Engine Oil Filter	HH164-32430	Change every 400 hrs (200 hr initial)
Fuel Filter Element	1J800-43170	Inspect pre-filter screen for slime at every change
PTO Solenoid	TD170-59893	Confirm 12V at connector before replacing
Glow Plug	1G852-65510	Replace as a complete set
Battery (OEM spec)	80D26R	BCI Group 27/27F — 582 CCA minimum

Fluid	Capacity	Spec
Engine Oil	8.7 US qts (8.2L)	15W-40 or Super UDT
Hydraulic / Transmission	11.9 US gal (45L)	Kubota Super UDT2 only
Front Axle	7.9 US qts (7.5L)	SAE 80W-90 gear oil
Coolant	6.6 US gal (25L)	Long-life antifreeze, 50/50
Fuel Tank	13.5 US gal (51L)	Ultra-low sulfur diesel only

Dealer vs. DIY Repair Cost Comparison

Repair	Dealer Cost	DIY Cost	Your Savings
DPF parked regen	$200–500	$0	$200–500
Hydraulic filter change	$300–500	~$50	$250–450
PTO solenoid replacement	$800–1,200	~$150 + 2 hrs	$650–1,050
HST solenoid swap	~$1,000	~$200	~$800
50-hour service	~$1,000	~$200	~$800
Injector replacement (water damage)	$10,000+	~$5,000 parts	$5,000+

🔧 Complete L6060 Filter Service Kit

Engine Oil Filter (HH164-32430) ⭐

Change at 200 hrs initial, then every 400 hrs. Buy in 2-packs to stay stocked.

View on Amazon →

Hydraulic Filter (HHTA0-37710)

Critical at 50-hour break-in and every 400 hrs. Confirmed part for L6060 HST.

View on Amazon →

Fuel Filter (1J800-43170)

Replace every 200 hours or annually. Inspect pre-filter screen for slime buildup.

View on Amazon →

Kubota Super UDT2 Fluid

11.9-gallon reservoir — OEM-spec fluid only. Do not substitute with generic hydraulic oil.

View on Amazon →

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases at no extra cost to you.

L6060 Maintenance Schedule

Service Item	First Service	Regular Interval
Engine oil & filter	200 hours ⭐	Every 400 hours
Hydraulic filter	50 hours ⭐	Every 400 hours
Hydraulic / transmission fluid	—	Every 400 hours
Fuel filter	—	Every 200 hours or annually
Front axle fluid	—	Every 400 hours
Radiator fins	—	Every 10 hours during heavy use
DPF regen monitoring	—	Every use — never ignore amber light

⚠️ The 5 Most Expensive First-500-Hour Mistakes

Ignoring DPF warning lights → $3,000+ catalyst failure
Skipping the 50-hour hydraulic filter → accelerated pump wear and contaminated system
Running without a fuel water separator → $10,000 injector damage
Checking engine oil level when hot → false low or overfill readings
Overloading the loader on HST models → excessive solenoid and pump wear

Frequently Asked Questions

QWhat are the most common Kubota L6060 problems?

The most frequent L6060 issues are DPF clogging from ignored regeneration cycles, HST jerking caused by faulty forward/reverse solenoids, hydraulic sluggishness from contaminated Super UDT2 fluid, and PTO solenoid failure. Most are DIY-fixable for under $200.

QWhy does my L6060 HST jerk at low speeds?

The most likely cause is a faulty HST forward or reverse solenoid. Confirm by swapping the two solenoids — if the jerk moves to the opposite direction of travel, the original solenoid is bad. Replacement solenoids run $100–200. There is also a confirmed TSB for an under-torqued internal HST bolt — have a dealer verify torque if solenoid replacement doesn’t resolve the issue.

QWhat hydraulic fluid does the Kubota L6060 use?

The L6060 uses Kubota Super UDT2 for the shared transmission/hydraulic reservoir — 11.9 US gallons (45 liters). Do not substitute with generic hydraulic fluid. Super UDT2 has a specific viscosity of 32.1 cSt at 40°C engineered for Kubota’s system.

QHow do I run a parked regen on my Kubota L6060?

Park outdoors away from flammables, stay seated, confirm the regen inhibit button is off, raise throttle above 1,800 RPM, and press the regen button (smoke icon). The process takes 20–40 minutes — do not interrupt it. The DPF warning lights extinguish when complete.

QWhy won’t my L6060 PTO engage?

First confirm 12V is reaching the PTO solenoid (Part # TD170-59893) with a multimeter. If voltage is present but PTO won’t spin, the solenoid needs replacement. If no voltage, trace back to the PTO switch, fuse, or safety switch circuit. Also check that the air ride seat tilt switch isn’t disabling the stationary PTO — this catches many operators off guard.

QHow long does the L6060 battery last?

The OEM 80D26R battery typically lasts 6–8 years. Upgrading to an AGM battery in the same BCI Group 27/27F size provides better cold cranking amps and longer service life — especially worth it in colder climates.

QIs the L6060 HST or gear drive more reliable?

The gear drive has fewer electronics and no solenoid-related issues, making it simpler to maintain long-term. The HST is preferred for loader work due to infinite variability, but solenoid and pedal sensor faults are HST-specific problems gear owners never see. Both transmissions are durable with proper fluid maintenance.
