Kubota Loader Won't Lift: 7 Causes & Fixes (Most Under $100)

Kubota Loader Won’t Lift: 7 Causes & Fixes (Most Under $100)

Your Kubota loader was working fine yesterday. Today it barely moves, lifts slowly under load, or won’t go up at all. Before you call the dealer and hand over $150/hour in diagnostic fees, take a breath — most Kubota loader lift failures are caused by simple, inexpensive problems that any owner can diagnose and fix in an afternoon.

Thank you for reading this post, don't forget to subscribe!

This guide walks you through all 7 causes ranked by how often they actually happen, with model-specific specs for BX, B, L, and M series tractors, DIY test procedures, and exact repair costs so you know what you’re dealing with before spending a dime.

⚡ Quick Diagnosis: What Are Your Symptoms?

Symptom	Most Likely Cause
Slow lift, gets better as engine warms	Cold fluid / wrong oil type
Lifts empty bucket, stalls under load	Low fluid or relief valve too low
Won’t lift at all, steering still works	Quick coupler disconnected or valve issue
Entire hydraulic system weak or dead	Low fluid, clogged filter, or pump failure
Lifts fine but slowly drifts back down	Cylinder seal failure or valve leakage

🔍 5 Field Tests Before You Spend Any Money

Run these quick checks first — many “broken loader” calls are solved in under 5 minutes.

Check the quick couplers
Walk to the loader tower and firmly push every quick coupler connection until you feel it click. A partially seated coupler is the #1 cause of sudden “no lift” — it takes 30 seconds and costs nothing. If one was bumped during attachment changes, reconnecting it restores full loader function immediately.

Check the hydraulic fluid level
Park on level ground, lower the loader and 3-point hitch fully, shut off the engine, and wait one minute. Wipe the sight glass clean and check the level. It should sit near the middle when cold. Low fluid is the most common cause of weak or no lift — top up with Kubota Super UDT2 only.

Test all hydraulic functions
Operate the 3-point hitch and any rear remotes. If they are also weak or slow, the problem is in the shared hydraulic system — low fluid, clogged filter, or pump. If only the loader is affected while the 3-point works fine, suspect the loader control valve or quick couplers specifically.

Cylinder drift test
Raise the loader 1–2 feet with an empty bucket, center the joystick, and shut off the engine. Watch the loader arms for 5–10 minutes. Significant drop indicates internal leakage — either cylinder seals or the loader control valve. One arm dropping faster than the other points to that specific cylinder.

Relief valve sound check
Try curling the bucket hard against a solid pile of dirt or gravel. If you hear the relief hiss very early and the loader can’t lift a moderate load, the relief valve is set too low or is stuck open. Other hydraulic functions will work fine in this case.

⚠️ 7 Causes of Kubota Loader Won’t Lift (Ranked by Frequency)

Cause #1: Low or Incorrect Hydraulic Fluid (Most Common)

This is the first thing to check and the most frequently overlooked. Kubota loader systems are very sensitive to fluid level — even being slightly below the sight glass mid-point can cause weak lift, especially on slopes where the suction pickup starves for a moment and ingests air.

Kubota’s factory specification for virtually all BX, B, L, and M series tractors is Kubota Super UDT2. This synthetic trans-hydraulic fluid is formulated specifically for Kubota’s wet brake and HST systems and has excellent cold-weather flow that generic hydraulic oils cannot match. Never use generic tractor hydraulic fluid as a substitute — it causes exactly the symptoms described in this article.

Typical system capacities (transmission/hydraulic combined): BX2380/BX23S approximately 3.4–3.9 gallons; B2601/B2650 approximately 4.2–4.6 gallons; L2501/L3301/L3901 approximately 7.0–8.7 gallons; M5060/M7060 typically 10–15+ gallons.

🛒 Recommended Fluid:

Kubota Super UDT2 2.5 Gallon — the only fluid Kubota recommends for BX, B, L, and M series hydraulic and HST systems. Excellent cold-weather performance prevents the “won’t lift until warm” problem many owners experience with generic oils.

Cause #2: Clogged Hydraulic Filter or Suction Screen

A restricted hydraulic filter is one of the most common causes of slow or no loader lift — and one of the cheapest fixes. Kubota compact tractors require an initial hydraulic filter change at 50 hours, then every 200–400 hours depending on your series. Many used tractor buyers inherit machines well past their service interval.

Symptoms of a clogged filter look almost identical to low fluid: slow lift, cavitation noise from the pump, foamy oil, and a loader that performs worse when cold but improves once oil warms and thins enough to get through the restriction. The suction screen, located inside the transmission case on many models, can also collect debris from early break-in wear and starve the pump entirely.

Common OEM filter part numbers: BX series uses HHK20-36990 and HH3A0-82623 depending on configuration; B and L series frequently use HHK20-36990. Complete BX maintenance kits (77700-03363 and 77700-03362) bundle all filters for a full service in one order.

🛒 Recommended Filters:

Kubota Hydraulic Filter HHK20-36990 — fits most B and L series, and many BX models. Replace at 50 hours initially, then every 200–400 hours.

Kubota BX Complete Filter Kit 77700-03363 — bundles hydraulic, oil, fuel, and air filters for a full BX service in one order. Best value for BX owners.

Cause #3: Hydraulic Relief Valve Set Too Low or Stuck Open

The relief valve is a pressure-limiting safety device that opens to bypass flow when system pressure exceeds a set limit. When it’s set too low, contaminated with debris, or stuck partially open, the loader hits relief under light loads and can’t build enough pressure to lift rated capacity.

This is the cause when your loader “lifts an empty bucket fine but stalls with any real load.” You’ll hear an audible hiss from the valve when it opens prematurely. Factory pressure settings by series: BX series approximately 1,800–2,000 psi; B and L series approximately 2,200–2,500 psi; M series approximately 2,500–2,800 psi.

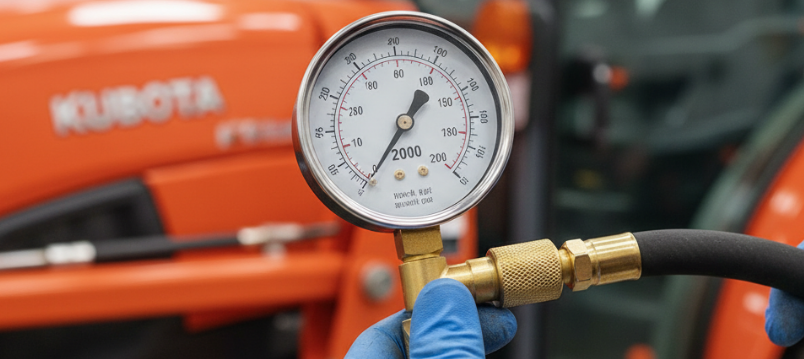

Diagnosing and adjusting the relief valve requires a hydraulic pressure test gauge. Connect it to a test port, dead-head the loader briefly, and compare your reading to factory spec. Adjustment involves loosening a locknut and turning the setscrew in small 1/8-turn increments — never exceed factory spec.

🛒 Recommended Tool:

Hydraulic Pressure Test Gauge Kit — essential for diagnosing relief valve issues, confirming pump pressure, and verifying your system is at factory spec. Pays for itself the first time you use it instead of paying dealer diagnostic rates.

For a deeper dive on relief valve adjustment, see our Kubota Hydraulic Pressure Relief Valve Adjustment Guide.

Cause #4: Faulty Loader Control Valve (Stuck Spool or Internal Bypass)

The loader control valve directs hydraulic flow to the lift and curl cylinders based on joystick input. When the spool inside the valve corrodes, scores, or sticks, it can cause erratic lift behavior — the loader may only respond in certain joystick positions, return very slowly to neutral, or build pressure fine at the pump but still produce weak lift because flow is bypassing internally back to the tank.

Key symptom that points to the valve rather than the pump or relief: one function works correctly (curl operates fine) while lift is weak or dead. This indicates internal leakage within the valve block specific to the lift circuit rather than a system-wide issue.

Sticky spools can sometimes be freed by repeatedly cycling the joystick through all positions while the system is hot. More serious scoring or corrosion requires valve body removal and rebuilding or replacement. See our complete Kubota hydraulic system guide for valve troubleshooting details.

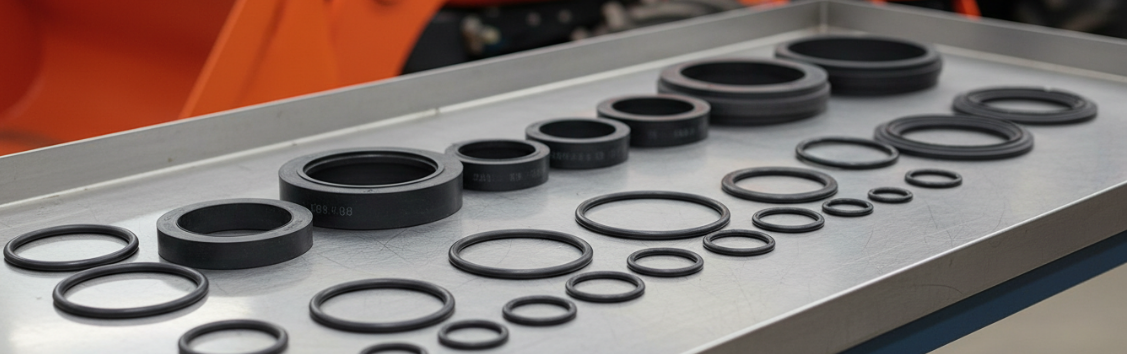

Cause #5: Cylinder Seal Failure (Internal Bypass)

Lift cylinder seals wear over time, especially on high-hour machines or tractors that sat with moisture exposure. When the piston seals fail, hydraulic pressure bypasses internally from the high-pressure side to the low-pressure side — the cylinder can’t hold force and the loader drifts down or lifts weakly.

The drift test described earlier is your best DIY diagnostic: raise the loader partway, engine off, joystick neutral, and watch for drop over 5–10 minutes. Both arms dropping evenly suggests valve leakage. One arm dropping faster points to the cylinder on that specific side.

Seal kit replacement is a legitimate DIY job with basic tools, typically costing $18–$70 in parts depending on your loader model. Dealer labor to rebuild two cylinders can run $550+ as one forum owner reported — a compelling case for doing it yourself.

🛒 Kubota Loader Cylinder Seal Kits by Model:

LA525/LA555 Boom & Bucket Seal Kit (7J273-63400) — fits L and B series loaders including LA463, LA513, LA514, LA524, LA525, LA555. $18.99.

LA1153S/LA1154 Seal Kit — fits larger L and M series loaders. $59.99.

BX2370/BX25D Loader Cylinder Seal Kit (7J612-64400) — fits BX series loader and backhoe cylinders. $68.98.

For step-by-step seal replacement instructions, see our Kubota Hydraulic Cylinder Drift & Seal Kit Installation Guide.

Cause #6: Worn or Failing Hydraulic Pump

True hydraulic pump failure is less common than the other causes on this list — most “weak loader” complaints are solved by fluid, filter, or relief valve corrections. However, high-hour machines or systems that ran contaminated fluid can develop genuine pump wear.

When the pump is failing, all hydraulic functions are weak simultaneously — loader, 3-point hitch, and steering (if hydraulically assisted). A pressure gauge test confirms it: if maximum system pressure stays far below spec even with the relief valve backed out, the pump cannot build pressure and needs rebuild or replacement.

Compact Kubota pumps typically produce 6–9 gpm total flow; M series and larger can produce 11–17 gpm. Aftermarket pump replacement runs approximately $400–$1,000+ depending on model. For a detailed diagnosis, see our Kubota Hydraulic Pump Failure: Rebuild vs Replace Guide.

Cause #7: Cold Weather Hydraulic Fluid Thickening

In sub-freezing temperatures, standard hydraulic oil thickens to a point where the pump struggles to pull fluid through the suction line and filter. The result is a loader that barely moves for the first 5–15 minutes, then gradually improves as oil warms. Many owners panic and suspect pump failure when the real cause is simply wrong oil type.

Switching to Kubota Super UDT2 eliminates this problem entirely. Its lower pour point and cold-flow characteristics allow normal hydraulic function even at near-freezing temperatures. Multiple owners report that after switching to Super UDT2, the “won’t lift in the morning” issue disappeared completely the following winter.

For cold-weather operation tips beyond fluid choice, see our Kubota Won’t Start in Cold Weather guide and our Cold Weather Tractor Maintenance guide.

📊 Model-Specific Data: BX, B, L & M Series

Series / Loader	System Pressure	Lift Capacity	Common Issues
BX2380/BX23S LA535 loader	~1,800–2,000 psi	~1,000–1,100 lb	Quick couplers bumped, relief set slightly low at factory
B2601/B2650 LA525 loader	~2,300–2,400 psi	~1,100–1,200 lb	Relief slightly low, 50-hour filter service critical
L2501/L3301/L3901 LA525 / LA805	~2,300–2,400 psi	~1,130–1,800 lb	Relief pressure sensitive, older cylinder seal leaks
M5060/M7060 LA1353/LA1154	~2,500–2,800 psi	Higher capacity	Sensitive to suction screen clogs, longer suction lines

💰 Repair Cost Guide: DIY vs Dealer

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid top-up	$25–$50	$150–$300	$100–$250
Hydraulic filter replacement	$20–$50	$200–$400	$150–$350
Relief valve adjustment	$50–$80 (gauge kit)	$200–$450	$150–$370
Cylinder seal kit (DIY)	$20–$70	$350–$600+	$300–$530
Hydraulic pump replacement	$400–$1,000+	$800–$1,800+	$400–$800

🔧 How to Change the Hydraulic Filter: Step-by-Step

Prepare the tractor
Park on level ground, lower all implements fully, shut off engine. Place a drain pan under the transmission case. Let the machine cool for 15–20 minutes if it’s been running hard.

Clean around the filter
Wipe the area around the hydraulic filter housing thoroughly. Any debris that falls into the filter cavity during removal will contaminate your fresh fluid.

Remove old filter
Spin off the old hydraulic filter (HHK20-36990 or your model-specific filter). Have the drain pan ready — some fluid will spill. Note the condition of the old filter; heavy debris or metallic particles indicate internal wear that needs investigation.

Check the suction screen
On models with an accessible suction strainer inside the case, remove the cover and pull out the mesh screen. Clean any debris with solvent and compressed air before reinstalling.

Install new filter
Pre-lubricate the gasket on the new filter with fresh Super UDT2. Hand-tighten plus a fraction of a turn — do not use a filter wrench to overtighten, as this can distort the gasket and cause leaks.

Refill and test
Refill with the correct amount of Kubota Super UDT2 for your model. Start the engine and slowly cycle the loader up and down several times to purge air from the system. Shut off and recheck fluid level — top up as needed.

🛡️ Safety First: Working Around Loader Hydraulics

⚠️ Never work under a raised loader without proper support.

Kubota hydraulic systems operate between 1,800 and 2,800 psi. A pinhole leak or hose failure can inject fluid under your skin — a genuine medical emergency requiring surgery. Always use rated safety stands before placing any body part under raised equipment.

🛒 Essential Safety Equipment:

YELLOW JACKET 6 Ton Heavy Duty Jack Stands — rated for the weight of compact and utility tractors. Double locking mechanism, wide base. Never substitute car jack stands for loader work.

Nitrile Gloves — essential for hydraulic fluid work. Never use bare hands to feel for leaks — use cardboard or wood instead.

Safety Glasses — hydraulic fluid under pressure can spray without warning during hose or fitting work.

Depressurization procedure before opening any hydraulic line: shut off engine, cycle the joystick through all positions several times to relieve residual pressure, and wait for all movement to stop. On quick couplers that won’t connect due to trapped pressure, use the loader control lever to relieve pressure rather than forcing the fitting.

🔩 Where to Source Kubota Loader Parts

🔧 Aftermarket Kubota Loader Parts:

For aftermarket Kubota hydraulic cylinders, seal kits, and loader components at significant savings over OEM pricing, Loader Parts Source stocks a wide range of direct-fit replacements for Kubota compact and utility tractors — with fast shipping and a solid warranty.

❓ Frequently Asked Questions

Q: My Kubota loader won’t lift but the 3-point hitch still works. What does that mean?

If the 3-point hitch works normally but the loader won’t lift, the problem is isolated to the loader circuit rather than the shared hydraulic system. Start by checking quick couplers — a partially disconnected coupler is the most common cause of this exact symptom. Next suspect the loader control valve specifically. Low fluid and filter issues typically affect all hydraulic functions equally.

Q: How do I know if my hydraulic pump is bad or if it’s just the relief valve?

A pressure test gauge tells you definitively. Connect the gauge to a test port and dead-head the loader while watching pressure. If pressure reaches near factory spec (1,800–2,800 psi depending on series), the pump is fine and the problem is elsewhere. If pressure stays far below spec even with the relief backed out, the pump cannot build pressure and is the likely culprit. Pump failure also affects all hydraulic functions equally.

Q: Can I use regular hydraulic oil instead of Kubota Super UDT2?

No — and this is one of the most common mistakes Kubota owners make. Kubota’s wet brakes, HST transmission, and hydraulic system are specifically designed around Super UDT2’s friction characteristics and viscosity profile. Using generic hydraulic oil can cause brake chatter, HST problems, and in cold weather, exactly the “loader won’t lift until warm” symptoms described in this article. Always use Kubota Super UDT2 or an approved equivalent.

Q: My BX2380 loader lifts fine empty but won’t lift a full bucket. What’s wrong?

This is the classic symptom of a relief valve set too low. When system pressure can’t reach the level needed to lift rated load, the relief opens early and bypasses flow back to tank — the loader stalls under load but moves fine when light. Many BX series tractors ship with the relief slightly below ideal. A gauge kit lets you verify and adjust to spec in about 30 minutes.

Q: How often should I change Kubota hydraulic fluid and filters?

Kubota recommends an initial hydraulic filter change at 50 hours — this is critical because early break-in wear produces debris that can restrict the filter quickly. After that, most compact models call for filter changes every 200–400 hours depending on series and conditions. Hydraulic fluid (Super UDT2) is typically changed every 400–600 hours or annually, whichever comes first. See our complete Kubota maintenance checklist for full service intervals.

Q: Is it safe to rebuild Kubota loader cylinders myself?

Yes, with proper safety precautions and the right seal kit for your specific loader model. The key steps are: depressurize the system completely before disconnecting any hoses, support the loader arms on rated jack stands before removing cylinders, keep the work area spotlessly clean to avoid contaminating new seals, and reassemble carefully noting orientation of all components. Seal kits cost $20–$70 versus $350–$600+ in dealer labor for the same job.

📚 Related Guides

⬇️ Why Does My Kubota Loader Drift Down? Diagnose loader arms that slowly sink with the joystick centered. View Guide →	⚙️ Kubota Hydraulic Pump Failure: Rebuild vs Replace Cost guide and decision framework for pump repair or replacement. View Guide →	🔩 Kubota Cylinder Drift: Seal Kit Installation Step-by-step cylinder seal replacement for BX, B, L, and M series. View Guide →
🔧 Kubota Hydraulic Relief Valve Adjustment Guide Test and adjust your relief valve to restore full loader lift capacity. View Guide →	📖 Kubota Hydraulic System: Complete Guide Pumps, valves, cylinders — how your entire hydraulic system works. View Guide →	📋 Kubota Maintenance Checklist (Free PDF) Complete service intervals for hydraulic fluid, filters, and all systems. View Guide →

✅ Conclusion

A Kubota loader that won’t lift is frustrating — but the good news is that the vast majority of lift failures are caused by inexpensive, DIY-fixable problems. Start with the free checks: quick couplers, fluid level, and whether other hydraulic functions are affected. Work through the list from most common to least common before assuming the worst.

Low fluid and a clogged filter cure most “won’t lift” complaints for under $50 in parts. A relief valve adjustment requires a $50–$80 gauge kit but saves $200–$400 in dealer labor. Even cylinder seal replacement — the most involved DIY job on this list — costs $20–$70 in seals versus $350–$600 at a dealer.

Keep a spare hydraulic filter on the shelf, stay on top of your 50-hour and 200-hour service intervals, and always use Kubota Super UDT2 — and you’ll rarely face a loader that won’t lift. 🚜
