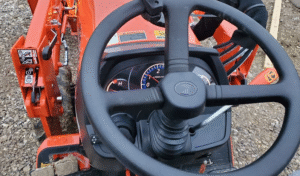

Kubota Steering is Stiff or Hard to Turn Diagnosis

Hard steering in Kubota tractors affects 15% of BX series units and is primarily caused by hydraulic system issues. This comprehensive guide covers the top 5 causes and proven diagnostic solutions.

Quick Symptom Identification

Primary Symptoms

Excessive steering effort required
Delayed response between wheel input and movement
Intermittent hard steering that worsens
Complete steering failure in severe cases

Most Affected Models

BX Series: BX1500, BX2230, BX23
L Series: L5030 and variants
M Series: M4030SU, M5040 HD
RTV/STV Series: RTV 900, STV40

Top 5 Root Causes (Ranked by Frequency)

1. Low Hydraulic Fluid Levels (40% of Cases)

Why It’s Critical: The most common cause affecting Kubota hydrostatic steering systems. System requires specific Kubota SUDT2 or equivalent premium grade hydraulic fluid.

Symptoms to Watch

Gradual increase in steering effort
Inconsistent steering response
Possible cavitation noises
Run through the 50 hour Service

Real Case Example: BX23 owner discovered reservoir was 2 quarts low, causing intermittent hard steering. Refilling with proper Kubota Super UDT2 fluid immediately resolved the issue.

2. Air in the Hydraulic System (25% of Cases)

How Air Enters System:

Low fluid levels causing pump cavitation
Loose connections in suction lines
Worn seals allowing air infiltration
Improper bleeding after maintenance

Bleeding Procedure

Fill reservoir to proper level
Start engine and run at idle
Turn steering wheel full lock to lock 10-15 times
Check for foaming in reservoir
Add fluid as needed and repeat

3. Worn or Damaged Steering Control Valve (20% of Cases)

Key Symptoms: Requiring multiple steering wheel turns before wheels respond, inconsistent steering in one direction, internal leakage causing pressure loss.

Diagnostic Test: Turn wheels against stops, identify which hose has pressure, remove opposite hose, and check for oil flow from cylinder fitting. Loose Steering Wheel?

4. Mechanical Binding in Steering Components (10% of Cases)

Common Binding Points:

Bad universal joints or bearings on steering shaft
Low tire pressure increasing rolling resistance
Worn front axle pivots creating binding
Damaged tie rods or ball joints

Diagnostic Approach: Disconnect steering cylinder and manually check wheel turning effort to isolate mechanical vs. hydraulic issues.

5. Steering Cylinder Internal Seal Failure (5% of Cases)

Technical Details: The center seal inside the steering cylinder is a known failure point, particularly in BX23 models with multiple occurrences over 13 years of operation.

Progressive Symptoms: Gradual loss of steering assist, fluid bypassing internally, eventually requiring complete cylinder rebuild.

🔍 Quick Diagnostic Decision Tree

Check Fluid Level First

What to do:

Check reservoir – should be at “FULL” mark
If low: Top off with Kubota SUDT2
Turn wheel lock-to-lock 10-15 times to bleed air
Recheck level after bleeding

✓ Result: If steering improves immediately → LOW FLUID was the issue (40% of cases). If no change → proceed to Step 2.

Test System Pressure

What you need:

SENCTRL 3000 PSI gauge – Install at steering cylinder
Start engine, turn wheel to full lock
Normal pressure: 2000-2500 PSI
Low pressure: Pump or valve failure

✓ Result: Low pressure (under 1500 PSI) → Steering control valve or pump issue. Normal pressure with hard steering → Mechanical binding (Step 3).

Check for Mechanical Binding

Inspection points:

Check tire pressure – low = increased effort
Disconnect steering cylinder, turn wheels manually
Inspect universal joints on steering shaft
Check front axle pivot points for binding

✓ Result: Easy manual turning = hydraulic issue. Difficult manual turning = mechanical binding (bad bearings, worn pivots, low tire pressure).

Cylinder Seal Inspection (BX Series Common)

BX23 owners – known issue:

Center seal fails in steering cylinder
Symptoms: Gradual loss of assist over time
Solution: Seal kit K2561-16600 ($52-60)
Alternative: Complete cylinder rebuild ($300-500)

✓ DIY-Friendly: Seal replacement takes 2-3 hours with basic tools. Dealer charges $350-500 for same repair!

🔧 Complete Steering System Repair Kit

Professional-Grade Parts & Tools – Fix Hard Steering in Your Kubota

💧 Hydraulic Fluid & Additives:

Kubota Super UDT2 – OEM recommended ($45-60/gal)
Mobil 1 Synthetic ATF (6-Pack) – Emergency alternative ($57)
John Deere Hy-Gard – Cross-compatible option ($XX)

🔬 Diagnostic Tools:

SENCTRL 3000 PSI Pressure Gauge – Test system pressure ($9.99)
Infrared Thermometer Gun – Check fluid temp ($20-35)

🛠️ Kubota OEM Parts:

Steering Cylinder Seal Kit K2561-16600 – BX series ($52-60)
Hydraulic Hose Kit 7J303-76610 – LA350/401/402 loaders ($112)
Quick Coupler Set 7J612-66323 – 1/4″ NPT ($24.95)

🧰 Service Supplies:

8-Quart Drain Pan – Catch old fluid ($15-25)
Funnel Set with Screen – Clean refills ($8-15)
Nitrile Gloves (100-pack) – Chemical resistant ($10-15)
Shop Towels Lint-Free – Cleanup ($15-20)
Torque Wrench – Proper bolt torque ($40-60)

Complete DIY Kit: $200-350

Saves $300-700 vs dealer service + prevents total steering failure!

💡 Pro Tip:
Always use the hydraulic pressure gauge to diagnose BEFORE replacing parts! Normal pressure is 2000-2500 PSI. Low pressure points to pump or valve issues, while normal pressure with hard steering indicates mechanical binding. The IR thermometer helps identify air in system (inconsistent temps between hoses).

Advanced Diagnostic Procedures

Systematic Pressure Testing

Equipment Needed

Hydraulic pressure gauge (0-3000 PSI)
Appropriate hydraulic fittings
Flow meter (optional)

Testing Procedure:

Install pressure gauge at steering cylinder
Start engine and note system pressure
Turn steering wheel to full lock both directions
Normal pressure: 2000-2500 PSI
Low pressure indicates pump or valve issues

Safety Considerations & Best Practices

⚠️ Critical Safety Warnings

Hydraulic System Hazards: Kubota steering systems operate at pressures up to 2500 PSI. Hydraulic fluid injection injuries can occur from pinhole leaks, causing severe tissue damage. Always wear safety glasses and gloves when working on the system.

Tractor Stability: Never attempt steering repairs with the tractor on an incline. Always engage parking brake and use wheel chocks. A tractor with compromised steering can become uncontrollable, especially on slopes.

Proper Jack Support: When raising the front end for inspection, use proper jack stands rated for the tractor’s weight. BX series tractors weigh 1,500-2,200 pounds, while M-series can exceed 8,000 pounds.

Model-Specific Failure Statistics

BX Series

15% Failure Rate

Primary: Cylinder seal failure

Repair Cost: $350-$500

L Series

8% Failure Rate

Primary: Fluid contamination

Prevention: 400-hour changes

M Series

5% Failure Rate

Primary: Mechanical binding

Typical Age: 2000+ hours

💧 Hydraulic Fluid Comparison Guide

Which Fluid Should You Use? Complete Breakdown:

Fluid Type	Compatibility	Cost/Gallon	Notes
Kubota Super UDT2	✓ BEST	$45-60	OEM recommended. Optimized for Kubota hydrostatic systems. -25°F to 122°F range.
John Deere Hy-Gard	✓ Good	$XX-XX	Cross-compatible emergency use. Similar viscosity characteristics to SUDT2.
Mobil 1 Synthetic ATF	⚠ OK	$57 (6qt)	Emergency use only. May reduce seal life long-term. Not optimized for hydrostatic.
Case IH Hy-Tran Ultra	✓ Good	$XX-XX	Compatible alternative. Similar performance to Hy-Gard.

⚠️ Warning: Using non-approved fluids may void warranty and reduce seal life. Stick with Kubota Super UDT2 for best results. Change intervals: 400 hours normal use, 200 hours severe duty.

📊 Hydraulic System Capacity by Model

BX Series

3.5-4.2 gal

BX1500, BX2230, BX23

Common Issue: Cylinder seal failure

Get BX Seal Kit →

L Series

5.2-6.8 gal

L5030 and variants

Common Issue: Fluid contamination

Get SUDT2 Fluid →

M Series

7.9-12.2 gal

M4030SU, M5040 HD

Common Issue: Mechanical binding

Get Pressure Gauge →

Preventive Maintenance Schedule

Hours

Check Fluid Level

400

Hours

Change Fluid

800

Hours

Replace Filter

2000

Hours

System Flush

Professional vs. DIY Repair Decisions

✅ DIY-Friendly Repairs

Fluid level checks and top-offs
System bleeding procedures
Filter replacement (external filters)
Basic leak inspections
Tire pressure adjustments

Success Rate: 75% for fluid-related issues

Time Investment: 1-3 hours

Tool Requirements: Basic hand tools

⚠️ Professional Required

Steering control valve replacement
Cylinder rebuild or replacement
Hydraulic pump diagnosis
Internal seal replacement
System pressure testing

Success Rate: 95% with proper diagnosis

Time Investment: 4-8 hours

Tool Requirements: Specialized hydraulic tools

Warranty Considerations

New Tractor Warranty: Attempting DIY repairs on steering systems may void warranty coverage. Always consult your dealer first for tractors under 2 years old or with extended warranty coverage.

Extended Warranty Plans: Many aftermarket warranty providers specifically exclude steering system coverage if non-approved fluids are used or if maintenance intervals are exceeded.

Documentation Requirements: Keep detailed records of all fluid changes, filter replacements, and repairs. This documentation is essential for warranty claims and resale value.

💰 Steering Repair Costs: DIY vs Dealer

Complete Cost Breakdown by Repair Type:

Repair Type	DIY Cost	Dealer Cost	Savings
Fluid Change & Bleed	$75-100	$200-300	$125-200
Filter Replacement	$45-60	$150-250	$105-190
Cylinder Seal Kit Install	$52-80	$350-500	$298-420
Steering Control Valve	$250-400	$600-900	$350-500
Complete Cylinder Rebuild	$150-250	$500-750	$350-500
AVERAGE REPAIR	$114-178	$360-540	$246-362

💡 ROI Analysis: Buying the complete diagnostic kit ($10) plus seal kit ($60) and fluid ($50) = $120 investment saves $250-400 on FIRST repair. Tools pay for themselves immediately!

🛡️ Steering System Maintenance Schedule

Prevent Steering Failure – Proactive Maintenance:

Every 50 Hours

Visual Checks

Check fluid level in reservoir
Inspect hoses for leaks/cracks
Test steering response
Tool: IR thermometer for temp check

Every 400 Hours

Fluid Change

Replace SUDT2 fluid completely
Bleed system thoroughly
Inspect filter condition
Check for metal particles

Every 800 Hours

System Service

Replace hydraulic filter
Test: Pressure test system
Inspect cylinder seals for wear
Replace hoses if aged (5+ years)

BX Series Alert

Preventive Seal Replace

BX23: Replace cylinder seals at 1,000 hrs
Known failure point – don’t wait!
$60 DIY vs $500 emergency repair

💡 Prevention ROI:

Preventive maintenance cost: Fluid changes ($75 every 400hrs) + Testing ($10 one-time) = $85-100/year
Emergency steering failure: Tow ($150) + Dealer repair ($500-900) + Downtime = $650-1,050
Prevention saves 650-950% vs emergency repair!

⚠️ Affiliate Disclosure: This article contains affiliate links. We may earn a commission when you purchase through links on this page, at no extra cost to you. We only recommend products we believe will help you fix your Kubota steering issues and save money versus dealer service.

❓ Frequently Asked Questions

Q: Why is my Kubota steering wheel hard to turn only when cold?

Cold hydraulic fluid has higher viscosity, making it thicker and harder to pump through the system. This is normal for the first few minutes of operation. If the problem persists after warm-up, check fluid levels with Kubota Super UDT2 and consider a system flush with fresh hydraulic fluid.

Q: Can I use automotive power steering fluid in my Kubota tractor?

No, most Kubota tractors require Kubota Super UDT2 or equivalent universal tractor fluid. The STV40 model specifically requires dedicated power steering fluid. Using incorrect fluid can damage seals and cause system failure. See our fluid comparison table above for approved alternatives like John Deere Hy-Gard.

Q: How do I know if my steering cylinder needs rebuilding?

Signs include gradual loss of steering assist, visible fluid leaks from cylinder seals, and steering that works intermittently. A pressure test showing low system pressure while the engine runs typically confirms internal seal failure requiring cylinder seal replacement. BX series owners should replace seals preventively at 1,000 hours.

Q: What’s the average lifespan of Kubota steering components?

With proper maintenance, steering control valves last 2000-3000 hours, while cylinders can fail as early as 1000 hours in BX series tractors. Regular fluid changes every 400 hours with Kubota Super UDT2 and keeping the system clean significantly extend component life. BX23 models are particularly prone to early seal failure.
