The first time an FDR1660 finish mower goes down mid-season, most owners discover how much they depend on it. One minute the 60-inch deck is leaving a golf-course finish behind a BX2380 or L3901, the next a spindle bearing seizes, the belt starts smoking, or a blade bolt shears. With grass growing fast and only narrow time windows to mow, every day of downtime matters.

A typical dealer estimate for a failed spindle and set of blades can hit $850 including parts and labor, plus several days of waiting during peak mowing season. In contrast, ordering a complete 890-305C spindle assembly and six blades online usually totals around $245–265 in parts, with about two hours of DIY wrench time to get back in the field. That cost gap is what pushes many owners toward learning the FDR1660 parts system in detail.

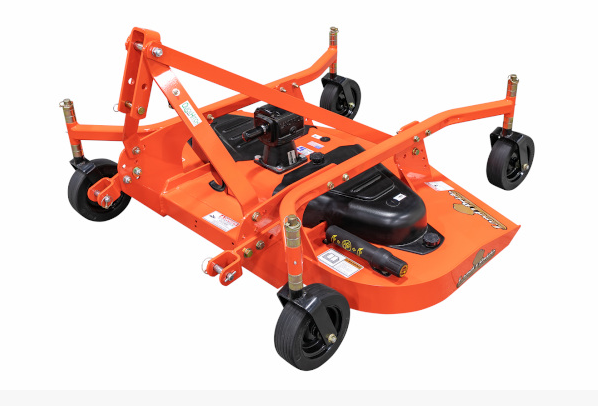

The Land Pride FDR1660 uses six cutting blades driven by three spindle assemblies, all powered through a 158-inch serpentine belt from the center gearbox running at 540 RPM PTO speed. Critical specs—like torquing blade bolts to exactly 75 ft-lbs, maintaining 16 ounces of 80W-90 GL-4 gear oil, and greasing 12 zerks every eight hours—make the difference between a smooth-cutting deck and one that vibrates, eats bearings, or throws a blade. This guide breaks down Land Pride FDR1660 Parts, cross-compatible options, and real-world maintenance strategies that keep your mower working while keeping costs under control.

• Six-blade, three-spindle design for 60-inch cut width at 540 PTO RPM.
• Blade bolts torqued to 75 ft-lbs with fresh grade 8 hardware every change.
• 890-412C serpentine belt, 158 inches, drives all three spindles from gearbox.
• Gearbox holds 16 oz of 80W-90 GL-4, checked every 8 hours, changed annually.
• Annual DIY parts cost usually $150–400 vs $600–1,200 at the dealer.
• 12 grease zerks (spindles, wheels, casters) require service every 8 hours.

From the factory, most FDR1660 mowers ship with medium-lift blades such as Land Pride 820-187C, which work well in typical lawn and pasture conditions. Each blade measures roughly 19.75 inches long, 3 inches wide, and 0.25 inches thick, with a sharpened edge ground to about 30 degrees. Low-lift blades like 820-189C are preferred in sandy or gritty environments because they reduce sand pickup and can last 40–60 percent longer under those abrasive conditions.

The deck uses six blades total, two on each of the three spindles, which means a full OEM set at about $39.40 per blade costs roughly $236.40 before tax and shipping. Common aftermarket cross-reference options include Rotary 15683 and Oregon 96-353 equivalents that usually land in the $25–32 range per blade. That puts a complete aftermarket set in the $150–192 range, typically saving $44–86 per change while still providing medium-lift performance.

Blade mounting hardware is safety-critical. The 890-106C bolt kit includes six grade 8 5/8″ x 2″ bolts with nyloc nuts and washers, and most experienced owners treat these as single-use fasteners. The recommended torque of 75 ft-lbs is not optional: under-torquing below about 70 ft-lbs risks blade detachment, while overtightening much above 80 ft-lbs can stretch threads or damage the blade carrier. Replacing the bolt kit at every blade change adds a small cost but greatly reduces the chance of a catastrophic failure.

Choosing Medium-Lift vs Low-Lift Blades

Medium-lift blades work best for typical lawns, pasture clipping, and damp grass because they create enough airflow to stand grass upright and discharge clippings evenly. On BX2380 and L3901 tractors running FDR1660 decks, this configuration usually gives the most uniform cut for weekly or bi-weekly mowing. Low-lift blades do not move as much air, so they tend to drop clippings more quickly, which slightly reduces vacuum but dramatically slows sand abrasion in beach or desert locations.

Some owners mix blade types, running low-lift on the outer spindles and medium-lift in the center to fine-tune discharge pattern and deck loading. This can introduce roughly a 1/4-inch variation in effective cut height across the deck, which matters more on manicured turf than on rough pasture. It is usually better to keep all six blades matched unless there is a specific reason to mix profiles, such as chronic sand intrusion only on one side of the mowing path.

Each FDR1660 spindle assembly consists of a cast iron housing, a central steel shaft, upper and lower sealed bearings, dust seals, and a blade carrier flange. The complete OEM unit is typically sold under part number 890-305C and often falls in the $245–290 range per spindle, with common aftermarket equivalents in the $180–220 band. With three spindles on the deck, replacing all of them at once is a major expense, so most owners rotate replacement based on noise, temperature, and measurable blade wobble.

Land Pride’s parts breakdown lists individual components as upper bearing 890-306C, lower bearing 890-307C, spindle shaft 890-308C, and dust seal set 890-309C. The bearings often correspond to common 6204-2RS (upper) and 6205-2RS (lower) sizes that can be purchased from bearing suppliers for $8–12 each instead of the $28–32 OEM pricing, though seal quality and grease type may differ. This makes bearing-only rebuilds attractive when housings and shafts are still in good condition.

Grease zerks on the spindles use standard 1/4-28 threads, and there are two per spindle—one near the top bearing and one closer to the lower bearing or carrier. Land Pride specifies greasing every eight hours of operation, usually with an NLGI grade 2 lithium complex grease, and typical bearing life is 200–300 hours under normal conditions. In very dusty or sandy environments, that service life can drop to around 150 hours unless greasing is more frequent and blades are kept balanced.

Pro Tip:Whenever a spindle is apart, replace both bearings and all seals as a set instead of trying to reuse older components. Mixing new and worn bearings or reusing compressed seals often leads to short-lived repairs and repeat teardown. A press makes the job far easier and reduces the chance of damaging the spindle shaft during bearing installation, especially on older FDR16-series decks that have seen multiple sharpening and blade changes.

Spindle Lubrication and Failure Symptoms

Spindles should be greased every eight hours with two to three pumps per zerk until fresh grease begins to purge past the seals. On tractors used for dusty brush hogging or mowing reclaimed fields, it often makes sense to grease halfway through a long day as well, especially after power-washing. Over-greasing can slightly increase heat, but under-greasing is far more likely to cause premature bearing failure and shaft scoring.

Common early warning signs include grinding or rumbling sounds when blades are spun by hand, abnormal heat around spindle housings after mowing, and visible blade wobble exceeding about 1/8 inch at the cutting edge. Ignoring those signs often leads to seized bearings that spin in the housing bores, ruining the casting and forcing a full 890-305C replacement instead of a relatively cheap bearing kit.

Warranty coverage generally protects factory spindles against manufacturing defects but not against lack of maintenance or impact damage. For a deeper look at how coverage works on finish mowers behind Kubota tractors, many owners review dedicated warranty articles when deciding between OEM and aftermarket spindles. Review finish mower warranty coverage details

The OEM drive belt for the FDR1660 is Land Pride 890-412C, a serpentine-style belt measuring approximately 158 inches in length and about 1/2 inch wide. Typical dealer pricing runs around the upper $60 range, while quality aftermarket belts from brands like Dayco or Gates often cost $42–55. Correct belt width and length are critical; near-miss dimensions may install but can ride too shallow or deep in pulleys, leading to slippage or heat buildup.

The tensioning system uses a spring-loaded idler controlled by an eyebolt or similar adjustment mechanism. Land Pride’s general belt guidelines call for tightening until there is roughly 1/2 inch of belt deflection at the midpoint between pulleys when about 10 pounds of pressure is applied. Too little tension allows the belt to slip, glaze, or even flip off during heavy load, while overtension overloads spindle and idler bearings, shortening their life.

Key replacement components in the belt system include the idler pulley assembly (commonly referenced around 890-413C), idler bearing (similar to 890-414C), tension spring (roughly 890-415C), belt guide rollers, and left/right belt covers. Belt covers are not just cosmetic; they shield the belt from sticks and debris and can extend belt life by roughly 40 percent when kept in place and periodically cleaned underneath.

Belt Problems and Quick Checks

Premature belt failure under 100 hours usually traces back to misalignment, damaged idler bearings, or debris packed into pulley grooves. If the belt starts squealing or smells hot, shut down and check that the idler spins freely, the tension spring is not stretched or deformed, and no sticks or baling twine are wrapped around spindle pulleys. A belt that repeatedly walks off often has an unseen pulley edge bent from a rock strike or a spindle sitting slightly out of plane.

When planning a mid-season service that includes both belt and spindle work, some owners choose to rebuild or replace idler pulleys proactively, especially once the mower passes the 200–300 hour mark. Replacing belt drive components alongside a new set of blades and a gearbox oil change builds in a fresh baseline for the next mowing cycle, similar to how comprehensive 50-hour services are scheduled on Kubota tractors. Use the 50-hour DIY service approach as a planning model

The deck shell is supported by structural components such as rear braces, hitch bars, spacer tubes, skid shoes, and the discharge chute. Skid shoes prevent the leading edges of the deck from digging into uneven terrain, while anti-scalp rollers bridge over ridges and humps. Many FDR1660 owners report that replacing worn skid shoes and rollers—often after 100–150 hours when they are about half worn—dramatically improves cut uniformity and reduces gouging in rolling yards or paddocks.

Gauge wheels and casters are another critical area. The FDR1660 commonly uses two gauge wheels and two caster wheels, with each side adjustable for cutting height and anti-scalp protection. Typical pneumatic gauge tires are around 13×6.5-6, with optional solid versions for rocky or thorny conditions. Caster wheels in the 10×3 range are standard, again with pneumatic and solid options. Bearing kits for both gauge wheels and casters usually include bearings, seals, and spacers.

Wheel Maintenance and Cut Quality

Wheel and caster bearings should be greased at the same eight-hour interval used for spindle zerks, with a typical FDR1660 layout having four wheel zerks and two on caster pivots. Pneumatic tires generally run best at 12–15 PSI; higher pressures can transmit more shock to the deck, while lower pressures may cause sidewall roll and uneven cutting. Check for bearing play at least once per season and replace bearing kits at the first sign of looseness or grinding noise.

Upgrading to solid tires makes sense in thorny mesquite pastures or construction sites where flats are common, though the ride can become harsher. Many owners run pneumatic gauge wheels up front for compliance and solid caster wheels at the rear, striking a balance between comfort, durability, and steering response behind smaller tractors. Matching all wheel heights carefully is essential to prevent scalping one side of the deck.

The FDR1660 gearbox is designed around standard 540 RPM PTO input and typically shares its basic casting and internal layout with other FDR16-series models. Oil capacity is approximately 16 ounces of 80W-90 GL-4 gear oil, and most operators check the level every eight hours of use, topping off as needed. A complete oil change annually or every 200 hours is a common practice, especially on mowers that see heavy work in hot climates or continuous brush hogging.

Input and output shaft seals can eventually weep, especially once the mower passes several hundred hours, and cheap insurance involves periodic inspection around the PTO shaft and belt drive pulley. Seal kits are available as dedicated part-number sets for the gearbox, but owners who catch leaks early often get by with a simple drain-and-refill plus careful cleaning. Operating with low oil or water-contaminated oil risks bearing and gear damage that may require a complete gearbox replacement.

For owners who run both finish mowers and rotary cutters behind the same tractor, keeping gearbox capacities and intervals straight can get confusing. A dedicated gearbox maintenance resource that covers Land Pride rotary cutters and related implements is often helpful when planning oil purchases and service calendars. Review gearbox oil capacities and intervals here

Cross-Compatibility and Generic Equivalents

Many FDR1660 parts cross over to other FDR models. Blades often share bolt patterns and dimensions with FDR1548 and FDR1672 decks, though owners must always verify length and hole size before ordering. The 890-412C belt is shared between some FDR1660 and FDR1672 units, while FDR1548 typically uses a shorter belt. Spindle assemblies and gearboxes are commonly shared across multiple FDR15/16/17-series mowers produced over a broad range of years.

Generic equivalents exist for several wear parts. Spindle bearings cross to standard 6204-2RS and 6205-2RS; grease zerks use standard 1/4-28 threads; and many bolts can be replaced with hardware store grade 8 equivalents. Belts from major aftermarket brands often list Land Pride part numbers in their cross-reference catalogs, typically saving $20–30 per belt. The main tradeoff with generics is warranty exposure and occasionally inconsistent rubber or seal quality.

Authorized Land Pride dealers provide OEM parts with full warranty support and knowledgeable counter staff, but usually at a 20–40 percent premium over online or aftermarket sources. They are ideal for time-critical repairs, warranty claims, and complex components such as gearboxes or hitch assemblies. Online dealers supply detailed exploded diagrams that make serial-number-based ordering easy and allow owners to confirm superseded part numbers before buying.

Aftermarket suppliers and farm stores shine for wear items: blades, belts, bearings, and sometimes wheel components. The safest approach is often to run OEM spindles and hitch hardware while experimenting with reputable aftermarket blades and belts to find a good balance between cut quality and cost. Warranty articles for Land Pride and Kioti finish mowers emphasize that using aftermarket parts does not generally void the entire implement warranty, but failures traced to non-OEM components may not be covered.

Ordering by part number instead of verbal descriptions reduces mistakes dramatically. The FDR1660 serial number plate is typically mounted near the hitch, and entering this serial into online catalogs ensures that the correct revision of belt covers, braces, and driven pulleys is shown. Taking clear photos of the deck and saving them alongside parts diagrams helps when placing orders or troubleshooting problems later.
