Kubota fuel shutoff solenoid problems

Introduction

Few things are more frustrating than turning your Kubota’s key and hearing the engine crank enthusiastically, only to have it refuse to fire. If you’re facing this scenario, Kubota fuel shutoff solenoid problems could be the cause—especially if you recently ruled out obvious battery, starter, and fuel delivery issues. The fuel shutoff solenoid is a small but vital electrical component that controls the flow of diesel to your engine’s injection pump; when it fails, your tractor won’t start, or it may refuse to shut off when you turn the key.

Unfortunately, Kubota fuel shutoff solenoid problems are notoriously easy to misdiagnose. Many owners waste time (and money) replacing batteries, troubleshooting injectors, or chasing non-existent wiring faults—when the real culprit is a $60-150 solenoid. The ignition switch controls power to the fuel shutoff solenoid—if the solenoid isn’t receiving voltage with the key in ON position, test the switch before replacing the solenoid. In this guide, you’ll learn:

Exactly what the fuel shutoff solenoid does and how it works on Kubota diesel models
The most common failure symptoms and how to recognize them
Step-by-step multimeter diagnostics—resistance, voltage, and functionality checks
Causes of premature solenoid failure and simple preventive maintenance steps
Complete DIY solenoid replacement (including BX, B, and L series quirks)
Emergency bypass methods for getting back to work fast
Model differences, internal links to advanced electrical troubleshooting, FAQ, and visual references for every section

This article blends Kubota factory recommendations, mechanic best practices, and advanced troubleshooting links—including resources like the Kubota Battery Maintenance Guide—to help you solve your Kubota fuel shutoff solenoid problems efficiently.

What Is a Fuel Shutoff Solenoid and How Does It Work?

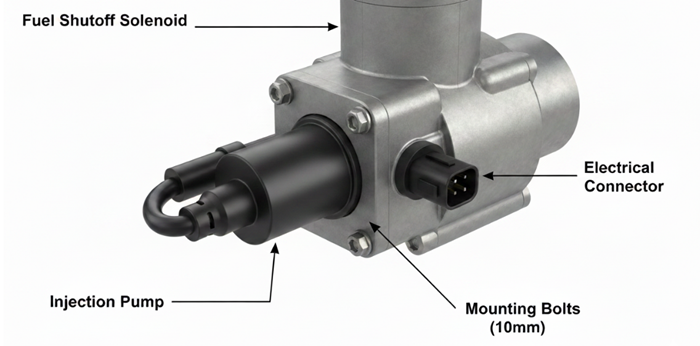

The fuel shutoff solenoid is an electro-mechanical device mounted directly to the injection pump of nearly all modern Kubota diesel tractors. Its purpose is simple but mission-critical: it opens or closes the diesel supply line to the engine based on what your ignition switch tells it to do. When you turn the key to the ON or START position, the solenoid rapidly energizes, pulling back a spring-loaded plunger and allowing fuel to reach the injectors. When you turn the key off, the solenoid de-energizes, the plunger springs forward, and the engine shuts down cleanly by fuel starvation.

Understanding the Solenoid’s Role

On Kubota diesels, the solenoid prevents dangerous “run-on” by ensuring only a clean, controlled shutdown. Older diesel tractors (and some gray-market models) used mechanical levers or cables for shutdown, but modern emissions standards and safety logic require the more precise electric control afforded by the solenoid. The electromagnetic coil inside creates a magnetic field when energized, physically retracting the plunger against spring pressure. This mechanical action opens a valve that permits diesel fuel to flow from the injection pump into the combustion chambers. Without this electric signal, the spring immediately closes the valve, starving the engine of fuel within seconds.

Component	Function	Common Kubota Part #
Fuel Shutoff Solenoid	Controls fuel to injection pump—ON to start/run, OFF for engine shutdown	1C010-60015, 16851-60015
Spring-Loaded Plunger	Opens only when coil energizes, otherwise blocks flow	Factory integrated

✓ Pro Tip: A faint “click” from the injection pump when the key is turned ON means your solenoid coil is at least receiving electrical power, though not necessarily working properly. The absence of this click is your first diagnostic clue that either the solenoid isn’t receiving voltage or the internal coil has failed.

“Kubota fuel shutoff solenoid problems can leave you stranded even if everything else on your tractor is in perfect working order.”

Common Symptoms of Kubota Fuel Shutoff Solenoid Problems

Fuel shutoff solenoid failures aren’t always obvious—especially to new Kubota owners. Still, a handful of unmistakable symptoms can help you quickly narrow down the culprit if you know what to look for. The following checklist will help you diagnose Kubota fuel shutoff solenoid problems before replacing unnecessary components.

Symptom	How the Solenoid Causes It	Other Causes (to rule out)
Engine cranks, won’t start	Solenoid stuck closed or not energizing—diesel never reaches injectors	Air in fuel, failed fuel pump, bad injectors, starter relay
Starts, then stalls instantly	Solenoid opens briefly, then loses power (intermittent contact/coiling issue)	Weak battery, faulty safety interlock, bad wiring
Engine won’t shut off with key	Solenoid stuck open or plunger jammed—diesel continues flowing after key OFF	Faulty key switch wiring, operator presence system issue
Audible click, no start	Solenoid coil clicks (gets power), but plunger fails to retract or is jammed	Worn relay, low system voltage
Intermittent starts	Corrosion or loose connection—solenoid only energizes part of the time	Loose battery terminal, failing starter, poor ground

⚠️ Important: Don’t confuse a “cranks, won’t fire” situation with a classic starter fault—fuel shutoff solenoid failure is a top “hidden” cause. Review starter and battery guides to be thorough: Starter Troubleshooting and Battery Maintenance.

✓ Pro Tip: If your Kubota starts perfectly when cold but fails to start when hot, check for solenoid terminal corrosion—heat increases resistance, making problems intermittently worse. Temperature-related failures are particularly common in tractors stored outdoors or operated in humid climates where moisture can accumulate in electrical connectors overnight.

Many Kubota tractors use a safety interlock, such as the Operator Presence System, which can cut power to the solenoid if faulty. If your dashboard safety lights behave abnormally, see: Understanding Your Kubota’s Operator Presence System.

Diagnosing Kubota Fuel Shutoff Solenoid Problems

Diagnosing Kubota fuel shutoff solenoid problems requires a methodical approach—combining visual inspection, electrical testing, and functional assessment. These detailed steps will help you pinpoint the exact root of the failure and avoid misdiagnosis, whether you’re working with the BX, B, or L Series. Professional mechanics use this exact diagnostic sequence to eliminate guesswork and prevent unnecessary parts replacement.

15-25 Ω

Normal Resistance

Kubota solenoid typical spec

12V DC

Operating Voltage

Test at connector/key ON

5-8 Amps

Current Draw

BX/B/L Series range

Diagnostic Steps: What You’ll Need

Digital multimeter (auto/manual range, ohms and DC volts)
Socket set (10mm, 12mm, 14mm; varies model)
Insulating gloves and eye protection
Dielectric contact cleaner
Service manual for resistance/voltage specs
Estimated time: 25-45 minutes
Skill level: Intermediate

Locate the Fuel Shutoff Solenoid

Consult your Kubota service manual for the exact solenoid location—typically adjacent to the injection pump on the side of the engine block. On BX series tractors, you’ll usually find it accessible after removing the right side panel. B series models may require removal of the fuel tank or shrouding for clear access. L series tractors often have the solenoid mounted on the rear of the injection pump. Ensure the tractor is off and the battery disconnected before inspection to prevent accidental energization or short circuits.

Visual Inspection

Inspect the solenoid for physical damage, corrosion, melted insulation, or loose wires. Carefully check all harness connectors and look for signs of fuel staining or leaks—injection pump mounting area is the most common. If debris or grime is present, gently clean away with dielectric contact cleaner. Look specifically for green or white corrosion on terminal pins, which indicates moisture intrusion. Check the wire insulation for cracking, especially near heat sources like the exhaust manifold. Wiggle the connector gently while watching for intermittent contact—a loose pin connection can cause sporadic starting issues that mimic solenoid failure.

Resistance Test (Solenoid Unplugged)

Set your multimeter to ohms (Ω) mode. Disconnect the solenoid electrical connector and touch the meter probes directly to the solenoid terminals. Readings of 15-25 Ω (check your manual for specific model range) indicate a healthy coil; infinite resistance suggests an open circuit (broken coil wire), while near-zero resistance indicates a shorted coil. Either failure mode requires solenoid replacement. If your reading fluctuates wildly or shows intermittent continuity, the internal coil has broken windings and must be replaced. Note that readings outside the 15-25Ω range by more than 20% typically indicate a degrading coil that will fail soon, even if it’s still functioning.

Voltage Test (Connector Key ON)

Reconnect the battery and set the multimeter to DC volts (20V scale). Insert the red probe into the positive terminal socket of the solenoid connector (not the solenoid itself), and touch the black probe to a clean ground point on the engine block or battery negative terminal. Turn the ignition key to the ON position—do not crank. A healthy system should deliver 12V or higher; if you see less than 11.5V, your problem may be upstream in the charging system or battery. Check battery voltage first with the Kubota Battery Maintenance Guide, then verify alternator output with the Alternator Not Charging Guide. Voltage drop of more than 0.5V between the battery and solenoid connector indicates poor wiring, corroded connections, or a failing safety switch interrupting the circuit.

Functional Test (Listen/Feel)

Reconnect the solenoid connector and turn the key to ON: you should hear a distinct audible click from the injection pump area and feel slight vibration if you’re touching the solenoid body. The click should be crisp and immediate—a delayed or weak click suggests the coil is struggling due to low voltage or internal resistance. For additional verification, manually pull the solenoid plunger while the key is off—it should move freely with slight spring resistance and return smoothly when released. A stuck or grinding plunger indicates mechanical failure inside the solenoid body. If you hear the click but the engine still won’t start, the plunger is likely clicking but not retracting fully due to internal binding or spring fatigue.

Manual Override Test

Some Kubota models allow temporary manual override by physically holding or pulling the solenoid plunger open while attempting to start the engine. With the key in the OFF position, locate the plunger shaft (consult your manual for exact location) and pull it outward about 5-10mm. Hold it in this position and have a helper turn the key to START. If the engine fires and runs while you hold the plunger but immediately dies when released, you’ve confirmed solenoid mechanical failure. This test proves the fuel system, injection pump, and engine are functioning—only the solenoid’s ability to maintain the open position is faulty. Use this test only for diagnosis—do not operate the tractor with manual override as the engine cannot be safely shut down.

⚠️ Important: Always disconnect the battery before solenoid removal or deeper wiring inspection. Working on live electrical systems risks short circuits that can damage the tractor’s electronic control unit (ECU) or other sensitive components.

If resistance and voltage tests match Kubota spec and the solenoid still won’t activate, inspect for safety switch faults that interrupt the signal path: Operator Presence System. The seat switch, PTO switch, and parking brake switch all must be satisfied for the solenoid to receive power on most models.

✓ Pro Tip: Confirm a no-start is solenoid-related by running a direct jumper wire from battery positive (+) to the solenoid positive terminal briefly—engine should start immediately if solenoid was the issue. Always remove the jumper after testing to avoid safety risks, as the engine cannot be properly shut down with this bypass in place. This test should take no more than 5-10 seconds to confirm diagnosis.

Common Causes of Kubota Fuel Shutoff Solenoid Failure

Understanding why Kubota fuel shutoff solenoid problems develop helps identify preventative fixes and ensures your service intervals are aligned with real-world tractor use. Most failures can be traced to one or more of these root causes, and addressing them proactively can extend solenoid life well beyond the factory estimate.

Corrosion

Moisture in Connectors

Green or white residue on terminal pins, especially after wet seasons or pressure washing near electrical components

Mechanical Wear

Sticking Plunger, Spring Fatigue

Happens most in high-hour or dusty tractors; coil heat can fatigue internal parts over thousands of cycles

Electro-Chemical Breakdown

Age, Arcing, Overload

Coils break down from voltage spikes, repeated cycling, or shorted relays/faulty grounds creating backfeed

⚠️ Important: Weak batteries (see guide) and faulty alternators can reduce solenoid lifespan by causing chronic low voltage and slow coil actuation. Never ignore sluggish starts or dimming lights during cranking—they hint at a bigger solenoid/charging issue. Chronic undervoltage forces the solenoid coil to draw more current to achieve magnetic saturation, generating excess heat that accelerates coil insulation breakdown.

Factory Kubota fuel shutoff solenoids are built to last at least 2,000–4,000 engine hours under typical service conditions—equivalent to 5-10 years for most hobby farmers and small-acreage owners. However, tractors stored outdoors without covers, operated in wet or marine environments, or with infrequent battery and charging system maintenance can see failures after only a few years of use or 1,000 hours. The most vulnerable failure point is the connector itself: moisture intrusion creates galvanic corrosion between dissimilar metals in the pins, gradually increasing contact resistance until voltage drop becomes too severe for reliable operation.

“Keeping connectors dry and addressing slow cranking immediately will prevent most Kubota fuel shutoff solenoid problems before they strand you in the field.”

How to Replace a Kubota Fuel Shutoff Solenoid

What You’ll Need

Tools:

Socket set (10mm, 12mm, 14mm)
Torque wrench (10-80 ft-lbs range recommended)
Electrical contact cleaner (CRC or equivalent)
Dielectric grease (prevents future corrosion)
Insulating gloves & safety glasses
Clean shop towels
Penetrating oil (for seized hardware)

Parts:

New Kubota fuel shutoff solenoid (OEM part numbers: 1C010-60015, 16851-60015, or model-specific alternative)
Replacement fuse (15A blade-type, if needed)
New connector terminals (if existing are corroded beyond cleaning)

Time Required: 45-70 minutes for first-time replacement; 30-40 minutes with experience

Skill Level: Beginner to Intermediate—no specialized tools required

Prepare Your Work Area

Park tractor on level ground with wheels chocked, set parking brake firmly, and ensure all implements are lowered to the ground. Let the engine cool completely if recently operated—injection pump components retain heat for 20-30 minutes. Disconnect the negative (-) battery cable first, then the positive (+) cable to eliminate all electrical power. This prevents accidental shorts and protects sensitive electronic components from voltage spikes during solenoid removal.

Access the Fuel Shutoff Solenoid

Depending on your Kubota model, remove the side hood panel (BX series), fuel tank shroud (B series), or rear engine cover (L series) to expose the injection pump area. On BX1880 and similar compact models, removing four 10mm bolts releases the right side panel for clear solenoid access. B2650 and B3350 models may require loosening fuel tank mounting straps—support the tank carefully to avoid stressing fuel lines. Use appropriate socket sizes (typically 10mm or 12mm) and keep track of hardware in a magnetic tray to prevent loss.

Disconnect and Remove Solenoid

Unplug the solenoid’s electrical connector by pressing the release tab and pulling straight away from the solenoid body—avoid twisting or bending the connector housing. Spray electrical contact cleaner into both the connector and solenoid terminals, then wipe dry with a clean towel. Inspect for green or white corrosion; if present, use a small wire brush or ScotchBrite pad to clean terminal surfaces until shiny copper is visible. Remove the mounting bolts (usually two, 10mm or 12mm heads) and extract the solenoid carefully, noting its exact orientation and position. Check for a rubber O-ring or gasket between the solenoid and pump body—save this for reuse if undamaged, or order a replacement if torn or compressed flat.

⚠️ Important: If mounting bolts are rusted or seized, apply penetrating oil and wait 10-15 minutes before attempting removal. Forcing stuck hardware risks cracking the aluminum injection pump housing, which requires professional repair or complete pump replacement costing $800-1,500. Use a six-point socket rather than twelve-point to minimize bolt head rounding.

Clean and Prepare Mounting Area

Inspect the mounting face on the injection pump for debris, old gasket material, or corrosion—use a plastic scraper to remove buildup without scratching the aluminum sealing surface. Wipe clean with shop towels until the mounting area is completely dry and debris-free. Apply a thin coat of dielectric grease to the connector terminals on both the new solenoid and the wiring harness connector to provide moisture protection and ensure optimal electrical contact. Do not apply grease to the gasket sealing surfaces or plunger shaft—these must remain clean and dry for proper function.

Install the New Solenoid

Position the new solenoid with correct orientation—the plunger end must align with the fuel valve opening in the injection pump body. Most Kubota solenoids have an indexing tab or keyed mounting that prevents incorrect installation, but always verify alignment before tightening. Install the new or reused O-ring in the groove around the solenoid body, ensuring it seats properly without twisting. Insert mounting bolts and hand-thread them until finger-tight to verify proper thread engagement. Use a torque wrench to tighten bolts to manufacturer specification—typically 10–15 ft-lbs for most models, though L series may specify up to 18 ft-lbs. Consult your service manual for exact specifications. Over-torquing can crack the solenoid housing or injection pump; under-torquing allows fuel leaks and vibration loosening. Reconnect the wiring connector firmly until you hear or feel the locking tab click into place.

Reconnect Battery and Test

Reconnect battery cables in reverse order: positive (+) first, then negative (-). Turn the ignition key to the ON position (do not crank yet) and listen carefully for the solenoid click—it should be immediate and crisp. If no click is heard, recheck the electrical connection and fuse. With key still in ON position, have a helper watch the tachometer or listen closely while you turn the key to START. The engine should fire within 2-3 seconds of cranking. Once running, verify smooth operation at idle for 1-2 minutes, then test the shutdown function by turning the key to OFF—the engine should stop within 1-2 seconds. Check all electrical connections for heat buildup by carefully touching them after 5 minutes of operation; excessive heat indicates high resistance and requires connector cleaning or replacement.

Bleed Air if Needed

If fuel lines were disconnected during solenoid access or the engine fails to start after new solenoid installation, air may have entered the fuel system. Follow your Kubota manual’s specific air bleeding procedure for your injection pump type. Most models require loosening the bleeder screw on the injection pump while cycling the key to pressurize the system, then retightening once bubble-free diesel flows. On some models, you may need to loosen injector lines at the injectors and crank the engine briefly (5-10 seconds) until fuel appears, then retighten. Never crank continuously for more than 15 seconds without a 30-second cooling period to prevent starter damage.

✓ Pro Tip: Always replace the fuse (15A) with a factory-rated part if you discover a blown fuse during troubleshooting. Never substitute a higher amperage fuse, which eliminates overcurrent protection and may cause solenoid, wiring harness, or even ECU damage in the event of a short circuit. If the new fuse blows immediately upon reconnecting the battery, a short circuit exists in the wiring harness that must be located and repaired before proceeding.

Emergency Bypass and Temporary Solutions

If your Kubota fuel shutoff solenoid fails out in the field miles from your shop or parts source, knowing how to perform a safe emergency bypass can help you get the tractor running and back to your workshop for proper repair. Use these techniques only for diagnostics or short moves of less than 30 minutes—never for normal operation or extended work sessions.

Manual Plunger Pull

For BX/B/L Series (and most Kubota diesels)

Pull solenoid plunger open with needle-nose pliers, hold manually or secure with safety wire—engine starts if solenoid was fault. Requires continuous hold or temporary wire clip to maintain open position.

Direct Jumper Wire

Temporary Power to Solenoid

Run insulated wire from battery positive directly to solenoid positive terminal; energizes plunger to start engine. Use inline 15A fuse for protection. Disconnect immediately after test or when returning to shop.

⚠️ Important: Emergency bypass disables proper engine shutdown (can only stop by stalling, blocking air intake, or manually closing fuel supply). Never drive or operate long-term with solenoid bypassed—this creates a serious safety hazard if you can’t stop the engine immediately in an emergency. Diesel engines can run-on (continue operating) even after ignition is turned off when fuel supply isn’t controlled, potentially causing engine damage from over-revving or inability to respond to hazards.

✓ Pro Tip: Always restore normal wiring and function before next use. Keep bypass time to less than 30 minutes maximum. If you must shut down while bypassed, reduce throttle to idle, then either stall the engine by engaging the clutch in high gear with the brake applied, or use the manual fuel shutoff lever if your model is equipped with one. Some operators carry a small block of wood to wedge against the air intake as an emergency shutoff method, but this should be a last resort only.

For continued electrical troubleshooting or if the bypass works but normal starting through the key switch does not, refer to the starter motor troubleshooting guide for additional diagnosis steps. Safety switch failures can also prevent the solenoid from receiving power—review the Operator Presence System guide if bypass starting works but key starting does not.

Preventive Maintenance and Maximizing Solenoid Life

Most Kubota fuel shutoff solenoid problems are preventable with regular electrical system upkeep and fuel system cleanliness. Practicing these maintenance habits will help extend solenoid life beyond the factory estimate of 2,000-4,000 hours and save hundreds of dollars on premature replacement and diagnostic costs.

Electrical Connection Care

Inspect every 6-12 months or 100 hours

Clean solenoid connectors and harness terminals with electrical contact cleaner; dry thoroughly and apply fresh dielectric grease for moisture protection. Pay special attention after pressure washing or operating in rain.

Battery & Charging System Health

Maintain 12.6–12.8V resting voltage

Weak batteries or faulty alternators cause chronic under-voltage and burn out solenoid coils prematurely. Test battery voltage monthly and load-test annually. Battery Care Guide

Fuel System Cleanliness

Change fuel filters annually or per manual

Clean filters and fresh fuel prevent particulates from jamming solenoid plunger or causing slow actuator retraction. Replace fuel filters at 200-hour intervals or annually, whichever comes first. Use only high-quality diesel fuel from reputable sources.

✓ Pro Tip: Disconnect battery if storing tractor more than 2 months—this prevents parasitic drain and unwanted voltage drops that harm electrical solenoids and other sensitive components. Store the disconnected battery on a trickle charger or battery tender to maintain optimal charge levels during extended storage periods. Clean and protect all electrical connections with dielectric grease before storage to prevent corrosion from humidity.

Why Do Solenoids Fail Prematurely?

Uncycled or undiagnosed electrical faults—such as old corroded connectors, dirty battery posts, poor ground connections, or infrequent fuel filter changes—allow moisture and debris to slowly degrade solenoid operation over months and years. Proactive maintenance eliminates most “won’t start” scenarios traced to fuel shutoff solenoid problems. The single most important preventive measure is keeping electrical connections clean and protected from moisture intrusion—this alone prevents 70-80% of premature solenoid failures according to dealer service department data.

Kubota BX, B, and L Series: Key Solenoid Differences

Kubota fuel shutoff solenoid problems can vary in symptoms, access difficulty, and wiring layout depending on the tractor series. While all modern Kubota diesels use electrical shutoff solenoids, each series has unique characteristics and quirks worth noting before parts ordering or advanced troubleshooting. Understanding these model-specific details prevents ordering wrong parts and eliminates diagnostic dead-ends.

BX Series (Compact)

BX1880, BX2380, BX2680, and BX23S models feature compact D902, D1005, and D1105 engines with straightforward solenoid access—usually mounted directly on the injection pump, reachable by removing the right side hood panel with four 10mm bolts.

Pros:

Easy to remove and test, common parts availability at all dealers, quick 30-minute diagnosis, minimal disassembly required

Cons:

Compact engine bay means tight working space, prone to connector corrosion if stored outdoors without cover, smaller gauge wiring more susceptible to voltage drop

Common part: 1C010-60015 ($65-95)

B Series (Utility)

B2650, B3350, B2601, B3301 mid-sized tractors; may require hood and fuel tank repositioning for clear solenoid access. Can use two-pin or three-pin solenoids depending on year and sub-model, especially on pre-2015 B2320 and B2920 variants.

Pros:

Widely available solenoids across multiple suppliers, moderate $80-120 cost, some interchangeability among B series sub-models, larger engine bay than BX

Cons:

Access requires more disassembly (45-60 minute job), multiple wiring variations across 2008-2024 production years require careful parts matching, safety interlock complexity higher

Common part: 16851-60015 ($85-130)

L Series (Large Utility)

L2501, L3301, L3901, L4701, L6060 larger utility tractors; most systems have dual solenoids (start/run and shutoff) on turbocharged models, and can require dash or extensive side panel removal for access on cab-equipped versions.

Pros:

More robust wiring with better weather sealing, heavier-duty solenoids last longer, parts readily available, comprehensive service documentation from Kubota, larger workspace

Cons:

More parts to test and replace in dual-solenoid configurations, requires careful diagnosis to identify which solenoid failed, cab models need significant disassembly, higher parts cost $120-200

Parts vary by engine displacement and turbo configuration

⚠️ Important: Always use your Kubota’s factory service manual for exact solenoid torque specifications and electrical pinout diagrams. Model years 2000–2002 and earlier may have different normally-open versus normally-closed wiring for shutoff function—installing the wrong solenoid type results in either inability to start or inability to shut down. When ordering parts, provide your complete serial number to ensure correct solenoid specification, as running changes within model years can affect compatibility.

Frequently Asked Questions

How much does a Kubota fuel shutoff solenoid cost?

Genuine Kubota solenoids typically cost $60-150 depending on the series and engine model—BX series parts run $65-95, B series $85-130, and L series $120-200 for heavier-duty or dual-solenoid configurations. Quality aftermarket options from reputable manufacturers like DB Electrical or All States Ag may sell for $50-90, but OEM Kubota parts are strongly preferred for long-term reliability and warranty coverage. Professional labor for dealer replacement typically runs $150-300 for diagnosis and installation (1.5-2.5 hours shop time), while competent DIY installation requires only 45-70 minutes of intermediate-level mechanical skill.

Can I bypass the fuel shutoff solenoid permanently?

It is strongly discouraged and potentially dangerous to bypass a Kubota fuel shutoff solenoid for daily operation or normal use. Doing so prevents safe engine shutdown through the key switch, can cause uncontrolled run-on or runaway diesel operation, and risks serious damage to the injection pump, fuel system, or engine from inability to stop in emergency situations. Bypassed solenoids also void manufacturer warranties and may violate emissions regulations in some jurisdictions. Use manual or electrical bypass only for emergency field moves of less than 30 minutes—schedule full repair immediately upon return to your shop or farm.

Why does my Kubota click but not start?

If you hear a distinct click from the injection pump area when turning the key to ON but the engine won’t start during cranking, Kubota fuel shutoff solenoid problems are highly likely—specifically mechanical failure where the solenoid coil receives electrical power and energizes (causing the click) but the plunger mechanism fails to retract fully or is jammed by debris, preventing diesel flow to reach the injectors. Always verify resistance (15-25Ω) and voltage (12V+) at the solenoid first, and systematically inspect for related battery or starter issues as referenced in our comprehensive starter troubleshooting guide. A clicking solenoid that won’t start typically indicates the electrical circuit is functioning but the mechanical components have failed internally.

How do I know if my fuel shutoff solenoid is getting power?

Test definitively with a digital multimeter set to DC volts—measure for 12V or higher at the solenoid connector (not the solenoid body itself) with the ignition key turned to the ON position. An audible click or visible/tactile plunger movement when the key turns ON also confirms the solenoid is receiving electrical signal. If no power is present at the connector despite a charged battery, systematically inspect wiring for corrosion or breaks, check the 15A fuse in the electrical panel, and test all safety interlock switches (seat, PTO, parking brake, clutch) for proper function and continuity. Reference the Operator Presence System guide for detailed safety switch diagnosis if voltage is absent at the solenoid connector.

Will a bad fuel shutoff solenoid drain my battery?

A stuck-open or internally shorted solenoid can cause slow parasitic battery drain if the coil remains partially energized after shutdown, drawing 0.5-2 amps continuously even with the key off—enough to drain a typical BX/B series battery in 24-48 hours. Most Kubota models cut power completely to the solenoid circuit with the key off, but wiring faults or stuck relays can cause backfeed. Check for abnormally hot solenoid connectors or measure voltage drop across the solenoid terminals 15 minutes after shutdown (should be 0V); any voltage present indicates current flow and potential drain. For comprehensive electrical system diagnosis including parasitic draw testing, see our battery maintenance guide.

Can I replace the solenoid myself or do I need a mechanic?

Most owners with basic hand tools and intermediate mechanical aptitude can successfully replace a fuel shutoff solenoid in 45-60 minutes following the detailed step-by-step procedures covered above. The job requires only common tools (sockets, torque wrench, multimeter, contact cleaner) and involves straightforward bolt removal, electrical connector service, and reinstallation—no specialized equipment or advanced skills needed. Always follow your specific Kubota model’s service manual for torque specifications and any model-specific steps. If repeated DIY attempts fail to resolve starting issues, or if you discover damaged engine wiring, corroded injection pump threads, or complex multi-solenoid configurations you’re uncomfortable diagnosing, consider professional service from a Kubota dealer or qualified diesel mechanic for proper diagnosis and repair.

How long does a fuel shutoff solenoid typically last?

Factory Kubota fuel shutoff solenoids are engineered to last 2,000–4,000 engine hours or approximately 4–7 years with proper preventive maintenance under normal agricultural or landscaping use conditions. High-hour commercial tractors, outdoor-stored units without covers, or neglected tractors with poor battery maintenance may see significantly shorter service life—sometimes as little as 1,000-1,500 hours or 2-3 years. Routine connector cleaning with electrical contact cleaner every 6-12 months, maintaining correct battery voltage (12.6-12.8V resting), protecting electrical connections with dielectric grease, and ensuring clean fuel with regular filter changes extends solenoid service life dramatically—often to 5,000+ hours on well-maintained tractors.

Key Takeaways

Kubota fuel shutoff solenoid problems are a leading cause of crank/no-start and failure-to-shutdown issues—systematic diagnosis with multimeter testing is straightforward and eliminates guesswork
Replacement is DIY-friendly for most owners with basic tools, especially if you follow exact model-specific torque specifications and preventive maintenance practices for the electrical and fuel systems
Routine connector cleaning every 6-12 months, battery voltage maintenance at 12.6-12.8V, and safe emergency bypass knowledge keep your Kubota working reliably season after season with minimal downtime

When you know what symptoms to look for and master the systematic testing procedures for resistance, voltage, and mechanical function, this tricky troubleshooting issue becomes a manageable and affordable repair—saving hours of frustration and expensive misdiagnosis from replacing batteries, starters, or injection pumps unnecessarily. Most competent owners can confidently tackle solenoid replacement with good-quality tools, clear reference materials, and the comprehensive guides included throughout this article.

Don’t let a small $60-150 electrical component keep your Kubota out of action and your work at a standstill. With the detailed information provided above, you’re fully equipped to restore proper starting function, safe engine shutdown capability, and robust long-term reliability—whether you’re working with compact BX series models for residential property maintenance, mid-sized B series utility tractors for farm operations, or large L series machines for commercial applications. For continued troubleshooting of related electrical system components, always consult manufacturer service manuals and reference our full library of electrical system repair articles.

Ready to master your next Kubota repair project and keep your tractor running at peak performance? Here are the most helpful next steps and related resources:
