Diagnose Starter Motor Problems in 20 Minutes
Kubota starter motor troubleshooting is essential as starter motor issues cause 25% of tractor no-starts. Most problems can be diagnosed without removing the starter, saving time and money. Understanding the difference between a true starter motor failure and related electrical issues prevents unnecessary parts replacement and costly diagnostic fees.
DIY diagnosis costs nothing but time, while professional shop diagnosis ranges from $75-150. Before assuming starter motor failure, verify that power is reaching the starter. Check all safety switches to ensure they’re allowing current flow to the starting system. Before diagnosing the starter, ensure the battery is healthy by following battery maintenance procedures. This article focuses on pinpointing starter motor troubles quickly and effectively, using systematic testing methods that identify the exact failure point in your starting system.
If dashboard lights don’t illuminate when you turn the key and you hear no clicking sounds, test the ignition switch before diagnosing starter motor problems. Weak cranking combined with dim lights often indicates charging system failure rather than starter problems. If your battery repeatedly dies despite being recently charged or replaced, investigate potential Kubota alternator problems before replacing the starter. If you’re still unable to get her started maybe our complete “won’t start” guide can help?
Understanding How Your Starter System Works
Understanding Starter Function

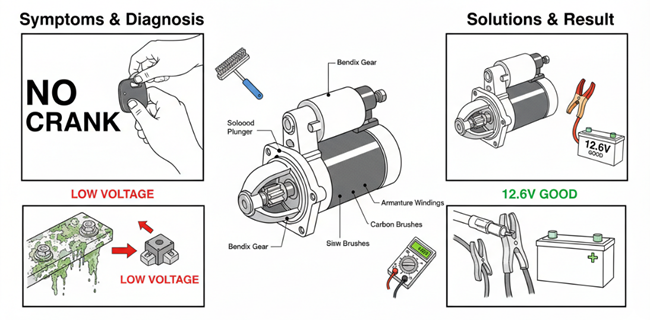

Your Kubota tractor’s starter system includes these key components: battery, cables, ignition switch, solenoid, starter motor, and safety switches. When you turn the ignition key, the battery sends electrical power to the starter solenoid through the ignition switch circuit.
The solenoid, acting like a high-current relay, performs two critical functions simultaneously. First, it engages the starter drive (the Bendix gear) to mesh with the engine’s flywheel ring gear teeth. Second, it completes the high-amperage electrical path from the battery to the starter motor, allowing current flow of 150-280 amps. This causes the starter motor to spin at approximately 150-200 RPM, turning the engine over to start it.
The entire starting sequence happens in less than one second when all components function properly. Proper diagnosis is critical: 60% of “starter failures” are actually caused by other electrical components like bad batteries, faulty cables, worn safety switches, or poor grounds, not the starter itself. This statistic comes from field service data collected by Kubota dealerships and independent mechanics across thousands of repair orders.
Starter System Components Breakdown
- Battery: Provides electrical power, must have 12.4V+ at rest and maintain 10.5V+ under cranking load
- Ignition Switch: Signals solenoid to engage starter when key turned to START position
- Starter Solenoid: Engages Bendix drive and feeds high-amperage motor current (150-280 amps typical)
- Starter Motor: Spins flywheel to start engine, contains brushes, armature, and field coils
- Safety Switches: Prevent starting if conditions unsafe (seat unoccupied, PTO engaged, transmission in gear)
- Cables & Grounds: Heavy-gauge wire for current transmission and proper earth return path to battery
- Flywheel Ring Gear: Toothed gear mounted to engine flywheel that Bendix engages during starting
Each component in the starting system plays a vital role, and failure of any single component can prevent engine starting. The systematic diagnostic approach outlined in this guide helps you identify which component has failed, eliminating guesswork and preventing shotgun parts replacement that wastes money. DIY starter replacement!
Decode Your Starter Problems by Sound
Sound diagnosis is one of the most powerful diagnostic tools available because different failure modes produce distinctive sounds. Experienced mechanics can often diagnose starter problems within seconds just by listening to the sounds during a starting attempt. Learning to recognize these sounds helps you quickly narrow down the problem area before using diagnostic tools.
| Starter Sound | Likely Cause | Next Step |
|---|---|---|
| Click-click-click | Weak battery or poor connections | Test battery first |
| Single loud click | Solenoid engaging, starter not turning | Starter motor failure suspected |
| Grinding noise | Bendix drive or flywheel damage | Immediate mechanical attention |
| Whirring without cranking | Bendix drive not engaging | Drive mechanism failure |
| Complete silence | Ignition/safety switch or solenoid circuit issue | Check wiring and switches |
| Slow cranking | Weak battery, poor grounds, high resistance | Test voltage drops and grounds |
Listen closely for distinguishing noises to guide troubleshooting before pulling or testing starters. The click-click-click sound indicates the solenoid is rapidly engaging and disengaging because voltage drops too low when it tries to activate the motor. A single loud click means the solenoid engaged successfully but the motor didn’t turn, suggesting internal motor failure or seized bearings. If your starter cranks the engine strongly but it refuses to fire, check the fuel shutoff solenoid before assuming fuel pump or injector failure. Grinding typically indicates the Bendix drive gear is damaged or the flywheel ring gear has missing or damaged teeth. Whirring without cranking means the Bendix is spinning but not engaging the flywheel, indicating a stuck or worn drive mechanism. Diagnose solenoid clicking
“70% of starter motor diagnoses can be made by listening carefully to the sound it makes. Sound diagnosis is fast, free, and remarkably accurate when you understand what each noise indicates.”
Complete Starter Motor Diagnostic Process
The following 10-step diagnostic process systematically tests each component in the starting circuit, moving from simple to complex tests. This approach saves time by testing the most common failure points first before moving to more advanced diagnostics. Each test builds on the previous results, creating a logical troubleshooting path that pinpoints the exact problem. If you measure battery voltage at the battery but significantly lower voltage at the starter, test your ignition switch for high-resistance contacts that prevent proper current flow.
What You’ll Need
- Digital multimeter ($15-40) – auto-ranging recommended for ease of use
- Jumper cables or remote starter switch ($10-25) – for bypass testing
- Basic hand tools (wrenches, sockets) – 10mm, 12mm, 14mm common sizes
- Safety glasses and gloves – protect against battery acid and sparks
- Flashlight for visibility – headlamp style leaves hands free
- Helper (optional but recommended) – makes testing easier and safer
- Wire brush – for cleaning corroded connections if found
Time Required: 20-40 minutes for complete diagnostic procedure
Skill Level: Beginner to intermediate – basic electrical knowledge helpful but not required
Test Battery Voltage
Use a digital multimeter to check battery voltage at rest. A fully charged battery should read at least 12.4V, with 12.6V ideal. Below 12.4V indicates a weak battery potentially causing starter issues. At 12.0V, the battery is approximately 50% discharged and likely won’t provide adequate cranking power. Refer to test your battery properly for detailed procedures. Set your multimeter to DC volts (20V range if not auto-ranging), connect black lead to negative terminal, red lead to positive terminal, and read the display. Chronic undercharging due to voltage regulator problems leaves the battery too weak to crank the starter.
Clean Terminals and Check Cables
Inspect and clean battery terminals and cable connections for corrosion, damage, or looseness. Poor cable condition causes voltage drop and mimics starter failure. Look for white, blue, or green corrosion buildup, frayed cable insulation, or loose terminal clamps. Clean terminals with a wire brush and baking soda solution if needed. Maintenance tips are available for battery maintenance procedures. Tighten terminal clamps until snug but not overtightened—you should not be able to rotate the cable clamp by hand.
Load Test Battery While Cranking
Have someone crank the tractor while you monitor battery voltage with the multimeter. While cranking, battery voltage should remain above 10.5V. If voltage drops below 10V, battery or cables are weak and must be replaced or repaired. This load test reveals battery capacity under real-world starting conditions—some batteries test fine at rest but fail under load due to sulfated plates or internal damage. A healthy battery maintains 10.5V or higher for 15 seconds of continuous cranking.
Test Voltage at Starter Solenoid Small Wire
With key in START position, use a multimeter to check voltage at the small control terminal on the solenoid. It should read 12V+. No voltage indicates ignition switch or safety switch fault. The small wire typically connects with a push-on terminal or small bolt. This wire carries the signal from the ignition switch through the safety switch circuit to activate the solenoid. If you read 0V here, work backwards: check at the ignition switch output, then check each safety switch in sequence to find which one is preventing signal passage.
Test Voltage at Solenoid Large Terminal (Battery Side)
Check voltage at the large terminal connected directly to the battery cable. Voltage should be within 0.5V of battery voltage measured at the battery posts. Large voltage drop here (more than 0.5V difference) means bad cable or connection between battery and solenoid. This heavy cable must carry 150-280 amps during cranking, so any corrosion or loose connection creates significant resistance and heat. If you find voltage drop here, remove the cable ends, clean them thoroughly with a wire brush, and reinstall with proper tightness.
Test Voltage at Starter Motor Housing During Crank
Measure voltage on the starter motor body or ground terminal during cranking attempt. It should read 10.5V+ during cranking. Much lower readings indicate solenoid internal failure or wiring fault between solenoid and motor. This test confirms whether adequate voltage reaches the motor itself. If Step 5 showed good voltage at the solenoid battery terminal but this step shows low voltage at the motor during cranking, the solenoid contacts are burned or the cable between solenoid and motor has failed.
Voltage Drop Test on Ground Circuit
Using the multimeter, check voltage drop between battery negative post and starter housing during cranking. Voltage should be under 0.3V. Excessive voltage indicates poor ground connection—check ground strap maintenance. The ground path completes the electrical circuit, and poor grounds cause just as much voltage drop as poor positive connections. Common ground problems include corroded ground straps, loose bolts at frame or engine mounting points, or paint/rust preventing metal-to-metal contact. Voltage drop over 0.3V means you’re losing significant power to resistance in the ground circuit.
Tap Test While Attempting to Start
Lightly tap the starter motor body with a hammer or wrench while attempting to start. If the engine starts immediately after tapping, it indicates worn brushes inside the starter that aren’t making consistent contact with the commutator. The vibration from tapping temporarily improves contact allowing the starter to work. This is a temporary fix; starter replacement is needed soon as the brushes are worn below minimum length. Some mechanics use this as a field diagnosis to confirm brush wear without removing the starter.
Remote Start Test Bypassing Solenoid
Safely jump the two large terminals on the solenoid with a heavy jumper wire or remote starter switch. This bypasses the solenoid control circuit and sends battery power directly to the starter motor. If the starter cranks normally when jumped, the solenoid is faulty and needs replacement. If it still doesn’t crank, the starter motor itself is faulty. Be extremely careful during this test—use insulated tools, ensure the tractor is in neutral or park, and keep hands and tools away from moving parts. The starter will engage immediately when you complete the circuit.
Current Draw Test (Advanced)
Use an inductive amp clamp meter on the battery positive cable to measure current while cranking. Normal draw is 150–250 amps for typical Kubota starters depending on engine size. Over 400 amps indicates internal short circuit in motor windings, seized bearings, or mechanical binding in the engine. Under 80 amps with no cranking indicates open circuit in motor windings or armature. This advanced test requires specialized equipment but provides definitive diagnosis of starter motor internal condition. Current draw that starts normal but rapidly climbs indicates overheating from continuous cranking or internal motor damage. Before condemning the starter, inspect battery cables and terminals for corrosion and voltage drop.
Model-Specific Starter Issues
Different Kubota model series have unique starter-related issues based on their design, electrical system complexity, and typical operating conditions. Understanding your specific model’s known issues saves diagnostic time and helps you focus testing on the most likely failure points.
| Model | Part Number | Voltage (V) | Current Draw (A) | Replacement Cost ($) |
|---|---|---|---|---|
| BX2380 | 1G311-63010 | 12 | 150-250 | 385-450 OEM, 90-140 Aftermarket |
| B2601 | 16241-63013 | 12 | 150-260 | 395-480 OEM, 85-150 Aftermarket |
| L2501 | 16241-63012 | 12 | 220-280 | 610-700 OEM, 120-180 Aftermarket |
| L3901 | 1G311-63012 | 12 | 220-280 | 650-895 OEM, 125-190 Aftermarket |
Key Model Issues by Series:
- BX Series (BX1880, BX2380, BX2680): Seat safety switch failures are the most common cause of no-start conditions, often caused by corrosion in the switch connector under the seat. The smaller gauge wiring in BX models (compared to larger series) makes them more susceptible to voltage drop from corrosion. BX starters are compact and relatively inexpensive to replace but can be challenging to access on models with mid-mount mowers installed.
- B Series (B2601, B3350): Limited starter access is a common complaint—you may need to remove skid plates or other components to reach mounting bolts. Ground strap corrosion occurs frequently at the frame mounting point near the battery tray and at the engine block connection. B Series tractors used extensively for loader work tend to wear starter motors faster due to frequent starting cycles and vibration stress.
- L Series (L2501, L3301, L3901, L4701): Generally robust starter assemblies that handle higher compression diesel engines well. PTO safety switches occasionally cause mysterious no-starts, especially after clutch work or PTO repairs when switches may be disconnected and not properly reconnected. L Series starters draw higher current (220-280 amps typical) so battery and cable condition is more critical than in smaller series.
- M Series: Complex safety switch circuits with seat, PTO, transmission range, and loader control interlocks often require professional diagnosis with wiring diagrams. M Series tractors have more sophisticated electrical systems that can develop multiple small faults creating intermittent starting issues. The larger engines require more robust starters that are correspondingly more expensive to replace ($800-1200 OEM).
Should You DIY or Call a Pro?
DIY Starter Diagnosis
Testing and diagnosing starter problems yourself costs virtually nothing and builds valuable mechanical skills. It identifies simple fixes quickly and lets you confirm battery and wiring condition before costly parts replacement. Most tractor owners can successfully perform basic voltage tests with minimal tools. If your starter cranks the engine strongly but it refuses to fire, check the fuel shutoff solenoid before assuming fuel pump or injector failure.
Best for: Getting preliminary fix confirmation, ruling out simple battery and connection issues, owners comfortable with basic electrical concepts, situations where immediate results are needed
Professional Diagnosis
Professional mechanics have advanced diagnostic tools including load testers, amp clamp meters, and wiring diagrams for model-specific safety switch circuits. They provide warranty on parts replacement and guarantee thorough inspection of entire starting system including often-overlooked issues like flywheel ring gear condition.
Best for: Complex intermittent problems, lack of diagnostic tools, time constraints requiring quick reliable fix, warranty protection desired, uncomfortable working with electrical systems
DIY diagnosis is free if you own a multimeter ($15-40 if purchasing). Professional diagnosis costs $75-150 for testing time. Starter replacement ranges from $90-$895 depending on OEM versus aftermarket parts and model complexity. Labor for professional replacement adds $150-300 depending on starter accessibility. Total professional repair: $300-600 typical for BX and B series, $450-800 for L series. DIY replacement: parts cost only, typically saving $150-300 in labor.
For broader starting system context including fuel system and ignition issues that can mimic starter problems, refer to our comprehensive no-start troubleshooting guide.
Keep Your Starter Running Strong
Preventive maintenance significantly extends starter motor life and prevents inconvenient failures during critical work periods. Kubota dealers report that starter motors receiving regular electrical system maintenance last 2,000-3,000 hours compared to 800-1,200 hours for neglected starters. The investment in preventive maintenance is minimal compared to the cost and downtime of starter replacement.
Monthly Preventive Checks: Perform proper battery maintenance including terminal cleaning and voltage testing. Check that terminal connections are tight—loose connections create resistance, heat, and voltage drop that stresses the starter motor. Inspect ground strap connections at both battery and engine mounting points for corrosion or looseness. A quality ground connection is just as important as a quality positive connection but is often overlooked.
Seasonal Maintenance Tasks: Clean the starter motor area of accumulated oil, grease, and debris which can trap heat and moisture. Check starter mounting bolts for tightness—vibration from rough terrain operation can loosen bolts over time causing misalignment stress on the starter drive. Test all safety switches operation to ensure they engage and release properly. Sticky safety switches cause frustrating intermittent starting problems.
Proper Operating Practices: Avoid cranking the engine for more than 15 seconds continuously. Extended cranking overheats the starter motor, potentially damaging the armature windings and melting solder connections. Wait at least 30 seconds between cranking attempts to allow the motor to cool. If the engine doesn’t start within 2-3 cranking attempts, stop and diagnose the actual cause of the no-start rather than continuing to stress the starter.
Fix hard-starting issues promptly rather than compensating with extended cranking. Hard starting from low compression, weak glow plugs, or fuel delivery problems forces the starter to work much harder than designed, shortening its lifespan dramatically. Keep your battery fully charged as weak batteries draw excessive current from the starter motor attempting to maintain cranking speed. For complete electrical system maintenance procedures, review our complete electrical system maintenance guide.
Frequently Asked Questions
Why does my Kubota make a clicking sound but won’t start?
This usually means the battery is weak or cable connections are poor. The solenoid clicks but doesn’t get enough current to engage and spin the starter motor fully. The rapid clicking happens because the solenoid tries to engage, the voltage drops under load, the solenoid releases, the voltage recovers, and the cycle repeats. Test battery voltage and perform a load test first. If battery tests good, check all cable connections for tightness and corrosion. Clean and tighten all connections and retest.
How do I know if my starter motor or battery is bad with Kubota starter motor troubleshooting?
Check battery voltage and perform a load test first. A healthy battery shows 12.6V+ at rest and maintains 10.5V+ while cranking for 15 seconds. If battery voltage tests good but the starter only clicks, makes grinding noises, or spins without engaging, the starter motor is likely bad. Use the voltage drop tests and current draw measurements outlined in this article for precise diagnosis. Remember that 60% of diagnosed starter failures are actually battery, cable, ground, or safety switch issues, not the starter itself.
Can I replace a Kubota starter motor myself?
Yes, with basic mechanical tools and safety precautions, replacing a starter on BX and B series tractors generally takes 40-75 minutes. Disconnect the battery negative terminal first for safety. You’ll typically need to remove 2-3 mounting bolts and disconnect the battery cable and solenoid wire. Take photos before disconnecting wires to ensure correct reconnection. L series tractors may take 90-120 minutes depending on model and access limitations. Always verify you have the correct replacement starter part number for your specific model before starting work. Consult service manuals from Kubota USA for model-specific torque specifications and procedures.
How long do Kubota starter motors typically last?
OEM Kubota starter motors typically last 2,000 to 3,000 hours under normal operating conditions with proper electrical system maintenance. Some operators report over 5,000 hours in applications with infrequent starts and good maintenance. Starters on tractors used for loader work with frequent start-stop cycles may wear faster, averaging 1,500-2,000 hours. Brushes and solenoid contacts typically wear first, so troubleshoot symptoms early. Aftermarket starters generally last 60-80% as long as OEM units. Operating in dusty or wet conditions without proper protection reduces lifespan significantly. Regular electrical system maintenance and proper battery care can extend starter life 30-50% compared to neglected systems.
Related Resources
-
- ►
battery maintenance procedures – How to prolong battery life and avoid starting problems through regular care and testing. - ►
test your battery properly – Battery testing methods for cold weather starting reliability and accurate capacity assessment. - ►
alternator testing procedures – Ensuring your charging system supports startup power demands and maintains battery charge. - ►
ground strap maintenance – Cleaning and inspecting ground connections to avoid false starter failure diagnosis.
- ►
- ►
essential diagnostic tools – Recommended multimeters, amp clamps, and equipment for accurate electrical troubleshooting. Find the tools referenced in this article for essential diagnostic tools. - ►
comprehensive no-start troubleshooting – Broader fixes for no-starts including fuel, ignition, and safety system issues beyond starter motor scope.
Key Takeaways
- Always test the battery first—60% of suspected starter motor failures are actually battery-related, saving hundreds in unnecessary starter replacement
- Sound diagnosis guides effective troubleshooting of starter motor problems, with 70% of failures identifiable just by listening to the symptoms
- Systematic voltage testing during cranking attempts pinpoints exact electrical failure locations without guesswork or parts swapping
- Most starter motor problems are identifiable without removing the starter, saving 1-2 hours of labor time and potential reassembly issues
- Professional diagnosis is valuable for complex intermittent issues, model-specific safety switch problems, or when specialized testing equipment is needed
- Preventive maintenance including battery care, connection cleaning, and avoiding excessive cranking extends starter life from 800-1200 hours to 2000-3000 hours
For additional technical information, wiring diagrams, and model-specific specifications, consult Kubota USA official resources. For real-world troubleshooting discussions and user experiences, visit TractorByNet forums or OrangeTractorTalks forums.
