Understanding Kubota Safety Switches

Kubota safety switches — also called operator-presence or interlock switches — are designed to prevent unsafe tractor operation. Depending on your model, they confirm the operator is seated, the transmission is in neutral, the PTO is disengaged, and/or the brake is applied before the engine will start or continue running. In this guide you’ll learn how to identify, test, and properly replace a failed switch, plus why we don’t recommend bypassing one, even temporarily.

What Are Kubota Safety Switches?

Key Kubota safety switches include:

• Seat safety switch: Detects operator presence and prevents engine start, or shuts down the engine/PTO, if the operator leaves the seat.
• Neutral safety switch: Prevents engine start if the transmission is not in neutral or the HST pedal is not centered.
• PTO safety switch: Stops the engine from starting if the PTO is engaged.
• Brake/parking brake switch: Requires the brake to be applied before engine start on some models.
• Clutch safety switch (gear models only): Requires clutch pedal depression to start the engine.
• HST pedal safety switch (hydrostatic models): Prevents starting unless the pedal is in neutral.

How these switches are wired varies meaningfully by model. Some functions genuinely are simple series circuits, but many Kubota tractors use more complex logic — a seat switch, for example, can control more than one circuit at once (PTO shutdown and starter-enable are sometimes separate circuits on the same switch), and some models add relays or conditional logic for parking-brake or PTO-stationary functions. Don’t assume every switch on your model behaves identically — use your operator’s or service manual’s wiring diagram for your exact model and serial range. For more on how these systems interconnect, see our Kubota electrical system troubleshooting guide and our guide on Understanding Your Kubota’s Operator Presence System.

Common Symptoms of Safety Switch Problems

When your tractor won’t start or suddenly stalls, safety switches are a common suspect. Specific symptoms help narrow down which switch:

• Complete no-start, no click at all: Often points to an open safety interlock circuit. A failing starter solenoid, by contrast, usually produces a click even when it won’t engage.
• Intermittent starting: Starts only when you shift your weight, wiggle a lever, or reposition — points to a loose connection or a switch that’s marginal.
• Engine stalls when you stand up: Particularly with PTO engaged — this is often the seat switch working correctly, not a fault (see the FAQ below).
• Won’t start even in neutral: Points to the neutral safety switch or its linkage.
• Won’t start with PTO showing off: May isolate to the PTO safety switch itself rather than the lever position.

If you’ve verified your battery is fully charged and the ignition switch is functioning, but still see these symptoms, a safety switch is a strong candidate.

Safety Switch Locations by Series

Physical location varies by model — these are general starting points, not a substitute for your model’s parts diagram.

B-Series

• Seat switch: Under the seat base, typically accessible by tipping the seat forward.
• Neutral safety switch: Under the hood behind the engine, near the shift linkage.
• PTO safety switch: Near the PTO lever.
• HST pedal switch: Under the left floorboard on hydrostatic models.
• Clutch safety switch: Under the left floorboard on gear models.

BX-Series

• Seat switch: Under the seat base.
• PTO switch: Near the PTO lever or control panel.
• Neutral switch: Near the transmission; sometimes inside the transmission housing.
• Forward/reverse pedal switch: Under the floorboard.

L-Series

• Seat switch: Under the operator seat.
• Neutral switch: At the shifter base (gear) or on the transmission housing (HST).
• PTO switch: Dashboard or near the PTO lever.
• Parking brake switch: Connected to the parking brake lever.

M/MX-Series

Locations closely resemble L-series; neutral safety switches may sit deeper in the assembly, sometimes requiring sheet metal removal to access. Consult your model’s service manual or the Kubota illustrated parts catalog to pin down exact locations before you start disassembly.

Diagnostic Testing Procedures

Visual Inspection

Start every safety switch diagnosis here:

• Look for corrosion at connectors — green or white deposits indicate moisture intrusion.
• Inspect wiring harnesses for loose, broken, or cracked wires.
• Verify the switch actuates by pressing it manually — listen or feel for a click.
• Clear debris (mud, grass) that could block plunger movement.
• Confirm connectors are fully seated with locking tabs engaged.
• Check for rodent damage — a common cause of chewed switch wiring.

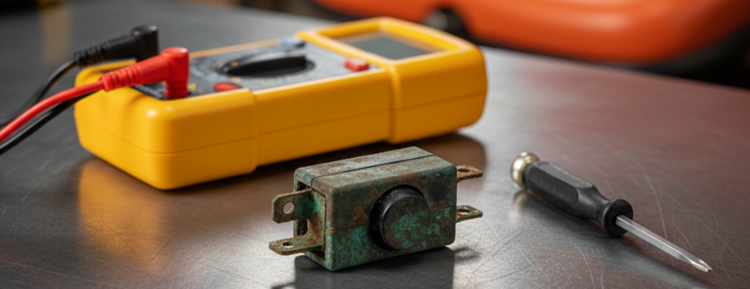

Multimeter Continuity Test

Tools needed: Digital multimeter with continuity mode, test leads.

1. Disconnect the battery negative terminal to avoid shorts.
2. Locate and unplug the target switch’s connector.
3. Set your multimeter to continuity (beep) mode.
4. Place probes on the switch terminals.
5. Manually actuate the switch (press or release the plunger/pedal).
6. A good switch shows continuity in one state and none in the other.
7. No beep in either state, or a constant beep, means the switch has failed.

Don’t assume terminal count or circuit logic is the same across models. Some Kubota seat switches carry more than one circuit through a single switch (for example, PTO-shutdown and starter-enable can be separate circuits on the same seat switch). Confirm terminal count and expected continuity pattern against your model’s wiring diagram before condemning a switch.

Voltage Testing

With the battery reconnected, backprobe the connector with your multimeter set to DC voltage. The supply wire should read close to battery voltage; signal-wire voltage will vary with switch actuation. This checks the switch under real operating conditions with current actually flowing, which can catch problems continuity testing alone misses.

Process of Elimination

Test each switch systematically and record pass/fail results, starting with the most commonly reported failure points (seat switch, then PTO switch) before moving to less common ones. A failing PTO safety switch can mask a mechanical PTO shaft problem — check both. PTO engagement issues can also stem from improper clutch adjustment rather than a failed switch.

Common Causes of Failure

• Corrosion: Moisture, dirt, and fertilizer chemicals degrade contacts and terminals over time — agricultural environments are hard on electrical components.
• Mechanical wear: Frequent actuation wears springs and contact surfaces. Seat switches see the most cycles since they activate every time you sit down or stand up.
• Vibration: Constant vibration can fracture wires and crack solder joints, particularly at switches mounted near high-vibration areas like the HST pedal or neutral switch.
• Misadjustment: A loose seat base or worn linkage can move a switch out of proper actuation range even when the switch itself is fine.
• Debris: Mud, grass, and foreign objects can block a plunger’s full travel — common under seat platforms.
• Age: Plastic components become brittle, seals shrink, and internal lubricants dry out over years of service, independent of hours used.

Replacement Procedure

OEM vs. Aftermarket Switches

There’s no reliable published figure for switch lifespan by category, and real-world OEM pricing varies more than a single range suggests — one genuine Kubota seat switch lists around $60, another around $32, depending entirely on the model and application. Treat any specific price or lifespan claim you see elsewhere with the same skepticism. What’s fair to say generally:

• Fit: OEM guarantees exact fitment for your model; aftermarket parts may require verification or, occasionally, modification.
• Seat switch circuit logic: Some Kubota seat switches carry more than one circuit through a single unit. A generic two-terminal aftermarket replacement may not duplicate that logic. Verify terminal count, normally-open/normally-closed state, and wiring against your model’s diagram before substituting — don’t assume every aftermarket switch is a drop-in match.
• Warranty: OEM parts are typically dealer-supported; aftermarket warranty coverage is inconsistent and worth checking before you buy.

For the seat switch specifically — where circuit logic is most likely to matter — verified OEM or a confirmed-equivalent aftermarket part is the safer bet. For other switches (PTO, neutral, brake), a reputable aftermarket part with matching terminal count and specs is a reasonable option if you confirm fitment first.
