Introduction – Why Injector Replacement Matters on Kubota Tractors
Fuel injector replacement on Kubota tractors is critical to maintain optimal engine performance, fuel efficiency, and emissions compliance, especially on modern common rail diesel engines operating at high pressures between 23,000 and 29,000 PSI. Understanding when and how to replace injectors can save thousands in dealer service costs while keeping your tractor running at peak performance.
Modern Kubota common rail systems differ greatly from older mechanical injection designs, requiring higher operating pressures and electronic controls. Failing injectors often cause rough running, excessive black smoke, hard starting, and fuel wastage. Contaminated fuel, water ingress, carbon deposits, and electrical faults are common culprits of injector failure. This guide will show you how to identify, diagnose, and replace injectors carefully, optimizing outcomes with appropriate tools and procedures while avoiding the high dealer service charges.
- How Kubota common rail injection pumps and ECU control systems operate
- Typical symptoms and diagnostic trouble codes indicating injector problems
- Tools and parts required for a safe, proper injector replacement
- Step-by-step replacement procedures and torque specifications
- Injector ECU coding requirements on late-model Kubota tractors
- Maintenance tips to prevent future injector failures
For detailed understanding of related fuel system issues that contribute to injector problems, see the comprehensive guide on Kubota fuel filter problems and maintenance.
Understanding Kubota Common Rail Injector Systems
Kubota common rail injection systems, used extensively on L-Series (L2501, L3901, L4701), M-Series (M5-111, M6060, M7060), and MX-Series tractors, operate differently from pre-2008 mechanical injection systems. These systems utilize a high-pressure pump producing fuel pressures up to 29,000 PSI, fueling a common rail that supplies all injectors via electronically controlled high-pressure fuel lines.
How Common Rail Systems Work
The engine control unit (ECU) precisely times injector pulses based on sensor feedback, ensuring efficient atomization and combustion. The system consists of several key components working together:
High-Pressure Pump
Compresses fuel into the common rail at extreme pressures up to 29,000 PSI for precise atomization.
Fuel Rail Distribution
Distributes consistent pressure to individual injectors, maintaining precise fuel delivery across all cylinders.
ECU Control
ECU controls injectors via pulse width modulation for precise timing and quantity based on real-time sensor feedback.
Differences from Mechanical Injection
Unlike older mechanical injection systems that rely on camshaft-driven pumps distributing fuel at lower pressures and fixed timing, Kubota common rail systems separate pressure generation and fuel injection timing. The ECU governs injection events, optimizing combustion under various engine loads, improving fuel economy, and meeting stringent Tier 4 emissions requirements. Mechanical injectors don’t allow for post-injection adjustments critical for modern emission controls.
Injector Types and Part Numbers
Kubota OEM injector part numbers vary by series and model. For example, L-Series and M-Series tractors use injectors with part numbers like 1J500-53050 and 1J801-53052, available also as remanufactured units. The V6108TI CRS engine’s injector is part number 1J524-53070. Aftermarket options from Denso and Bostech exist but require verification of compatibility and coding capability.
Impact of Injector Failure
A failed injector leads to incomplete combustion, causing loss of power, rough engine operation, increased black smoke, and excessive fuel consumption. This can damage the DPF and DEF systems due to improper exhaust gas compositions. Electrical faults or leaks in injectors may generate diagnostic trouble codes (DTCs), which require prompt attention to avoid further engine damage and expensive repairs to emission control systems.
Common Kubota Injector Problems and Symptoms
Kubota tractor owners frequently encounter injector symptoms characterized by hard starting, rough running, abnormal smoke, and increased fuel usage. Early signs include extended cranking times, white smoke on cold start, and poor throttle response. Progressive failures worsen these symptoms and negatively impact tractor productivity.
Hard Starting Symptoms
Extended cranking and rough starts, sometimes resembling glow plug issues, occur due to insufficient fuel delivery. White smoke on startup indicates incomplete combustion from poor atomization or erratic injector spray patterns affected by carbon fouling or electrical solenoid failures. These symptoms are often confused with glow plug problems, but proper diagnosis will reveal injector issues as the root cause.
Running Problems and Smoke Issues
Rough idling, misfires, and loss of power under load—especially noticeable during PTO operation—signal injector degradation. Black smoke results from over-fueling, while blue smoke often accompanies injector seal leaks. White smoke during running indicates potential injector clogging or nozzle failure. Each smoke color provides diagnostic clues about the specific type of injector malfunction.
Fuel Economy and DPF/DEF System Effects
Higher fuel consumption and fuel dilution of engine oil are direct consequences of leaking or malfunctioning injectors. Injector issues accelerate DPF clogging, trigger frequent regenerations, and increase DEF consumption. Exhaust-related warning lights and trouble codes commonly manifest, including:
- P0201-P0204: Injector circuit malfunctions for cylinders 1-4
- P0261-P0264: Injector low circuit codes
- P0267-P0270: Injector high circuit codes
- Various rail pressure and fuel system codes
Model-Specific Injector Failure Patterns
L3901 models often report injector nozzles clogged by carbon deposits from poor fuel quality or inadequate filter maintenance, whereas M7060 injectors may face electrical solenoid failures due to wiring harness damage or water ingress. Recognizing these patterns aids in targeted diagnostics and repair. Understanding your model’s common failure modes can save diagnostic time and prevent repeat issues.
Many injector problems stem from contaminated fuel that passes through failed or inadequate filtration. Review proper fuel quality management and storage practices to prevent injector contamination. Contaminated fuel is the leading cause of premature injector failure. Proper fuel filtration with regularly replaced filters prevents expensive injector damage. Many filter clogging problems stem from poor fuel quality—see our guide on diagnosing and replacing Kubota fuel filters.
Diagnosing Failed Injectors
Accurate diagnosis involves a systematic process combining visual checks, electrical tests, and use of diagnostic tools. Proper diagnosis prevents unnecessary parts replacement and identifies root causes that must be addressed to prevent repeat failures.
Diagnostic Procedures
Accurate diagnosis requires a systematic approach:
- Visual inspection for fuel leaks, carbon buildup, damaged wiring, and corroded connectors at injectors
- Cylinder balance testing with diagnostic scan tools to detect misfiring or weak injector performance
- Compression testing to differentiate mechanical failures from injection issues
- Fuel return flow measurement to identify excessive back-leakage from injectors indicating worn nozzles
- Electrical resistance and solenoid function testing with multimeters to confirm injector coil integrity
- Analyzing smoke color and patterns during start and operation for combustion quality clues
- Reading ECU diagnostic trouble codes and using live data to identify injector trim deviations
Determining when to clean versus replace injectors depends on the extent of carbon fouling, electrical faults, and mechanical wear observed during testing. Professional ultrasonic cleaning can restore mildly fouled injectors, but severely worn or damaged units require complete replacement.
For comprehensive engine diagnostic procedures beyond injector testing, see the guide on Kubota engine compression testing to rule out mechanical issues. Before replacing injectors, properly diagnose the problem with our injector problems diagnosis guide.
Tools and Parts Needed for Injector Replacement
Proper tools and parts are essential for successful Kubota injector replacement, ensuring safety, accuracy, and longevity of the repair. Investing in quality tools pays for itself over multiple repairs and prevents damage to expensive components.
Special Tools Required
- Injector puller tool (slide hammer or hydraulic type) with thread adapters suitable for Kubota injectors
- Torque wrench with angle gauge for precision tightening of injector hold-down clamps and fuel lines (typically 15-25 ft-lbs + specific angles)
- Injector copper crush washer installation tool to avoid leaks and ensure proper sealing
- Fuel system pressure tester to safely relieve and verify fuel pressure
- Diagnostic scan tool capable of reading injector codes and performing ECU adaptations
Standard Tools and Required Parts
- Socket sets: 10mm, 12mm, 14mm sizes commonly used on Kubota tractors
- Injector replacement parts: new or remanufactured injectors by OEM part numbers (e.g., 1J500-53050, 1J801-53052)
- Copper crush washers (never reuse – critical for preventing leaks)
- Injector hold-down clamps and bolts
- Return line O-rings and high-pressure fuel line washers
- Fuel system cleaning additive for post-repair flush
- Safety equipment: goggles, nitrile gloves, fire extinguisher, and well-ventilated workspace

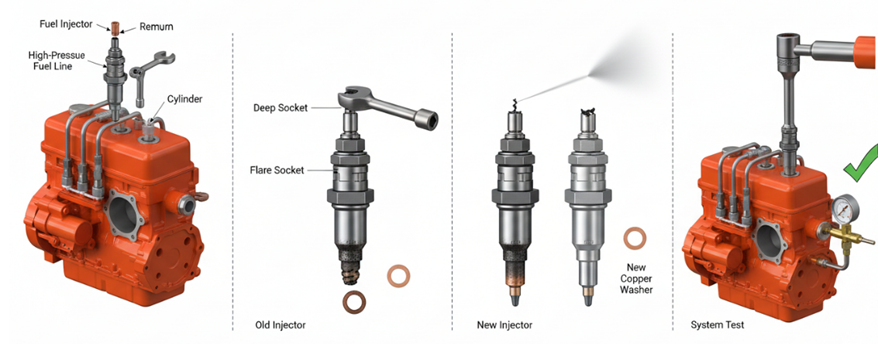

Step-by-Step Kubota Injector Replacement Procedure
Replacing Kubota fuel injectors requires detailed attention to safety and precision. This comprehensive procedure reflects best practices for common L-, M-, and MX-series engines and will guide you through each critical step.
Preparation and Safety
Disconnect tractor battery to prevent electrical shorts. Carefully relieve fuel system pressure using the designated pressure release valve as per model instructions (critical due to 23,000+ PSI rail pressure). Clean surrounding work area meticulously to prevent dirt contamination. Document injector locations and wiring orientation for later reassembly.
Removal Procedure
Remove valve cover, intake components, and necessary wiring harnesses to access injectors. Disconnect high-pressure fuel lines and return lines carefully, catching fuel spillage with clean rags. Disconnect electrical connectors noting wiring colors and positions. Loosen and remove injector hold-down clamps/bolts, typically torqued between 15-25 ft-lbs during installation. Use injector puller tool (slide hammer or hydraulic) to extract injectors gently, avoiding damage to injector bore or threads.
Bore Inspection & Cleaning
Inspect injector bores for carbon buildup, debris, or damage. Clean thoroughly with appropriate cleaning tools and compressed air. Verify seal surfaces are flat and free from pitting or damage. Any contamination at this stage can cause premature failure of new injectors.
Installation Procedure
Prepare new injectors by installing fresh copper crush washers and lubricating O-rings with clean diesel fuel. Insert injectors slowly and straight without twisting to avoid damage. Install hold-down clamps and torque to manufacturer specs (typically 15-25 ft-lbs plus specified angles). Reinstall high-pressure fuel lines and tighten to 18-22 ft-lbs depending on model. Reconnect electrical connectors ensuring secure clip engagement.
Post-Installation & Testing
Bleed and prime the fuel system carefully to remove air pockets. Perform ECU injector coding if applicable (required on many models post-2015 Tier 4). Start engine and check for fuel leaks, listen for abnormal noises, and observe normal running conditions. Test drive tractor to verify restored power, reduced smoke, and correct performance.
After injector replacement, proper fuel system bleeding is critical to prevent hard starting and rough running. For detailed bleeding procedures specific to Kubota tractors, see the complete guide on Kubota fuel system bleeding procedures.
Injector Coding and ECU Adaptation
Injector coding is mandatory on many Kubota Tier 4 engines (mostly post-2015 models) to match the new injector’s unique trim code with the ECU. This process compensates for injector manufacturing variances, ensuring correct fuel delivery and emissions control.
Understanding Injector Codes
Injector codes are laser-etched on the injector body or come with the new injector packaging. These alphanumeric codes represent calibration data unique to each injector, accounting for minor manufacturing variations in fuel delivery characteristics. The ECU uses these codes to adjust injection timing and duration for each cylinder, ensuring balanced performance across all cylinders.
Some diagnostic tools and Kubota ECU software allow DIY coding, but many require professional programming at dealers or authorized workshops equipped with Kubota’s proprietary diagnostic software. Failure to code new injectors may result in rough running, reduced power, increased emissions, and potential damage to emission control systems.
Typical cost for professional injector coding services ranges from $100 to $200 depending on the model and workshop. For owners of multiple Kubota tractors, investing in coding capability can pay for itself over time.
OEM vs Aftermarket vs Remanufactured Injectors
Choosing between OEM, aftermarket, and remanufactured injectors involves balancing cost, quality, warranty coverage, and application requirements. Understanding the pros and cons of each option helps you make the best decision for your situation.
OEM Kubota Injectors
OEM Kubota injectors generally cost between $400 and $800 each and come with a 12-month warranty. They are the best choice for critical applications and newer Tier 4 tractors where warranty and exact specifications matter most. OEM injectors guarantee proper fit, correct spray pattern, and full compatibility with ECU coding requirements.
The primary advantages include guaranteed quality control, perfect compatibility, and dealer support if issues arise. However, the significantly higher cost can be prohibitive for older tractors or situations where multiple injectors need replacement simultaneously.
Aftermarket and Remanufactured Options
Aftermarket new injectors from brands like Bostech or Standard Motor Products range from $250 to $500 each. Buyers should verify part compatibility, coding capability, and warranty terms carefully. Quality aftermarket injectors can provide excellent performance at substantial savings.
Remanufactured injectors cost $150-$300 with a core exchange and usually carry a limited warranty of 12 months. They offer the greatest cost savings but vary in quality depending on the rebuilder’s standards. Reputable remanufacturers ultrasonically clean injectors, replace worn components, flow-test each unit, and provide coding information.
Professional ultrasonic cleaning with flow testing is available for $75-$150 per injector but is effective mainly for mild carbon fouling. It’s not a substitute for replacement when injectors have electrical failures, worn nozzles, or seal damage.
Common Mistakes to Avoid
Learning from common mistakes can save time, money, and prevent repeat failures. These critical errors cause the majority of DIY injector replacement problems and can turn a straightforward repair into an expensive disaster.
Reusing Crush Washers
Never reuse copper crush washers – they deform during initial installation and will not seal properly when reused, leading to fuel leaks.
Improper Torque
Over-torquing cracks injector bodies; under-torquing causes blowby. Always use calibrated torque wrench with angle gauge.
Skipping Pressure Release
Failing to relieve 23,000+ PSI fuel pressure before disconnecting lines can cause serious injury from fuel injection.
Contamination During Install
Even microscopic dirt particles can damage new injectors. Keep work area spotless and cover open bores during the process.
Skipping System Flush
Not flushing the fuel system after injector failure allows contaminants to damage new injectors quickly.
Missing ECU Coding
Installing injectors without required ECU coding causes rough running, reduced power, and emissions problems on Tier 4 engines.
Fuel System Cleaning and Prevention
After injector replacement, cleaning the fuel system is critical to avoid repeat failures. This includes fuel tank inspections, careful replacement of fuel filters, and using fuel system cleaner additives tailored to remove water and carbon deposits.
Post-Replacement Fuel System Flush
When an injector fails, contaminants often circulate throughout the fuel system. Before installing new injectors, drain the fuel tank if contamination is suspected, replace all fuel filters, and run fuel system cleaner through the system. This prevents the new injectors from being damaged by the same contaminants that destroyed the originals.
Replace both primary and secondary fuel filters as part of any injector replacement job. For complete guidance on proper filter selection and replacement intervals, see the detailed guide on Kubota fuel filter maintenance.
Preventive Maintenance Practices
Managing fuel quality, maintaining water separators, and regular filter changes per manufacturer schedules protects injectors from contamination. Special considerations apply when using biodiesel blends and during seasonal temperature changes requiring winter fuel treatments.
Key preventive measures include:
- Using clean, quality diesel fuel from reputable suppliers
- Draining water separators weekly or after every 25 operating hours
- Following strict fuel filter replacement schedules (every 200-400 hours)
- Using fuel additives appropriate for your operating conditions
- Keeping fuel tanks at least 75% full to minimize condensation
- Storing fuel properly with attention to temperature and moisture control
For comprehensive guidance on fuel quality management and proper additive use, review the Kubota fuel additive guide and water in fuel troubleshooting resources.
When to Call a Professional
While many Kubota owners can successfully replace injectors themselves, certain situations warrant professional assistance to ensure proper repair and avoid costly mistakes.
When Professional Help Makes Sense
Professional assistance is recommended when:
- You lack proper tools, particularly injector pullers and coding equipment
- Dealing with multiple injector failures suggesting systemic fuel system issues
- The tractor is under warranty (using aftermarket parts may void coverage)
- You’re uncomfortable working with high-pressure fuel systems
- Diagnostic equipment is needed to identify which injectors have failed
- ECU coding is required and you lack the necessary software/tools
- Time constraints make DIY repair impractical
Professional costs typically range from $1,200 to $2,400 for dealer service and $800 to $1,600 at independent shops, underscoring the financial benefit of competent DIY repairs when feasible. However, these costs include proper diagnosis, coding, warranty coverage, and the peace of mind that comes with professional installation.
Frequently Asked Questions About Kubota Fuel Injector Replacement
Common questions about diagnosing, replacing, and maintaining Kubota fuel injectors on common rail diesel engines.
How do I know if my Kubota injectors are bad?
Common symptoms of bad Kubota injectors include hard starting with extended cranking, rough idle, loss of power especially under load, excessive black or white smoke, increased fuel consumption, and diagnostic trouble codes P0201-P0204. You may also notice a strong diesel smell in the engine oil indicating fuel dilution, or the engine may run rough when cold and smooth out when warm. Professional diagnosis with a scan tool can perform cylinder balance tests to identify which specific injector is failing.
How much does it cost to replace Kubota fuel injectors?
Dealer replacement typically costs $1,200-$2,400 including parts and labor. DIY replacement costs $300-$600 using aftermarket or remanufactured injectors, or $400-$800 per injector for OEM Kubota parts. Additional costs include special tools ($150-$300 if you don’t own them), copper crush washers and seals ($50-$100), and professional ECU coding if required ($100-$200). The savings of $600-$1,800 make DIY replacement attractive for mechanically skilled owners.
Can I replace Kubota injectors myself?
Yes, mechanically skilled owners can replace Kubota injectors with proper tools and procedures. You’ll need an injector puller tool, torque wrench with angle gauge, new copper crush washers, and diagnostic scan tool for models requiring ECU coding. The job takes 3-6 hours depending on model and your experience level. Critical steps include safely relieving 23,000+ PSI fuel pressure, keeping the work area clean to prevent contamination, torquing hold-down bolts correctly, and bleeding the fuel system thoroughly after installation. Post-2015 Tier 4 models typically require professional ECU injector coding.
Do I need to code new Kubota injectors?
Most Kubota Tier 4 engines from 2015 and newer require injector coding to match the new injector’s unique calibration code with the ECU. This compensates for manufacturing variances and ensures proper fuel delivery and emissions control. Injector codes are laser-etched on the injector body or included with new injectors. Some diagnostic tools allow DIY coding, but many models require professional programming with Kubota’s proprietary software at a dealer or authorized shop, typically costing $100-$200. Skipping required coding causes rough running, reduced power, and increased emissions.
What causes Kubota fuel injectors to fail?
The most common causes of Kubota injector failure are contaminated fuel containing dirt or water, carbon buildup from poor fuel quality or inadequate filter maintenance, water damage causing internal corrosion, electrical problems with injector solenoids or wiring harness, and normal wear on high-mileage engines. Using low-quality fuel, skipping filter changes, neglecting water separator maintenance, and running biodiesel blends without proper additives all accelerate injector wear. Preventing failures requires using quality diesel fuel, changing filters every 200-400 hours, draining water separators weekly, and addressing fuel quality issues promptly.
Should I replace all injectors or just the bad one?
On tractors with less than 2,000 hours, replacing only the failed injector is usually acceptable if fuel contamination wasn’t the cause. For high-mileage engines over 3,000-4,000 hours, or when injector failure resulted from contaminated fuel that affected the entire system, replacing all injectors together prevents repeated repairs and ensures balanced performance. If one injector failed from wear, others are likely nearing end of life. Consider your tractor’s hours, work demands, and whether you can afford downtime for repeat repairs when making this decision.
Can you clean Kubota fuel injectors instead of replacing them?
Professional ultrasonic cleaning with flow testing costs $75-$150 per injector and works well for mild carbon fouling, but it’s not effective for injectors with worn nozzles, damaged seals, electrical failures, or severe internal wear. DIY cleaning with injector cleaner additives can help prevent buildup but won’t restore heavily fouled or damaged injectors. If cylinder balance tests show significant deviation, compression is low on specific cylinders, or you have electrical codes, replacement is necessary. Cleaning is best used as preventive maintenance on working injectors rather than attempting to restore failed units.
Are aftermarket Kubota injectors as good as OEM?
Quality aftermarket injectors from reputable brands like Bostech, Denso, or Standard Motor Products generally perform well and cost 40-60% less than OEM ($250-$500 vs $400-$800). They typically meet OEM specifications and come with 12-month warranties. However, cheaper no-name imports under $200 often have quality control issues, shorter lifespan, and may not include proper coding information. For critical applications, warranty periods, or newest Tier 4 models, OEM injectors provide maximum reliability. For older tractors or budget-conscious repairs, premium aftermarket or professionally remanufactured injectors ($150-$300) offer good value when sourced from trusted suppliers.
How long do Kubota fuel injectors last?
With proper fuel quality and maintenance, Kubota common rail injectors typically last 3,000-5,000 hours or more. Factors affecting lifespan include fuel quality (contamination significantly shortens life), maintenance practices (regular filter changes and water separator draining extend life), operating conditions (dusty environments or biodiesel use accelerate wear), and fuel additives used. Tractors running on clean, quality diesel with religious filter maintenance and proper storage often exceed 5,000 hours on original injectors, while those with poor fuel quality or neglected maintenance may need replacement at 2,000 hours or less.
What happens if I don’t replace bad Kubota injectors?
Continuing to operate with failed injectors causes progressive damage including reduced power making the tractor unsafe for heavy work, severe fuel economy losses costing $50-100+ monthly in wasted diesel, fuel dilution damaging engine oil and wearing bearings, DPF clogging from incomplete combustion requiring expensive ($800-1,500) cleaning or replacement, turbocharger damage from excessive exhaust temperatures, and potential engine damage from running too lean or rich. Failed injectors also create safety hazards through unexpected power loss during critical operations. The cost of delayed repair quickly exceeds the injector replacement expense through collateral damage and lost productivity.
Conclusion: Mastering Kubota Injector Replacement
Successfully replacing Kubota fuel injectors requires proper diagnosis, quality parts, correct procedures, and attention to critical details like torque specifications and ECU coding. With the right approach, DIY owners can save substantial money while maintaining their tractors at peak performance.
Kubota fuel injector replacement represents one of the more advanced DIY repairs, but it’s well within reach for mechanically inclined owners who invest in proper tools and follow systematic procedures. The potential savings of $600 to $1,800 per repair make it worthwhile to develop these skills, especially for owners operating multiple tractors or high-hour machines.
The key to long-term injector health lies not just in proper replacement technique, but in preventing failures through rigorous fuel quality management, filter maintenance, and addressing contamination issues promptly. Every dollar spent on preventive maintenance—quality fuel filters, regular water separator draining, and fuel system cleaning—saves exponentially more in avoided injector repairs and downtime.
Remember that failed injectors are often symptoms of larger fuel system problems. When replacing injectors, always investigate and address the root cause—whether it’s contaminated fuel, failed filters, or poor fuel storage practices. Replacing injectors without fixing underlying issues leads to repeated failures and mounting repair costs.
Take Action Today
- Diagnose injector problems early by monitoring smoke color, power loss, and rough running symptoms
- Source quality OEM or reputable aftermarket injectors appropriate for your Kubota model
- Invest in proper tools including torque wrench, injector puller, and diagnostic scan tool if tackling this repair
- Address fuel quality and filtration issues that contributed to injector failure
- Document injector codes and maintain records for future reference and warranty claims
- Consider professional coding services if DIY coding isn’t available for your model
