Master the critical safety component that governs your tractor’s hydraulic performance

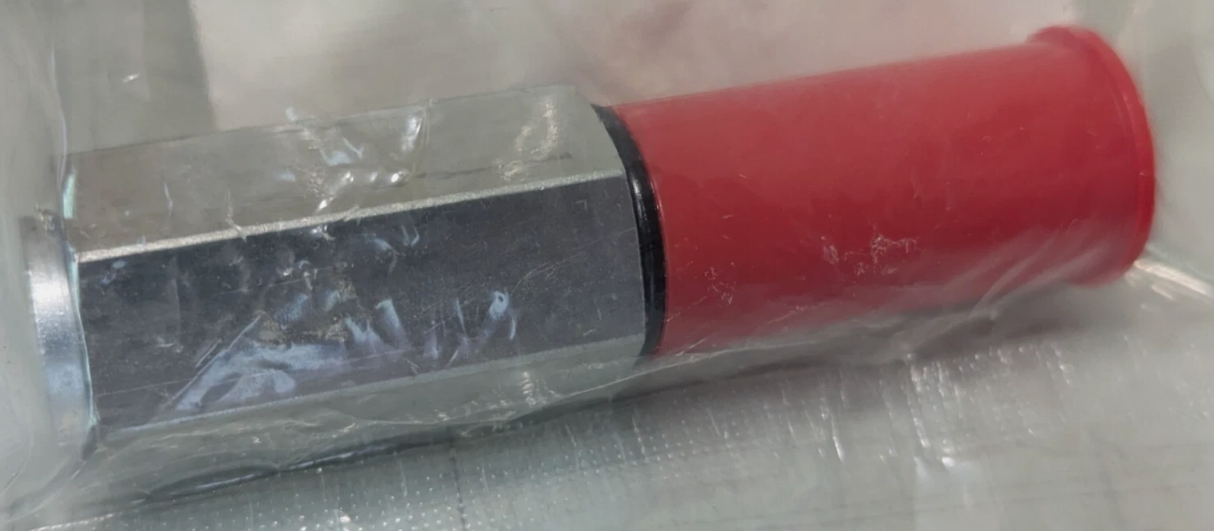

The hydraulic pressure relief valve serves as the critical safety component and performance governor in Kubota tractors, directly impacting lifting capacity, system longevity, and operational safety. Understanding proper adjustment procedures can significantly enhance your tractor’s hydraulic performance while maintaining safe operation.
Understanding Kubota Hydraulic Pressure Relief Valve Function
Core System Protection
The Kubota hydraulic pressure relief valve operates on spring-loaded pressure differential principles, serving three primary functions that make it indispensable to your tractor’s operation:
Pressure Limiting
Prevents system pressure from exceeding safe operational limits, protecting against catastrophic failures in hydrostatic transmission systems that use pressurized hydraulic fluids.
Component Protection
Safeguards expensive hydraulic components including pumps, cylinders, hoses, and fittings from pressure-induced damage that can result in dramatic component failures.
Safety Operation
Controls tremendous energy stored in hydraulic systems, preventing explosive decompression and potential injury from systems under high pressure.
Operating Principles and Mechanisms
Relief valves function through sophisticated engineering principles that balance system performance with safety requirements. When system pressure exceeds the spring’s set tension, the valve opens automatically, diverting excess flow back to the reservoir. This immediate pressure regulation prevents damage to sensitive components while maintaining consistent system performance.
Most Kubota compact utility tractors and sub-compact utility tractors utilize shims to adjust pressure settings, while larger models employ threaded stud and jamb nut configurations. The spring mechanism provides precise pressure control, with different spring rates determining the exact pressure threshold for valve activation.
Technical Specifications by Model Series
| Model Series | Factory Setting | Safe Adjustment Range | Maximum Recommended |
|---|---|---|---|
| BX Series | 1,800 PSI | 2,000-2,200 PSI | 2,400 PSI |
| L Series | 2,175-2,400 PSI | 2,500-2,600 PSI | 2,800 PSI |
| B Series | 1,800 PSI | 2,000-2,200 PSI | 2,500 PSI |
| MX Series | 2,300-2,500 PSI | 2,600-2,800 PSI | 3,000 PSI |
Important Note: Factory settings are often 600 PSI below optimal performance levels due to conservative safety margins and liability considerations for operators who don’t properly ballast their tractors.
Identifying Pressure Problems: Key Symptoms
High Pressure Warning Signs
Critical Warning: High pressure symptoms indicate immediate attention required to prevent catastrophic system damage and potential injury.
- Excessive System Noise: Cavitation sounds from pump indicating pressure overload, often accompanied by whining or grinding noises
- Rapid Fluid Heating: Temperature increases beyond normal operating range, causing fluid degradation and component wear
- Premature Hose Failure: Burst or bulging hydraulic lines from excessive pressure stress exceeding design specifications
- Hard, Jerky Movements: Lack of smooth cylinder operation during tasks, indicating pressure spikes overwhelming system capacity
- Pump Strain: Excessive engine loading during hydraulic operation, causing decreased engine performance and increased fuel consumption
Low Pressure Performance Issues
Low pressure symptoms significantly impact tractor productivity and indicate immediate Kubota hydraulic pressure relief valve adjustment needs. Hydraulic pressure testing revealing 400 PSI versus expected 2,000+ PSI indicates serious system problems requiring immediate attention:
- Weak Lifting Capacity: Reduced loader or implement performance below manufacturer specifications, affecting work efficiency
- Slow Cylinder Movement: Extended cycle times for hydraulic functions, dramatically increasing task completion time
- Inability to Lift Rated Loads: Performance significantly below manufacturer specifications for lifting capacity
- High RPM Requirements: Systems requiring maximum engine RPMs for minimal hydraulic function, indicating significant pressure loss
Erratic Operation Symptoms
Intermittent problems often indicate developing system issues requiring careful diagnosis:
- Inconsistent Lifting Performance: Variable capacity under similar conditions, suggesting internal valve wear or contamination
- Pressure Fluctuations: Unstable gauge readings during operation, indicating potential internal leakage or air in system
- Temperature-Dependent Performance: Different capabilities when cold versus hot, suggesting thermal expansion issues
Step-by-Step Adjustment Procedure
Required Tools and Safety Equipment
Essential Tools: Hydraulic pressure gauge (glycerin-filled, 0-5,000 PSI), appropriate fitting adapters for your specific model, shim kit or adjustment tools, basic hand tools (wrenches, sockets), and complete safety equipment including safety glasses and gloves.
Precision Instruments
Professional-grade pressure testing equipment with glycerin-filled gauges for accurate readings under vibration conditions.
Model-Specific Adapters
Appropriate fitting adapters ensuring leak-free connections for accurate pressure measurement during testing procedures.
Pressure Testing Installation
Warm Tractor to Operating Temperature
Operate tractor for minimum 1 hour to ensure accurate pressure readings and proper component function. Cold hydraulic fluid provides inaccurate readings due to viscosity changes.
Locate Relief Valve Position
BX Series: Under operator seat at pressure block. L/B Series: Consult service manual for model-specific location. L3940 models require careful location identification due to challenging access.
Disconnect Hydraulic Connections
For loader systems, disconnect the rearmost hydraulic connector on front-end loader for pressure testing. Ensure system depressurization before disconnection.
Install Pressure Gauge
Connect pressure gauge with appropriate fittings at relief valve test point, ensuring all connections are properly torqued and completely leak-free for accurate readings.
Adjustment Methods and Procedures
Shim Method (Most Common)
Remove relief valve cover bolt and add shims to compress spring for higher pressure settings. Start with minimal shim thickness (0.1-0.2mm), reassemble, test pressure, and repeat until desired pressure achieved. This method provides precise pressure control.
Threaded Adjustment Method
Loosen lock nut and turn adjustment screw clockwise to increase pressure. Make small adjustments (1/4 turn increments), test after each adjustment, and lock nut securely. This method is easier than shim adjustments but less precise.
Valve Location and Access Procedures
Different Kubota series require specific location identification and access procedures:
- BX Series: Relief valve typically located under operator seat at pressure block with relatively easy access
- L Series: Varies by model requiring workshop service manual consultation for specific location identification
- B Series: Similar to L Series with model-specific variations requiring careful documentation review
Safety Protocols and Risk Management
Critical Safety Warning
Never exceed 10-15% above factory specifications without professional consultation. Exceeding factory specifications risks serious and expensive damage including cylinder breaks, rod bending, loader damage, rockshaft damage, and potential personal injury from hydraulic injection or explosive decompression.
Conservative Adjustment Guidelines
Professional recommendation involves testing hydraulic pressure to ensure factory specifications are met, then adjusting to specification or maximum 10% above with small shims and appropriate precautions. Kubota sets conservative pressure settings primarily due to tractor weight considerations and liability concerns for users who don’t add rear ballast, but properly ballasted tractors can handle moderate pressure increases safely.
- Low Risk: Adjustments within 10% of factory specifications with proper ballast and regular monitoring
- Moderate Risk: Adjustments 10-20% above factory specifications requiring enhanced monitoring and component inspection
- High Risk: Adjustments exceeding 20% above factory specifications requiring professional evaluation and upgraded components
Mandatory Safety Procedures
Personal Protection
Always wear safety glasses and gloves when working with hydraulic systems. Hydraulic injection injuries require immediate medical attention due to severe tissue damage.
Pressure Release
Ensure complete system depressurization before disconnecting fittings to prevent injury from pressurized fluid release.
Component Inspection
Regular inspection of hoses, fittings, and cylinders for wear or damage, with immediate replacement of questionable components.
Performance Testing and Monitoring
Load Testing Protocol
Proper testing ensures Kubota hydraulic pressure relief valve adjustment achieves desired performance without compromising safety. Systematic pressure testing involves both power steering pump and hydraulic pump requiring separate testing procedures as outlined in manufacturer manuals:
Testing Procedure: Dead-head a cylinder line with gauge to read where relief valve opens. Run engine at rated RPM (typically 2,500 RPM), activate hydraulic function to create maximum pressure demand, record pressure readings and note any fluctuations throughout the test cycle.
Performance Verification Methods
- Continuous Monitoring: Professional-grade gauges designed for long-term use allow year-after-year pressure monitoring to identify system degradation
- Load Testing: Test lifting capacity with known weights to verify performance improvements
- Cycle Time Monitoring: Track hydraulic function cycle times for consistency and efficiency improvements
- Pressure Drop Analysis: Check for pressure drops under load indicating internal valve leakage or worn components
Real-World Performance Results
Field testing demonstrates significant performance improvements with proper adjustment techniques and conservative pressure increases:
BX2350 Case Study
Pressure increased to 2,000 PSI showing significant performance improvement maintained over 1,500 hours operation without component damage when proper rear ballast maintained.
L2501 Performance Enhancement
Pressure over 2,500 PSI resulted in substantial loader power increase, though requiring careful operation due to increased lifting capacity beyond original tractor design.
Commercial Fleet Success
Standardized 1,950 PSI adjustment across multiple units achieved almost 300 hours operation with no leaks, seeps, or component failure reported.
Troubleshooting Common Issues
| Problem | Likely Cause | Solution |
|---|---|---|
| Pressure drops under load | Internal valve leakage, worn pump components | Professional diagnosis, component replacement |
| Erratic pressure readings | Contaminated fluid, air in system, faulty relief valve | Fluid replacement, system bleeding, valve service |
| Excessive pressure spikes | Improper adjustment, system contamination | Re-adjustment, filtration system service |
| Temperature-dependent performance | Thermal expansion issues, viscosity changes | Fluid specification check, component tolerance verification |
Advanced Diagnostic Procedures
Complex hydraulic issues require systematic diagnosis to avoid dangerous improper repairs:
- Component Isolation Testing: Individual circuit testing to identify specific problem areas within the hydraulic system
- Flow Rate Analysis: Measuring hydraulic fluid flow rates at various pressure levels to identify pump efficiency
- Temperature Monitoring: Tracking system temperature during operation to identify overheating issues
- Contamination Analysis: Hydraulic fluid sampling to identify contamination sources affecting system performance
Key Takeaways
Kubota hydraulic pressure relief valve adjustment represents a complex balance between enhanced performance and system safety. Success requires thorough understanding of system limitations, proper testing procedures, conservative adjustment approaches, and ongoing monitoring. The most critical factors include professional-grade pressure testing equipment, conservative adjustment increments, appropriate rear ballast for increased lifting capacity, regular system monitoring and maintenance, and understanding of component limitations and safety margins. If you need significantly more lift capacity than modest adjustments provide, you likely need a larger machine rather than pushing system limits. Do the 100 hour Hydraulic service here!
Frequently Asked Questions
What is the safe pressure increase limit for Kubota hydraulic systems?
Professional recommendations suggest never exceeding 10-15% above factory specifications without consultation. BX Series can typically handle increases to 2,000 PSI from factory 1,800 PSI, while L Series may accommodate up to 2,500-2,600 PSI from factory settings of 2,175-2,400 PSI with proper ballast and monitoring.
How do I know if my Kubota hydraulic pressure relief valve needs adjustment?
Key symptoms include weak lifting capacity, slow cylinder movement, inability to lift rated loads, high RPM requirements for minimal hydraulic function, and hydraulic pressure testing revealing significantly low readings (400 PSI versus expected 2,000+ PSI). Erratic operation and temperature-dependent performance also indicate adjustment needs.
What tools are required for Kubota hydraulic pressure relief valve adjustment?
Essential tools include a hydraulic pressure gauge (glycerin-filled, 0-5,000 PSI range), appropriate fitting adapters for your specific model, shim kit or adjustment tools, basic hand tools (wrenches, sockets), and complete safety equipment including glasses and gloves. Professional-grade pressure testing equipment ensures accurate readings under operational conditions.
Can pressure relief valve adjustment damage my Kubota tractor?
Yes, improper adjustment can cause serious damage including cylinder breaks, rod bending, loader damage, rockshaft damage, and potential personal injury from hydraulic injection or explosive decompression. Conservative adjustments within manufacturer guidelines with proper rear ballast typically avoid damage, while excessive pressure increases beyond 20% of factory specifications require professional evaluation and potentially upgraded components.
