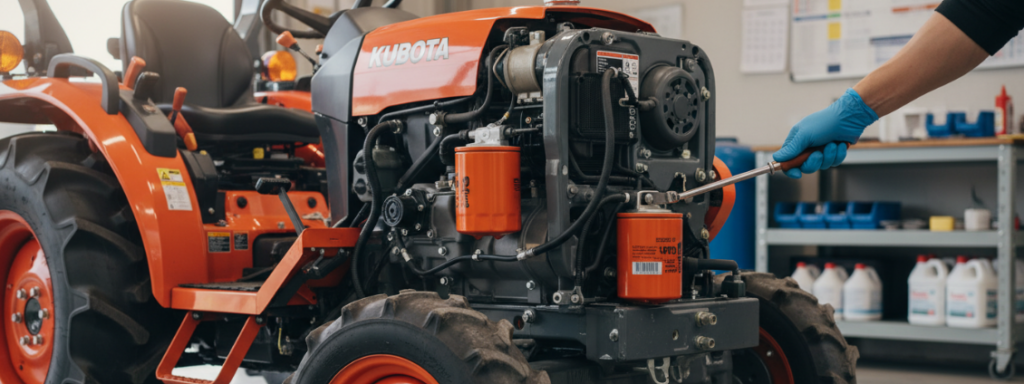

Kubota L2501/L3301 100-Hour Service: DIY Hydraulic & Filter

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The Kubota L2501/L3301 100-hour service covers hydraulic filter replacement, suction screen cleaning, engine oil/filter change, complete greasing, and HST temperature verification. DIY cost runs ~$200 vs $580 at a dealer — a $380 savings. Takes about 1.5-2 hours. Requires 5.8 quarts engine oil, ~3.7 quarts Super UDT2 hydraulic fluid, filter HH164-32430, and the Kubota filter wrench #TA040-59930. DIY does not void your warranty if you use genuine parts and keep documented records.

Performing the 100-hour service on your Kubota L2501 or L3301 yourself can save you over $300 while ensuring optimal performance and preventing costly repairs. This service builds on your 50-hour maintenance and is a crucial part of your Kubota tractor maintenance schedule. This guide focuses on hydraulic filter replacement for L-series models — see our complete Kubota tractor maintenance guide for all service intervals.

Why DIY Your 100-Hour Service

Significant Cost Savings

DIY: $180-$220 (genuine filters, oil, hydraulic fluid)
Dealer: $500+ (3-hour labor + parts markup)
Savings: $300+ per service interval

Warranty Compliance

DIY maintenance does not void your Kubota warranty when you use genuine parts and fluids, maintain a detailed service log with dated receipts, and make no unapproved modifications.

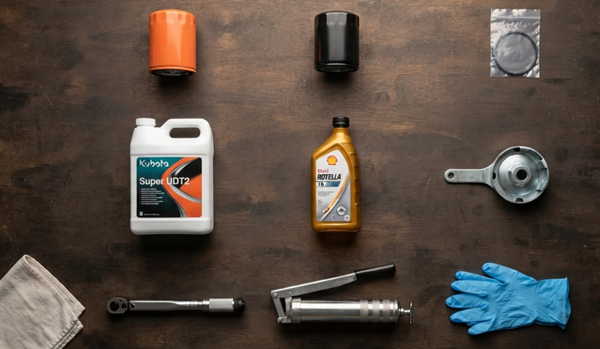

Essential Tools & Parts

Required Tools

Kubota filter wrench #TA040-59930 — mandatory for proper hydraulic filter removal
Infrared temperature gun — essential for HST diagnostics
24mm socket — for hydraulic and engine oil drain plugs
Oil catch container — minimum 6-quart capacity
Torque wrench — for proper drain plug and filter tightening
Grease gun — for lubricating zerk fittings

Necessary Parts & Fluids

Hydraulic filter — genuine Kubota part only (aftermarket may void warranty — see our filter cross-reference chart)
Engine oil filter — HH164-32430
Engine oil — 5.8 quarts (check manual for grade — see our oil capacity chart)
Super UDT2 hydraulic fluid — 3.7 quarts (accept no substitutes)
O-ring for suction screen — part #TA040-59930
Multi-purpose grease — for zerk fittings throughout the tractor

100-Hour Service Checklist

Hydraulic System Service

Drain hydraulic fluid via the 24mm drain plug while warm (improves flow, removes more contaminants)
Remove and replace hydraulic filter using the Kubota filter wrench. Hand-tighten only — overtightening damages the seal
Locate and clean the suction screen (under right-side floorboard for L2501, behind rear axle for L3301) — prevents debris from damaging the hydraulic pump
Refill with Super UDT2 fluid (~3.7 quarts) — this specialized fluid shouldn’t be substituted

Engine Maintenance

Change engine oil (5.8 quarts) — perform when warm for better drainage
Replace engine oil filter (HH164-32430) — thin film of oil on gasket before install
Check air filter, clean as needed (replace if heavily soiled)
Inspect cooling system and radiator for debris or leaks
Check all fluid levels (coolant, brake fluid, etc.)

Transmission Care

Inspect HST cooling fan for debris, clean if necessary
Test operating temperatures with infrared gun (target: 140-160°F)
Check for leaks around seals and fittings — see our transmission fluid change guide
Inspect transmission fluid level (not typically changed at 100 hours)

Complete Lubrication

Grease all 12 zerk fittings (loader pivots, 3-point hitch, pedal linkages)
Apply thin film of grease to exposed hydraulic cylinder rods to prevent corrosion
Lubricate throttle and choke linkages as needed
See our complete greasing guide for proper procedures

🔧 Recommended Parts & Tools — 100-Hour Service

NAPA Gold 1365 Oil Filter — premium OEM-equivalent
View on Amazon →

SEGULER Oil Filter 2-Pack (HH164-32430) — best value, $9.50 each
View on Amazon →

Kubota Fuel Filter 1J800-43170 — L3301/L3901/L4701/MX4800
View on Amazon →

Hydraulic Suction Filter HH660-36060 — prevents system contamination
View on Amazon →

Shell Rotella T6 5W-40 — premium diesel engine oil, 5-gallon
View on Amazon →

Kubota Super UDT2 (5-Gallon) — OEM hydraulic/transmission fluid
View on Amazon →

Oil Filter Wrench Set — remove tight filters without damage
View on Amazon →

12V Electric Fluid Transfer Pump — clean hydraulic/oil refill
View on Amazon →

Oil Drain Pan (10+ Gallon) — catch engine oil and hydraulic fluid
View on Amazon →

Nitrile Gloves — fuel and hydraulic fluid resistant
View on Amazon →

Shop Towels, Lint-Free — clean surfaces, catch spills
View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

📐 Need a Parts Diagram?

Browse free Kubota parts diagrams and manuals — organized by model with interactive diagrams and downloadable PDFs for BX, B, and L series tractors.

View Free Parts Diagrams →

⚠️ Important Warranty Note

To maintain your factory warranty while performing DIY maintenance:

Use only genuine Kubota parts and fluids
Keep detailed maintenance records with receipts for parts purchased
Follow proper service procedures as outlined in your owner’s manual
Do not modify any emissions-related components

Step-by-Step: Hydraulic Suction Screen Cleaning

The hydraulic suction screen is a critical component that prevents debris from damaging your hydraulic pump. This often-overlooked maintenance task can prevent thousands in repair costs.

Locate the hydraulic suction screen — L2501: under the right-side floorboard. L3301: behind the rear axle
Remove the screen carefully — use the proper size wrench, avoid dropping debris into the hydraulic system
Clean the screen thoroughly — diesel fuel and a soft brush, avoid scratching the screen surface
Replace the O-ring — always use a new O-ring (part #TA040-59930) to prevent leaks
Reinstall and torque properly — verify the correct torque spec in your service manual before final tightening

L2501/L3301 Maintenance Schedule Overview

50-Hour (Initial)

First engine oil and filter change
Initial transmission fluid check
Check and adjust belts
First greasing of all fittings

100-Hour

Hydraulic filter replacement
Suction screen cleaning
Engine oil/filter change
Complete greasing
HST temperature verification

200-Hour

Full hydraulic fluid replacement
Transmission oil change
Front axle case oil change
Air filter replacement

Regular adherence to this schedule is crucial for maximizing your tractor’s lifespan and maintaining warranty coverage. For your first 50-hour service, see our Kubota 50-Hour Service Guide.

📖 Need the full L series service manual? Download the Kubota L Series OEM Service and Repair Manual PDF — covers L3130, L3430, L3830, L4630, L5030. Instant download.

Using an Infrared Temperature Gun for HST Diagnostics

One of the most valuable tools in your maintenance arsenal is an infrared temperature gun. This inexpensive device can help identify potential HST (Hydrostatic Transmission) issues before they cause costly damage.

📋 How to Use

Run the tractor under normal load for 15-20 minutes to reach operating temperature
Point the infrared gun at the HST case in several locations
Record temperature readings (optimal range: 140-160°F)
Also check hydraulic pump housing temperatures

⚠️ Warning: Temperatures exceeding 180°F indicate potential problems with clogged filters, low fluid levels, or internal HST issues requiring immediate attention.

Cost Breakdown: DIY vs. Dealer Service

Item	DIY Cost	Dealer Cost
Hydraulic Filter	$45	$60
Engine Oil Filter	$45	$60
Engine Oil (5.8 qts)	$35	$50
Hydraulic Fluid (Super UDT2)	$60	$85
O-rings & Misc Parts	$15	$25
Labor (3 hrs @ $100/hr)	$0	$300
TOTAL	$200	$580

Your Savings: $380 per 100-hour service interval

Frequently Asked Questions — 100-Hour Service

Does DIY service void my Kubota warranty?

No — performing your own maintenance does not void your warranty as long as you use genuine Kubota parts and fluids. Kubota’s official warranty policy explicitly allows owner maintenance. Keep detailed records and receipts of all parts purchased and maintenance performed.

What’s included in the L2501/L3301 100-hour service?

The 100-hour service includes hydraulic filter replacement, suction screen cleaning, engine oil and filter change, complete greasing of all zerk fittings, and HST temperature verification. It builds on the initial 50-hour service and precedes the more extensive 200-hour service.

How much does a dealer hydraulic fluid change cost?

A dealer hydraulic fluid change typically costs $250-$350 (parts and labor), compared to roughly $120 when done yourself — a savings of $130-$230 per service interval.

Why use an infrared temp gun?

An infrared temperature gun helps identify HST overheating caused by clogged filters or low fluid levels before it causes expensive damage. This inexpensive tool can save thousands in potential repair costs by catching problems early.

🚜 Comparing Kubota to John Deere? See our complete Kubota L2501 vs John Deere 1025R Guide — ground clearance, loader capacity, DPF vs no-DPF, pricing, and the Deere tax explained.

💡 Is Your Kubota Worth Repairing?

Before spending money on repairs or parts, use our Repair vs. Replace Calculator to see your tractor’s current value. Many owners are surprised to find their Kubota has $8,000-$15,000 in remaining value.

Calculate Your Tractor’s Value →

Related L2501/L3301 & Maintenance Guides

Kubota L2501 Problems Guide →

7 most common issues, OEM part numbers

Kubota 50-Hour Service Guide →

The full break-in service checklist

Tractor Oil Filter Cross-Reference Guide →

Save 40-60% vs OEM filter pricing

Kubota Air Filter Cross-Reference Chart →

Donaldson, WIX, Baldwin equivalents

Complete Kubota Maintenance Guide →

Full service schedules for every fluid

L2501 vs John Deere 1025R →

Full head-to-head comparison

🚜 Need maintenance supplies? Find filters, fluids, and farm supplies at Tractor Supply Co. — farm, ranch and home.

🛢️ Due for a transmission fluid change? See our complete Kubota Transmission Fluid Change Guide — full drain/refill procedure, HST filter replacement, and capacity specs for BX2380, B2601, and L3901. Save $200–350 vs dealer.

DIY 100-hour service saves $380 per interval while maintaining full warranty coverage — using genuine Kubota parts and keeping detailed maintenance records is essential. The hydraulic suction screen cleaning is a critical step often overlooked, and an infrared temperature gun is invaluable for catching HST issues early. For more Kubota DIY guides visit TractorPartsCentral.com.
