Why Install a Hydraulic Flow Meter? Critical Benefits for Kubota Owners
Immediate Performance Benefits
Early Problem Detection: Monitor flow degradation over time to predict hydraulic pump replacement needs before catastrophic failure occurs. This preventive approach can save thousands in emergency repairs and implement damage.
Implement Optimization: Match your tractor’s hydraulic capacity to implement requirements with scientific precision. Whether you’re running a post hole digger requiring 6-12 GPM or a backhoe needing 15-30 GPM, you’ll know exactly what your system is delivering.
Advanced Diagnostic Capabilities
Modern hydraulic flow meters provide sophisticated diagnostic data beyond simple GPM readings. Temperature-compensated measurements ensure accuracy across seasonal temperature variations, while peak flow memory functions capture maximum flow rates during high-demand operations. These advanced features enable operators to identify intermittent problems that might otherwise go undetected until complete system failure occurs.
System efficiency analysis becomes possible through continuous monitoring, allowing operators to correlate engine RPM, hydraulic demand, and fuel consumption. This data proves invaluable for optimizing work patterns and identifying the most efficient operating parameters for specific tasks and implement combinations.
Essential Equipment Selection Guide
Flow Rate Specifications by Tractor Size
Compact Tractors (25-50 HP)
Flow Range: 4-12 GPM
Typical Applications: Small implements, landscaping
Mid-Size Tractors (50-100 HP)
Flow Range: 12-25 GPM
Typical Applications: Front loaders, mid-size implements
Larger Tractors (100+ HP)
Flow Range: 25-100 GPM
Typical Applications: Heavy implements, commercial use
Pressure Rating Requirements
Your hydraulic flow meter must handle your system’s operating pressure plus a significant safety margin. Kubota tractors typically operate at:
– Normal Operation: 2000-3500 PSI
– Relief Valve Setting: 3500-4000 PSI
– Recommended Meter Rating: 6000 PSI minimum
Professional-Grade Meter Options
Inline Flow Meters:
– Hydracheck Models: Up to 150 GPM capacity with 6000 PSI ratings

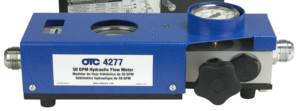

– OTC 4277/4278A: Professional accuracy designed for agricultural applications
– Hedland Flow Meters: Visual indicators with automatic pressure compensation
Digital Display Features:
– Real-time GPM readings for continuous monitoring
– 12V DC compatibility with tractor electrical systems
– Peak flow memory to capture maximum operation rates
– Temperature compensation for seasonal accuracy variations
Environmental Durability Specifications
Agricultural environments demand exceptional durability from hydraulic flow meters. IP65 or better environmental protection ensures operation through dust, moisture, and temperature extremes common in field conditions. Vibration resistance meeting agricultural equipment standards prevents premature sensor failure from constant tractor movement and implement operation.
Corrosion-resistant materials become critical for long-term reliability, particularly in coastal areas or where road salt exposure occurs. Stainless steel sensors and corrosion-resistant fittings justify their higher cost through extended service life and maintained accuracy over years of operation.
Step-by-Step Installation Process
Pre-Installation Safety Protocol
- Complete system depressurization – Release ALL hydraulic pressure before beginning work
- Fluid containment preparation – Position drain pans for inevitable spills
- Personal protective equipment – Safety glasses and hydraulic-resistant gloves required
- Tool preparation – Ensure all fittings and adapters are available before starting
Optimal Installation Locations
This location measures total pump output, provides easiest access, and requires minimal system modifications. Most Kubota installations benefit from this approach.
Installation Steps for Primary Location:
Alternative Location: Implement Feed Lines
For operators managing multiple implements, installing meters on individual feed lines provides implement-specific monitoring capability. This approach requires multiple meters but offers precise per-implement diagnostics.
Calibration and Operational Use
Initial Calibration Process
Zero Point Setting Protocol:
1. Complete System Shutdown: Ensure absolutely no hydraulic flow through the system
2. Zero Adjustment: Set display to exactly 0.00 GPM using calibration controls
3. Flow Verification: Start system at idle and verify reading accuracy against manufacturer specifications
Interpreting Operational Readings
Normal Operating Correlations
Idle Speed: 2-4 GPM (minimal flow for system circulation)
Working RPM: Rated flow capacity per manufacturer specifications
Maximum RPM: Peak pump output (typically 10-15% above rated capacity)
Diagnostic Indicators:
– Gradual Flow Reduction: Normal wear progression requiring future pump service
– Sudden Flow Loss: Indicates potential catastrophic pump failure requiring immediate attention
– Erratic Readings: Internal leakage or sensor contamination issues
Common Implement Flow Requirements
Understanding your implements’ flow requirements helps optimize performance:
– Rotary Cutters: 8-15 GPM for proper blade speed
– Front Loaders: 12-25 GPM for lifting capacity and cycle times
– Backhoes: 15-30 GPM for digging force and operational speed
– Post Hole Diggers: 6-12 GPM for adequate torque
Troubleshooting and Maintenance
Common Installation Problems
Flow Direction Errors: The most frequent installation mistake involves reversing flow meter orientation. Always verify directional arrows align with hydraulic flow direction.
Pressure Restrictions: Undersized fittings or hoses create artificial restrictions affecting both readings and system performance. Maintain original line sizing throughout installation.
Electrical Interference: Route display wiring away from ignition systems and high-current electrical components to prevent erratic readings.
Operational Troubleshooting
Maintenance Schedule
Annual Requirements:
– Calibration verification against known standards
– Display cleaning and visibility inspection
– All connection leak checks
– Sensor contamination assessment
Seasonal Tasks:
– Temperature compensation adjustment for climate changes
– Vibration dampener inspection and replacement
– Protective cover condition assessment
Advanced Troubleshooting Techniques
Hydraulic Fluid Analysis: Periodic fluid sampling reveals contamination levels that affect meter accuracy and system health. Particle count analysis identifies wear patterns before visible damage occurs, while moisture content testing prevents corrosion-related failures in meter components.
System pressure testing using calibrated gauges validates meter readings under various load conditions. Flow pattern analysis during different implement operations helps identify restrictions or bypass valve malfunctions that impact overall system efficiency and meter accuracy.
Cost-Benefit Analysis and Investment ROI
Investment Breakdown
Equipment Costs:
– Basic Flow Meters: $200-500 for entry-level agricultural applications
– Professional Systems: $500-1500 for advanced diagnostic capabilities
– Installation Labor: 2-6 hours depending on complexity and accessibility
Operational Benefits and Savings
Fuel Efficiency Optimization: Proper hydraulic system operation can improve overall fuel efficiency by 5-10% through reduced engine loading and optimal implement operation.
Extended Pump Life: Early wear detection enables proactive maintenance, extending hydraulic pump service life by 25-40% compared to run-to-failure approaches.
🔧 Professional Installation Summary
Installing a hydraulic flow meter on your Kubota tractor provides immediate diagnostic capabilities that transform routine maintenance from reactive to predictive. While specific Kubota model documentation may be limited, the universal hydraulic principles outlined in this guide enable successful installation across most tractor models. The investment in flow measurement technology pays dividends through extended equipment life, optimized performance, and prevented costly repairs.
❓ Frequently Asked Questions
Can I install a flow meter on any Kubota tractor model?
Yes, hydraulic flow meters can be installed on virtually any Kubota tractor with a hydraulic system. The key is selecting a meter with appropriate flow range (GPM) and pressure rating for your specific model. Compact tractors need 4-12 GPM capacity meters, while larger models require 25-100 GPM units.
How accurate are hydraulic flow meters for diagnostic purposes?
Professional-grade flow meters typically provide ±2% accuracy, while agricultural-focused units offer ±5% accuracy, which is sufficient for diagnostic purposes. This accuracy level easily detects pump wear, flow restrictions, and system problems before they cause equipment damage.
What’s the typical lifespan of a hydraulic flow meter?
Quality hydraulic flow meters typically last 8-15 years in agricultural applications when properly maintained. Factors affecting lifespan include hydraulic fluid cleanliness, operating temperature extremes, and vibration exposure. Annual calibration checks help ensure continued accuracy throughout the meter’s service life.
Do I need professional installation or can I install it myself?
Mechanically inclined tractor owners can successfully install flow meters using basic hydraulic tools and following proper safety procedures. However, professional installation is recommended if you’re uncomfortable working with high-pressure hydraulic systems or lack experience with hydraulic fittings and electrical connections.
—
