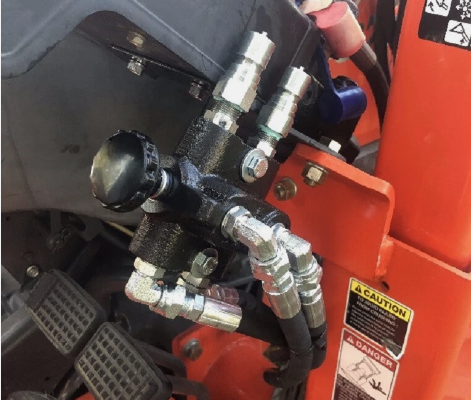

Kubota remote hydraulic valves are game-changing components that transform standard tractors into multi-functional powerhouses. These systems allow operators to control multiple implements independently, dramatically increasing productivity and operational flexibility. Whether you’re running a loader, mower, or specialized attachment, remote hydraulic valves provide the precise control needed for professional-grade performance.

Modern remote hydraulic valve systems are designed for straightforward installation, typically requiring 3-4 hours for completion. The process involves three main phases: system assessment, physical installation, and testing.

Pre-Installation Requirements

Essential Tools and Materials:
– Gel lubricant (WD-40 Gel recommended)
– Standard wrench set
– Clean cloth and zip ties
– Safety equipment (gloves, safety glasses)
– Hydraulic fluid (UTTO compatible)

Step-by-Step Installation Process

Effective troubleshooting requires systematic diagnosis of both electrical and hydraulic components. Most issues fall into four categories: no operation, slow response, erratic behavior, and system leakage. Check our article on Maintaining your Hydraulic System

No Operation Diagnosis

Slow Operation Solutions

Slow response typically indicates pressure-related issues or internal valve problems:

Common Causes and Fixes:
– Damaged Relief Valve: Replace relief valve and recalibrate to proper pressure settings
– Spool Valve Adjustment: Out-of-adjustment valves require professional recalibration
– Low System Pressure: Check main relief valve function and hydraulic pump output
– Flow Restriction: Inspect for clogged filters or undersized hoses

Erratic Operation Resolution

Cold weather operation presents unique challenges for hydraulic systems that require specific preparation and maintenance strategies.

Cold Weather Hydraulic Challenges

Fluid Viscosity Changes: When temperatures drop below 32°F, hydraulic fluid becomes significantly thicker, creating increased resistance in pumps and lines. This increased viscosity can reduce flow rates by up to 50% and slow equipment response times dramatically.

Seal Contraction Issues: Cold temperatures cause rubber seals and O-rings to contract and harden, leading to potential leakage and reduced flexibility. Brittle seals are more susceptible to cracking under pressure, requiring immediate replacement to prevent system failure.

System Performance Degradation: Extended cold exposure can cause hydraulic fluid to reach its pour point, where it essentially congeals and stops flowing entirely. This condition can starve pumps, cause cavitation damage, and create dangerous operating conditions.

Summer Heat Management

Thermal Degradation Prevention: High temperatures accelerate hydraulic fluid breakdown, leading to oxidation and thermal degradation. Operating temperatures above 160°F can reduce fluid life by 50% and generate harmful byproducts like sludge and varnish.

Cooling System Optimization: Implement adequate cooling mechanisms such as heat exchangers, oil coolers, or improved ventilation to maintain optimal operating temperatures between 100-120°F. Monitor fluid temperatures regularly using infrared thermometers to identify overheating conditions early.

System Performance Specifications

Compatible Tractor Models

The remote valve systems are engineered for specific Kubota series with power beyond capability:

L-Series Tractors: L2501, L3301, L3901, L3200, L3800, L4600, L4701, L3400
MX-Series Tractors: MX4700, MX4800, MX5000, MX5100, MX5200, MX5800

Daily Maintenance Checklist

Professional maintenance requires systematic daily, weekly, and seasonal protocols to ensure optimal performance and longevity.

Daily Inspection Requirements:
– Check hydraulic fluid levels in power unit tanks
– Monitor fluid temperature changes and operating conditions
– Inspect system for water or dirt contamination in hydraulic oil
– Verify pressure gauge readings match baseline specifications
– Check for visible leaks at all connection points
– Monitor pump and motor operating noise for changes
– Clean valve panel drip pans and wipe components clean

Seasonal Maintenance Requirements

Six-Month Service Protocol:
– Conduct comprehensive oil analysis for viscosity, wear metals, and particle count
– Check accumulator pre-charge pressure if equipped
– Document recurring problems and perform requested maintenance
– Test all electrically controlled servo valves using infrared thermometers

Annual Service Requirements:
– Complete hydraulic system flush and tank cleaning
– Filter all new or reused oil through separate filtration unit
– Inspect pump and motor couplings for wear
– Perform comprehensive system performance testing
– Update maintenance records and component replacement history

Modern Kubota remote hydraulic valve systems benefit significantly from advanced optimization strategies that go beyond basic installation. Recent developments in hydraulic technology and field testing have revealed several proven methods to maximize system performance and reliability.

Pressure System Tuning for Maximum Efficiency

Hydraulic Pressure Optimization: Factory settings typically leave performance headroom for longevity, but careful pressure adjustment can unlock substantial capacity improvements. Research indicates that Kubota L-series tractors can safely operate 10% above maximum recommended pressure specifications. For example, L3301/L3901 models with factory pressure of 2,346 PSI can be safely increased to approximately 2,580 PSI using precision shimming techniques.

Shim Selection Strategy: Professional installers utilize calibrated pressure gauges with graduations specific to Kubota models to measure baseline pressure before optimization. The shimming process involves adding 0.4mm, 0.8mm, and 1.2mm shims to the hydraulic pressure relief valve, with each millimeter providing approximately 39 PSI pressure increase. This systematic approach allows fine-tuning within safe operating parameters.

Flow Rate Matching and Implement Compatibility

Dynamic Flow Management: Understanding the relationship between flow rate and pressure is critical for optimal attachment performance. Flow represents attachment speed under no restriction, while pressure indicates work capacity. The optimal operating point occurs where flow and pressure curves intersect for maximum productivity without excessive heat generation.

Enhanced Flow Systems: Recent innovations include enhanced high-flow auxiliary hydraulics that maintain similar flow rates to standard high-flow packages but operate at significantly higher pressures. For example, newer systems offer 42 GPM flow at 4,100 PSI compared to traditional 3,000 PSI systems. This enhanced capability allows operation of demanding attachments like large cold planers and mulching heads with improved efficiency.

Systematic Diagnostic Approach

Professional troubleshooting requires understanding the seven primary failure modes that affect hydraulic valve performance. Recent field data shows these issues account for over 90% of service calls:

Internal Leakage Detection: Internal leaks are often the most challenging to diagnose but represent the most common failure mode. Symptoms include gradual performance degradation, increased cycle times, and temperature rise. Advanced diagnostic techniques include pressure decay testing and thermal imaging to identify internal bypass conditions.

Contamination-Related Failures: Hydraulic fluid contamination remains the leading cause of premature valve failure. Modern diagnostic protocols emphasize particle counting using precision instruments to detect contamination levels below visual detection thresholds. Contamination above 20 microns significantly accelerates component wear and reduces system life.

Predictive Maintenance Strategies

IoT-Enabled Monitoring: Advanced systems now incorporate smart sensors for real-time monitoring of pressure, temperature, and fluid levels. These systems enable predictive maintenance scheduling and early fault detection, reducing unplanned downtime by up to 40%.

Performance Baseline Establishment: Modern troubleshooting begins with establishing system baselines during normal operating temperature conditions. This includes documenting flow rates, response times, and pressure readings across all operating ranges to identify degradation trends before failure occurs.

Maximizing system performance requires attention to both installation quality and operational practices:

Flow Rate Optimization: Match implement requirements to system capacity. Single-function implements typically require 5-8 GPM, while multi-function implements need 10-15 GPM per function.

Pressure Management: Ensure relief valve settings match both tractor output and implement requirements. Consider pressure drops across long hose runs and elevation changes.

Connection Quality: Use 1/2″ Body AG ISO 5675 couplers for optimal compatibility. The rear remote connections utilize female couplers, requiring male couplers on implement hoses.
