Bush Hog Slip Clutch Parts: Replace & Adjustment Guide

⚡ Quick Answer:
Bush Hog slip clutch parts include complete assemblies ($67-85), friction disc sets ($17-22), and spring kits ($72-87). The slip clutch protects your tractor’s $1,200+ PTO and transmission from shock loads when blades hit stumps or rocks. Proper adjustment (90-120 ft-lbs torque) and annual friction disc inspection are critical. A $22 friction disc set prevents $500-1,500 in tractor drivetrain repairs.

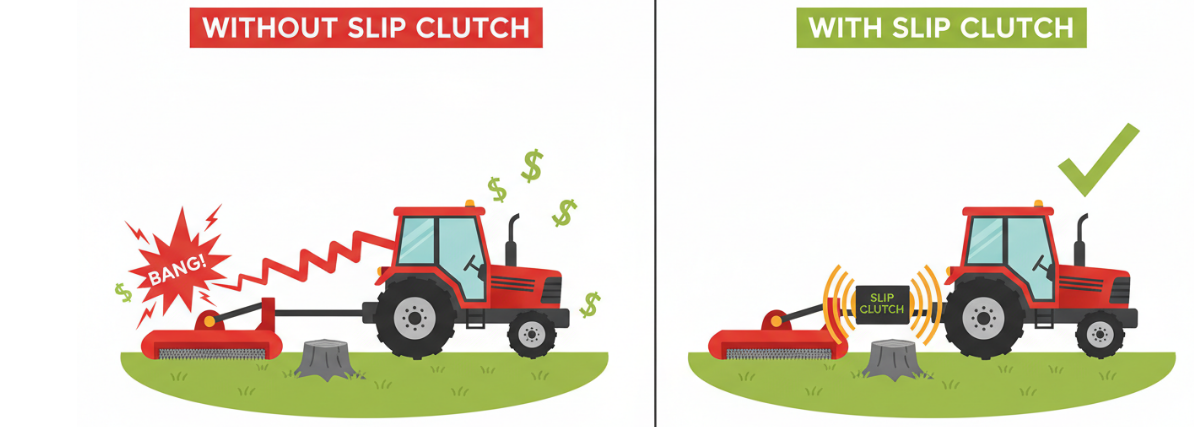

🚜 How Slip Clutches Protect Your Tractor

What Is a Slip Clutch?

A slip clutch is a torque-limiting safety device mounted between your tractor PTO shaft and rotary cutter gearbox. When blades strike an immovable object (stump, large rock, fence post), the clutch momentarily slips to absorb the shock load instead of transferring it to your tractor drivetrain. Without a slip clutch, that same impact force travels directly into your tractor’s PTO shaft, transmission, and driveline – causing catastrophic and expensive damage.

What Does It Protect?

PTO shaft ($200-400 replacement)
Tractor transmission ($800-2,500 repair)
Implement gearbox ($150-300 repair)
Universal joints and CV joints ($100-300)
Total protected value: $1,200-3,500+

Bush Hog Models Using Slip Clutches

Bush Hog 1815, 1820, 2615 (15-20 HP series)
Bush Hog 2720, 2726, 2815 (mid-range series)
Bush Hog 3210, 3315, 3720 (heavy-duty series)
Bush Hog RD series (rear discharge mowers)

⚠️ Verify your specific model number before ordering parts – Bush Hog uses different clutch configurations across model years and HP ratings!

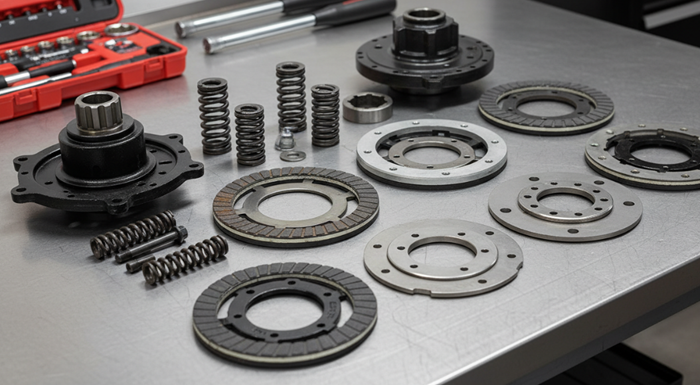

Bush Hog Slip Clutch Parts Price Guide

Part	Price Range	When Needed	Buy
Complete Assembly	$67-85	Total failure, housing damage	View Price
Friction Disc Set	$17-22	Worn/glazed discs, slipping	View Price
Clutch Spring Kit	$72-87	Won’t hold torque, weak springs	View Price
Adjustment Tool	$15-25	Annual adjustment/inspection	View Price

💰 Cost Comparison: Friction disc replacement: $22. Complete assembly: $85. Tractor PTO repair from no slip clutch protection: $500-1,500. The math is simple – maintain your slip clutch!

Understanding Slip Clutch Operation

✅ Normal Operation

Friction discs clamped together by springs transmit full torque from PTO to gearbox. Clutch feels solid with no slipping. Power transfers efficiently to blades. Springs hold discs at correct pressure for your HP rating.

⚡ Impact Event

Blade strikes stump or rock. Shock load exceeds clutch torque setting. Friction discs slip momentarily against each other. Shock energy absorbed as heat in discs instead of transmitted to tractor drivetrain.

🔄 Recovery

Once shock load passes, springs re-engage friction discs and full power transmission resumes automatically. No operator action required. Clutch returns to normal operation within fractions of a second.

Diagnosing Slip Clutch Problems

🔴 Problem: Clutch Slipping Under Normal Load

Symptoms: Rattling or clicking sound during normal mowing, loss of blade speed in normal grass, smell of burning friction material, clutch slipping without hitting obstacles

Causes: Worn friction discs (most common), glazed disc surfaces from previous over-slipping, springs weakened from heat, torque set too low

Fix: Replace friction disc set ($22) and re-adjust torque to spec. Check spring condition – replace if compressed height has changed. Verify correct torque setting for your HP rating (see adjustment guide below).

🟡 Problem: Clutch Won’t Slip (Too Tight)

Symptoms: PTO shaft or gearbox damage after blade strike, clutch locked solid, no give when manually testing, springs over-compressed

Causes: Torque adjustment too high, springs corroded and stuck, friction discs corroded together from storage, incorrect adjustment hardware

Fix: Back off adjustment bolts to correct torque spec. Free stuck components with penetrating oil. Replace corroded springs. Verify correct spring part numbers for your HP rating. Test slip by hand before field use.

🔵 Problem: Clutch Seized After Storage

Symptoms: Clutch completely locked, won’t slip at any torque setting, friction discs rusted together, found after winter storage

Causes: Moisture between friction discs during storage, left under tension during off-season, no protective coating applied before storage

Fix: Soak with penetrating oil for 24 hours. Attempt to break loose by hand. If discs fused, replace friction disc set ($22). For future: back off adjustment bolts during storage and coat with light oil/grease to prevent rust bonding.

🟣 Problem: Excessive Heat/Smoke from Clutch

Symptoms: Burning smell from PTO area, visible smoke from clutch during operation, rapid friction disc wear, clutch housing discoloration

Causes: Continuous slipping from torque set too low, cutting material consistently exceeding clutch capacity, worn discs causing constant partial slip

Fix: Stop immediately – heat destroys friction material rapidly. Check torque setting and increase if too low. Replace worn discs. Reduce cutting load if consistently overwhelming clutch capacity. Consider upgrading to higher HP rated clutch assembly if application demands exceed current rating.

Slip Clutch Adjustment & Replacement Guide

Safety Preparation

Disengage PTO completely and shut off tractor. Remove ignition key. Allow all rotating components to stop fully (minimum 3 minutes). Lower implement to ground. Engage parking brake. Slip clutch is on PTO shaft between tractor and implement – accessible without deck removal in most cases. Wear gloves – components may be hot from recent operation.

Test Current Clutch Slip Force

With tractor OFF, grasp implement input shaft firmly and attempt to rotate by hand while holding PTO shaft stationary. Correct adjustment: clutch should slip with moderate-to-firm hand force (not spinning freely, not completely locked). Too loose = spins easily with light pressure. Too tight = cannot move at all with both hands. This manual test gives baseline for whether adjustment is needed before using torque spec.

Locate Adjustment Bolts

Locate the 3-6 adjustment bolts (depending on model) equally spaced around clutch flange. These bolts compress the springs that hold friction discs together. Each bolt typically has a nut and locknut or jam nut. Note current bolt position (count thread exposure) before adjusting – provides reference if you need to return to original setting. Clean any rust or debris from bolt threads with wire brush.

Adjust to Correct Torque

Tighten or loosen all adjustment bolts EQUALLY – always turn all bolts the same amount to maintain even spring pressure. Target torque: 90-120 ft-lbs for most Bush Hog models (verify your model spec). Use torque wrench on adjustment nuts for accurate setting. Work in a star pattern (like wheel lug nuts) to apply pressure evenly. After adjustment, retest by hand – should slip with firm but not extreme hand force. Apply anti-seize to bolt threads to prevent future seizing.

Replace Friction Discs (If Needed)

If adjustment doesn’t solve slipping, friction discs need replacement. Back off all adjustment bolts completely. Disassemble clutch noting exact order of components (photograph each layer). Remove old discs – inspect for glazing (shiny surface), cracking, or thickness less than 50% of new. Install new friction discs in correct orientation (smooth side against pressure plate, friction material against drive plate). Reassemble all components in original order. Adjust to torque spec. Replace discs every 200-300 hours or when slipping occurs despite correct adjustment.

Field Test & Final Verification

Test in open area at low RPM first. Listen for rattling (too loose) or complete absence of slip sound during normal operation (too tight). Perform controlled test: briefly engage blade with heavy load to verify clutch holds under working conditions. Check for burning smell indicating friction disc overload. Re-torque adjustment bolts after first hour of operation (new discs compress slightly during break-in). Verify proper operation annually at season start.

Seasonal Maintenance Schedule

🌱 Before Each Season (Spring)

Test clutch slip force by hand before first use. Check for winter rust bonding between discs (common after storage). Inspect adjustment bolt condition – replace corroded bolts. Verify correct torque setting using torque wrench. Apply light oil to exposed metal surfaces to prevent rust. If clutch was backed off for storage, re-adjust to operating torque spec before use. This 10-minute check prevents season-opening failures.

🔧 Every 50 Hours

Check clutch adjustment torque – slipping or heavy use loosens adjustment over time. Inspect friction disc edges visible from outside for wear or glazing. Check adjustment bolt torque. Listen during operation for changes in clutch behavior – increased rattling indicates loosening, absence of any slip sound may indicate over-tightening. Grease any zerks on PTO shaft CV joints. Inspect PTO shaft telescoping section for smooth operation.

📋 Annual Inspection

Full disassembly inspection of clutch components. Remove clutch and inspect all friction discs for wear, glazing, or cracking. Measure disc thickness – replace if worn below 50% of new thickness. Inspect pressure plates for scoring or grooves. Check springs for correct free length (compare to new spec in manual or parts sheet). Replace complete friction disc set if any disc shows wear. Cost: $22 for disc set vs $500+ PTO repair from failed protection.

❄️ End of Season Storage

IMPORTANT: Back off adjustment bolts during storage to relieve spring pressure on friction discs. This prevents compression set in springs and rust bonding between disc surfaces during winter. Apply light coat of oil or grease between disc surfaces if storing in humid environment. Note current adjustment setting before backing off (count threads exposed) for easy spring re-adjustment. Store implement in covered location when possible to reduce moisture exposure.

🔧 Complete Slip Clutch Service Kit

Clutch Parts:

Complete Slip Clutch Assembly – Full replacement ($67-85)
Friction Disc Set – Most common repair ($17-22)
Clutch Spring Kit – For weak or broken springs ($72-87)

Tools & Supplies:

Clutch Adjustment Tool – Accurate torque setting ($15-25)
Anti-Seize Compound – Prevents bolt seizing ($8-12)
Torque Wrench 150 ft-lb – Accurate adjustment ($45-75)
PTO Shaft Grease – Telescoping shaft lubrication ($10-15)

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases through these links at no extra cost to you.

Related Implement Maintenance

🔧 Complete Rotary Cutter Service

Gearbox Protection – King Kutter gearbox parts the slip clutch protects
Blade Replacement – Woods rotary cutter blade guide
PTO Shaft Guide – Complete PTO shaft replacement guide
PTO Troubleshooting – Diagnose tractor-side PTO problems

❓ Frequently Asked Questions

How do I know if my Bush Hog slip clutch needs adjustment?

Signs your slip clutch needs attention: (1) Rattling or clicking during normal mowing without hitting obstacles – indicates slipping under normal load, torque too low or discs worn. (2) Blade speed loss in normal grass without blade strike – clutch slipping under regular cutting load. (3) Burning smell from PTO area – friction disc overheating from continuous slipping. (4) No slip when blades hit large obstacle (tractor jolts hard instead of clutch slipping) – torque set too high. (5) Clutch locked solid after winter storage – discs rusted together. Quick test: with tractor off, try rotating implement input shaft by hand while holding PTO shaft. Should slip with firm hand pressure. Spins freely = too loose. Won’t move at all = too tight or seized. Check and adjust at least once per season or every 50 hours.

What is the correct torque setting for Bush Hog slip clutches?

Standard Bush Hog slip clutch torque spec: 90-120 ft-lbs for most models. However, correct setting varies by: implement HP rating (higher HP = higher torque setting), tractor PTO HP (set clutch to protect tractor, not just implement), and application (light grass mowing vs heavy brush requires different settings). General guideline by tractor PTO HP: 20-30 HP tractor = 80-100 ft-lbs setting, 30-50 HP tractor = 90-120 ft-lbs, 50-75 HP tractor = 110-140 ft-lbs. Always verify your specific model’s operator manual for exact specification. When in doubt, err on the lower side – better to slip slightly than damage $500+ drivetrain components. Re-verify torque after first 10 hours of operation with new disc set.

How long do Bush Hog slip clutch friction discs last?

Expected friction disc life: 200-400 hours under normal conditions. Factors that reduce disc life: frequent blade strikes in rocky/stumpy terrain (each slip event wears discs), clutch set too loose (continuous partial slipping = rapid wear), high-heat operation in summer (heat accelerates disc material breakdown), improper storage causing rust damage. Inspect discs annually – replace when: thickness worn below 50% of original, surface glazed/shiny (indicates overheating from slipping), surface cracking visible, any disc shows uneven wear patterns. At $22 per set, replacing discs every 2-3 seasons is cheap insurance. Keep spare disc set on shelf – $22 disc set vs $500-1,500 PTO/transmission repair makes the math obvious.

Can I operate my Bush Hog without a slip clutch?

Technically yes, but strongly NOT recommended. Operating without slip clutch protection: first blade strike on stump or large rock transfers full shock load directly to PTO shaft, gearbox, and tractor transmission. Single impact can: shear PTO shaft ($200-400 repair), crack gearbox housing ($150-300), damage tractor transmission ($800-2,500 repair), or bend/break universal joints ($100-300). Many operators learned this lesson expensively. If your slip clutch is damaged or worn out, replace it BEFORE operating – don’t “just run it” until parts arrive. A seized/broken slip clutch provides zero protection. The $67-85 complete assembly replacement cost is nothing compared to potential drivetrain damage.

Why does my Bush Hog slip clutch rattle during operation?

Rattling from slip clutch area during normal mowing (not from blade strikes) indicates clutch is slipping under normal operating load – almost always means torque setting is too low or friction discs are worn out. The rattle sound is friction discs slipping against each other. Immediate action: stop and diagnose before continuing. Running with slipping clutch: rapidly wears friction discs from heat, can score pressure plates (making disc replacement insufficient – need complete rebuild), and means blades aren’t getting full power. First check: torque setting (tighten adjustment bolts evenly to spec). If rattling continues after correct torque adjustment: friction discs worn and need replacement ($22 disc set). If still rattling after new discs: springs may be weak or incorrect hardware – replace spring kit.
