Woods Rotary Cutter Blade Guide: Part Numbers & Installation

woods rotary cutter blade

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

Woods rotary cutter blades come in three genuine OEM kits, each tied to a specific group of models — not one universal part number. 57189KT (26.5″) fits BB72, BB72X, BB84, BB84X, and RC6. 57099KT (19″) fits the BB600 (non-X), BB6000, BB48.30, BW12/126/180 batwing series, and DS disc mowers. 19160KT (25″) has broader documented compatibility across several BB, BW, FW, DS, and RC models but no single precise model list from Woods. Woods uses several similarly-named model families (BB600 vs. BB600X, BB72 vs. BB72X) that take different blade kits — always confirm your exact model before ordering.

Woods Rotary Cutter Blade Kits by Model

57189KT — 26.5″ Blade Kit

Fits: BB72, BB72X, BB84, BB84X, RC6

BrushBull “72/84” family — confirmed via Woods’ own authorized dealer diagram

57099KT — 19″ Blade Kit

Fits: BB600, BB6000, BB48.30, BW12, BW126, BW126-2, BW180, BW180-2, DS8.30, DS8.50, DSO8.50

Non-X BB600 series, batwing (BW), and disc mower (DS) models — do NOT confuse with the BB600X (X-series) family

19160KT — 25″ Blade Kit

Broad Woods compatibility across several BB, BW, FW, DS, and RC series cutters

No single precise Woods model list published — verify your exact model before ordering. This part number is also used on some Bush Hog equipment.

⚠️ Key Point: Woods uses several similarly-named model families that take different blades — BB600 and BB600X are not the same machine, and neither are BB72 and BB600. Always match your exact model designation (including any letter suffix) before ordering, and verify against your operator’s manual or Woods dealer if you’re unsure.

Woods Rotary Cutter Blade Kit Chart

Woods OEM Kit Length Fits Buy
57189KT 26.5″ BB72, BB72X, BB84, BB84X, RC6 View on Amazon →
57099KT 19″ BB600, BB6000, BB48.30, BW12/126/180, DS8.30/8.50, DSO8.50 View on Amazon →
19160KT 25″ Broad BB/BW/FW/DS/RC compatibility — verify your specific model View on Amazon →
💰 Savings Tip: Genuine Woods OEM blade kits, purchased directly through an authorized retailer, are already competitively priced compared to dealer counter pricing — there isn’t currently a verified, dimensionally-matched aftermarket cross-reference for these Woods kits, so OEM is the safest route for correct fit and blade balance.

Blade Thickness Guide: Which Should You Choose?

🌿 Standard 3/8″ Blades

Best for: Grass, weeds, light brush under 1/2″ diameter

Pros: Lower cost, widely available, easy to sharpen, lighter weight reduces HP demand

Cons: Bends on rocks/stumps, shorter life in rough conditions, requires more frequent replacement

🌳 Heavy-Duty 1/2″ Blades

Best for: Dense brush, saplings up to 2″, rocky ground, commercial use

Pros: 2-3x longer life, resists bending, better momentum through thick material

Cons: Higher upfront cost, heavier (more HP needed), harder to sharpen DIY

🪵 Extreme Duty 5/8″-3/4″ Blades

Best for: Large saplings, extreme brush, land clearing, commercial daily use

Pros: Maximum durability, survives rock strikes, long service life

Cons: Expensive, requires 60+ HP minimum, very heavy, professional sharpening required

Complete Blade Replacement Guide

1

Critical Safety Setup

Disengage PTO completely and shut off tractor engine. Remove ignition key – mandatory. Lower cutter to ground on flat surface. Engage parking brake. Allow blades to stop completely (minimum 5 minutes after shutdown). Block cutter deck with jack stands – never rely on hydraulics alone. Wear heavy leather gloves and steel-toed boots. Rotary cutter blades are extremely dangerous – tips travel at 150+ MPH during operation.

2

Access Blade Mounting Hardware

Tilt cutter on its side or use ramps for access. Locate blade mounting bolts – typically 2 bolts per blade on center carrier. Spray penetrating oil on all blade bolts – rotary cutter bolts corrode heavily from ground contact and moisture. Wait minimum 15 minutes for penetrating oil to work. Mark bolt positions with paint marker before removal (easier reinstallation reference).

3

Remove Old Blades

Use 3/4″ or 7/8″ impact wrench (preferred) or breaker bar. Insert wooden block between blade and carrier to prevent rotation. Break bolts loose counterclockwise. If bolts won’t budge: apply more penetrating oil, use torch heat on bolt head only (not blade carrier), or use impact hammer. Remove blade, carrier plate, and all hardware. Inspect blade carrier for cracks or damage – replace if bent or cracked.

4

Inspect All Components

Check blade carrier for cracks, bends, or wear around blade mounting holes. Inspect blade bolt holes for elongation – elongated holes cause blade throw risk. Verify center hub and driveshaft are straight and undamaged. Check gearbox output shaft for wobble. Inspect deck underside for severe dents or damage that could cause blade contact. Replace all Grade 8 blade bolts annually regardless of appearance – bolt fatigue is invisible.

5

Install & Torque New Blades

Install new blades with cutting edge facing correct rotation direction (check operator manual – typically leading edge faces forward in rotation). Inspect and install ONLY Grade 8 bolts with hardened washers. Apply anti-seize compound to bolt threads to prevent future seizing. Torque to 120-150 ft-lbs using calibrated torque wrench – critical for safety! Verify blades swing freely on carrier (should have slight free movement – this is normal and intentional on rotary cutters). Re-torque after first 2 hours of operation.

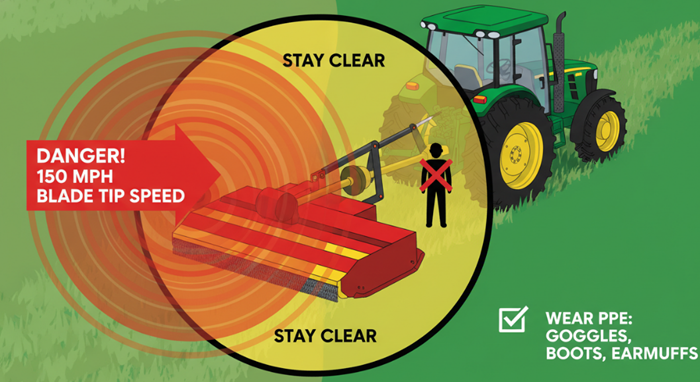

🚨 Critical Safety Warning: Rotary cutter blades operate at 2,000+ RPM with tip speeds exceeding 150 MPH. A loose or thrown blade is a deadly projectile. NEVER operate with: loose blade bolts, bent blades, cracked blade carriers, missing safety shields, or incorrect hardware. Use ONLY Grade 8 bolts (not Grade 5 or hardware store bolts). Replace blade bolts annually – bolt fatigue causes blade throw even when bolts appear fine. Maintain 300-foot clearance from people during operation. Thrown objects can travel 300+ feet with lethal force.

Critical Safety Warning

Blade Troubleshooting Guide

Problem Causes Solutions
Won’t Cut Clean / Leaving Strips Dull blades, bent blades from rock strike, incorrect overlap, mowing too fast Sharpen or replace blades. Check blade tips for bending. Reduce ground speed 25-30%. Verify correct overlap per cutter spec. In thick brush, make multiple passes at higher height.
Excessive Vibration Bent blade, missing blade, unbalanced set, loose bolts, damaged carrier, bent driveshaft STOP IMMEDIATELY. Inspect all blades for bending. Replace bent blades (never straighten and reuse). Verify bolt torque (120-150 ft-lbs). Check carrier for cracks. Spin driveshaft by hand to check for wobble.
Blades Wear/Dull Quickly Rocky ground, sandy soil, cutting height too low, wrong blade type for conditions Raise cutting height minimum 4″ in rocky areas. Switch to 1/2″ heavy-duty blades in abrasive conditions. Maintain proper PTO speed. Walk field before cutting to spot large rocks.
Gearbox Overheating Dull blades requiring more torque, material too thick, low gearbox oil, worn bearings Sharpen or replace blades immediately. Check gearbox oil level (80W-90 to full mark). Reduce material thickness. Stop and let cool 30 minutes if hot to touch.

Seasonal Blade Maintenance Schedule

🌱 Before Each Season (Spring)

Inspect all blades for winter rust, cracks, and bending. Replace all blade bolts (Grade 8 only, $12-18/set). Sharpen edges to a 30-degree angle. Check blade carrier for cracks. Verify gearbox oil level. Grease all zerk fittings. Test run in open area for 5 minutes before field use.

🔧 Every 25 Hours

Check blade bolt torque (120-150 ft-lbs) — bolts loosen from vibration over time. Inspect blades for new bends or cracks. Grease blade carrier and driveline zerks. Check gearbox oil level. Inspect PTO shaft CV joints for wear.

⚙️ Every 50 Hours or When Dull

Sharpen blades to restore cutting edge. Inspect mounting holes for elongation. Check carrier balance — should match within 1/4 oz. Inspect all deck hardware for looseness. Change gearbox oil if used heavily in summer heat.

❄️ End of Season (Fall Storage)

Remove blades and store inside to prevent rust. Grease blade carrier pivot points. Drain gearbox and refill with fresh 80W-90 gear oil. Touch up blade edges with light oil coating. Replace any cracked or bent blades before storage.

🔧 Complete Blade Replacement Kit

Replacement Blade Kits

Woods 57189KT

26.5″ — BB72/72X, BB84/84X, RC6

View on Amazon →

Woods 57099KT

19″ — BB600/6000, BW, DS series

View on Amazon →

Woods 19160KT

25″ — broad BB/BW/FW/DS/RC fitment

View on Amazon →

Essential Hardware & Tools

Grade 8 Blade Bolt Kit

Replace annually for safety

View on Amazon →

Heavy-Duty Impact Wrench

Essential for stubborn bolts

View on Amazon →

Related Mower Maintenance

PTO Shaft Replacement Guide →

Complete rotary cutter PTO service

Gearbox Maintenance →

King Kutter and similar gearbox parts guide

Maintenance Checklist →

Track all service intervals

Finish Mower Guide →

Complete buying & setup guide for all brands

❓ Frequently Asked Questions

Q

How often should I replace Woods rotary cutter blades?

Replace blades when: cutting edge is rounded and won’t sharpen further (typically after 3-4 sharpenings), blade is visibly bent from rock strike, cracks appear anywhere on blade, or blade mounting holes are elongated. Standard blades: 50-100 hours in normal conditions. Heavy-duty 1/2″ blades: 100-200 hours typical. Always replace in complete sets — mixing new and worn blades causes vibration and uneven cutting. A bent blade should be replaced immediately, never straightened and reused.

Q

Why does Woods use different blade kits for similarly-named models?

Woods’ model naming can be genuinely confusing — BB600 and BB600X are different machines with different blade requirements, and the same is true for BB72 vs. other BB variants. The “X” suffix and other small naming differences usually indicate a different deck size, gearbox rating, or production generation, which changes the blade length and mounting pattern needed. Always check your model tag exactly, including any letter suffix, before ordering — don’t assume a close model name means the same blade fits.

Q

Should I sharpen or replace my rotary cutter blades?

Sharpen 3-4 times before replacing (if no bends or cracks). Maintain the original 30-degree bevel angle, and grind equal amounts from both blade ends to preserve balance. Check balance after sharpening on a balance cone — if one end drops, grind more from that end. Professional sharpening runs $8-15 per blade; DIY with an angle grinder takes 10-15 minutes per blade and costs nothing but your time. Replace when metal is too thin (under 3/16″), you can’t balance it after sharpening, or the blade has shortened below its minimum deck-coverage length.

Q

What causes rotary cutter blades to hit the deck?

A loud banging sound usually means a bent blade tip curling upward and striking the deck on rotation, debris jammed between blade and deck, a bent blade carrier allowing excessive travel, deck damage from a previous impact reducing clearance, an incorrect (too-long) blade for that deck, or cutting height set too low causing scalping and ground contact. Stop immediately if you hear this — continuing causes serious damage quickly and creates a dangerous shrapnel risk. Inspect and replace any bent components before resuming operation.

Q

What’s the correct blade bolt torque for Woods cutters?

Standard torque for most Woods rotary cutter blade bolts is 120-150 ft-lbs for 5/8″ Grade 8 bolts, or 90-120 ft-lbs for 1/2″ Grade 8 bolts — but always check your specific model’s operator manual, since torque varies by model and bolt size. Use Grade 8 bolts only (marked with 6 radial lines on the bolt head) — never Grade 5 (3 lines) or unmarked hardware store bolts, which fail under blade impact loads. Apply anti-seize compound to threads for easier future removal, and re-torque after the first 2 hours of operation as new bolts settle. Check torque again every 25 hours — vibration loosens blade bolts over time.
