Befco Mower Belt Cross-Reference: Save on Replacement Belts

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

Befco’s current finish mower lineup is the C30 and C50 Cyclone series (not “C05/B05/T05” model names sometimes seen online). Each width uses a single heavy-duty cogged (BX-section) V-belt with an automatic spring tensioner. Confirmed OEM belt codes: 000-8630 (C30-RD4, 48″), 000-8670 (C30-RD5, 60″), 000-8950 (C30-RD6, 72″), 000-6693 (C50-RD5, 60″), and 000-6848 (C50-RD6, 72″). Always confirm your exact model and serial number before ordering.

Befco Finish Mower Belt Applications by Model

C30 Series

48″ (RD4), 60″ (RD5), 72″ (RD6) — each in H (solid tire) or A (pneumatic tire)

Single heavy-duty reinforced BX-section cogged V-belt with automatic spring tensioner

C50 Series

60″ (RD5), 72″ (RD6), 84″ (RD7) — each in H or A

Belt part numbers confirmed for RD5 and RD6; RD7 not yet independently verified

⚠️ Key Point: Model names like “C05-060,” “B05-072,” or “T05-060” are not current official Befco designations — if you’ve seen these elsewhere, they don’t match Befco’s real lineup. Befco’s own current catalog uses C30 and C50 series names. Always check your deck’s model tag against the tables above.

Befco Belt Cross-Reference Chart

Model	Width	OEM Belt Code	Buy
C30-RD4H / RD4A	48″	000-8630	View on Amazon →
C30-RD5H / RD5A	60″	000-8670 (Befco-branded)	View on Amazon →
C30-RD6H / RD6A	72″	000-8950	View on Amazon →
C50-RD5H / RD5A	60″	000-6693	View on Amazon →
C50-RD6H / RD6A	72″	000-6848	View on Amazon →
C50-RD7H / RD7A	84″	Not independently verified	Confirm via Befco dealer

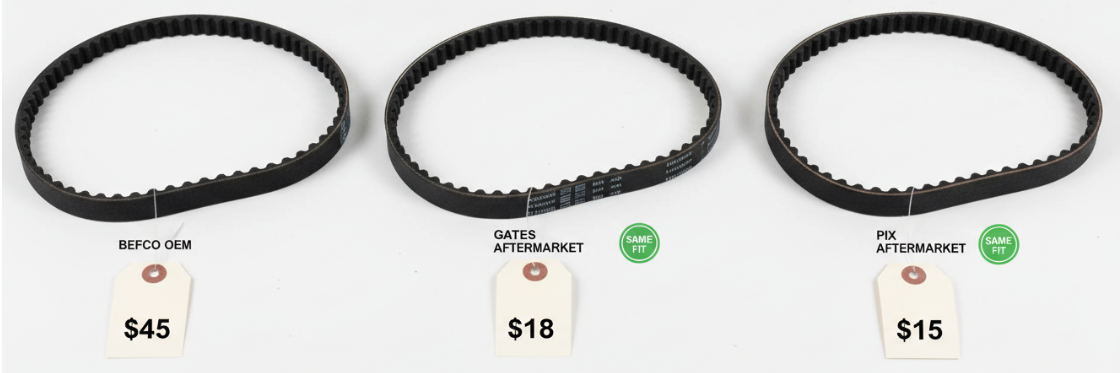

✓ Note on Belt Type: All confirmed C30/C50 belts are cogged (notched underside) for better flexibility and heat dissipation — this matches Befco’s own published spec of a single heavy-duty reinforced belt with an automatic spring tensioner. Cogged belts are a direct upgrade over plain V-belts in this application, not a separate/optional item.

How to Measure or Confirm Your Belt

Check your deck’s model tag first — matching it against the C30/C50 tables above is the fastest way to find your correct belt code. If the tag is worn or missing, look for a stamped code on the belt itself (like “000-8670” or “000-6693”), which is the most reliable way to order the exact right part.

If no code is visible, measure inside circumference by laying the belt flat in its natural position without stretching it, and measure width at the top surface with calipers — most confirmed Befco belts use a 5/8″ section.

Belt Replacement Guide

Safety & Access

Disengage the PTO and shut off the tractor completely. Remove the ignition key. Allow all components to stop fully. Locate belt access panels on the Befco deck — most models have removable covers for belt service. Photograph belt routing from multiple angles before removal.

Release Belt Tension

C30/C50 models use an automatic spring-loaded tensioner. Use a pry bar or tensioner tool to release spring tension and slide the old belt off the pulleys. Never force a belt over pulley flanges — this damages the pulley edges and causes rapid new-belt wear.

Inspect Pulleys Before Installing

Check for cracked or chipped flanges, rust or rough groove surfaces, wobble indicating bad bearings, and misalignment (pulleys must be in the same plane within 1/16″). Installing a new belt on damaged pulleys wastes the belt — fix pulley issues first.

Install New Belt

Route the new belt following the same path as the old one (use your photos). Release the tensioner first, route the belt, then allow the tensioner to apply correct tension. Verify the belt seats properly in the pulley groove rather than riding on top.

Check Tension & Break In

Verify 1/2″ to 3/4″ deflection with 10 lbs of finger pressure at the belt midpoint. Run at low PTO RPM for 5 minutes, then recheck tension — new belts seat and settle slightly during break-in. Recheck again after the first full hour of operation.

Belt Troubleshooting Guide

🔴 Belt Breaking Prematurely

Causes: Over-tight belt, pulley misalignment, damaged pulley flange, sudden PTO engagement.

Fix: Check tension (1/2″-3/4″ deflection). Verify pulley alignment — all pulleys must be in the same plane. Engage PTO gradually, not suddenly.

🟡 Belt Slipping or Squealing

Causes: Belt too loose, glazed surface, oil contamination, worn belt.

Fix: Adjust tensioner to correct tension. Replace a glazed belt — the surface can’t be restored. Find and fix any oil leak before replacing the belt.

🔵 Belt Wearing on One Side

Causes: Pulley misalignment (most common), bent pulley shaft, belt installed twisted.

Fix: Check alignment with a straightedge across all pulley faces. Inspect shafts for bending. Reinstall the belt if it was put on twisted.

Seasonal Belt Maintenance

🌱 Spring

Inspect for cracking, glazing, and fraying. Replace any belt showing these signs before the season begins. Check pulley condition and correct tension.

🔧 Every 25 Hours

Check belt tension at midpoint. Inspect for new cracking or fraying. Listen for squealing during operation. Clean grass and debris from the belt area.

⚙️ Replacement Signs

Cracks on the sides or bottom, a glazed/shiny surface, edge fraying, or the belt stretched beyond tensioner range all mean it’s time to replace — don’t wait for complete failure.

❄️ End of Season

Inspect and replace questionable belts during the off-season when time allows. Store the mower covered to prevent UV degradation of the belt rubber.

🔧 Complete Belt Kit

Replacement Belts

Befco 000-8630

C30-RD4 (48″)

View on Amazon →

Befco 000-8670

C30-RD5 (60″) — Befco-branded

View on Amazon →

Befco 000-8950

C30-RD6 (72″)

View on Amazon →

Befco 000-6693

C50-RD5 (60″)

View on Amazon →

Befco 000-6848

C50-RD6 (72″)

View on Amazon →

Affiliate Disclosure: We may earn a commission from qualifying purchases through these links at no extra cost to you.

Related Finish Mower Maintenance

Befco Blade Guide →

Complete blade cross-reference for Befco mowers

Caroni Belt Cross-Reference →

Similar Italian mower belt guide

Finish Mower Gearbox Leaks →

Fix common gearbox issues

Maintenance Checklist →

Track all service intervals

❓ Frequently Asked Questions

What are the current Befco finish mower model names?

Befco’s current finish/grooming mower lineup is the C30 and C50 Cyclone series, sold in various widths with H (solid tire) or A (pneumatic tire) suffixes — for example, C30-RD5H or C50-RD6A. If you’ve seen model names like “C05,” “B05,” or “T05” referenced elsewhere, those aren’t Befco’s current official designations. Check your deck’s model tag directly against the C30/C50 naming pattern.

Why does my Befco mower belt keep breaking?

Most common causes, in order: over-tensioning (belt should have 1/2″-3/4″ deflection, not drum-tight), pulley misalignment, damaged pulley flanges, and sudden PTO engagement shock. Always engage the PTO gradually. If a belt fails under 100 hours, find and fix the root cause before simply replacing it again.

How tight should my Befco mower belt be?

1/2″ to 3/4″ deflection when pressing the belt midway between pulleys with 10 lbs of force. Too tight causes premature bearing wear and cracking; too loose causes slipping and overheating. Recheck tension after the first hour of operation on a new belt, since it settles slightly during break-in.

How long should a Befco mower belt last?

150-300 hours in normal conditions with proper tension and alignment. Replace proactively at signs of cracking, glazing, or fraying rather than waiting for complete failure — a planned replacement avoids downtime and potential damage to surrounding components from a snapped belt during operation.
