A failed mower spindle usually makes itself known at the worst possible time: a loud growl from the deck, blades wobbling, vibration through the seat, and a lawn that suddenly looks scalped and striped instead of cleanly cut. When you finally tear into the deck, the bearings are blue from heat, the shaft has play, and the blades will not stay level. At that point, running the mower “a little longer” stops being an option.

Then comes the sticker shock. OEM mower spindle assemblies regularly run $80–$150 each from a dealer, and most multi-blade decks have two or three spindles. Replacing all of them can easily top $300–$400 just in parts, not including labor. For a homeowner or small acreage user, that is a painful bill, especially when the rest of the mower is still in good condition.

The good news is that aftermarket mower spindles typically cost $35–$75 for a complete assembly, and bearing-only kits are often $15–$25 if your housing and shaft are still usable. With the right mower spindle assembly interchange information, you can cross-reference your OEM part number to a Rotary, Stens, Oregon, or other quality aftermarket part and save $45–$135 per spindle while maintaining cut quality. For more mower parts options, see this finish mower parts overview at our dedicated mower parts section.

Understanding Spindle Specifications and Compatibility

The first key specification is shaft length, measured from the underside of the pulley to the blade mounting surface. This determines blade height relative to the deck shell and directly affects cut quality and blade-to-deck clearance. A common AYP/Craftsman style 42″ deck spindle such as those replacing 187292 uses a shaft around 6.5″–6.9″ tall, while some heavy-duty 54″ decks use longer shafts approaching 8″ or more.

Bearing type and diameter are next. Most modern mower spindles use sealed ball bearings such as 6205-2RS or similar deep groove designs that handle high RPM and side loading. Some older or serviceable spindles use taper rollers or greasable open bearings with zerk fittings. Matching the internal bearing size ensures the replacement spindle can handle the same loads and fit the housing or shaft correctly.

The pulley bolt pattern must also align. Many residential decks use a four-bolt pattern to secure the spindle to the deck shell, while others use three or six bolts or different spacing. The spindle housing height and overall stack (housing plus pulley plus blade) must match so the belt tension and blade tip path remain consistent across all spindles on the deck.

How to Identify Your Existing Spindle

Correct mower spindle assembly interchange starts with accurately identifying what is on your deck today. Begin by safely lifting the mower, removing the ignition key, and blocking the deck so the blades cannot move. Remove the blades from the suspect spindle and clean away built-up grass and debris around the housing, pulley, and mounting area to expose casting marks and numbers.

Measure the shaft length from the underside of the pulley to the blade seating surface using a tape or caliper. Count the number of bolts holding the spindle housing to the deck and note whether it uses a star, keyed, or round blade mount. If bearings are exposed, measure their outside diameter. Look for an OEM part number cast or stamped into the housing or printed on a decal on the deck; numbers like 187292, 918-04456, or AM125172 are common examples. For a detailed bearing-only rebuild walkthrough, see this Land Pride spindle bearing guide: how to replace spindle bearings on a finish mower.

Complete Brand Cross-Reference Tables

Craftsman / AYP 42″–54″ Deck Spindles

AYP-built Craftsman riders frequently use spindle families based around OEM numbers such as 187292 and 192870 on 42″–54″ decks that are shared with some Husqvarna models. These spindles typically have double sealed bearings, a 5-point star blade mount, and approximately 6.5″–7″ shaft height depending on deck size.

Cub Cadet / MTD 42″ Deck Spindles

Many Cub Cadet and newer MTD riders with 42″ decks use a spindle family based around OEM 918-04456 and related numbers, found on LT1042 and similar models. These usually have a star-pattern blade mount, roughly 5.75″–6″ housing height, and are supported by sealed bearings with bolt-on pulleys.

John Deere AM / GY Series Spindles

John Deere uses several spindle families identified by AM and GY part prefixes, such as AM120965 or AM125172 on 54″ decks for models like the 425, 445, and various garden tractors. These spindles often feature tall housings, heavy-duty double bearings, and higher load capacity suitable for commercial or acreage use.

Husqvarna / AYP Spindles

Husqvarna shares many spindle designs with AYP/Craftsman decks, particularly those built around OEM 130794 and 532130794 for 36″–42″ ventilated decks. These spindles use a 5-point star blade mount, sealed bearings, and about 6 7/8″ total height on some heavy-duty Stens replacements. They are commonly found on Husqvarna-branded riders and zero-turns with 42″ decks.

Troy-Bilt / MTD Spindles

Troy-Bilt and other MTD-branded tractors often use spindle families around 918-04822, 918-04889, and related numbers on 42″ decks found on Pony, Bronco, RZT-42, and similar models. These share design cues with the Cub Cadet 918-04456 style but have different mounting and sometimes different shaft lengths.

When reviewing these mower spindle assembly interchange tables, remember that brands often use families of part numbers to identify revisions, pulley changes, or deck variations. If your exact number is not shown, check for suffixes like A, B, or C and confirm with shaft measurements. For more upgrade ideas, this article on aftermarket finish mower blades shows how blades and spindles work together to influence cut quality and power draw.

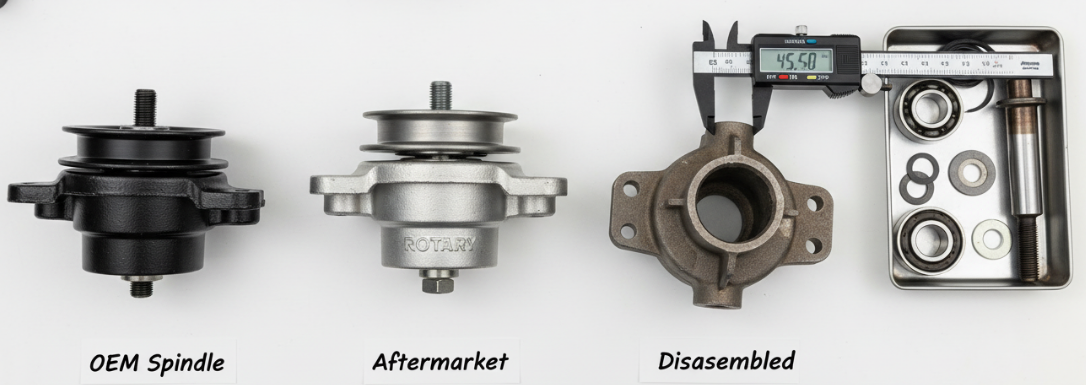

Aftermarket Spindle Quality & Bearing Replacement Options

Rotary manufactures many heavy-duty welded spindle assemblies and is a long-time supplier to dealers and independent shops. Their units typically use commercial-grade sealed bearings, robust housings, and sometimes improved sealing compared with older OEM designs. Stens provides professional-grade replacements, often with complete pre-assembled units like the 285-843 spindle for Cub Cadet 918-04456 decks and heavy-duty 130794 Husqvarna versions. Oregon focuses more on blades but offers targeted spindle applications and emphasizes sealed bearings.

Generic import spindles sold through big-box and online marketplaces can be significantly cheaper than OEM, but bearing quality, sealing, and machining tolerances vary. Tear-down comparisons of Deere OEM and aftermarket spindles show that some budget units use lighter bearings or looser fits, while better aftermarket options rival or exceed factory quality. When planning a rebuild instead, high-quality bearings such as SKF 6205-2RS or similar deep groove ball bearings offer longer service life than no-name replacements.

Replacing bearings alone requires more tools and time but can be worthwhile on expensive or heavy-duty spindles. For many residential decks, complete aftermarket assemblies hit the best balance between cost and convenience. If you are assembling a full repair toolkit for this kind of job, this guide to must-have tractor maintenance tools covers torque wrenches, pullers, and other essentials.

Spindle Installation & Bearing Replacement Tips

Begin by removing the deck from the tractor or zero-turn to gain full access to the spindles. Remove the drive belt, blades, and pulley hardware, then unbolt the spindle housings from the deck shell. Clean the mounting surfaces so the new housing seats flat. When reinstalling, torque spindle mounting bolts uniformly—many OEM manuals specify blade bolt torque in the 40–60 ft-lb range, which is a good reference for similar fasteners. A beam or click-style torque wrench helps prevent over-tightening.

For bearing-only rebuilds, remove snap rings or retaining clips first, then press the old bearings out using an arbor press or a hammer and correctly sized drift that pushes on the outer race. Clean the bore, inspect for cracks or galling, and press new bearings in squarely until fully seated. Many sealed mower bearings are double-shielded; avoid prying off seals. After reassembly, spin the spindle by hand to confirm smooth rotation before reinstalling blades and belts. When working around gearboxes and related driveline components, this guide to fixing common finish mower gearbox leaks is also useful.

After installation, watch for symptoms such as spindle wobble, rumbling noise at full speed, or blade tips scuffing the deck shell. These may indicate mismatched shaft lengths, incorrect bearing seating, or loose mounting bolts. Uneven cut strips can also result from one spindle sitting higher or lower than the others. Beyond spindles, keeping deck wheels, belts, and blades in good condition—as covered in guides on extending finish mower wheel life and choosing Kevlar vs standard belts—helps your new spindle last longer.

❓ Frequently Asked Questions

Aftermarket spindles from Rotary, Stens, Oregon, and similar brands routinely save 40–60% compared with $80–$150 OEM assemblies, often trimming $45–$135 per spindle. Shaft length, bearing size, and pulley bolt pattern must match your original unit for correct blade height and belt tracking, especially on multi-spindle decks. Bearing-only rebuilds with quality sealed bearings offer the lowest cost when housings and shafts remain intact but require more time and tools than complete bolt-on assemblies.
