⚡ Quick Answer:PTO shaft cross reference uses spline count, shaft series, and collapsed/extended length to match OEM driveline specs with aftermarket options, typically saving 40–60% over dealer pricing.

PTO shaft cross reference matches spline count, yoke series, and working length so Weasler, VEVOR, or Comer replacements bolt up like OEM.
Common working length ranges: about 28″, 32″, 40″, 48″, and 60″ (collapsed/extended measurements are critical for safe operation).
Typical universal joint splines: 1‑3/8″ 6‑spline, 1‑3/4″ 6‑spline, 1‑3/8″ 21‑spline, 1‑3/4″ 20‑spline on modern tractors and implements.
Series 1, 4, 5, 6 designations reflect torque capacity and yoke size for different HP and RPM ranges.
Weasler, VEVOR, and Comer are leading aftermarket brands that meet or exceed OEM driveline standards.
The tables below cover rotary cutters, finish mowers, balers, tedders, box blades, and more with real-world equivalent part numbers.

Introduction

Paying $150–$400 for an OEM PTO shaft hurts, especially when a properly spec’d aftermarket shaft from Weasler or VEVOR often runs $60–$150 and performs the same job. Many tractor owners only discover this price gap after a breakdown, standing at the dealer counter with little time to research alternatives. The result is an expensive “must-have” purchase that eats into the budget for other maintenance and implements.

A structured pto shaft cross reference method lets you match your OEM driveline to aftermarket replacements by spline count, series, and working length instead of relying on a dealer part lookup. Once you know your shaft’s series, universal joint dimensions, and collapsed/extended lengths, you can safely plug in Weasler AB1/AB4 or ECCPP assemblies and often save 40–60% per shaft. This plays especially well for common implements like 4–6 ft rotary cutters, finish mowers, and compact tillers.

The goal of this guide is to give working tractor owners a practical, step‑by‑step cross-reference for PTO shafts, universal joints, and shields using real implement examples and current aftermarket part numbers. For a deeper look at the pros and cons of OEM versus universal replacement drivelines on brush cutters, see this rotary cutter PTO replacement guide which pairs well with the tables below. If you are also troubleshooting engagement problems, the Kubota PTO troubleshooting guide is a helpful companion resource.

Understanding PTO Shaft Specifications & Series

Before cross-referencing to an aftermarket PTO shaft, you must understand how manufacturers describe spline size, series, length, and tube profile. These dimensions determine torque capacity, RPM rating, and safe operating travel of the driveline between tractor and implement.

The most critical specification is the spline and bore at each end of the shaft. Compact and utility tractors commonly use 1‑3/8″ 6‑spline for 540 RPM, while larger machines and 1000‑RPM applications use 1‑3/8″ 21‑spline or 1‑3/4″ 20‑spline/6‑spline outputs. Matching this to the implement yoke prevents fitment issues and premature wear. Yoke bore size and spline pattern must match both the tractor stub and the implement gearbox input.

Length is defined by collapsed and extended dimensions measured from yoke groove to yoke groove. Collapsed length ensures the shaft does not bottom out when the hitch is raised fully, while extended length ensures sufficient spline engagement at maximum telescope. Tube profile—round, tri‑lobe, lemon, or star—affects how the sections slide and what guard system fits; Weasler and VEVOR both offer multiple profiles with cut‑to‑length capability.

🔑 Key Point:Always measure BOTH collapsed AND extended length on the tractor with the implement attached and the hitch cycled through its full travel. Incorrect length can cause binding when the shaft bottoms out or dangerous separation when over‑extended under load.

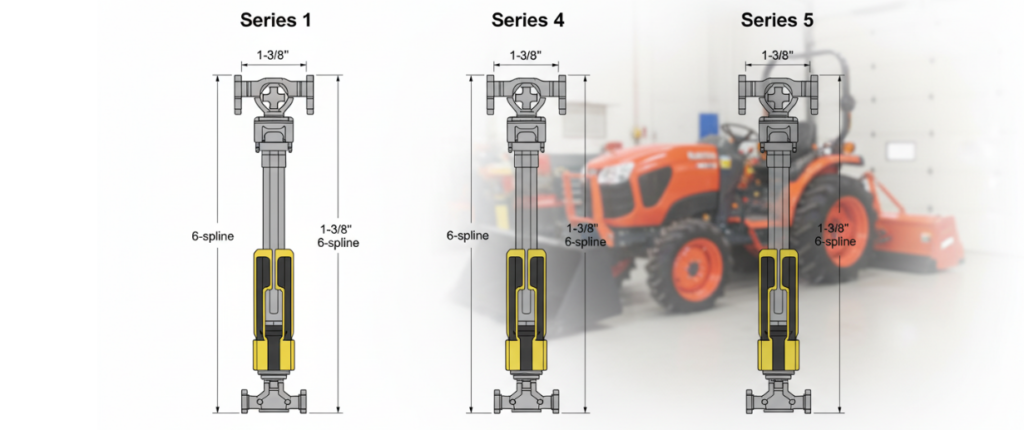

PTO Shaft Series & Horsepower Ranges

Series designations group PTO shafts by universal joint size, torque rating, and HP capacity. A typical Series 1 shaft (often used on small cutters and finish mowers) is rated roughly 20–35 HP at 540 RPM with 1‑3/8″ 6‑spline ends.The Series 4 components move into medium‑duty territory (around 40–70 HP) with larger yokes, often 1‑3/4″ 6‑spline or heavy 1‑3/8″ configurations for bigger implements.

Series 5 assemblies cover many 1000‑RPM, 1‑3/8″ 21‑spline applications where torque is similar but speed is higher, requiring stronger crosses and bearings. Series 6 is common on heavier balers and batwing cutters, pairing 1‑3/4″ 20‑spline or large‑bore yokes with high continuous horsepower ratings. Bondioli & Pavesi’s SFT and Global series follow similar capacity steps, so series numbers cross fairly cleanly between brands.

Series	Typical Yoke / Spline	Approx. HP @ 540 RPM	Torque / Duty	Common Applications
Series 1	1‑3/8″ 6‑spline both ends	20–35 HP	Light duty, 540 RPM	4 ft rotary cutters, 4–5 ft finish mowers, small tillers
Series 4	1‑3/8″ or 1‑3/4″ 6‑spline	40–70 HP	Medium duty, higher torque	5–6 ft cutters, heavy finish mowers, box blades
Series 5	1‑3/8″ 21‑spline	Similar torque at 1000 RPM	Medium duty, 1000 RPM	Mid‑size mowers, fertilizer spreaders, high‑speed implements
Series 6	1‑3/4″ 20‑spline / heavy yokes	60–100+ HP	Heavy duty, high torque	Large round balers, batwing cutters, big tedders

💡 Pro Tip:Grease PTO crosses and telescoping tubes every 8–10 operating hours with Lucas Oil marine grease; most field failures trace back to seized sliding sections rather than broken universal joints. For step‑by‑step lubrication intervals across your tractor, see the Kubota greasing guide.

How to Identify Your Current PTO Shaft Specifications

Start by cleaning the tractor PTO stub and implement input so spline ridges are visible. Count the spline teeth (6, 20, or 21) and measure the outside diameter with calipers to confirm 1‑3/8″ or 1‑3/4″. Then disconnect the shaft, collapse it completely, and measure groove‑to‑groove for collapsed length followed by fully extended length at maximum safe telescope.

Note the tube profile (round, lemon, tri‑lobe, or star) and any labels or safety decals listing series or OEM part numbers. With these dimensions in hand, you can use the cross‑reference tables below to select the correct aftermarket series and part number. If you are also chasing PTO clutch or engagement issues, pair this with the Kubota PTO clutch adjustment guide and the dedicated PTO shaft repair and replacement guide for a complete fix.

Complete Implement Cross-Reference Tables

These cross-reference tables group common implements by size, shaft length, and series, then map them to representative Weasler and VEVOR PTO shaft assemblies. Always confirm actual measurements on your machine before ordering.

Rotary Cutter PTO Shafts

Rotary cutters place shock loads on the driveline, so selecting the correct series and torque rating is essential. Smaller 4–5 ft units on compact tractors usually run Series 1 or light Series 4 shafts, while 6–7 ft and batwing cutters step into heavier Series 4–6 assemblies with higher HP ratings and stronger crosses. For more detail on cutter‑specific choices, see this rotary cutter PTO replacement guide.

Implement Size	OEM Part# Example	Length (Collapsed/Extended)	Series	Aftermarket Equivalent
4 ft rotary cutter (compact)	Kubota E‑T1080‑23700	28″/40″	Series 1	Weasler AB1 or ECCPP Series 1
5 ft rotary cutter	Generic Bush Hog OEM	32″/48″	Series 4	VEVOR Series 4 (39″-55″)
6 ft rotary cutter	Kubota medium‑duty OEM	40″/60″	Series 4	VEVOR Series 4 (43″-61″) or Weasler AB4
7 ft rotary cutter	Large utility OEM	48″/72″	Series 5	VEVOR Series 5 (43″-57″)
Batwing cutter main drive	Bush Hog / JD OEM	60″/80″+	Series 6 / CV	Series 6 heavy-duty wide-angle shaft

Finish Mower PTO Shafts

Finish mowers typically use lighter 540‑RPM shafts but still require proper collapsed length for sharp turns and uneven ground. Many Bush Hog, Land Pride, and Kubota mowers share similar 1‑3/8″ 6‑spline, Series 4 shafts with closed lengths in the 40″ range and extended lengths around 56–60″. Replacement assemblies from Weasler and VEVOR can be cut to length to match your specific mower model.

Implement	OEM Part# Example	Length (Collapsed/Extended)	Series	Aftermarket Equivalent
4 ft finish mower	Land Pride FDR1548	32″/48″	Series 1/4	ECCPP Series 1 or RAParts 29″
5 ft finish mower	Bush Hog FTH600	40.4″/56.9″	Series 4	VEVOR Series 4 (39″-55″)
6 ft finish mower	Kubota BL348A	40″/60″	Series 4	VEVOR Series 4 (43″-61″) or Weasler AB4
7 ft finish mower	Bush Hog ATH720	48″/68″	Series 4/5	SCITOO Series 4 (43″-71″)

Baler & Hay Equipment PTO Shafts

Balers, tedders, and rakes often run higher horsepower for long hours, so Series 5–6 shafts and wide‑angle joints are common. Many OEMs use Bondioli & Pavesi or similar European drivelines from the factory, making cross‑referencing to VEVOR or Weasler relatively straightforward when you know the series and universal joint size.

Implement	OEM Part# Example	Length (Collapsed/Extended)	Series	Aftermarket Equivalent
Small square baler	Bondioli SFT size 4 OEM	40″/60″	Series 4/5	Heavy-duty slip clutch shaft
Round baler (mid‑size)	Bondioli Global series	48″/72″	Series 6	Series 6 wide-angle heavy shaft
Rotary tedder	Euro OEM metric	32″/52″	Series 4	VEVOR Series 4 (43″-61″)
Wheel rake / rotary rake	Bondioli small series	28″/40″	Series 1/4	ECCPP Series 1

Box Blade, Tiller & Post-Hole Digger Shafts

Soil‑working implements see high shock loads when digging in rocky ground or hitting buried obstacles. Compact tillers and post‑hole diggers usually run Series 1–4 shafts, while heavier 3‑pt augers and large tillers may need Series 4–5 assemblies with stronger yokes. Correct length is especially important because hitch height changes dramatically as you lift and lower these implements.

Implement	OEM Part# Example	Length (Collapsed/Extended)	Series	Aftermarket Equivalent
5–6 ft rotary tiller	Generic compact OEM	32″/48″	Series 4	VEVOR Series 4 (39″-55″)
Post‑hole digger (3‑pt)	Economy auger OEM	28″/40″	Series 1/4	Weasler AB1 or RAParts 29″
Box blade with hydraulic scarifiers	Optional PTO scarifier	32″/52″	Series 4/5	SCITOO Series 4 (43″-71″)

💰 Cost Savings:OEM Kubota PTO shafts commonly retail around $150–$250 for compact and utility models. OEM Bush Hog shafts can run $200–$300, and John Deere assemblies often reach $250–$400 depending on size and CV options. By comparison, Weasler aftermarket assemblies (AB1/AB4) typically fall between $118–$195, delivering savings of roughly $32–$205. VEVOR aftermarket shafts often price around $77–$138, and ECCPP universal shafts may be $77–$92, saving $58–$323 versus OEM.

When adjusting implement geometry for optimum PTO angle and length, refer to this 3‑point hitch adjustment guide to prevent binding at full lift or during tight turns.

Universal Joint & Shield Compatibility

Many PTO shaft issues can be solved with correct cross‑reference of universal joints and guards rather than replacing the entire driveline. Matching cap diameter, span, and shield profile allows cross‑brand repair using Weasler, VEVOR, or aftermarket components.

Universal joints are cataloged by bearing cap diameter and span between yoke ears. A common agricultural cross‑reference U-joint kit allows replacement regardless of original brand as long as dimensions and snap ring type match. Always disassemble and measure the original joint with calipers before ordering replacements.

Shield styles must match the tube profile and guard system of the shaft. Round‑tube shields are most common on lighter domestic shafts, while triangular and lemon profiles are widely used on metric shafts. PTO safety shields use coordinated inner/outer profiles with full‑coverage cones and bearing support for safety compliance. Safety chains anchor the outer guards to prevent rotation while the inner shield turns with the shaft.

⚠️ Warning:Never operate PTO equipment without intact shields and properly anchored safety chains. Rotating shafts and universal joints can catch clothing in fractions of a second, causing severe injury or death. A full shield and chain setup is one of the most important pieces of tractor safety equipment you own. For broader safety practices, see the dedicated tractor safety equipment guide.

U-Joint Cross-Reference Table

Application / Series	Compatible U-Joint Kits	Notes
Light PTO (Series 1)	Series 4 cross bearing kit (smaller size class)	Cross-compatible with many aftermarket brands
Medium PTO (Series 4)	Series 4 universal joint kit	Most common replacement size for compact tractors
Heavy PTO (Series 6)	Series 6 heavy-duty cross kit	Required for large balers and batwing cutters

If U‑joints or shields fail repeatedly, it may point to binding, misalignment, or engagement problems upstream. Pair replacement with a system‑level inspection using resources like the Kubota PTO engagement troubleshooting guide and the broader PTO problems overview.

Measuring & Selecting Correct PTO Shafts

Accurate measurement is the backbone of any pto shaft cross reference. A few minutes with a tape measure and calipers can prevent expensive driveline failures and ensure your new shaft matches OEM geometry.

To measure collapsed length, park the tractor and implement on level ground, lower the hitch fully, and compress the shaft as far as it will safely telescope. Measure from locking groove to locking groove (or center of cross) on each yoke. This dimension should be slightly shorter than the minimum operating distance at full hitch raise to avoid bottoming out.

Extended length is measured with the shaft pulled out to its maximum safe telescope, which generally corresponds to about 70–75% of total spline engagement. Measure again from groove to groove. Your working length in the field should stay comfortably within these bounds. Identify spline count by cleaning the stub and counting ridges (6, 20, or 21) and confirm yoke bore with calipers.

💡 Pro Tip:When choosing a replacement shaft, add roughly 2–4 inches to your minimum collapsed length to provide clearance during tight turns, crossing ditches, or lifting implements fully. This cushion helps prevent binding, tube buckling, and gearbox damage. If needed, cut both inner and outer tubes equally following the manufacturer’s cutting procedure. For stub shaft repairs, a 10″ PTO repair shaft can extend damaged stubs.

⚠️ Warning:Over‑extended shafts that run beyond roughly 75% of their spline engagement can strip splines, snap yokes, or eject the telescoping section during operation. Always verify that at maximum implement drop and during sharp steering, at least several inches of spline overlap remain. If in doubt, step up to a longer shaft and shorten it correctly using the manufacturer’s instructions.

Before first use, verify guards spin freely, connect and tension safety chains, and grease all fittings on crosses and sliding tubes. An installation checklist like the one in the tractor PTO safety overview and the Kubota maintenance guide helps ensure nothing is missed.

If you need to extend your existing PTO for implements that sit farther back, a PTO extender adapter can bridge the gap without replacing the entire driveline.

❓ Frequently Asked Questions

Q1. What PTO shaft do I need for my rotary cutter?

Most 4–6 ft rotary cutters on compact tractors use a 540 RPM shaft with 1‑3/8″ 6‑spline ends in Series 1 or Series 4. Measure your collapsed and extended lengths groove‑to‑groove, then match to a cut‑to‑length shaft like a Weasler AB1 or VEVOR Series 4. For example, a 5 ft cutter often needs roughly 32″ collapsed and 48″ extended. Always confirm HP rating and check your manual before ordering a replacement shaft.

Q2. Are Weasler PTO shafts compatible with OEM implements?

Yes, Weasler PTO shafts are designed as OEM and aftermarket replacements and are widely used by major implement manufacturers worldwide. Compatibility depends on matching spline size, series rating, and collapsed/extended length, not brand name. For many compact implements, a Weasler AB1 Series 1 or AB4 Series 4 shaft will directly replace OEM Kubota, Bush Hog, or Land Pride drivelines when cut to the correct length. Always verify HP rating, guard style, and connection type (quick‑disconnect, spring‑lock, or plain yoke).

Q3. How much do PTO shafts cost vs OEM?

OEM PTO shafts from brands like Kubota, Bush Hog, and John Deere routinely cost $150–$400 depending on length, series, and CV options. Comparable Weasler aftermarket shafts (AB1/AB4) often run $118–$195, while VEVOR Series 4/5 assemblies typically fall around $77–$138. ECCPP universal shafts may be $77–$92. Overall, cross‑referencing and buying aftermarket usually saves about 40–60%, or roughly $32–$323 per shaft.

Q4. What happens if my PTO shaft is too short or too long?

A shaft that is too short can over‑extend as the hitch drops or during tight turns, losing spline engagement and potentially separating under load. A shaft that is too long can bottom out when the hitch rises, bending tubes, breaking U‑joints, or damaging the tractor PTO and implement gearbox. Correct selection keeps working length between the minimum collapsed and safe extended positions. Measure on the tractor in working position and compare with Series 1, 4, 5, or 6 shaft specs before purchase.

Q5. How often should I replace PTO shaft universal joints?

With proper greasing using Lucas Oil marine grease, quality U‑joints from Weasler or aftermarket brands often last many seasons of normal use. There is no fixed replacement interval; instead, inspect for play, rust bleeding at caps, or dry needle‑bearing noise every service. When in doubt, replacing a worn cross with the correct kit (for example, a Series 1, Series 4, or Series 5 cross kit) is cheaper than repairing a broken yoke or gearbox. Maintain eight‑hour lubrication intervals and address vibration immediately.

🎯 Key Takeaways:
– Match spline count, yoke size, and collapsed/extended length when using any pto shaft cross reference or swapping brands.
– Weasler and VEVOR shafts routinely save 40–60% versus OEM, often $32–$323 per driveline.
– Measure with the implement attached, cycling the 3‑pt hitch through full travel to verify working length.
– Grease crosses and sliding tubes every 8–10 hours to prevent seized telescoping sections.
– Never operate without proper shields and safety chains; review PTO safety practices regularly.

✅ Next Steps:1) Measure collapsed and extended length of your current shaft on the tractor. 2) Identify spline count (6, 20, or 21) and yoke bore size with calipers. 3) Determine likely series (1, 4, 5, or 6) from implement type and horsepower. 4) Choose a Weasler or VEVOR equivalent from the tables above. 5) Install, confirming lock‑pin engagement and guard coverage. 6) Grease all fittings thoroughly before field work. 7) Test at low PTO speed and check for vibration, binding, or shield interference.
