Struggling with traction in snow, ice, or mud? The right tire chains can transform your tractor’s performance in winter conditions — but choosing the wrong style wastes money and leaves you sliding when it matters most. This guide breaks down every chain design so you can match the right chains to your actual conditions.

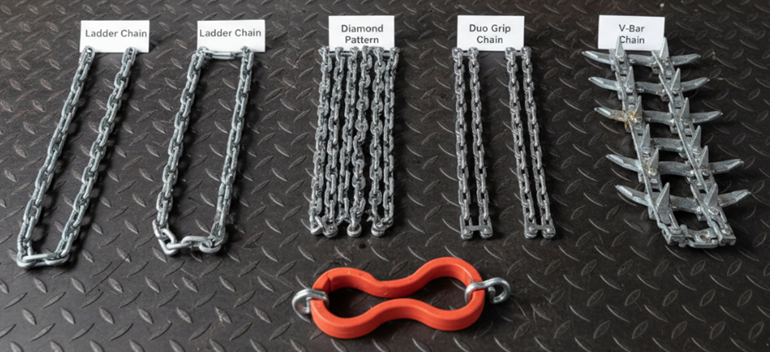

Chain Designs: Understanding Your Options

Ladder Chains — The Basic Option

Straight links running parallel to the tire’s direction, with cross-links at intervals. Excellent straight-line traction in general snow and mud at the most affordable price point — a solid choice for farming, construction, and general off-road use.

They offer less lateral grip than other patterns and aren’t ideal for ice or sharp turns, and they’re noisier on pavement. Have the right installation tools on hand before you start.

Duo Chains — For Extreme Conditions

Two strands of cross-linked chain running parallel, creating a more aggressive pattern for heavy snow, ice, and challenging off-road terrain. Best suited to farming or forestry work requiring consistent high traction — the aggressive pattern reduces slippage on slopes, though expect more noise and roughness on hard surfaces.

Diamond Chains — All-Around Performance

Cross-links arranged in a diamond pattern, covering more of the tire’s surface for balanced performance in snow, mud, and ice. Smoother ride and less road noise than other designs, with strong traction in both forward and reverse and excellent lateral grip for icy turns — though they cost more and can be trickier to install.

V-Bar Chains — The Ice Specialists

V-shaped metal cleats welded to standard chain links for aggressive bite into ice and packed snow. These command a premium price, but their ice performance is unmatched — the go-to choice for operators working consistently on ice or steep frozen terrain.

Real-World Performance by Condition

Snow

When snow packs into tire treads, even 4WD tractors can lose traction as tires effectively become slicks. Properly fitted chains make a dramatic difference regardless of style — diamond chains generally offer the best all-around snow performance.

Ice

On steep or icy grades, an unchained tractor can slide even with 4WD engaged. V-bar chains provide maximum ice grip; diamond pattern chains offer excellent ice traction too, with the added benefit of better lateral control for turning.

Mud & Off-Road

Duo-grip style chains handle muddy field conditions well across changing seasonal soil. Diamond chains remain a strong all-around choice for mixed mud/snow/ice conditions, while V-bar’s aggressive cleats dig through thick mud to firmer ground beneath.

Installation

1. Position the chain on the ground behind or in front of the tire
2. Drive onto the chain or drape it over the tire
3. Connect the ends using the fastening system (hook-and-link or pin couplers)
4. Adjust for proper tension

Front vs. Rear: What’s Best for Your Setup

• Maximum traction: Chains on all four wheels for difficult conditions
• Budget constraints: Prioritize rear wheels on 2WD tractors
• 4WD tractors: All four wheels perform best, but rear-only chains still deliver a meaningful improvement

Sizing Guide

Tire Size (R1/R4)	Recommended Chain Size	Common Application
16.9-30	11.2/12.4-36, 13.6-28	Mid-size farm tractors
12.4-24	12.4-24, 11.2-24	Compact utility tractors
18.4-38	18.4-38, 18.4-34	Large farm tractors
23×10.50-12	23×10.50-12, 22×11-10	Garden tractors, small UTVs

Price vs. Performance

Chains represent a real investment — basic ladder-style chains start around $66 per tire, while premium V-bar or diamond patterns can run up to $425 per tire, with complete large-tractor sets reaching $1,500 or more.

Despite the upfront cost, quality chains with proper care and storage can last decades. Pavement wears chains faster than snow use does, so surface type and frequency of use both affect lifespan. See also: which Kubota tire style works best with chains.

❓ Frequently Asked Questions

---

Key Takeaways

Match your chains to your actual conditions, not the biggest budget: ladder chains for general snow/mud, duo chains for extreme conditions, diamond chains for balanced all-around performance, V-bar for dedicated ice work. Whatever you choose, add tensioners — they’re cheap insurance on an expensive investment, and proper installation matters just as much as chain style.
