Last Updated: April 27, 2025
Is your reliable Kubota BX2380 suddenly refusing to start? Before calling expensive repair services, try these proven, budget-friendly solutions that have helped hundreds of owners get back to work quickly.
Understanding Kubota BX2380 Starting Problems

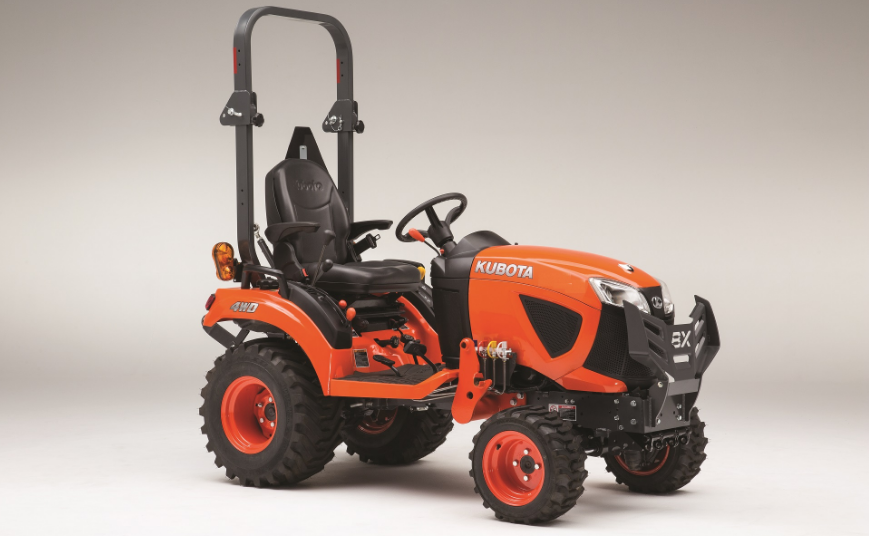

The Kubota BX2380 is known for its reliability, but even this workhorse can experience starting issues. Whether you’re dealing with a tractor that cranks but won’t fire up, strange error codes, or frustrating intermittent problems, this comprehensive guide will walk you through diagnostic steps and affordable fixes that have been field-tested by real Kubota owners.
Most starting problems stem from three key systems: electrical, fuel delivery, or mechanical components. By systematically troubleshooting each area, you can identify and resolve the issue without breaking the bank. Let’s dive into the warning signs that indicate which system might be failing.
Signs of a Failing Starting System
1Cranking Without Ignition
When your engine turns over but fails to start, you’re likely facing fuel delivery issues, air in the fuel lines, or faulty glow plugs. Many owners report cranking for extended periods before the engine sputters to life—a classic symptom of air trapped in the fuel system.
2Glow Plug Error Codes
Flashing indicator lights or Code 11 typically signal glow plug circuit malfunctions. These issues become more pronounced during cold weather operation. One BX2380 owner in Georgia solved persistent hard starting by simply replacing corroded glow plugs at just $15 each.
3Fuel Delivery Issues
Stalling, rough idling, or sudden shutdowns often point to fuel system problems. These can range from clogged filters to air leaks in fuel lines. In one notable case, a tractor with just 50 hours of operation stalled repeatedly due to a pinched fuel line—the simple fix was loosening the fuel cap to unblock the vent.
Fix #1: Battery Testing and Maintenance
Battery issues are among the most common and easily fixed starting problems. Before diving into more complex troubleshooting, always start with this simple check.
Complete Battery Diagnostic Process
Voltage Testing
Use a digital multimeter to check your battery’s health. A properly functioning battery should read 12.6V or higher when the engine is off. If the reading falls below 12V, your battery is likely failing and needs to be recharged or replaced. In one documented case, a dead battery caused a concerning “pop” sound and smoke, requiring an $80 replacement.
Terminal Inspection
Corroded or loose battery terminals can prevent sufficient current flow to the starter. Clean any corrosion with a wire brush and baking soda solution, then tighten all connections. A Kubota owner with a nearly new 19-hour-old tractor solved a no-start condition simply by tightening a loose starter wire connection.
WARNING: Always disconnect the negative (black) terminal first and reconnect it last to prevent short circuits. Wear protective gloves and eyewear when handling batteries.
Fix #2: Fuel System Troubleshooting
Fuel system issues account for approximately 40% of all starting problems in the BX2380. Air infiltration, clogged filters, and fuel delivery problems can all prevent your tractor from starting or cause it to run poorly.
Bleeding Air From Fuel Lines
- Turn the fuel valve to “Closed” position to prevent additional air from entering the system.
- Remove the fuel filter bowl and replace the filter element if it shows signs of contamination.
- Open the bleed screws located on the injection pump until fuel flows without bubbles.
- Tighten all connections and return the fuel valve to the “Open” position.
Filter Inspection and Replacement
Clogged fuel filters can restrict flow and prevent starting, especially in cold weather when diesel fuel can gel. Replace filters that show signs of contamination or as part of regular maintenance (typically every 200 hours). Filter replacements cost between $10-$20 and can resolve many starting issues. One owner solved persistent stalling problems by replacing a gel-clogged filter during a cold snap.
PRO TIP: For tractors used infrequently or stored for extended periods, add a fuel stabilizer to prevent gumming and contamination that can clog the fuel system.
Fix #3: Glow Plug Replacement
Glow plugs are critical for starting diesel engines, especially in cold weather. When they fail, starting becomes difficult or impossible. Fortunately, replacing them is straightforward and affordable.
Glow Plug Swap Guide
Tools Required:
- 10mm socket
- Torque wrench
- Wire brush for cleaning connections
- Anti-seize compound (recommended)
Replacement Steps:
- Disconnect the battery to prevent electrical shorts.
- Remove the manifold cover for better access to the glow plugs.
- Disconnect the electrical connections from each glow plug.
- Remove old glow plugs using a 10mm socket.
- Install new plugs and torque to 13-15 Nm as specified in the Kubota manual.
- Reconnect electrical terminals and reassemble removed components.
The cost for a set of glow plugs typically runs between $40-60 total, making this an affordable fix with significant impact.
Fix #4: Fuel Shutoff Solenoid Repair
A faulty fuel shutoff solenoid can prevent fuel flow to the engine, resulting in a no-start condition or sudden shutdowns. This issue has been documented even in nearly new tractors with very low hours.
Solenoid Testing and Replacement
In one documented case, a BX2380 with only 3.9 hours of operation experienced starting issues due to a faulty solenoid. The owner discovered that manually moving the solenoid lever allowed temporary starts, confirming the diagnosis. A replacement solenoid costs approximately $50 and can be installed in about an hour.
Temporary Workaround:
If you need to use your tractor immediately while waiting for parts, you can temporarily operate the fuel shutoff solenoid manually:
- Locate the solenoid on the injection pump.
- While cranking the engine, manually push the solenoid lever to the “on” position.
- Once the engine starts, the solenoid should remain in position.
Note: This is only a temporary solution. Replace the solenoid as soon as possible for proper operation and to prevent potential damage.
Fix #5: Safety Switch Troubleshooting
Modern tractors like the BX2380 feature multiple safety switches that can prevent starting if they malfunction or become misaligned. Understanding and testing these switches can often resolve mysterious starting issues.
Safety Switch Inspection and Testing
The BX2380 has several safety switches that must be properly engaged for the tractor to start, including:
- Seat safety switch
- PTO safety switch
- Transmission neutral switch
- Brake safety switch
In one case study, a tractor owner discovered that a bent PTO lever had misaligned the safety switch, causing intermittent stalling. The simple solution was to carefully realign the lever and adjust the switch position.
Testing Procedure:
To isolate a faulty safety switch:
- Ensure you’re seated on the tractor with the brake engaged.
- Check that the PTO is disengaged and the transmission is in neutral.
- If the tractor still won’t start, you can temporarily bypass individual switches for testing.
SAFETY WARNING: Safety switches exist to protect the operator. Never permanently bypass these switches. After testing, always restore all safety systems to their proper functioning state.
Real-World Success Stories
Electrical Fault Fixed
A 2022 BX2380 owner experienced persistent starting issues that dealer diagnostics couldn’t resolve. The problem was traced to a factory-defective wiring harness connection. Re-crimping the red wire at the relay solved the issue permanently at zero cost beyond basic tools.
Fuel Pump Replacement
After experiencing repeated stalling with just 50 hours on the meter, an owner diagnosed a failing fuel pump. Replacing the lift pump ($90) restored proper fuel pressure and eliminated all starting and running issues.
Air in Fuel System
Following operation on a steep hill, a BX2380 developed hard starting symptoms. The owner discovered air had entered the fuel lines due to low fuel level combined with the angle of operation. A simple fuel system bleeding procedure resolved the issue without any parts replacement.
Conclusion: Getting Your BX2380 Back to Work
Starting problems with your Kubota BX2380 don’t have to mean expensive repairs or downtime. By systematically working through these five affordable fixes, you can diagnose and resolve most starting issues for under $100:
- Battery testing and maintenance – Often the simplest solution
- Fuel system troubleshooting – Bleeding air and replacing filters
- Glow plug replacement – Critical for cold weather starting
- Fuel shutoff solenoid repair – An often overlooked component
- Safety switch inspection – Resolving electrical interlock issues
Remember that proper maintenance prevents many of these issues from developing in the first place. Regular filter changes, battery checks, and electrical system inspections can keep your tractor starting reliably for years to come.
Frequently Asked Questions
How do I test my BX2380’s battery?
Use a digital multimeter to check for 12.6V or higher. Clean terminals with a wire brush and tighten all connections. A voltage drop below 12V indicates a failing battery that needs charging or replacement.
Can a clogged fuel filter cause stalling?
Yes, restricted fuel flow from a clogged filter can cause stalling, rough idling, or prevent starting altogether. Replace filters annually or sooner if performance issues arise. Cold weather can cause diesel fuel to gel, further restricting flow through partially clogged filters.
What are symptoms of bad glow plugs?
Bad glow plugs typically cause extended cranking times in cold weather, flashing indicator lights, or Code 11 error messages. Replace glow plugs if resistance measurements exceed 1-2 ohms or if visual inspection shows corrosion or damage.
Where is the PTO safety switch located?
The PTO safety switch is located near the transmission, following the PTO lever linkage. Misalignment of this switch due to bent levers or mounting issues can prevent the tractor from starting or cause it to shut down unexpectedly during operation.
