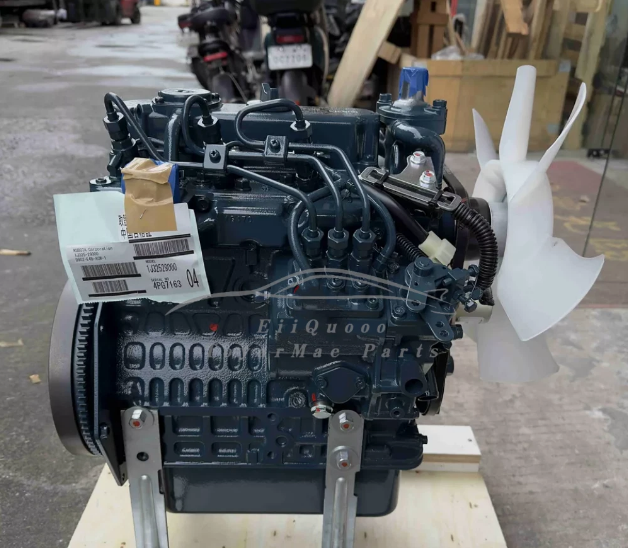

Kubota D902 Engine Rebuild: Complete Overhaul Guide

A Kubota D902 engine rebuild is a highly cost-effective way to extend engine lifespan, typically costing between $800-$1,200 DIY versus professional shop rebuilds exceeding $3,500. With proper OEM parts and careful assembly, you’ll regain like-new performance and reliability while protecting your investment.

This guide covers everything you need, from warning signs and part numbers to detailed rebuild steps and tool recommendations.

Low Compression: The Definitive Indicator

Compression tests are the most reliable way to diagnose engine wear. Normal reading should be at least 450 PSI per cylinder, with a 10% variance max. Cylinders below 325 PSI mean rebuild is urgent. For example, if one cylinder shows 120 PSI and others around 520 PSI, complete engine overhaul is necessary.

Excessive Oil Consumption & Blowby Smoke

Heavy blowby smoke from the crankcase or continuous oil top-ups (more than 1 quart per 50 operational hours) signal worn piston rings or cylinder walls. Look for “fog” from the blowby tube especially during warm-up.

Metallic Particles in Oil

Metal shavings detected in oil changes typically point to bearing or crankshaft journal wear and need immediate attention. Oil analysis that reports excessive metal contaminants confirms a pending failure if untreated.

• Piston Rings (Set of 3): 1G460-21050 (Standard size: 1.5mm × 1.5mm × 2mm/3mm thickness)
• Head Gasket: 1G962-03313 or 1G962-03310
• Full Engine Gasket Set: Includes all seals, O-rings, and gaskets for complete overhaul
• Main Bearings: Available in standard, +0.2mm, +0.4mm oversizes
• Connecting Rod Bearings: Standard sizes with oversize options (confirm with service manual)
• Valve Guides & Seats: For intake and exhaust valves. Air intake manifold cleaning or replacement
• Cylinder Liners (Semi-finished): Included in comprehensive rebuild kits

Tip: OEM rebuild kits bundle these parts for convenience and cost savings—approved by Kubota for guaranteed fit and durability. Fuel pump timing procedure

Phase 1: Engine Removal and Disassembly

1. Preparation: Take clear photos and label each hose, wire, and mounting point—this ensures easy reassembly accurately replicates original setup.
2. Fluid Drainage: Fully drain engine oil and coolant through service ports prior to removal.
3. Engine Removal: Follow Kubota’s removal guide for your specific equipment. Use an engine hoist to safely detach and transfer the engine to your workspace.
4. Disassembly: Begin removing ancillary parts including valve cover, intake/exhaust manifolds, fuel injectors, alternator, and starter. Keep fasteners organized.
5. Cylinder Head Removal: Note the torque sequence and carefully remove cylinder head bolts. Safely remove the head and place in a clean, designated area.
6. Oil Pan Removal: Remove oil pan bolts and inspect for debris or metal fragments that indicate wear.
7. Piston and Connecting Rod Removal: Take note of cylinder position; remove rods and pistons preserving orientation for reinstallation.
8. Crankshaft Extraction: Carefully slide out crankshaft; inspect journals and bearings for scoring or uneven wear.

Phase 2: Inspection and Machine Work

Critical measurements are the foundation of a successful rebuild. Use calibrated micrometers and dial bore gauges to:

• Measure cylinder bores for taper and out-of-round conditions.
• Check piston diameters and ring end gaps for wear.
• Verify crankshaft journal sizes; determine if undersize bearing shells or crank grinding is needed.
• Inspect cylinder head for cracks with magnaflux testing; milling may be required to restore flatness.

Machine shop notes: Cylinder boring and honing are essential for restoring proper clearances and surface finish. Grinding the crank and milling the head prevent premature failure and ensure optimal engine performance.

Phase 3: Reassembly Process

1. Component Cleaning: Thoroughly clean all engine parts and surfaces before assembly.
2. Piston Ring Installation: Fit new piston rings carefully, checking orientation. Use a ring compressor for installation.
3. Bearing and Crankshaft Assembly: Apply assembly lube, check bearing clearances using Plastigauge, and torque bolts to spec.
4. Cylinder Head Installation: Place a new head gasket, then reinstall head using Kubota’s torque sequence and torque angle procedure for head bolts.
5. Timing Gear and Chain Setup: Align camshaft, crankshaft gears, and timing chain marks to factory specs.
6. Ancillary Systems: Replace thermostat and housing, oil pump gears, and install all previously removed engine accessories.
7. Final Assembly and Testing: Reinstall engine into equipment, connect wiring and fuel lines, fill fluids, and perform pre-start checks.

• Ring Compressor: Enables efficient piston ring installation without damage.
• Torque Angle Gauge: Ensures precise cylinder head bolt torque for proper sealing.
• Plastigauge: Measures bearing clearances critical to crankshaft longevity.
• Compression Tester: Recommended minimum 600 PSI with Kubota-specific adapters.
• Micrometers & Dial Bore Gauges: For accurate measurement of cylinders, pistons, and journals.

• Use only genuine Kubota OEM parts: Avoid non-OEM bearings and “will fit” substitutes to maintain durability and warranty.
• Torque carefully and sequentially: Follow torque specs and tightening sequences exactly to avoid gasket leaks or bolt failures.
• Do not skip machine work: Cylinder boring, honing, and head milling prevent premature wear and noise.
• Document your rebuild: Take photos and notes during disassembly to ease reassembly and troubleshooting.
• Test thoroughly: Compression and leak-down testing during assembly verify sealing and part integrity.

Are all Kubota D902 rebuild kits compatible across models?

How long does a full rebuild typically take?

Can I reuse old parts during the rebuild?

Performing a careful Kubota D902 engine rebuild with quality parts, precise torque, and professional machining restores power, reliability, and significant cost savings compared to replacement.

Follow this step-by-step guide, and keep proper maintenance to maximize engine lifespan.
