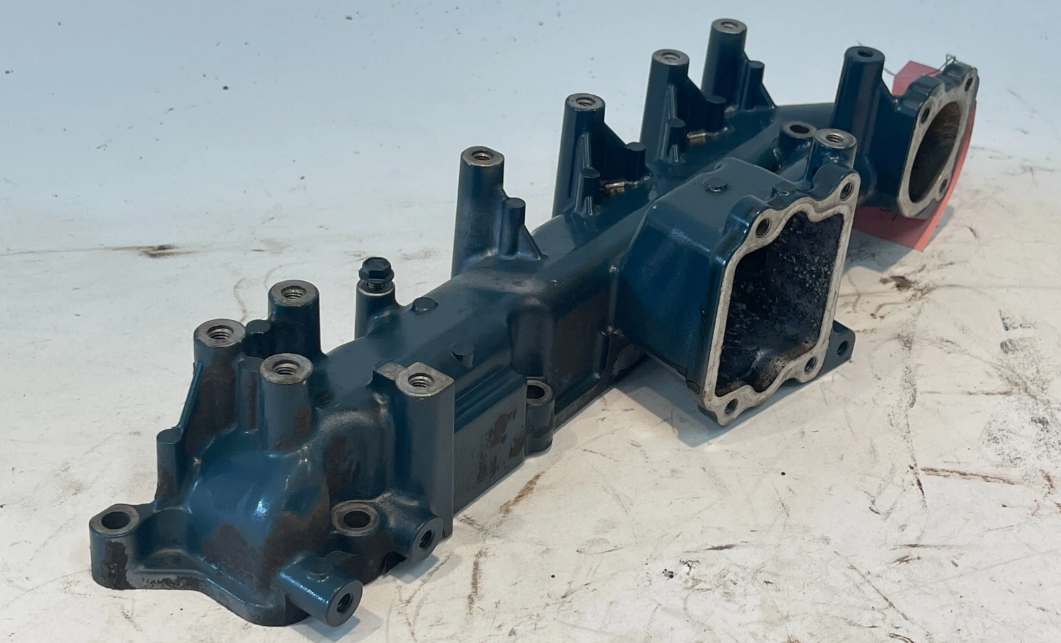

Kubota Engine Air Intake Manifold: Cleaning & Replacement

Why This Article Matters: The Kubota air intake manifold governs airflow to each cylinder, directly impacting combustion efficiency, emissions, and engine longevity. Proactive maintenance prevents performance loss and costly breakdowns.

Main Process Overview: Diagnose issues → Remove manifold → Clean carbon deposits → Prepare surfaces → Replace gasket → Reinstall with correct torque sequence → Perform post-service tests.

Expected Outcomes: Restored volumetric efficiency, smoother idle, improved fuel economy up to 10%, and prevention of vacuum leaks or misfires.

1.1 Function & Importance

The intake manifold channels filtered air from the air cleaner to each engine cylinder in precise proportions. Uniform airflow distribution maintains balanced combustion, reducing carbon formation and optimizing emissions control.

1.2 Common Failure Modes & Symptoms

• Carbon Buildup: Restricts airflow, causes rough idle, poor throttle response.
• Gasket Leaks: Vacuum loss leads to misfires, stalling, and RTV residue around joints.
• Cracked Housing: Visible hairline fractures from thermal cycling; coolant or oil seepage if manifold carries coolant.
• Warping: Uneven bolt torque or overheating can warp flange surfaces beyond 0.003″ tolerance, creating leak paths.

2.1 Visual Inspection

• Examine manifold exterior under bright light for cracks or corrosion.
• Inspect intake runners: dark carbon at narrow sections indicates heavy deposit build-up.
• Check gasket surfaces for old sealant residue or embedded debris.

2.2 Smoke & Pressure Testing

Use a smoke machine or introduce low-pressure compressed air (<5 psi) with soapy water on flange edges to detect leaks. Bubbles or escaping smoke pinpoint vacuum leaks.

2.3 Documentation & Labeling

• Photograph hose, sensor, and wiring connections before removal.
• Mark bolt locations by length using masking tape and marker.
• Record engine code and manifold part number (e.g., 17323-11180) for ordering correct replacements.

3.1 Safety Notice

3.2 Removal Tools & Prep

• Torque wrench (1–100 ft-lb range), socket set, extension bars
• Carburetor or intake cleaner, plastic scrapers, brass/nylon brushes
• Clean rags, container for small parts, thread chaser kit

3.3 Removal Steps

1. 1
   Remove intake ducting, air box, and filter element.
2. 2
   Label and disconnect sensors: MAP, IAT, throttle position.
3. 3
   Loosen manifold bolts: quarter-turn each in reverse of torque sequence.
4. 4
   Gently lift manifold, ensuring all hoses and wires are free.
5. 5
   Place manifold on clean bench and cap openings to prevent debris ingress.

4.1 Mechanical Cleaning Techniques

• Use plastic or nylon scrapers to remove thick carbon layers.
• Brass wire brushes for stubborn spots; avoid steel brushes on aluminum to prevent galling.
• Compressed air blow-out of runners; wear hearing protection.

4.2 Chemical & Ultrasonic Methods

• Soak manifold in carburetor cleaner or dedicated carbon solvent for 45–60 minutes.
• Rinse thoroughly; repeat if needed.
• Ultrasonic tank service recommended for internal passages; follow tank manufacturer settings.

4.3 Surface Inspection & Flatness Check

Place straightedge along mating surface; use feeler gauges. Maximum acceptable warp: 0.003″ per foot. If exceeded, send for professional resurfacing.

4.4 Thread & Bolt Hole Preparation

• Apply thread chaser and tap to clean bolt holes.
• Blow out debris with low-pressure air.
• Inspect for stripped or damaged threads; repair with helicoil inserts if necessary.

5.1 Choosing the Right Gasket

Use genuine Kubota gasket set (PN 17323-11190) including multi-layer steel gasket and necessary O-rings. Aftermarket alternatives may fit but can compromise seal longevity.

5.2 Dry-Fit & Sealant Application

5.3 Bolt Sequence & Torque Values

Follow multi-stage torque process to prevent warpage:

• Stage 1: Finger-tight + ¼ turn (~5–8 ft-lb).
• Stage 2: 50% of spec (12–15 ft-lb).
• Stage 3: Final spec (25 ft-lb for aluminum manifolds).
• Stage 4: Re-check after first heat cycle.

Typical Bolt Pattern (Cross-Hatch)

Start at center bolt, moving outward in an “X” pattern to evenly distribute clamping force.

Model-Specific Torque Reference

6.1 Leak & Performance Testing

• Re-run smoke or pressure test—no bubbles or smoke should escape.
• Start engine; monitor idle stability, RPM, and listen for hissing indicating leaks.
• Perform road-test under load; note throttle response and boost (if turbo-equipped).

6.2 Air Filter & Duct System

• Install new high-efficiency air filter; inspect pre-cleaner bowl for debris.
• Check duct clamps, silicone boots for tears; secure all hose clamps at 5–7 ft-lb.
• Ensure proper routing away from heat sources; secure harness with zip ties.

6.3 System Performance Metrics

Record pre- and post-service metrics for proactive maintenance tracking:

• Volumetric efficiency improvement (expected +5–10%).
• Fuel consumption reduction per hour of operation.
• Emission scan results (NOx/PM levels).

Background

A Kubota L5740 exhibited low power and black smoke after 1,200 hours. Initial smoke test revealed vacuum leak at runner 4.

Findings

• Carbon build-up in runners 2–5, reducing airflow by 30%.
• Warped flange at 0.006″ over length due to over-torque at previous service.
• Gasket material hardened and cracked at corners.

Remediation & Results

• Professional resurfacing of manifold reduced warp to <0.002″.
• Ultrasonic cleaning removed all carbon—verified by visual inspection.
• New OEM gasket and correct torque sequence restored efficiency to 96%.
• Fuel usage dropped by 8%, horsepower regained fully per dynamometer test.

Recommended Service Intervals

Early Warning Signs

• Rough idle or hesitation under load.
• Sudden drop in fuel economy (>5%).
• Visible soot or oil residue inside runners.
• Check Engine Light indicating MAP or MAF sensor anomalies.

Servicing the Kubota engine air intake manifold is critical to keep your equipment running at peak performance. By following a detailed inspection, cleaning, and reinstallation protocol—using proper tools, genuine parts, and precise torque values—you ensure optimal airflow, fuel efficiency, and engine longevity.

Final Recommendations: Adhere to service intervals based on operating environment, document each procedure step, and monitor performance metrics post-service. Stay up-to-date with official Kubota technical bulletins for model-specific nuances.

Q1: How can I tell if my intake manifold is warped?

Q2: What’s the advantage of ultrasonic cleaning?

Q3: Can I reuse the old gasket if it looks undamaged?

Q4: How do I prevent carbon build-up between services?
