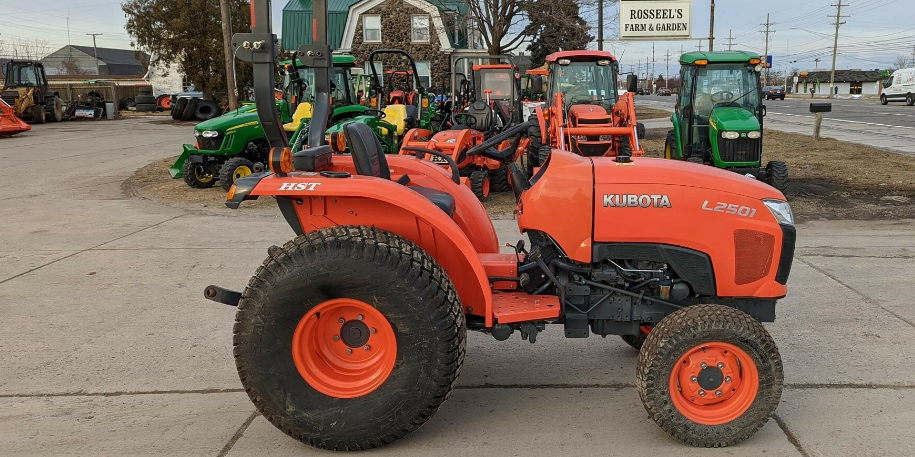

Performing the 100-hour service on your Kubota L2501 or L3301 yourself can save you over $300 while ensuring optimal performance and preventing costly repairs. Many tractor owners are intimidated by this maintenance interval, but with the right tools and knowledge, you can complete it in a single afternoon. This comprehensive guide combines Kubota’s official requirements with real-world DIY insights to help you maintain your tractor while keeping your warranty intact.

Required Tools

• Kubota filter wrench #TA040-59930 – This specialized wrench is mandatory for proper hydraulic filter removal. Using the wrong tool can damage the filter or make removal impossible.
• Infrared temperature gun – Essential for HST diagnostics ($25-$50 on Amazon). This affordable tool can prevent thousands in repair costs by catching overheating issues early.
• 24mm socket – For hydraulic and engine oil drain plugs
• Oil catch container – Minimum 6-quart capacity to handle the volume of fluids
• Clean shop rags – For cleanup and preventing contamination
• Torque wrench – For proper tightening of drain plugs and filters
• Grease gun – For lubricating zerk fittings

Necessary Parts & Fluids

• Hydraulic filter – Genuine Kubota part only (aftermarket filters may void warranty)
• Engine oil filter – HH164-32430
• Engine oil – 5.8 quarts (check manual for recommended grade)
• Super UDT2 hydraulic fluid – 3.7 quarts (accept no substitutes for this critical fluid)
• O-ring for suction screen – Part #TA040-59930
• Multi-purpose grease – For zerk fittings throughout the tractor

Hydraulic System Service

Engine Maintenance

• Change engine oil (5.8 quarts) – perform when engine is warm for better drainage
• Replace engine oil filter (HH164-32430) – apply thin film of oil to gasket before installation
• Check air filter and clean as needed (replace if heavily soiled)
• Inspect cooling system and radiator for debris or leaks
• Check all fluid levels (coolant, brake fluid, etc.)

Transmission Care

• Inspect HST cooling fan for debris and clean if necessary
• Test operating temperatures with infrared gun (target range: 140–160°F)
• Check for leaks around seals and fittings
• Inspect transmission fluid level (not typically changed at 100 hours)

Complete Lubrication

• Grease all 12 zerk fittings (loader pivots, 3-point hitch components, pedal linkages)
• Apply thin film of grease to exposed hydraulic cylinder rods to prevent corrosion
• Lubricate throttle and choke linkages as needed

⚠️ Important Warranty Note

To maintain your factory warranty while performing DIY maintenance:

• Use only genuine Kubota parts and fluids
• Keep detailed maintenance records with receipts for parts purchased
• Follow proper service procedures as outlined in your owner’s manual
• Do not modify any emissions-related components

Many Kubota owners have successfully claimed warranty repairs after providing proof of proper DIY maintenance. The key is documentation and proper procedures.

The hydraulic suction screen is a critical component that prevents debris from damaging your hydraulic pump. Proper cleaning ensures optimal hydraulic performance and extends the life of your system. This often-overlooked maintenance task can prevent thousands in repair costs.

Detailed Process:

1. 1
   Locate the hydraulic suction screen

   For L2501: Under the right-side floorboard
   For L3301: Behind the rear axle

2. 2
   Remove the screen carefully

   Use the proper size wrench and avoid dropping debris into the hydraulic system

3. 3
   Clean the screen thoroughly

   Use diesel fuel and a soft brush to remove debris (avoid scratching the screen surface)

4. 4
   Replace the O-ring

   Always use a new O-ring (part #TA040-59930) to prevent leaks

5. 5
   Reinstall and torque properly

   Torque to 18.4 lb-ft to ensure proper sealing without damage

Regular adherence to this maintenance schedule is crucial for maximizing your tractor’s lifespan and maintaining warranty coverage. Each interval builds upon the previous service to ensure all systems receive proper maintenance.

One of the most valuable tools in your maintenance arsenal is an infrared temperature gun. This inexpensive device can help identify potential HST (Hydrostatic Transmission) issues before they cause costly damage.

How to Use:

1. Run the tractor under normal load for 15-20 minutes to reach operating temperature
2. Point the infrared gun at the HST case in several locations
3. Record temperature readings (optimal range: 140–160°F)
4. Also check hydraulic pump housing temperatures

This simple diagnostic step can save thousands in repair costs by identifying problems early. Many HST failures begin with overheating that goes unnoticed until severe damage occurs.

Your Savings: $380 per 100-hour service interval

Over the lifetime of your tractor, DIY maintenance can save you thousands of dollars while ensuring your equipment receives the best possible care from someone who truly cares about its condition—you!

Summary: Key Takeaways

• DIY 100-hour service saves $300+ per interval while maintaining warranty coverage
• Using genuine Kubota parts and keeping detailed maintenance records is essential
• The hydraulic suction screen cleaning is a critical maintenance step often overlooked
• An infrared temperature gun is invaluable for preventative maintenance
• Following the manufacturer’s maintenance schedule ensures optimal performance and longevity

By performing your own 100-hour service on your Kubota L2501 or L3301, you not only save significant money but also gain valuable knowledge about your tractor’s systems and how to keep them running smoothly for years to come.
