The Kubota ZD1211 zero-turn mower delivers professional-grade performance for serious property owners and landscapers. This powerful machine requires specialized maintenance to maximize its lifespan and performance. Our comprehensive guide reveals field-tested procedures from experienced equipment owners and technicians, focusing on cost-effective DIY solutions that can save you over $140 per service interval compared to dealer costs. Whether you’re maintaining a large property or running a landscaping business, these proven techniques will help extend your machine’s lifespan while reducing maintenance expenses.
What You’ll Learn:
- The correct hydraulic oil specifications for your ZD1211
- Step-by-step deck belt replacement process with money-saving tips
- Professional blade maintenance techniques to extend component life
- Cost comparison between DIY and dealer service with real-world savings
Hydraulic Oil Specifications: Resolving the Confusion
One of the most confusing aspects of ZD1211 maintenance is the discrepancy between what the manual recommends and what dealers actually use for hydraulic oil. Let’s clear this up once and for all.
The Official Recommendation vs. Dealer Practice
The ZD1211’s manual specifically calls for SAE 10W30 gasoline engine oil (SH grade or higher) for gearboxes. However, many Kubota dealers use 80W90 gear oil during service, creating significant confusion among owners. This discrepancy has left many ZD1211 owners wondering which recommendation to follow for optimal performance and longevity.
Viscosity Considerations
When deciding between these oil options for your Kubota zero-turn mower, consider these important tradeoffs:
- 80W90 gear oil provides superior protection at high operating temperatures but may cause increased gear wear during cold starts, particularly in northern climates where spring and fall operations might begin with cooler temperatures
- 10W30 engine oil offers better cold-weather performance and faster circulation during startup but may thin out faster under extreme heat conditions during extended summer mowing sessions
Important Note About Oil Brands
Mixing oil brands is acceptable if the API service levels match (e.g., both are GL-5 rated). This gives you flexibility when purchasing supplies without compromising performance or warranty protection.
Fluid Change Protocol
- 1 Drain existing oil completely (ideally at ~180°F operating temperature for better flow)
- 2 No flush is needed when switching between approved viscosities
- 3 Refill slowly to prevent airlocks – the 12L capacity requires 15+ minutes to fill properly

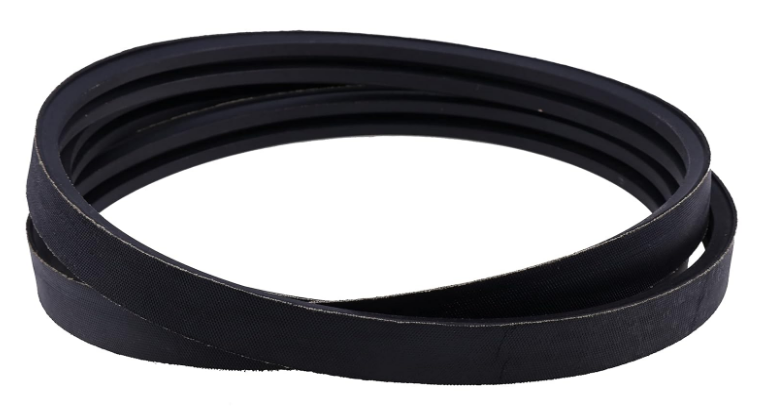

Deck Belt Replacement: Step-by-Step Guide
Access Preparation
- 1 Remove the floor plate (easily released with hand-tightened latch)
- 2 Label the existing belt routing with chalk before disassembly (take photos as backup)
Required Tools
- 14mm socket for gearbox bolts
- Impact driver (recommended for seized idler pulley springs)
- Chalk for marking belt routing
- Digital camera or smartphone for reference photos
Installation Tips
Belt Selection
Use Kevlar-reinforced aftermarket belts ($48) instead of OEM belts ($67) for comparable performance at significantly lower cost. These high-quality alternatives provide excellent durability for most residential and light commercial applications.
Tension Verification
Always check for proper 1/2″ deflection at the belt’s midpoint when installation is complete. Incorrect tension is the leading cause of premature belt failure. Too tight and you’ll strain bearings; too loose and you’ll experience slippage and reduced cutting performance.
Belt Alignment Warning
Pulley misalignment greater than 3° can reduce belt life by up to 40%. Take time to verify proper alignment during installation. This simple step can nearly double your belt’s service life.
Blade Maintenance System
Optimal Sharpening Schedule
For best performance with your Kubota ZD1211, sharpen blades every 25 acres mowed or approximately every 8 hours of runtime. This frequency might seem excessive compared to manufacturer recommendations, but experienced operators have found it significantly extends overall blade life while delivering a consistently superior cut quality.
Regular blade maintenance doesn’t just improve appearance—it reduces strain on your entire cutting system. Dull blades require more power to cut effectively, increasing fuel consumption and placing additional stress on belts, pulleys, and the engine itself.
Balancing Protocol
- 1 Straighten any bent blades using a 4-lb hammer on an anvil
- 2 Sharpen to a precise 30° edge angle using a bench grinder
- 3 Verify balance with a Laser Tachometer ($45) – aim for ≤5% RPM variance between blades
💡 Pro Tool Tip
A laser tachometer ($45) is worth the investment for blade speed calibration. This affordable tool helps ensure your blades are perfectly balanced, significantly extending component life while delivering a more even cut. Professional landscapers report up to 30% longer blade and spindle bearing life when implementing proper balancing techniques.
Check PriceCost Analysis: DIY vs. Dealer Service
| Service Component | DIY Cost | Dealer Quote | Savings |
|---|---|---|---|
| Belt Replacement | $48 | $180 | $132 |
| Blade Sharpening | $0 | $40 | $40 |
| Total | $48 | $220 | $172 |
* Savings assume existing tools; add $45 for tachometer (one-time purchase).
Real-World Savings: Ontario Farm Case Study
A ZD1211 owner in Ontario reduced annual maintenance costs by 63% (from $320 to $118) through:
- Biweekly blade sharpening (extended blade life from 1 to 3 seasons)
- Bulk 10W30 oil purchases ($12/L vs. dealer $19/L)
- Self-performed belt replacements using Kevlar-reinforced alternatives
“The most significant improvement came from the regular blade maintenance,” reports the owner. “Not only did my blades last longer, but I noticed less strain on the entire drive system.”
Critical Operational Warnings
Hydraulic Overfill Risks
Excess oil causes foaming and pump cavitation. Fill only to 3/4″ below the reservoir neck to prevent system damage. Many operators make the mistake of “topping off” the reservoir, which can lead to seal failures and reduced hydraulic performance.
Belt Misalignment
Pulley misalignment greater than 3° reduces belt life by 40%. Take time to verify proper alignment during installation. Use a straight edge to check alignment across multiple pulleys, and remember that even small misalignments compound over time.
Conclusion: Maximize Your ZD1211 Investment
By implementing these maintenance protocols, owners report 300+ hour increases in deck component lifespan compared to factory-recommended intervals. The combination of proper hydraulic oil selection, careful belt installation, and regular blade maintenance not only saves you significant money but also ensures your Kubota ZD1211 delivers years of reliable performance.
Preventative maintenance is always more cost-effective than repairs. By addressing these three critical service areas—hydraulic oil, deck belts, and blade maintenance—you’re targeting the components most prone to premature failure.
The key takeaway? With just a few specialized tools and the right knowledge, you can maintain your Kubota zero-turn mower at professional standards while saving over $140 per service interval. These savings add up significantly over the lifespan of a well-maintained ZD1211.
