Kubota B2301 Problems: 7 Most Common Issues & Fixes

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

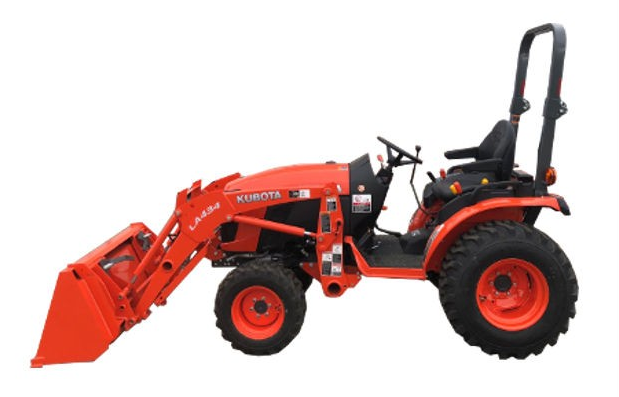

The Kubota B2301 is a simple, capable compact tractor powered by the naturally aspirated D1005-E4 diesel — no DPF, no EGR, no DEF required. The standout B2301 complaint is loader and 3-point hitch hydraulic problems after service or a low-fluid event — the compact hydraulic system is sensitive to fluid level, filter condition, and hose routing. Key specs: D1005-E4 engine, 16.4 gross HP, 13.0 PTO HP, 3-range HST transmission, non-emissions Tier 4 Final.

✅ Good News — No DPF, No EGR, No DEF

Unlike the Grand L and M series tractors, the B2301 uses a simple non-DPF diesel engine. No regeneration cycles, no emissions warnings, no DEF fluid to manage. This makes the B2301 one of the most straightforward Kubota compact tractors to own and maintain. The engine uses standard API-rated diesel oil — just stay on the service schedule and it will run reliably for years.

B2301 Problems — Quick Reference Table

Problem	Severity	DIY Difficulty	DIY Cost	Dealer Cost
No-start / hard start	Medium	Easy	$20–$180	$180–$650
Loader hydraulics weak / erratic	High	Easy–Medium	$35–$350	$250–$1,200
3-point hitch problems	High	Easy–Medium	$40–$450	$250–$1,300
HST transmission weak / jerky	Medium	Easy–Medium	$50–$400	$300–$1,500
Fuel starvation / stalling	Medium	Easy	$15–$140	$150–$700
Engine overheating	Medium	Easy	$15–$180	$180–$900
Hydraulic leaks / damaged filter	Medium	Easy	$20–$250	$200–$900

The Kubota B2301 is one of the most straightforward compact tractors in the Kubota lineup — a simple naturally aspirated diesel with no DPF, no EGR, and no DEF to worry about. At 16.4 gross HP with a 3-range HST transmission it’s built for property owners who need a capable compact machine for loader work, mowing, and light implements.

The B2301’s most reported issues center on loader and 3-point hitch hydraulic behavior — particularly after service or a low-fluid event. The compact hydraulic system is sensitive to fluid level, filter condition, and hose routing in a way that larger tractors are not. This guide covers all 7 most common B2301 problems with confirmed part numbers, step-by-step diagnostics, and honest dealer vs. DIY cost comparisons.

Problem #1 — No-Start and Hard Start Issues

Symptoms

Turns over but won’t start — engine cranks normally but won’t fire
Intermittent cranking — starts sometimes but not others
Fuel pump doesn’t seem to prime on key-on
Tractor acts dead except for lights — electrical issue suspected

Root Causes

Weak or failing battery — most common cause
Corroded or loose battery terminals and ground connections
Blown fuse or faulty safety switch — seat, PTO, or brake
Air in fuel system from running low or running empty
Clogged fuel filter restricting delivery
Fuel shutoff solenoid or relay fault

📋 No-Start Diagnosis — Work in This Order

Test battery voltage — must be above 12.6V static, load test for cranking capacity
Clean battery terminals and all ground connections with wire brush
Check all fuses and inspect seat, brake, and PTO safety switches
Turn key to ON — listen for fuel shutoff solenoid click and fuel prime
Check fuel filter bowl — should fill with fuel within seconds of key-on
Bleed fuel system if air is suspected — especially after running empty
Replace fuel filter if service interval is unknown

See our Kubota Won’t Start Guide and Kubota Safety Switch Guide. DIY cost: $20–$180. Dealer cost: $180–$650.

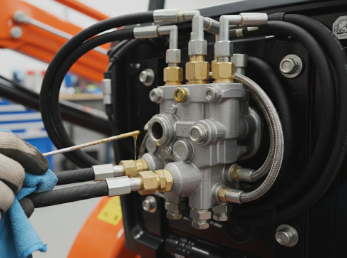

Problem #2 — Loader Hydraulics Weak or Erratic

⚠️ B2301 Signature Problem: Loader and 3-point hitch hydraulic problems after service or a low-fluid event are the most consistently reported B2301-specific complaints. The compact hydraulic system is particularly sensitive to fluid level, filter condition, and correct hose routing in a way that larger tractors are not.

Symptoms

Loader won’t lift as it should — only raises slightly
Bucket lifts slowly or with jerky motion
Hydraulics slow after cold start — improves as oil warms
Acts like power beyond is blocked or restricted

Root Causes

Low hydraulic/transmission fluid — most common cause
Clogged hydraulic filter HH670-37710
Loader hoses routed incorrectly after service
Air trapped in hydraulic circuit
Sticking control valve or relief valve
Worn hydraulic pump in high-hour machines

Check Fluid Level

Check combined sump on level ground. Total capacity 4.0 US gal. Top off with Super UDT2 only. Low fluid is the single most common loader weakness cause on the B2301.

Replace Filter

Replace hydraulic filter HH670-37710 if service history is unknown. Clogged filter starves the entire hydraulic circuit on this compact system.

Check Hose Routing

Verify power-beyond and loader hoses are correctly positioned after any recent service. Incorrect routing is a common post-service cause of loader weakness.

See our Kubota Loader Won’t Lift Guide. DIY cost: $35–$350. Dealer cost: $250–$1,200.

🔧 Recommended Parts — Hydraulic & Engine Filters

Engine Oil Filter HH150-32094 (fits B2301) — View on Amazon →
Hydraulic Filter HH670-37710 (fits B2301) — View on Amazon →
HST Filter HH660-36060 (fits B2301) — View on Amazon →
Kubota Super UDT2 Transmission/Hydraulic Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — 3-Point Hitch Problems

Symptoms

3PH won’t lower — implement stays raised
3PH stopped working — no response to lever input
Hitch moves sluggishly or gets stuck mid-travel
Works intermittently — sometimes fine, sometimes not

Root Causes

Low hydraulic/transmission fluid — same sump as loader
Dirty hydraulic filter or suction restriction
Loader/power-beyond configuration interfering with 3PH circuit
Control linkage disconnected or misadjusted
Stuck spool valve or internal binding
Water contamination or rust in lift cylinder area

💡 B2301 Hydraulic Tip

On the B2301 the loader and 3-point hitch share the same hydraulic circuit. If both functions are affected simultaneously — check fluid level and filter first. If only the 3PH is affected while the loader works normally — the issue is more likely in the 3PH control linkage or spool valve rather than the main hydraulic system.

DIY Fix

Fill fluid to correct level and replace filters. Verify power-beyond loop and remote connections are correctly positioned. Inspect control linkage from lever to valve for disconnection or misadjustment. See our Kubota 3-Point Hitch Guide. DIY cost: $40–$450. Dealer cost: $250–$1,300.

Problem #4 — HST Transmission Weak or Jerky

Symptoms

Tractor doesn’t move like it should — sluggish response
Loss of speed or power under load
Jerky pedal response — surges or hesitates
Creeps or bogs when climbing slopes or pushing material

Root Causes

Low or incorrect hydraulic/transmission fluid
Dirty HST filter HH660-36060
Air in system after service or low-fluid event
Worn pedal linkage causing imprecise HST input
Internal HST wear in high-hour machines

Fluid First

Check combined sump level. Use Super UDT2 only — never generic hydraulic fluid. Wrong fluid specification causes HST performance issues.

HST Filter

Replace HST filter HH660-36060 per schedule. This separate filter is often overlooked at service time and causes HST sluggishness.

Linkage Check

Inspect HST pedal linkage for wear or misadjustment. Worn linkage causes imprecise input and the jerky pedal response owners describe.

See our Kubota HST Transmission Guide. DIY cost: $50–$400. Dealer cost: $300–$1,500.

Problem #5 — Fuel Starvation and Stalling

Symptoms

Tractor runs for a while then dies — restarts after cooling down
Fuel filter bowl never stays full — empties between runs
Hesitation under load — engine bogs then recovers
Hard to restart after stalling — fuel system needs bleeding

Root Causes

Clogged fuel filter 6A320-59930
Water or contamination in fuel tank
Air leak on suction side of fuel system
Tank vent restriction preventing fuel flow
Weak fuel shutoff solenoid

✅ Fuel System Quick Checks

Drain fuel sample into clear jar — look for water layer at bottom
Replace fuel filter 6A320-59930 if age is unknown
Check all fuel hose clamps for tightness — air leaks on suction side cause stalling
Verify tank vent is open and unobstructed
Bleed fuel system fully after any filter replacement

See our Kubota Fuel System Bleeding Guide. DIY cost: $15–$140. Dealer cost: $150–$700.

🔧 Recommended Parts — Fuel & Air Filters

Fuel Filter 6A320-59930 (fits B2301) — View on Amazon →
Air Filter Kit 6C060-99410 + 32721-58242 (primary + secondary combo) — View on Amazon →
Shell Rotella T6 5W-40 Full Synthetic — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #6 — Engine Overheating

Symptoms

Temperature gauge rises under sustained load — mowing or loader work
Coolant pushes out of overflow tank
Engine runs hot specifically in dusty or high-chaff conditions
Problem improves when tractor is slowed or stopped

Root Causes

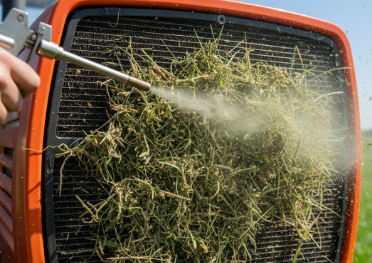

Dirty radiator screen or clogged fins — most common cause on compact tractors
Low coolant level — check reservoir and radiator
Loose or slipping fan belt reducing airflow
Bad radiator cap losing pressure
Stuck thermostat

💡 B2301 Tip: Kubota’s maintenance guide specifically emphasizes daily radiator screen cleaning on compact B-series tractors — this is a clue that screen debris is a known frequent issue. In mowing and dusty conditions clean the radiator screen every 8-10 hours of operation. This single habit prevents the majority of B2301 overheating complaints.

DIY Fix

Blow out radiator screen and fins with compressed air. Check coolant level — capacity 4.0 US qt with recovery tank — refill with long-life ethylene glycol 50/50. Check fan belt tension. Replace thermostat if stuck. See our Kubota Overheating Guide. DIY cost: $15–$180. Dealer cost: $180–$900.

Problem #7 — Hydraulic Leaks and Damaged Filter

Symptoms

Hydraulic oil visible on ground under tractor
Oil level keeps dropping between services
Hydraulic filter visibly damaged or dented
Leaks appearing after recent service — filter or drain plug

Root Causes

Impact damage to exposed hydraulic filter from debris or low-clearance obstacles
Loose or cross-threaded filter from improper service
Damaged O-ring or sealing surface
Loose drain plug
Hose seepage or fitting leak

⚠️ B2301 Filter Location Warning

The B2301’s hydraulic filter location has low ground clearance and is exposed to impact from rocks, stumps, and debris during field work. This is a documented issue — one owner video specifically shows a hydraulic filter being smashed by field debris. Be aware of filter location when operating in rough terrain and inspect after any impact event.

DIY Fix

Clean the area completely to identify the exact leak point. Replace damaged filter HH670-37710 immediately. Replace sealing washers and O-rings. Tighten fittings to spec without over-torquing. Refill lost fluid and recheck level after cycling hydraulics. DIY cost: $20–$250. Dealer cost: $200–$900.

🔧 Recommended Tools — Diagnostics

OBD2 Diesel Scan Tool — reads B2301 fault codes — View on Amazon →
Kubota 4-Pin OBD Adapter — required for B2301 connection — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

B2301 OEM Part Numbers Reference

Component	OEM Part Number	Notes
Engine Oil Filter	HH150-32094	D1005-E4 specific — change every 200 hrs
Fuel Filter	6A320-59930	Replace every 400 hrs
Primary Air Filter	6C060-99410	Clean every 100 hrs, replace annually
Secondary Air Filter	32721-58242	Never clean — replace annually
Hydraulic Filter	HH670-37710	Replace at 50 hrs initial then every 400 hrs
HST Filter	HH660-36060	Replace at 50 hrs initial then every 200 hrs
Hydraulic/Transmission Fluid	Super UDT2	Combined sump 4.0 US gal — change every 400 hrs

Always confirm part numbers by model and serial number at Kubota’s official parts lookup.

B2301 Fluid Capacities and Specifications

System	Capacity	Fluid Spec	Change Interval
Engine Oil	3.3 US qt with filter	SAE 30, 10W-30, or 15W-40 — verify for ambient temp	50 hrs initial, then 200 hrs
Engine Coolant	4.0 US qt with recovery tank	Long-life ethylene glycol 50/50	Every 2 years
Transmission/Hydraulic (combined)	4.0 US gal / 15L	Kubota Super UDT2	50 hrs initial, then 400 hrs
Front Axle Case	3.7 US qt / 3.5L	SAE 80W-90 gear oil	Every 400 hrs

B2301 vs B2601 — Problems and Reliability

Category	B2301	B2601
Engine	D1005-E4 — 16.4 gross HP	D1105-E4 — 19.0 gross HP
PTO Power	13.0 HP	14.5 HP
DPF System	None — simple diesel ✅	None — simple diesel ✅
Common complaints	Hydraulics, 3PH, fuel delivery, starting	Similar — more power headroom reduces strain complaints
Reliability	Strong — simple proven platform	Similar — slightly better power headroom
Better buy	Lower cost — light duty chores	Better value if loader/PTO work is regular

B2301 Dealer vs DIY Cost Comparison

Repair	DIY Cost	Dealer Cost	Savings
Battery + no-start service	$20–$180	$180–$650	$160–$470
Hydraulic fluid + filter service	$35–$350	$250–$1,200	$215–$850
HST fluid + filter service	$50–$400	$300–$1,500	$250–$1,100
Fuel filter + bleeding	$15–$140	$150–$700	$135–$560
Radiator clean + coolant flush	$15–$180	$180–$900	$165–$720
Hydraulic filter replacement	$20–$250	$200–$900	$180–$650

Based on typical U.S. dealer rates of $100–$150/hr. Use our Tractor Repair vs Replace Calculator for major decisions.

B2301 Maintenance Schedule

Interval	Service Items
50 Hours	Change engine oil and filter • Change transmission/hydraulic filters • Change front axle case oil • Check and grease all fittings • Check wheel bolt torque • Check battery condition
100 Hours	Check battery electrolyte • Clean primary air filter element • Clean fuel filter element • Adjust fan belt tension • Adjust brakes • Check fuel lines
200 Hours	Change engine oil and filter • Service transmission/hydraulic filters • Adjust front axle pivot • Check radiator hoses and clamps • Check intake air line • Adjust toe-in
400 Hours	Replace hydraulic filter • Change transmission fluid • Change front axle case oil • Replace fuel filter element
800 Hours	Engine valve clearance adjustment — dealer recommended
Annual / 2 Years	Replace primary air filter — annually or after 6 cleanings • Replace secondary air filter — annually • Replace radiator hoses, fuel lines if needed — every 2 years • Change coolant — every 2 years

🔧 Complete B2301 Service Kit — All Filters

Engine Oil Filter HH150-32094 — View on Amazon →
Fuel Filter 6A320-59930 — View on Amazon →
Air Filter Kit 6C060-99410 + 32721-58242 — View on Amazon →
Hydraulic Filter HH670-37710 — View on Amazon →
HST Filter HH660-36060 — View on Amazon →
Kubota Super UDT2 Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions — Kubota B2301 Problems

Does the B2301 have a DPF or require DEF fluid?

No — the B2301 is one of the most straightforward Kubota compact tractors to own because it uses a simple naturally aspirated D1005-E4 diesel with no DPF, no EGR, and no DEF fluid required. There are no regeneration cycles to manage and no emissions warning lights to worry about. Just stay on the oil and filter change schedule.

Why is my B2301 loader not lifting properly?

Loader weakness on the B2301 is almost always caused by low fluid, a clogged hydraulic filter, or incorrect hose routing after service. Check the combined transmission/hydraulic sump level first on level ground — this is the most common fix. If fluid is correct, replace hydraulic filter HH670-37710 and verify all loader hoses are correctly positioned. The B2301’s compact hydraulic system is particularly sensitive to these factors.

What hydraulic fluid does the B2301 use?

Kubota Super UDT2 is the specified fluid for the B2301 combined transmission and hydraulic sump. The total capacity is 4.0 US gallons. Change at 50 hours initially then every 400 hours. The transmission oil also serves as the hydraulic fluid on the B2301 — they share the same sump. Never use generic hydraulic fluid as a substitute.

B2301 vs B2601 — which should I buy?

For most buyers the B2601 is the better buy if the price difference is modest — the extra 2.6 horsepower from the D1105 engine gives noticeably more flexibility with loader and PTO work. The B2301 is the right choice if you want the same compact chassis at lower cost and your tasks are primarily light-duty property maintenance. Both are simple non-DPF tractors with identical service requirements. See our B2601 Problems Guide.

How often should I change the HST filter on the B2301?

The B2301 has a separate HST filter HH660-36060 that should be changed at 50 hours initially then every 200 hours. This is separate from the main hydraulic filter HH670-37710. The HST filter is frequently overlooked at service time — skipping it is one of the most common causes of HST sluggishness and jerky pedal response on the B2301.

Is the Kubota B2301 a reliable tractor?

Yes — the B2301 has an excellent reliability reputation as a simple compact tractor. The absence of DPF, EGR, and DEF systems makes it one of the most straightforward Kubotas to own and maintain. Most reported problems are maintenance-related — low fluid, overdue filters, or fuel system neglect — rather than design failures. Owners who stay on the service schedule consistently report trouble-free operation well past 1,000 hours.

What engine oil does the B2301 use?

The B2301 engine oil capacity is 3.3 US quarts with filter. Use SAE 30, 10W-30, or 15W-40 depending on ambient temperature — check the operator manual viscosity chart for your climate. Change engine oil and filter at 50 hours initially then every 200 hours. Note that the B2301 manual specifically states CJ-4 rated oil should NOT be used — this oil is designed for DPF engines and is incompatible with the B2301’s non-DPF engine.

Related Kubota B Series Guides

Kubota B2601 Problems Guide →

Same platform, bigger engine — complete B2601 troubleshooting

Kubota B2650 Problems Guide →

B series upgrade — complete B2650 troubleshooting

Kubota B3350 Problems Guide →

Top of B series — complete B3350 troubleshooting

Kubota Loader Won’t Lift Guide →

Complete loader hydraulic diagnosis for all B series

Kubota 3-Point Hitch Guide →

Complete 3PH troubleshooting for all compact models

Kubota Won’t Start Guide →

Complete no-start diagnosis for all Kubota models

The Kubota B2301 is one of the most straightforward compact tractors to own — no DPF, no EGR, no DEF, and a proven simple diesel that responds well to basic maintenance. Keep fluid levels correct, change the HST and hydraulic filters on schedule, clean the radiator screen regularly, and this tractor will deliver reliable service for years. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
