Kubota diesel won’t start cold? If you’ve battled frozen mornings, turned the key, and been met with silence or agonizing slow cranking, you’re not alone. Cold starting problems are one of the most common issues Kubota owners face every winter — and the good news is that 90% of them trace back to just a handful of fixable causes.

In this expanded guide we cover exactly why Kubota diesels struggle in cold weather, 8 proven fixes ranked by likelihood, model-specific advice for BX, B, L, and M series owners, a visual troubleshooting decision tree, and everything you need to prep your tractor before the next freeze hits.


Why Kubota Diesels Struggle in Cold Weather

Unlike gasoline engines that rely on spark plugs, Kubota diesel engines ignite fuel through heat generated by compressing air. At normal temperatures this works brilliantly — but once temps drop, compressed air doesn’t reach the heat threshold needed to reliably ignite diesel on its own. That’s why glow plugs exist: they pre-heat each cylinder so ignition happens even when the block is cold.

Cold weather attacks your Kubota from multiple directions at once. Your battery loses up to 60% of its cranking power at 0°F. Your engine oil thickens and creates more drag on the starter. Your HST hydraulic fluid stiffens to the consistency of molasses. Your diesel fuel begins forming wax crystals that clog filters. And marginal glow plugs that worked fine last spring suddenly can’t heat cold cylinders fast enough. Any one of these is manageable — all of them together is why Kubota owners call for help on January mornings.

💡 The Cold Start Reality:

Kubota compact and utility diesels are generally reliable cold starters when fuel, glow plugs, battery, and hydraulic fluid are all in spec. Problems show up below about 20°F when any one of those systems is marginal. The fix is almost always systematic — not expensive.

Temperature Cold Start Risk Required Action
Above 40°F Low Normal glow cycle, starts easily
20°F to 40°F Moderate Full glow cycle essential, winterized fuel recommended
0°F to 20°F High Extended glow cycle, anti-gel additive, block heater strongly recommended
Below 0°F Critical Block heater required, winter fuel blend, battery pre-check, multiple glow cycles

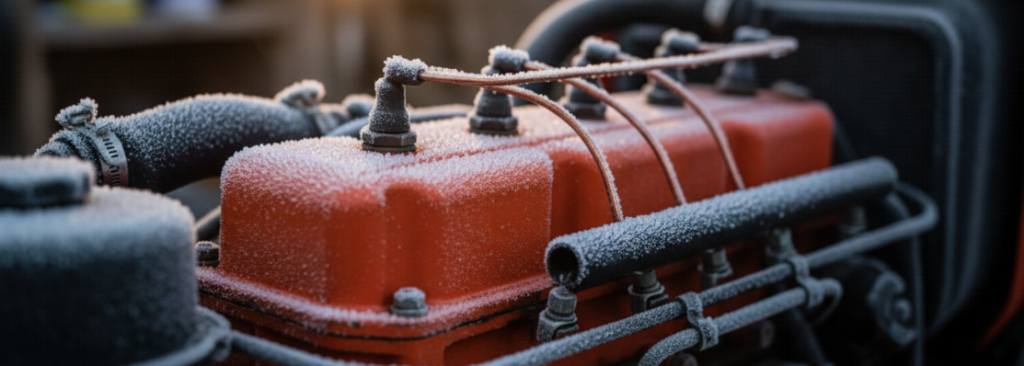

Kubota diesel engine compartment cold morning

Cold also hits your HST transmission hard. Super UDT2 hydraulic fluid — shared between your transmission, hydraulics, and rear differential — thickens dramatically below freezing. At -20°F it can reach viscosities that make the entire system feel “frozen” even after the engine starts. This is normal behavior, not a mechanical failure, but it means you must warm up before applying any load. We cover model-specific HST behavior in detail below.

Engine oil viscosity matters too. If you’re running 15W-40 year-round, that oil becomes significantly thicker in deep cold, increasing the drag on your starter and slowing crank speed below what’s needed for good compression heat. Switching to a 5W-40 full synthetic in winter dramatically reduces this drag — more on that in the solutions below.

8 Fixes That Work: Ranked by Likelihood

These fixes are ordered by how often they solve the problem. Start at #1 and work your way down — most cold start issues are resolved by fix #1 or #2.

1

Test Your Battery & Charging System First

Cold weather is brutal on batteries. At 32°F a lead-acid battery loses about 35% of its cranking power. At 0°F it loses up to 60%. That means a 600 CCA battery that tested fine in October might only deliver 240 effective CCA on a January morning — and that’s not enough to spin a cold diesel fast enough for reliable ignition.

BX series tractors come stock with approximately 560 CCA batteries — which owners consistently describe as “just adequate” in cold climates. L and M series need even more. Always load-test your battery before winter, not just check voltage. A battery showing 12.6V can still fail a load test. Clean terminals with baking soda paste, apply dielectric grease, and verify your alternator delivers 13.6–14.2V at idle under load. If your battery is more than 3 years old and you’re in a cold climate, replace it now — not after it fails at 5am.

2

Inspect & Test Your Glow Plugs

Glow plugs are miniature electric heaters that pre-heat each cylinder before cranking. When they work correctly, a Kubota diesel fires quickly even in moderate cold. When one or more are weak or dead, the affected cylinders stay cold, ignition is erratic, and you get extended cranking, white smoke, and rough running until the engine warms itself up.

How to test with a multimeter: Key off, disconnect the common power bus or individual leads from glow plug terminals so each plug is isolated. Set your digital multimeter to the low ohms range (0–20Ω). Touch the black lead to a clean engine ground and the red lead to each glow plug terminal in turn. A good Kubota compact glow plug reads approximately 1.0–1.1Ω cold. A weak plug reads noticeably higher (2–4Ω while others read ~1Ω). A dead plug shows infinite resistance (OL on your meter) or a dead short at 0Ω. If one plug is out of spec, replace the full set — mismatched plugs mean uneven cylinder heating.

Kubota doesn’t publish a strict replacement interval for glow plugs — they’re serviced “as required” when testing shows degradation or cold-start quality drops. In practice, most compact owners get several seasons before needing replacement. See our full glow plug testing and replacement guide for detailed procedures by model.

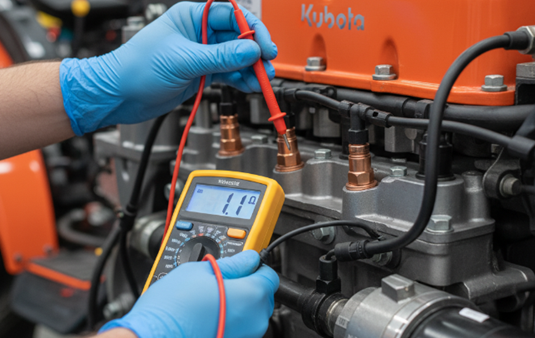

Kubota glow plug terminal

3

Bleed the Fuel System

Air pockets in the fuel system prevent the injection pump from maintaining consistent pressure, causing “cranks but won’t fire” symptoms that are frustrating to diagnose because everything looks fine externally. Air enters the system after filter changes, when lines develop small cracks, or when the tractor sits unused for extended periods.

Bleeding procedure: Start at the primary fuel filter bleed screw, loosen it slightly, and pump the manual primer lever (if equipped) until fuel flows with no bubbles. Move to the secondary filter and repeat. Finish at the injection pump inlet. On many newer Kubotas, cycling the key to the “ON” position (not start) and waiting 30 seconds activates an electric lift pump that self-bleeds the system. If yours has this feature, try three key cycles before manual bleeding. After every winter filter change, bleed the system as standard practice. See our complete fuel system bleeding guide for model-specific steps.

4

Change Fuel Filters Before Winter

A clogged or partially plugged fuel filter restricts flow enough to cause hard starting even when fuel, glow plugs, and battery are all fine. Cold makes this worse — diesel wax crystals accumulate in filters faster than in warm weather, and a filter that was “okay” in October can plug solid by January.

Change both primary and secondary fuel filters every fall as part of your winter prep. Always pre-fill the new filter with clean diesel before installing to minimize air introduction. Replace the O-rings and make sure the seal is tight — even a small air leak at the filter housing creates the kind of air ingestion that causes hard starts. Operators in Michigan, Minnesota, and Alaska report filters freezing solid when temps dip below 15°F — don’t give a marginal filter the chance to fail on you mid-winter.

5

Check Fuel Lines & Lift Pump

Cracked or brittle fuel lines may not visibly drip fuel but allow air to be sucked into the system overnight. Shine a flashlight along every line and gently flex rubber sections to check for hidden fissures, especially near clamp ends where lines are most stressed. Lines harden with age and cold accelerates cracking.

Test your lift pump by cracking the line at the injection pump inlet and cranking briefly to verify strong fuel flow. If flow is weak or you see bubbles, the pump or a line upstream is the culprit. Cold-weather fuel pump issues are often actually fuel restriction — gelling or a clogged filter starving the pump — so rule those out first before condemning a pump. Summer fuel sitting for months without stabilizer additive also loses cold resistance and clouds at warmer temperatures than fresh winter blend fuel.

6

Use Winter Fuel & Anti-Gel Additives

Standard #2 ULSD diesel begins forming wax crystals and gelling around 10–15°F depending on formulation. Once that happens, filters plug and fuel stops flowing — no amount of cranking will start the engine. The fix is always prevention, not cure. Switch to a winter fuel blend (#1/#2 mix) available at most fuel stations in cold climates from November through March, and treat every tank with a quality anti-gel additive.

For dosing, use approximately 1 oz of anti-gel per 3–5 gallons under normal winter conditions, increasing to 1 oz per 1–2 gallons in extreme cold below 0°F — follow your specific product’s label. If you’re already gelled, a de-gel rescue formula can help dissolve wax crystals, but you’ll still need to warm the fuel system and replace plugged filters. For kerosene blending, a 10–20% kerosene cut with #2 diesel is a common field practice in sub-zero climates — it lowers the gelling point meaningfully — but don’t exceed 30% as it reduces fuel lubricity and can accelerate injection pump wear over time.

7

Use Full Glow Plug Cycles — Don’t Rush It

The most common rookie cold-start mistake is turning the key to start too quickly. Glow plugs need time to heat the cylinders, and that time increases significantly as temperatures drop. At 30°F, 8–15 seconds of glow time is typical for BX and B series. At single digit temperatures, 15–30 seconds per cycle is normal — and you may need two or three full cycles before cranking.

On L series tractors tested at -18°F in real-world conditions, holding the key through three automatic preheat cycles (approximately 30–45 seconds total) was required before the engine fired cleanly. In extreme sub-zero weather, some experienced operators hold the preheat switch while cranking to keep cylinders hot during the start attempt — check your operator manual before trying this on your specific model. The glow indicator light on your dash is a guide, not a guarantee: always wait the full cycle time in cold weather even if the light goes out faster than expected.

8

Add a Block Heater

A block heater is the single most effective cold-start upgrade you can make. By keeping coolant warm overnight, the entire engine block enters the morning at a manageable temperature rather than dead cold — dramatically reducing the glow plug time needed, the battery drain from cranking, and white smoke from incomplete combustion.

Most Kubota compact and utility tractors use 400W block or frost-plug heaters. At 0°F, plug in 2–3 hours before startup. At -10°F to -20°F, allow 3–4 hours. Below -20°F, many operators leave the heater running continuously on a timer. If your tractor doesn’t have a dedicated block port, a lower radiator hose heater is an excellent alternative — it heats the entire coolant circuit through convection. Pair your heater with an outdoor-rated heavy duty timer so you don’t have to remember to plug in at 3am. See our complete block heater installation guide for step-by-step instructions.

🚜
Free Tool
Kubota Coolant Mix Calculator
Cold weather coolant mix matters. Get exact antifreeze & distilled water amounts for your Kubota model — includes freeze and boilover protection readouts.

Use Calculator →

Model-Specific Cold Start Guide

Cold start behavior varies meaningfully across Kubota series. Here’s what to know for your specific tractor.

four Kubota tractors

BX Series (BX1880, BX2380, BX23S)

The BX series uses the smallest batteries in the Kubota lineup — approximately 560 CCA stock on BX2380 and BX2680 class tractors. In mild climates this is fine. In climates that regularly drop below 0°F, most experienced BX owners upsize to 650+ CCA when replacing. The compact engine compartment limits how large a battery you can fit, so verify BCI group dimensions before purchasing.

Glow cycle times at 30°F are typically 8–15 seconds; at single digits expect 15–30 seconds. The BX’s primary cold-weather weakness beyond the battery is HST fluid stiffness — loader and hydraulic response will be very sluggish until Super UDT2 warms up, even when the engine starts fine. Always let a BX idle 10–15 minutes before operating the loader in cold weather.

⚠️ BX Cold Weather Tip:

If you run a BX in temps regularly below 0°F, consider upgrading to Super UDT2 at your next fluid change if you’re still running conventional UDT. Super UDT2 has significantly lower low-temperature viscosity and will dramatically improve cold hydraulic response.

B Series (B2601, B2650)

B series tractors share similar battery specs to the BX class — mid-500 CCA from the factory, with cold-climate owners often opting for 650–700+ CCA replacements. A properly maintained B series will start reliably down to around 0°F with adequate preheat and winterized fuel. Glow times of 4–8 seconds at 50°F and 10–15 seconds at 30°F are normal; longer times and rough running on cold mornings point to glow plug degradation.

The most common B series cold start complaints are marginal glow plugs requiring excessively long preheat and extended white smoke — both pointing to plugs that are weak but not yet dead. Because the engine starts eventually, owners often ignore this until it gets worse. Test your plugs in the fall while you still have time to replace them before winter hits.

L Series (L2501, L3301, L3901)

L series owners in cold climates frequently report the engine starts fine but the tractor feels “frozen” — hydraulics and HST nearly unresponsive for the first 10–20 minutes. This is almost always normal HST fluid behavior, not a mechanical fault. At -20°F the hydraulic system can feel locked until fluid warms. L series machines must be idled and lightly cycled before any real work — moving loaded buckets or engaging heavy ground engagement tools on a cold L series hydraulic system risks cavitation and pump damage.

L series glow cycles in extreme cold are longer than compact models: a real-world dealer test of an L3301 at -18°F required three full automatic preheat cycles (approximately 30–45 total seconds) before the engine fired cleanly. The Kubota HST transmission fluid guide covers fluid specs and upgrade options in detail. L series seat safety switches are also notably prone to cold-weather stalling — covered in the safety switch section below. See our L6060 troubleshooting guide.

M Series (M5060, M7060)

M series utility tractors run significantly larger engines and require proportionally more battery — 800–1000+ CCA is the practical minimum for reliable cold starts in deep cold without a block heater. OEM batteries on these machines are often on the light side for severe cold climates. A block heater is nearly mandatory on M series tractors operated below 0°F regularly.

Tier 4 M series tractors with DPF and DEF systems add cold-weather complexity. DEF freezes at approximately 12°F, but the system includes heaters that automatically thaw DEF after startup — this is normal and won’t prevent starting. The bigger M series cold issue is the glow plug control module and ignition switch. Multiple M7060 owners have reported hard start or no-start conditions at 10°F even with correct fuel and a block heater — traced to glow plug circuit faults. If your M series cranks strongly but won’t fire in cold, the glow system (not the glow plugs themselves) is the first place to look.

Cold Weather Troubleshooting Decision Tree

Use this to quickly identify which system is causing your cold start problem. Different symptoms point to different root causes.

🔧 A: Engine cranks but won’t fire

→ Check glow plugs first. Test each plug with a multimeter (target ~1.0–1.1Ω). Also verify the glow indicator on your dash is lighting and holding for a full cycle — on some M series, a faulty glow control module prevents the plugs from heating even if the plugs themselves are good.

→ Then check fuel. Confirm you’re running winter blend or treated diesel. Inspect primary and secondary filters for wax plugging. If the engine idles but dies under load, suspect partial gelling restricting fuel flow rather than a complete no-start.

→ Then check battery crank speed. A marginal battery may spin the engine but too slowly for adequate compression heat. At 0°F a 600 CCA battery may only deliver ~240 effective CCA.

🔧 B: Tractor won’t crank at all

→ Check safety switches first. This is the most commonly overlooked cause of cold no-crank. Seat, PTO, and brake/neutral switches are all susceptible to cold-weather failure — see the safety switch section below.

→ Then check battery and cables. Verify voltage and load test capacity. Clean and tighten all terminal connections — cold exacerbates any resistance from corrosion or loose connections.

→ Then check starter circuit. Verify voltage is reaching the starter solenoid when the key is turned. On M series, a faulty ignition switch has been the culprit in documented cold no-crank cases.

🔧 C: Tractor starts then immediately dies

→ Seat safety switch. L series tractors in particular develop a pattern where cold causes the seat switch to momentarily open when you press the throttle or release the brake, cutting the engine. If the tractor runs but dies when you move a control, this is likely the cause.

→ Fuel restriction. The engine may start on fuel already in the injection lines and filters, then die as gelled fuel or an iced filter restricts further flow. Check and replace filters, warm the fuel system.

🔧 D: Tractor cranks very slowly

→ Battery capacity. At 0°F a standard lead-acid battery delivers only ~40% of its rated CCA. An aging battery that was marginal anyway will crank extremely slowly. Load test and upsize if needed.

→ Oil viscosity drag. Thick engine oil significantly increases cranking resistance in deep cold. Switching to 5W-40 full synthetic for winter reduces this drag and improves crank speed.

→ Starter health. If crank speed remains slow despite a strong battery and correct oil, have the starter current draw tested for internal wear.

Safety Switch Cold Weather Failures

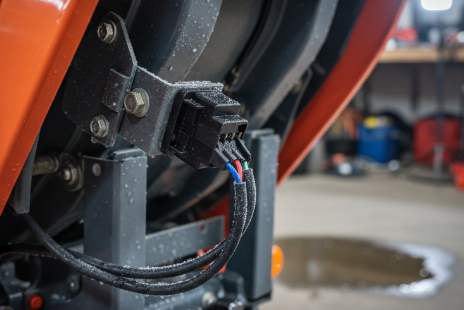

Kubota tractor seat safety switch

Safety switches are one of the most underdiagnosed causes of cold-weather no-start and stall problems. Because operators rarely think of safety switches when diagnosing a “won’t start in cold” complaint, they often chase fuel and glow plug issues for hours before finding the real cause.

The seat safety switch is the most common cold-weather offender. Water gets into the seat foam and seat switch mechanism during fall operation, then freezes in winter — locking the switch plunger so it can’t register operator presence. The tractor won’t crank, or starts then stalls when you shift your weight or press the throttle. L3x02 owners have specifically reported seat switches that freeze and don’t engage even with a person clearly seated.

Brake/neutral and PTO switches are susceptible for different reasons. Cold causes plastic and metal components to contract slightly, reducing mechanical travel. Any switch that’s marginally adjusted in warm weather may drop out of spec entirely in cold. Grease in linkages stiffens, preventing full actuator movement. The result is intermittent no-crank or unexpected engine stall that seems to improve as the machine warms up.

✅ Quick Safety Switch Diagnosis:

Sit heavily in the seat and press down firmly before cranking. If the tractor starts when you do this but not normally, the seat switch is the culprit. For PTO and neutral switches, work the levers through their full range while attempting to start. Disconnect the switch connector and test continuity through full mechanical travel — it should clearly switch between open and closed with a distinct click. For temporary diagnostic purposes only, owners confirm switch failure by jumpering the connector with a wire to simulate switch closure — never leave a safety switch permanently bypassed. See our full Kubota safety switch guide for diagnostic procedures.

🔧 Recommended Parts & Products

Glow Plug System

Battery & Electrical

Fuel System — Cold Weather

Engine Oil & Hydraulic Fluid

Block Heater & Cold Start Aids

Diagnostic Tools

⚠️ Affiliate Disclosure: We may earn a commission from qualifying purchases through these links at no extra cost to you. We only recommend products we trust.

Pro Winter Preparation Tips

  • Keep tanks topped up — reduces condensation and water accumulation in fuel, which ices filters and creates microbial growth during storage.
  • Store under cover — minimizes frost and ice on air intakes, keeps the block warmer overnight, and reduces moisture intrusion into electrical components.
  • Switch to 5W-40 synthetic for winter — dramatically reduces cold cranking drag vs 15W-40 conventional, especially below 20°F.
  • Idle 10–15 minutes before load — gives Super UDT2 time to thin and warm so hydraulics respond normally and you don’t risk pump cavitation.
  • Pre-treat fuel before the first freeze — don’t wait until filters gel. Add anti-gel while fuel is still warm and liquid.
  • Use a battery tender all winter — a fully charged battery has significantly more effective CCA than a partially discharged one.
  • Cycle loader and 3-point lightly before heavy work — move controls through their range several times at low throttle to circulate warm fluid before applying full load.
  • Test glow plugs every fall — 5 minutes with a multimeter in October is better than a no-start in January.

Frequently Asked Questions

Q
Why does my Kubota need glow plugs below 40°F?

Diesel ignition depends on heat generated by air compression. At cold temperatures the compressed air doesn’t reach the threshold temperature needed to reliably ignite diesel on its own. Glow plugs are electric heaters installed in each cylinder that pre-heat the combustion chamber so ignition happens even when the engine block is cold. A gasoline engine has a spark plug that fires regardless of temperature — diesel has no equivalent, so the glow system is essential for cold starting below about 40°F.

Q
What fuel additives work best for Kubota in winter?

Power Service Diesel Fuel Supplement is the most widely recommended by Kubota owners for prevention — it raises cetane, improves cold flow, and prevents gelling. Howes Diesel Treat is a strong alternative with no alcohol formula that won’t harm seals. If you’re already gelled, Power Service Diesel 911 is the go-to rescue product. For extreme cold below -20°F, Stanadyne Performance Formula offers the highest cetane boost combined with cold flow improvement. Always treat fuel while it’s still liquid — de-gelling is much harder than prevention.

Q
Can I use a space heater to warm my Kubota?

It’s possible but carries fire risk if placed near fuel lines, hoses, or plastic components. A proper block heater or lower radiator hose heater is far safer and more effective because it heats the coolant directly from inside the engine. If you must use a space heater, keep it away from all fuel system components, never leave it unattended, and use a unit rated for enclosed spaces. A block heater installed properly will outperform any external heat source at a fraction of the fire risk.

Q
How long should I warm up my Kubota before working?

At temperatures between 20–32°F, a 10-minute idle at low-to-mid throttle is sufficient for most work. Below 20°F, extend to 15 minutes minimum. Below 0°F, allow 20+ minutes and lightly cycle all hydraulic functions — loader up and down, 3-point up and down — several times before applying any real load. The goal isn’t just warming the engine, it’s warming the Super UDT2 hydraulic fluid enough that it flows freely through the system without causing pump cavitation or sluggish control response.

Q
My Kubota starts fine in summer but struggles below 20°F — what’s first?

Test your glow plugs with a multimeter first — this is responsible for the majority of “fine in warm, struggles in cold” complaints. Plugs that are weak but not dead will often start the tractor in summer without issue because compression heat alone is nearly sufficient. Below 20°F that margin disappears and the weak plugs can’t compensate. If glow plugs test good, check battery CCA — cold reduces effective capacity significantly and a 3-year-old battery that still starts fine in fall may deliver poor results at 15°F.

Q
How do I know if my HST fluid is too thick for cold weather operation?

The telltale signs are very sluggish or nearly non-responsive hydraulics and HST travel immediately after a cold start, combined with normal engine idle and no fault codes. Hydraulic response that gradually improves over 10–20 minutes as the tractor warms up is a classic thick-fluid signature. If hydraulics remain slow after 20+ minutes of running, or if you hear whining or cavitation sounds from the pump, the issue may be mechanical rather than just viscosity. Check your fluid type — if you’re running conventional UDT rather than Super UDT2, upgrading at your next fluid change will noticeably improve cold-weather response. See our HST transmission fluid guide for details.

📚 Related Guides

🔌
Kubota Glow Plug Problems: Test & Replace
Step-by-step multimeter testing and replacement guide for all Kubota series.

View Guide →

🔋
Kubota Battery Replacement Guide
CCA requirements, group sizes, and AGM vs flooded options by model.

View Guide →

🪑
Kubota Safety Switch Problems: Bypass, Test & Replace
Diagnose seat, PTO, and neutral switch failures causing no-crank and stall.

View Guide →

Kubota Fuel System Bleeding Guide
Remove air bubbles in 10 minutes — step-by-step for BX, B, L, and M series.

View Guide →

🛢️
Kubota HST Transmission Fluid Guide
UDT vs Super UDT2 — cold weather performance, specs, and Amazon alternatives.

View Guide →

🔥
Kubota Block Heater Installation Guide
Install a block heater step-by-step for reliable cold morning starts.

View Guide →

Kubota MX5400 Problems Guide

Complete troubleshooting for MX5400 owners

Conclusion

When your Kubota diesel won’t start cold, the root cause is almost always one of three things: a weak battery that cold has robbed of cranking power, a glow plug system that can’t heat cold cylinders fast enough, or untreated diesel that’s waxing up in your filters. Work through the 8 fixes in order and you’ll find the problem.

For model-specific situations — BX owners dealing with stiff hydraulics, L series operators seeing seat switch stalls, M series owners fighting DPF cold starts — the expanded sections above give you the specific data points and procedures you need. Don’t forget the complete Kubota maintenance guide for your full service schedule including all cold-weather prep items.

Kubota tractors are built for tough conditions. With the right winter prep — fresh filters, treated fuel, tested glow plugs, a strong battery, and a block heater on a timer — your tractor will fire up reliably on the coldest mornings of the year. Treat these as seasonal rituals, not emergency repairs, and cold mornings become routine rather than something to dread.
