⚡ Quick Answer

Kubota oil pressure warning light or low pressure is most commonly caused by a faulty oil pressure sensor, low oil level, or clogged oil pickup screen — not a failed oil pump. Use this pattern to diagnose fast: install a mechanical gauge first — if it reads normal, the sensor is faulty. Pressure low when cold and hot = pump or pickup screen. Pressure normal cold, drops when hot = bearing wear. Stop engine immediately when the warning light activates — the light triggers at 7–10 PSI which is already dangerously low. Applies to BX, B, L and M series.

⚠️ Stop Engine Immediately — Oil Pressure Warning Light

The Kubota oil pressure warning light activates at approximately 7–10 PSI — this is already dangerously low. Even brief operation at this pressure level scores bearing surfaces and journal surfaces that cannot be recovered without machining. When the light activates:

Stop engine immediately — do not drive or work the tractor to a service location
Check oil level — top up if low before any further diagnosis
Cut open the used oil filter — metal particles in the filter confirm bearing damage has already begun
Install mechanical gauge before restarting — confirm real pressure versus sensor fault

Kubota Oil Pressure Problems — Quick Reference Table

Cause	Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Faulty oil pressure sensor	Light on, mechanical gauge normal	Easy	$15–$40	$150–$300
Low oil level	All conditions, check dipstick first	Easy	$10–$30	$100–$200
Clogged oil pickup screen	Consistent low pressure all temps	Medium	$30–$80	$200–$400
Bearing wear	Normal cold, drops hot	Not DIY	Dealer only	$1,500–$4,000
Camshaft plug failure (B series)	Intermittent low pressure	Medium	$20–$60	$200–$500
Oil pump failure	Consistent low all temps, all RPM	Hard	$200–$600	$600–$1,200
Oil relief valve stuck open	Low pressure despite good pump	Medium	$30–$100	$200–$500

🔎 Kubota Oil Pressure Specifications — Know These First

Condition	Normal Range	Problem Threshold
Cold idle startup	40–70 PSI	Below 30 PSI
Warm idle	10–20 PSI minimum	Below 10 PSI — stop immediately
Operating RPM	30–65 PSI	Below 20 PSI at operating RPM
Warning light activation	N/A	7–10 PSI — already dangerous

Kubota oil pressure problems send owners into a panic — and rightfully so. Low oil pressure is one of the few engine conditions that can cause catastrophic irreversible damage within minutes of continued operation. But the most important thing to know before spending any money is this: most Kubota oil pressure warning lights are caused by a faulty $15–$40 sensor, not a failed oil pump. Always confirm with a mechanical gauge before replacing any parts.

This guide covers all 7 causes in order of likelihood with the diagnostic patterns that identify each one, confirmed OEM part numbers, step-by-step procedures, and real-world case studies from BX, B, L and M series owners.

Problem #1 — Faulty Oil Pressure Sensor (Check First)

⚠️ Always Confirm with Mechanical Gauge First: A faulty oil pressure sensor is the most common cause of Kubota oil pressure warning lights — it costs $15–$40 to replace versus $400+ for unnecessary pump replacement. The sensor reads falsely low or erratically, triggering the warning light when actual oil pressure is completely normal. A $30 mechanical gauge installed in the sensor port takes 10 minutes and definitively confirms whether the problem is real or just a bad sensor.

Symptoms

Oil pressure warning light on — mechanical gauge reads normal pressure
Warning light flickers intermittently rather than staying solid
Oil visible on exterior of sensor body — sensor seal failed
Problem appeared after recent service — sensor connector disturbed
Wiring connector corroded at sensor — L3200 false alarm case study: loose fan-to-water pump bolt caused metallic knocking but pressure gauge read completely normal — external mechanical cause, not oil pressure

📋 Mechanical Gauge Test — 10 Minutes

Locate oil pressure switch — typically above or near starter motor on most Kubota models
Remove switch — disconnect electrical connector, remove switch with 1 inch or 27mm wrench
Install mechanical gauge — 0–100 PSI gauge with 1/8 NPT thread. Apply Teflon thread sealant to gauge fitting threads
Start engine and read — cold idle should read 40–70 PSI. Warm idle minimum 10–20 PSI
If gauge reads normal — sensor is faulty. Replace sensor, reinstall with thread sealant, torque to 15–20 ft-lbs
If gauge reads low — proceed to Problems 2–7 for real pressure diagnosis

🔩 Oil Pressure Sensor OEM Part Numbers

15471-39010 — standard sensor, fits D1105, D1305, V1505, V1902, V2403
15841-39010 — alternative for specific engine models
15531-39010 — alternative for specific engine models
Torque spec: 15–20 ft-lbs with Teflon thread sealant on threads

See our Kubota Oil Change Interval Guide. DIY cost: $15–$40. Dealer cost: $150–$300.

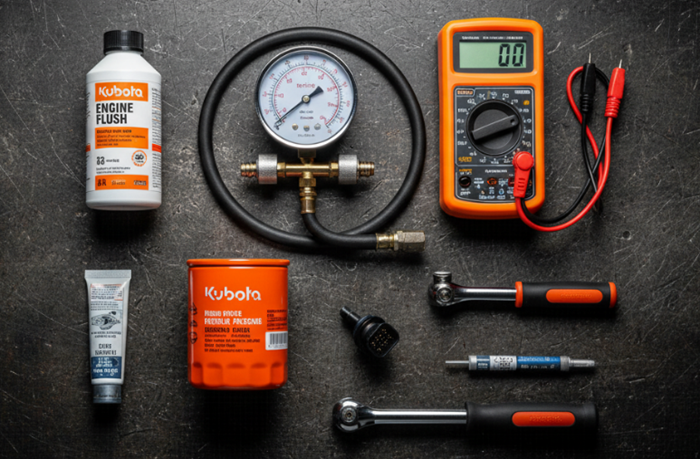

🔧 Recommended Tools — Oil Pressure Diagnosis

Mechanical Oil Pressure Gauge 0–100 PSI 1/8 NPT — essential first step before replacing any parts — View on Amazon →
Digital Multimeter — test sensor wiring and electrical connections — View on Amazon →
Teflon Thread Sealant — apply to sensor threads on reinstall — View on Amazon →
Torque Wrench — correct 15–20 ft-lbs prevents leaks — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #2 — Low Oil Level

Symptoms

Oil pressure warning light on — dipstick below minimum mark
Light appears during hard cornering or on steep slopes — oil pickup starving momentarily
Gradual oil consumption over weeks — slow external leak or normal burn
Never check dipstick before startup — most common reason for missed low oil

✓ Fix: Top up with correct oil to full mark on dipstick. Check daily before startup — takes 30 seconds. If oil level drops more than 1 quart between 50-hour service intervals investigate the source — check for external leaks at drain plug, filter, valve cover, and front crankshaft seal. Blue exhaust smoke accompanying oil loss indicates internal oil consumption from rings or valve seals.

See our Kubota Oil Type Guide and Kubota Oil Capacity Guide. DIY cost: $10–$30. Dealer cost: $100–$200.

Problem #3 — Clogged Oil Pickup Screen

⚠️ Most Overlooked Cause: A clogged oil pickup screen starves the pump of oil and causes pressure drops that perfectly mimic pump failure — always check the screen before replacing the pump. The pickup screen sits inside the oil pan and collects sludge and varnish from neglected oil changes. Many owners pay for pump replacement only to find the new pump delivers the same low pressure because the screen is still blocked.

Symptoms

Consistent low pressure at all temperatures — both cold and hot
High-hour machine with history of extended oil change intervals
Sludge visible in oil pan when drained
Low pressure persists after pump replacement — screen still blocked

📋 Fix: Remove oil pan, inspect and clean pickup screen thoroughly with solvent and compressed air. While pan is off, inspect pump gear clearances — worn gears show visible scoring and measure outside factory tolerance of approximately 0.003–0.006 inches. Run diesel engine flush treatment before the next oil change to clear gallery varnish that caused the screen blockage.

See our Kubota Oil Filter Guide. DIY cost: $30–$80. Dealer cost: $200–$400.

Problem #4 — Bearing Wear (Classic Hot-Drop Pattern)

⚠️ Most Serious Wear Pattern — Do Not Ignore: Pressure normal cold and dropping dangerously low when hot is the classic bearing wear signature. A V1505 owner with 5,000+ hours reported startup pressure of 75 PSI dropping below 20 PSI as the engine warmed, eventually triggering shutdown. Oil analysis confirmed metal contamination — bearing inspection and oil pump replacement restored function. This pattern requires immediate attention before total bearing failure.

Symptoms

Pressure reads 50–75 PSI cold — drops below 15 PSI at warm idle
Metal particles in oil filter when cut open — confirms bearing damage
Engine knocking or metallic sounds especially at idle or load changes
High-hour machine — 2,000+ hours with no bearing service history
Increased crankcase pressure from breather tube

Root Causes

Main or rod bearing wear — worn clearances allow oil to escape faster than pump maintains pressure
Hot oil thins and flows through worn clearances at rates a healthy pump cannot overcome
Neglected oil changes accelerating bearing wear with contaminated oil

💡 Oil Filter Inspection: Cut open the used oil filter with tin snips and unfold the element. Run your fingers through the pleats feeling for metallic particles. Shiny metal flakes or grit confirms bearing damage is already occurring. Send an oil sample for analysis to confirm metal type and concentration before committing to a rebuild.

See our Kubota Engine Knocking Guide and Kubota Engine Rebuild Guide. DIY cost: Dealer only. Dealer cost: $1,500–$4,000.

Problem #5 — Camshaft Plug Failure (B Series Specific)

Symptoms

B series specific — B7100, B series older models most commonly affected
Intermittent low pressure rather than consistent pattern
Oil pressure warning light at idle and higher RPM simultaneously
Mechanical gauge showing abnormally low pressure — approximately 3 PSI in confirmed B7100 case
Knocking or noise that disappears after plug repair

Root Cause

Original aluminum camshaft plugs in older B series engines develop holes or loosen over time, creating an internal pressure leak path that bypasses the oil circuit. One B7100 owner confirmed this — mechanical gauge showed 3 PSI, camshaft plug had two punctured holes. Replacing with steel plug and high-temperature thread locker restored normal pressure immediately.

🔩 Camshaft Plug Repair

Replacement part: 15261-96880 — steel plug (replace aluminum with steel)
Install with: high-temperature thread locker — prevents future loosening
Alternative repair: drill and tap gear case to install plug with minimal disassembly — control metal chip contamination carefully
Models affected: Older B series — B7100, B6100, B7200 and similar

DIY cost: $20–$60. Dealer cost: $200–$500.

Problem #6 — Oil Relief Valve Stuck Open

Symptoms

Low pressure despite pump testing within spec
Intermittent pressure — sometimes normal, sometimes low at same temperature
Pressure improves after oil flush treatment — debris was holding valve open

Root Causes

Debris or varnish holding relief valve partially open — most common cause
Weak relief valve spring from age
Worn valve seat allowing bypass at lower pressure than factory setting

✓ Fix: Run a diesel engine flush treatment at idle for 10–15 minutes before an oil change — this dissolves varnish deposits holding the valve open. Remove oil pan to access relief valve, inspect valve seat and spring condition. Relief valve setting is factory preset and non-adjustable — replace as an assembly if valve seat is worn or spring is weak. Never run engine flush beyond 15 minutes or under load.

DIY cost: $30–$100. Dealer cost: $200–$500.

Problem #7 — Oil Pump Failure (Diagnose Last)

⚠️ Diagnose Last — After All Other Causes Ruled Out: True oil pump failure is less common than sensor faults, low oil level, pickup screen blockage, bearing wear, camshaft plugs, or relief valve issues. Only reach pump failure diagnosis after mechanical gauge confirms real low pressure AND all other causes have been ruled out. Many owners pay for pump replacement when a $15 sensor or blocked pickup screen was the actual cause.

Symptoms

Consistently low pressure at all temperatures and all RPM
Pressure does not improve with RPM increase — pump cannot build pressure
All other causes confirmed normal — sensor good, oil level good, pickup screen clean
High-hour machine with no pump service history and known history of contaminated oil

🔩 Oil Pump OEM Part Numbers

15471-35010 — standard pump
15471-35012 — updated version
15471-35013 — superseding part number
Engine fitment: V2403, V2203, V1902, V1903, V1702, D1102, D1302, D1402
Gear clearance spec: 0.003–0.006 inches — outside this range confirms pump wear

See our Kubota Oil Pressure Guide and Complete Kubota Maintenance Guide. DIY cost: $200–$600. Dealer cost: $600–$1,200.

🔧 Recommended Products — Oil System Service

Diesel Engine Flush Treatment — clear gallery varnish and relief valve deposits — View on Amazon →
Oil Filter HH164-32430 2-Pack — fits L2501, L3301, L3901, M4700, MX4700 — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases. Always perform oil and filter change immediately after engine flush — never run flush beyond 15 minutes at idle.

Kubota Oil Pressure Technical Specifications

Specification	Value
Cold idle oil pressure	40–70 PSI
Warm idle minimum	10–20 PSI
Operating RPM pressure range	30–65 PSI
Warning light activation	7–10 PSI
Pressure sensor torque	15–20 ft-lbs with Teflon sealant
Oil pump gear clearance spec	0.003–0.006 inches
Relief valve setting	Factory preset — non-adjustable
Oil change interval	Every 200 hours or annually — initial change at 50 hours

Dealer vs DIY Cost Comparison — Kubota Oil Pressure

Repair	DIY Cost	Dealer Cost	Savings
Mechanical gauge test	$30 gauge	$150–$250 diagnostic	$120–$220
Oil pressure sensor replacement	$15–$40	$150–$300	$135–$260
Pickup screen clean + oil flush	$30–$80	$200–$400	$170–$320
Camshaft plug (B series)	$20–$60	$200–$500	$180–$440
Oil pump replacement	$200–$600	$600–$1,200	$400–$600
Bearing replacement / rebuild	Dealer only	$1,500–$4,000	Dealer only

Based on typical U.S. dealer rates of $120–$180/hr. Use our Tractor Repair vs Replace Calculator for major repair decisions.

🚜 Kubota engine knocking? See our complete Kubota Engine Knocking Guide — 7 causes with injector isolation test, bearing specs and OEM part numbers for L, B and M series.

Frequently Asked Questions — Kubota Oil Pressure Problems

What are the most common causes of low oil pressure in Kubota engines?

The most common cause is a faulty oil pressure sensor giving a false reading — always confirm with a mechanical gauge before replacing any parts. After confirming real low pressure, the most common causes in order are: low oil level, clogged pickup screen, worn bearings on high-hour machines, camshaft plug failure on older B series, stuck relief valve, and oil pump failure. Oil pump failure is actually the least common cause despite being what most owners assume. A mechanical gauge test takes 10 minutes and eliminates the sensor as a cause before spending any money on parts.

What does it mean if oil pressure is fine cold but drops when hot?

Pressure normal cold and dropping dangerously low when hot is the classic bearing wear signature — not pump failure. As oil heats up it thins, and worn bearing clearances allow oil to escape faster than the pump can maintain pressure. Readings starting at 60–75 PSI cold and dropping below 15 PSI at warm idle on a high-hour engine almost always indicate main or rod bearing wear. Cut open the used oil filter and feel for metallic particles in the pleats — shiny metal confirms bearing damage is already occurring. Perform an oil analysis before committing to a rebuild to confirm metal type and concentration.

Can low oil pressure permanently damage my Kubota engine?

Yes — even brief operation at pressures below 7–10 PSI scores bearing surfaces and journal surfaces that cannot be recovered without machining. The oil pressure warning light activates at approximately 7–10 PSI which is already dangerously low. Stop the engine immediately when the warning light activates, check oil level, and cut open the used oil filter to inspect for metal fragments before restarting. Metal particles in the filter mean bearing damage has already begun. Never continue operation under load when the oil pressure warning light is active.

How do I know if my Kubota oil pump needs replacing?

Confirm true low pressure with a mechanical gauge first — many pump replacements are unnecessary because the sensor was faulty. Then check the pickup screen for blockage before replacing the pump — a blocked screen perfectly mimics pump failure and is far cheaper to fix. If pressure remains consistently low across all temperatures with a clean screen and good sensor, remove the oil pan and inspect pump gear clearances. Worn gears show visible scoring and measure outside factory tolerance of approximately 0.003–0.006 inches. OEM pump part numbers: 15471-35010, 15471-35012, 15471-35013.

What oil viscosity should I use to maintain proper pressure?

Kubota recommends 10W-30 below 32°F for cold weather starts and 15W-40 for operating temperatures above freezing. Using too thin an oil in summer reduces film strength and lowers operating pressure on high-hour engines. Tier 4 and newer emission-compliant models require CJ-4 rated oil — older non-EGR engines can use CJ-4, CI-4, or CH-4. Never use automotive oils not rated for diesel service. Change every 200 hours or annually — initial change at 50 hours is critical to remove manufacturing residues. See our Kubota Oil Type Guide for complete viscosity recommendations.

Is it safe to bypass the oil pressure sensor temporarily?

Temporarily disconnecting the sensor wire can silence the warning light but is genuinely risky. If pressure truly is low — not just a faulty sensor — bearing damage occurs within minutes of heavy operation. Only bypass the sensor after confirming with a mechanical gauge that actual oil pressure is within normal range. Monitor oil level closely and limit engine use to light operation until the sensor is replaced. Never operate under load with the sensor bypassed — this eliminates your only warning if a real pressure problem develops.

What maintenance prevents Kubota oil pressure problems?

Change oil and filter every 200 hours or annually — never extend intervals. Initial 50-hour oil change is critical on all models to remove manufacturing residues. Check oil level daily before startup — takes 30 seconds and catches slow leaks before they cause damage. Run a diesel engine flush treatment annually to clear varnish from oil galleries and prevent pickup screen blockage. Use only genuine or proven aftermarket oil filters — never generic discount filters that allow bypass at lower pressure. Investigate any oil pressure warning light immediately with a mechanical gauge — do not dismiss it as a sensor until confirmed.
