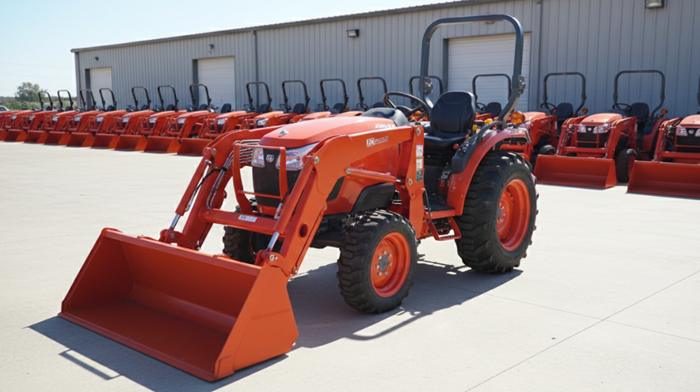

Quick Answer: Kubota L3301 Problems

The most common Kubota L3301 problems are DPF regen failures and power derate, no-crank after clutch or transmission work, intermittent shutdown from PTO and seat switches, fuel starvation from tank debris, PTO slow to disengage, HST jerky or weak under load, and electrical no-charge conditions triggering ECU codes. The L3301 runs the D1803 3-cylinder engine at 33 gross horsepower and does have a DPF — unlike the L2501 which is DPF-free. Most L3301 problems can be diagnosed and fixed at home for under $300.

⚠️ The L3301 Has a DPF! Unlike the L2501 which is completely DPF-free, the L3301 uses a Diesel Particulate Filter to meet EPA Tier 4 Final emissions. This means regen cycles, DPF codes, and power derate are all part of L3301 ownership. Understanding how the DPF system works is the single most important thing an L3301 owner can do to avoid expensive dealer visits. If you have an L2501 — skip Problem 1 entirely. If you have an L3301 or L3901 — DPF codes and regen behavior are central to troubleshooting any power or warning light complaint.

L3301 Problems — Quick Reference

Problem	Key Symptom	First DIY Step	Est. DIY Cost
DPF Regen Failure / Derate	Power loss, regen lamp, P3001 code	Perform parked regen, clear codes	Free–$300
No-Crank After Clutch Work	Dead after reassembly, E-93 code	Check all safety switches and grounds	Free–$150
PTO / Seat Switch Shutdown	Dies when PTO engages or seat bounces	Test PTO and seat switch continuity	$30–$80
Fuel Starvation / Tank Debris	Runs 10-40 min then dies, restarts after rest	Clean tank, replace fuel filter	$50–$100
PTO Slow to Disengage	Shaft coasts long after lever moved to Off	Lube and adjust PTO cable and pivots	Free–$50
HST Jerky or Weak Under Load	Hesitation, surging when hot or on grades	Check fluid level and replace HST filter	$200–$400
Electrical No-Charge / ECU Codes	Dim lights, slow crank, DPF codes after idle	Load-test battery, clean grounds	$100–$200

Problem 1: DPF Regen Failure and Power Derate

The most common and most misunderstood L3301 problem is DPF regen failure leading to power derate. Owners describe sudden loss of power, a regen warning lamp on the dash, and error codes — most commonly P3001 for high soot accumulation. This is the problem that separates L3301 troubleshooting from the simpler L2501 — the L2501 has no DPF at all, so any power complaint on that model traces to fuel, air, or injectors. On the L3301 the DPF must be ruled out first on every power complaint.

Symptoms

• Sudden loss of power — tractor enters limp mode or derate

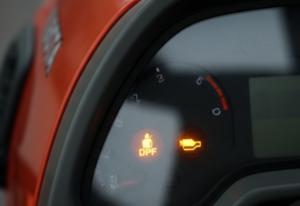

• DPF or regen warning lamp illuminated on the dash
• Error code P3001 or related DPF soot codes stored
• Tractor runs fine at light load but derates under heavy work
• Regen cycles happening more frequently than normal

Causes

• Repeated interruption of active regen cycles — shutting the tractor down mid-regen
• Long idling periods that never get exhaust temperatures high enough to burn soot
• Light-load operation for extended periods — mowing at low RPM with no PTO load
• Fuel quality issues causing incomplete combustion and excessive soot production
• Overdue DPF cleaning interval — soot load beyond what parked regen can clear

DIY Fix

When the regen lamp comes on perform a parked regeneration immediately — do not continue working and do not shut the tractor down. Find a safe open area away from dry vegetation, set the parking brake, engage PTO if required by the procedure in your operator manual, and let the parked regen complete fully. This typically takes 20-40 minutes. After the regen completes clear the codes and return to normal operation. Going forward always operate the L3301 at PTO RPM under load — avoid long idle periods and never shut the engine down during an active regen cycle. See our Kubota DPF cleaning guide and our DPF regen failure guide for complete step-by-step procedures.

When to Call the Dealer

If parked regen does not clear the codes or the tractor will not initiate regen the dealer must perform a forced regen using the diagnostic tool. Dealer forced regen runs 1-2 hours labor — typically $150-$300. If the DPF is physically clogged beyond forced regen capability a DPF cleaning or replacement may be needed — costs range from $300-$800 for professional cleaning up to $2,000+ for replacement.

🔧 Recommended: Kubota L3301 Oil Filter HH164-32430 — 2-Pack

OEM replacement engine oil filter for the L3301 D1803 engine. Replace every 50 hours. Note this is HH164-32430 — different from the HH150-32094 used on smaller BX and B-series tractors. Always verify by serial number before ordering.

Check Price on Amazon →

Problem 2: No-Crank After Clutch or Transmission Work

One of the most frustrating L3301 problems is a complete no-crank condition that appears immediately after clutch replacement or major transmission work. The battery tests good, fuses look fine, and everything appears normal — but the tractor is completely dead. OrangeTractorTalks members have documented this exact scenario on L3301 tractors showing codes E-93, P0335, P0380, P0336, and P0193 after clutch jobs. The ECU sees an invalid safety circuit state and blocks cranking entirely.

Symptoms

• All dash lights illuminate normally but absolutely no crank
• Problem appeared immediately after clutch replacement or major disassembly
• Battery load tests good — battery is not the issue
• Codes E-93, P0335, P0380, P0336, or P0193 stored in ECU
• PTO lever, seat switch, and fuses all appear normal

Causes

• Mis-adjusted or unplugged clutch neutral safety switch after reassembly
• PTO switch not reading correctly after harness was disturbed
• Ground strap disturbed or not properly reconnected during disassembly
• Harness connector not fully seated after reassembly — ECU sees invalid state

DIY Fix

Before calling the dealer go through every safety switch and harness connector systematically. Verify the clutch neutral safety switch is correctly adjusted and fully plugged in — this is the most common cause after clutch work. Check PTO lever switch connector orientation, test seat switch continuity, inspect the battery negative ground strap and all chassis grounds for proper connection. Clear the stored codes after fixing any connector issues and attempt to start. A wiring diagram for the L3301 safety circuit is essential for this diagnosis — your dealer can provide one or it is available in the workshop manual. See our Kubota won’t start guide for complete no-crank diagnosis steps.

When to Call the Dealer

If all switches and connectors check out and codes persist the ECU or a harness section may need replacement. Dealer electrical diagnosis runs 1-2 hours — typically $150-$300. If an ECU replacement is required costs escalate significantly — $500-$1,500 depending on the unit.

Problem 3: Intermittent Shutdown From PTO and Seat Switches

L3301 HST owners report a particularly frustrating pattern — the tractor suddenly shuts off during operation then refuses to crank afterward. The shutdown is often tied to PTO engagement or bouncing in the seat on rough ground. OrangeTractorTalks threads document this exact behavior on L3301 HST models and the fix is almost always a failed or out-of-adjustment safety switch.

Symptoms

• Tractor dies suddenly when PTO is engaged or implement load increases
• Tractor shuts off when operator bounces in the seat on rough terrain
• After shutdown the tractor will not crank at all
• Problem is intermittent — sometimes it starts fine, other times completely dead
• No warning before shutdown — engine simply stops

Causes

• Out-of-adjustment PTO lever switch — lever not fully reaching the Off detent
• Failed seat switch with broken internal contact — bouncing breaks the circuit
• Chafed wiring near the seat pan from repeated flexing during rough operation
• Three-wire seat switch behavior unique to L3301 — misdiagnosed as other issues

DIY Fix

Start with the PTO lever — verify it fully reaches the Off detent position and test the switch continuity with a multimeter. Then test the seat switch — with the operator seated the switch should show continuity, with no operator it should open. The L3301 seat switch has three wires and behaves differently than simpler two-wire switches — consult your wiring diagram to understand which terminals to test. Inspect the wiring harness near the seat pan for any chafed or broken wires from repeated flexing. Replace any failed switch — PTO and seat switches are typically $30-$80 each and straightforward to replace. See our Kubota safety switch guide for complete testing procedures.

When to Call the Dealer

DIY switch replacement is typically $30-$80 in parts and under an hour of work. Dealer diagnosis runs 1 hour plus parts — typically $200-$300 total.

🔧 Recommended: Kubota Fuel Filter 1G311-43380 — 2-Pack

OEM replacement fuel filter specifically listed for L3301 and L3901. Replace every 100 hours — or immediately if experiencing fuel starvation symptoms. Always bleed the fuel system after replacement. Buying a 2-pack means you have a spare on hand for the next service interval.

Check Price on Amazon →

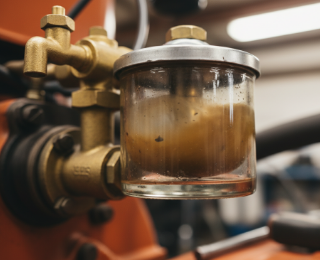

Problem 4: Fuel Starvation From Tank Debris

A pattern that shows up specifically on L3301 tractors is intermittent stalling after 10-40 minutes of work — the engine restarts after sitting for a few minutes then dies again progressively sooner each time. Reddit and OrangeTractorTalks owners trace this almost exclusively to blocked tank outlets, debris in the fuel system, or a plugged in-tank screen. This problem is especially confusing on the L3301 because owners often misattribute fuel starvation to a DPF regen issue — the symptoms can look similar with power loss and eventual shutdown.

Symptoms

• Engine runs fine then dies after 10-40 minutes of work
• Restarts immediately after sitting for a few minutes
• Gets progressively worse — restart window gets shorter each time
• Little or no fuel flows from the sediment bowl petcock when checked
• Fuel bowl does not refill properly after engine stops

Causes

• Debris — sticks, leaves, labels, or sediment — blocking the in-tank fuel screen
• Microbial sludge buildup in the tank from contaminated or old fuel
• Stuck or restricted petcock preventing adequate fuel flow under load
• Plugged inline fuel filter that is overdue for replacement

DIY Fix

Drain and inspect the fuel tank first — remove the tank drain if accessible and check for debris, sludge, or contamination. Remove and clean or replace the in-tank screen and sediment bowl components. Replace the fuel filter (1G311-43380) and bleed the fuel system completely after reassembly. If the tank has significant sludge buildup a full tank cleaning with fresh diesel and agitation may be needed before reassembly. Going forward use fresh ULSD fuel, add a fuel stabilizer for storage, and replace the fuel filter every 100 hours. See our Kubota fuel filter guide and our fuel system bleeding guide for complete procedures.

When to Call the Dealer

DIY tank cleaning and filter replacement typically runs $50-$100 in parts. If the tank must be professionally removed and cleaned or the lift pump is damaged dealer repair can reach $300-$600 in labor alone.

Problem 5: PTO Slow to Disengage

Reddit threads specifically on 2022 L3301 tractors document a rear PTO that does not completely disengage — the shaft coasts for a long time after the lever is moved to Off, and implements continue spinning well past when the operator expects them to stop. This is a safety concern and should be addressed promptly. On the L3301 the issue is typically a sticky or mis-routed PTO cable rather than an internal clutch pack failure.

Symptoms

• PTO shaft continues to spin for an unusually long time after lever moved to Off
• Implements keep rotating well past disengagement
• PTO lever feels stiff or does not fully travel to the Off detent
• Coasting is worse when the tractor is warm

Causes

• Sticky or mis-routed PTO cable creating drag at the clutch pack
• Dry pivot points and linkage at the PTO clutch — lack of lubrication
• PTO lever not fully reaching the Off detent — partial disengagement only
• Internal PTO clutch drag — less common but possible on higher-hour machines

DIY Fix

Start by lubricating the PTO cable and all pivot points with a quality penetrating lubricant — this resolves the majority of L3301 PTO slow-to-disengage complaints. Verify the PTO lever fully travels to the Off detent and adjust the cable if needed. If the shaft still coasts excessively with the cable disconnected from the linkage an internal PTO clutch inspection is the next step — that requires dealer-level disassembly. See our Kubota PTO troubleshooting guide for complete diagnosis steps.

When to Call the Dealer

Cable lubrication and adjustment costs nothing to minimal. If internal PTO clutch work is needed dealer teardown and repair can reach $800-$1,500 depending on what is found inside.

🔧 Recommended: Kubota Hydraulic Filter HH3A0-82623

OEM hydraulic filter for the L3301. Replace every 200 hours alongside the transmission fluid change. Verify this is the correct filter for your specific serial number before ordering — HST and gear L3301 models may use different configurations.

Check Price on Amazon →

Problem 6: HST Jerky or Weak Under Load

L3301 HST owners report hesitation, surging, and weak travel performance — particularly when the tractor is hot or climbing grades under load. This is often misdiagnosed as a DPF or electronics issue on the L3301 because regen cycles run the engine at higher RPM and generate more heat in the hydraulic oil — masking what is actually a fluid or filter maintenance issue. On the simpler L2501 there is no DPF layer to confuse the diagnosis.

Symptoms

• HST hesitates or surges with the pedal held steady
• Weak travel performance when hot or climbing grades
• Sluggish loader response combined with HST issues
• Performance was fine when new but has degraded over time
• Symptoms worse after extended regen cycles

Causes

• Low or incorrect hydraulic fluid — non-Super UDT2 causing HST performance loss
• Dirty or overdue hydraulic filter restricting flow
• Air in the hydraulic system from low fluid level
• Draggy safety inputs causing momentary power cuts
• Regen cycles generating extra heat in hydraulic oil — accelerating fluid breakdown

DIY Fix

Verify hydraulic and transmission fluid level with the engine warm and running on level ground — top up with Kubota Super UDT2 only. Replace the hydraulic filter (HH3A0-82623) and check for metal particles in the old filter by cutting it open. Purge air from the system by cycling the loader and 3-point hitch 10 times each then recheck fluid level. Always operate the L3301 at PTO RPM when doing loader or implement work — lugging the HST at low RPM under heavy load accelerates wear. Check for any flashing hydraulic or ECU codes that might indicate a deeper issue. See our Kubota HST transmission guide for complete diagnosis.

When to Call the Dealer

DIY fluid and filter service typically runs $200-$400 in parts and fluid. Dealer full HST service plus diagnosis runs $400-$800. Internal HST repair if the pump or motor is worn can exceed $2,000.

Problem 7: Electrical No-Charge and ECU Codes From Low Voltage

The L3301 is more sensitive to low voltage than the purely mechanical older L-series tractors because the DPF, ECU, and common-rail injection system all draw significant power — particularly during regen cycles when the DPF heater is active. An aging or undersized battery that would cause no problems on an older tractor will trigger ECU codes and aborted regen cycles on the L3301. Owners report dim lights, slow cranking, and DPF codes appearing after heavy electrical use or long idling.

Symptoms

• Headlights noticeably dimmer than normal
• Slow or labored cranking especially in cold weather
• DPF or engine codes appearing after long idling or heavy electrical use
• Regen cycles aborting unexpectedly — low voltage during regen interrupts the cycle
• Multiple warning lights appearing simultaneously after extended idle

Causes

• Undersized or aged Group 24F battery — CCA dropped below 580
• Corroded battery terminals or chassis ground straps reducing available voltage
• Alternator output marginal relative to combined electrical loads during regen
• Extended idling — alternator output at idle is lower while DPF heater draws full power

DIY Fix

Load-test the battery first — if CCA has dropped below 580 replace it with a quality Group 24F at 580 CCA minimum before spending time on anything else. Clean and tighten all battery terminals and the engine block ground strap — corroded grounds are one of the most common causes of phantom ECU codes on DPF-equipped tractors. Check alternator output at PTO RPM with a multimeter — should read 13.6-14.4V. If alternator output is low test the alternator under load. Going forward avoid extended idling on the L3301 — idle operation generates less alternator output while the DPF system maintains its full electrical draw. See our Kubota battery replacement guide and our Kubota alternator guide for complete testing procedures.

When to Call the Dealer

Battery replacement is straightforward DIY — $100-$200 for a quality Group 24F. Dealer alternator diagnosis and replacement runs 1 hour labor plus parts — typically $300-$600 total.

🔧 Recommended: Kubota Glow Plugs 19077-65510 — D1803 Engine

OEM-spec glow plugs for the L3301 D1803 engine. Replace as a set every 1,000 hours or when experiencing hard cold starts. Confirm part number against your serial number — 19077-65510 supersedes 19077-65512 and 19077-65513 on D1803-powered L-series tractors.

Check Price on Amazon →

Kubota L3301 OEM Parts Reference

Part	OEM Part Number	Notes	Buy
Engine Oil Filter	HH164-32430	Replace every 50 hrs — different from BX/B series filter	2-Pack →
Hydraulic Filter	HH3A0-82623	Replace every 200 hrs — verify by serial number	Buy →
Fuel Filter	1G311-43380	Replace every 100 hrs — bleed fuel system after	2-Pack →
Air Filter	TA040-93230	Replace every 200 hrs — verify by serial number	Buy →
Glow Plugs (qty 3)	19077-65510	D1803 engine — supersedes 19077-65512 and 19077-65513	3-Pack →
Battery	Group 24F	12V, 580 CCA minimum — F denotes reversed terminals	Buy →
Engine Oil	—	API CF or higher, SAE 15W-40 — 7.1 US qt with filter	Shell Rotella 15W-40 →

⚠️ Important — L3301 Uses Different Oil Filter Than BX and B Series: The L3301 D1803 engine uses oil filter HH164-32430 — different from the HH150-32094 used on BX and smaller B-series tractors. The glow plugs 19077-65510 are also different from BX/B series plugs. Always confirm parts by serial number before ordering.

Kubota L3301 Fluid Specifications and Capacities

System	Capacity	Fluid Type
Engine Oil	7.1 US qt with filter	15W-40 or 10W-30, API CF or higher
Hydraulic / Transmission (Gear)	7.4–7.5 US gal — fill to sight glass	Kubota Super UDT2 — never substitute
Hydraulic / Transmission (HST)	6.2 US gal — fill to sight glass	Kubota Super UDT2 — never substitute
Engine Coolant	6.3 US qt	Long-life ethylene glycol, silicate-free
Fuel Tank	11.1 US gal	Ultra-low sulfur diesel (ULSD) only

L3301 vs L2501 vs L3901 — Key Differences for Troubleshooting

Model	HP	DPF	Troubleshooting Bias
L2501	24.8 HP	None — DPF-free	Power issues trace to fuel, air, injectors — no regen layer to confuse diagnosis
L3301	33 HP	Yes — Tier 4 Final	DPF codes and regen behavior central to all power and warning light complaints — more sensitive to voltage and operating habits
L3901	37.5–39 HP	Yes — Tier 4 Final	Same DPF architecture as L3301 — heavier implement use pushes hydraulics and HST harder, more loader-lift and HST-jerk complaints

Dealer vs DIY Cost Comparison

Problem	DIY Cost	Dealer Cost	Potential Savings
DPF Parked Regen	Free	$150–$300	Up to $300
No-Crank Safety Switch Check	Free	$150–$300	Up to $300
PTO / Seat Switch Replacement	$30–$80	$200–$300	Up to $270
Fuel Tank Clean and Filter	$50–$100	$300–$600	Up to $550
PTO Cable Lube and Adjust	Free	$60–$150	Up to $150
HST Fluid and Filter Service	$200–$400	$400–$800	Up to $600
Battery Replacement	$100–$200	$300–$600	Up to $400

Kubota L3301 Maintenance Schedule

Interval	Service Item	Part / Fluid
Every 50 hrs	Engine oil and filter change	HH164-32430 + 15W-40 — 7.1 qt with filter
Every 100 hrs	Fuel filter replacement — bleed after	1G311-43380
Every 200 hrs	Hydraulic filter replacement	HH3A0-82623
Every 200 hrs	Air filter inspection and replacement	TA040-93230
Every 300 hrs	Hydraulic and transmission fluid change	Super UDT2 — fill to sight glass
Every 1,000 hrs	Glow plug inspection and replacement	19077-65510 — confirm by serial
Every 2 years	Coolant flush and refill	Long-life ethylene glycol silicate-free — 6.3 qt

❓ Frequently Asked Questions

QWhat are the most common Kubota L3301 problems?

The most common L3301 problems are DPF regen failures and power derate, no-crank after clutch or transmission work, intermittent shutdown from PTO and seat switches, fuel starvation from tank debris, PTO slow to disengage, HST jerky or weak under load, and electrical no-charge conditions triggering ECU codes. Most can be diagnosed and fixed at home without dealer involvement.

QDoes the Kubota L3301 have a DPF?

Yes — the L3301 has a Diesel Particulate Filter to meet EPA Tier 4 Final emissions. This is one of the most important differences between the L3301 and the L2501 which is completely DPF-free. L3301 owners must understand regen cycles, parked regen procedures, and the operating habits that prevent soot buildup. If you have an L2501 you do not have a DPF.

QWhy won’t my L3301 start after clutch replacement?

The most common cause is a mis-adjusted or unplugged clutch neutral safety switch after reassembly. The L3301 ECU blocks cranking when any safety switch reads an invalid state — codes E-93, P0335, and P0380 are typical. Check every safety switch and harness connector systematically before assuming a more serious fault. This five-minute check resolves most L3301 no-crank conditions after clutch work.

QMy L3301 runs for 20 minutes then dies — what should I check?

This pattern almost always points to fuel starvation from tank debris or a plugged in-tank screen — not a DPF issue, even though both can cause power loss on the L3301. Check whether the fuel sediment bowl refills normally after the engine stops. If it does not drain and inspect the tank for debris, sludge, or a blocked screen. Replace the fuel filter (1G311-43380) and bleed the system completely.

QWhat oil filter does the Kubota L3301 use?

The L3301 uses oil filter HH164-32430 — different from the HH150-32094 used on BX and smaller B-series tractors. This is a common ordering mistake that results in the wrong filter arriving. Always verify by serial number before ordering and double-check the part number against your dealer parts diagram.

QIs the Kubota L3301 reliable?

Yes — the L3301 is a capable and reliable tractor when maintained correctly. Most reported problems trace to DPF operating habits, fluid and filter maintenance, or safety switch issues rather than mechanical failures. Owners who follow the service schedule, use Kubota Super UDT2 exclusively, and understand how to manage DPF regen cycles consistently report excellent reliability well past 2,000 hours.

QWhat hydraulic fluid does the Kubota L3301 use?

The L3301 uses Kubota Super UDT2 in the combined hydraulic and transmission system. Gear models hold 7.4-7.5 US gallons and HST models hold 6.2 US gallons — always fill to the sight glass rather than the book capacity. Never substitute generic hydraulic oil, ATF, or non-OEM fluid — incorrect fluid causes HST performance loss and accelerates wear on L-series tractors.

Related Kubota Guides

Note: Part numbers and fluid specifications in this guide are based on Kubota workshop manual data for the L3301 and confirmed against dealer parts listings. The L3301 oil filter HH164-32430 is different from the HH150-32094 used on BX and B-series tractors — always verify by serial number. Glow plugs 19077-65510 supersede 19077-65512 and 19077-65513 on D1803-powered L-series tractors. HST and gear L3301 models use different hydraulic fluid capacities — confirm your transmission type before servicing. No model-specific L3301 recall stands out in current Kubota safety notices — contact your dealer with your serial number to check for any open campaigns.
