L4060 PROBLEMS: 7 MOST COMMON ISSUES & FIXES

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

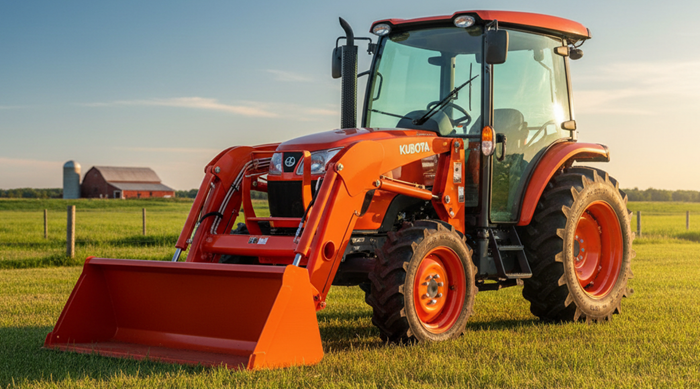

The Kubota L4060 is a premium Grand L series tractor — heavier, more capable, and more electronically sophisticated than the standard L series. Most owner complaints center on hydraulic drift, DPF regen habits, and steering feel under combined loader/steering loads rather than hard mechanical failures. The V2403-CR-E4 engine is robust when maintained. Key specs: 45.3 engine HP, 37.5 PTO HP, HST+ with Stall Guard, IntelliPanel cluster, DPF-equipped Tier 4 Final — no DEF required.

⚠️ DPF Warning — L4060 Owners Must Read This

The L4060 uses a Diesel Particulate Filter (DPF) — no DEF fluid required, but the system demands regular regeneration cycles to burn off accumulated soot. Light-load operation at low RPM for extended periods prevents auto-regen from completing. Ignored DPF warnings lead to forced derates and expensive dealer service. Always run at rated RPM during heavy work and allow parked regen to complete when the PM lamp requests it. See our full Kubota DPF Cleaning Guide.

L4060 Problems — Quick Reference Table

Problem	Severity	DIY Difficulty	DIY Cost	Dealer Cost
Hydraulic / 3-point hitch drift	Medium	Medium	$200–$350	$600–$1,500+
Jerky steering / hydraulic priority	Medium	Easy–Medium	$200–$350	$500–$1,200
Power loss / fuel system restriction	Medium	Easy	$80–$150	$250–$500
DPF / regeneration complaints	High	Medium	$0–$50	$250–$1,500+
Electrical / safety interlock faults	Low	Easy	$20–$60	$150–$400
Cooling system / overheating	High	Easy–Medium	$40–$150	$300–$900+
Cab A/C weak performance (HSTC)	Low	Easy–Medium	$40–$300	$250–$1,200+

The Kubota L4060 sits at the top of the Grand L lineup — a heavier, more capable machine than the standard L series with HST+ transmission, Stall Guard technology, IntelliPanel cluster, and optional cab. Powered by the V2403-CR-E4 common rail diesel, it’s built for serious work. But the additional sophistication means more systems to understand and maintain.

This guide covers the 7 most common Kubota L4060 problems reported by real owners — with confirmed symptoms, root causes, part numbers, DIY fixes, and honest dealer vs. DIY cost comparisons. We also compare the L4060 to the L3901 and L4701 so you can see how the Grand L stacks up against its standard L siblings.

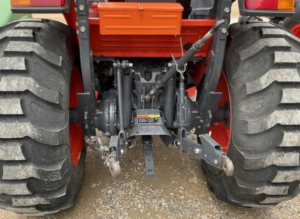

Problem #1 — Hydraulic and 3-Point Hitch Drift

Symptoms

3-point hitch or side links slowly drift down while bush-hogging or grading — even with position set
Loader or rear implements feel weak or jerky, especially at idle or when steering simultaneously
Slow hydraulic response across multiple functions

Root Causes

Internal leakage in control valve or cylinders — worn spool or deteriorated seals
Air introduced into hydraulic circuit after filter or fluid change
Low or incorrect hydraulic/transmission fluid level
Clogged suction or hydraulic return filters starving the system

✅ Start Here — Quick Diagnosis Checklist

Check transmission/hydraulic sight glass — is fluid at correct level?
Is the fluid Super UDT2 — or was wrong fluid used at last service?
When were suction and hydraulic filters last replaced?
Does drift happen in one function only, or across all hydraulics?

DIY Fix

First verify fluid level and spec — top off with Kubota Super UDT2 only. Replace suction and hydraulic filters if overdue, then bleed air from the system by cycling the loader and 3-point repeatedly lock-to-lock with engine running. This resolves the majority of L4060 hydraulic complaints without any parts beyond filters and fluid.

If drift is isolated to one function (e.g., right side link only) while hydraulics feel strong elsewhere, suspect that specific cylinder or the rockshaft control valve. Cylinder reseal kits are DIY-friendly with basic tools. Orbital valve and priority valve work is better left to a hydraulic shop. See our Kubota Hydraulic Cylinder Drift Guide.

DIY cost: $200–$350 for fluid and filters. Dealer cost: $600–$1,500+ depending on parts replaced.

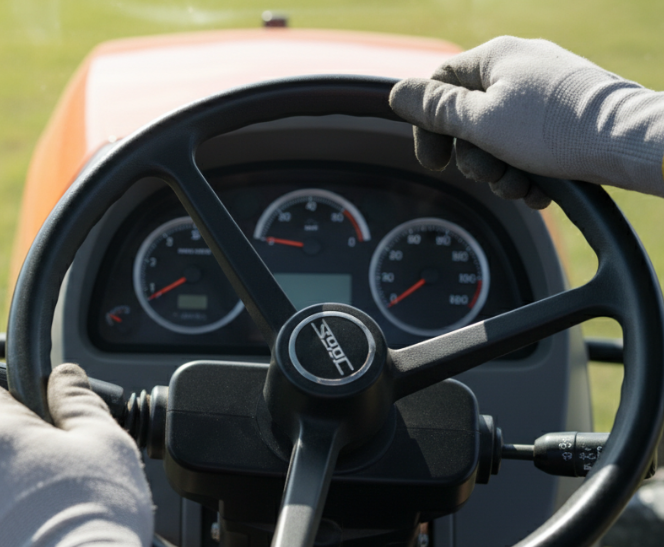

Problem #2 — Jerky Steering and Hydraulic Priority Issues

Symptoms

Steering feels jerky or binding — especially when turning quickly at low engine speed
Momentary loss of steering assist when operating loader and steering simultaneously
Steering notchiness that gets worse when hydraulic demand is high

Root Causes

Low engine RPM — insufficient flow available to both power steering and loader simultaneously
Sticky or worn steering orbital valve
Air trapped in steering lines from maintenance or low fluid
Partially clogged hydraulic filter starving the steering circuit

⚡ Operator Tip — This Fixes Most L4060 Steering Complaints

Run at 2,000–2,500 RPM when doing combined loader and steering work. The L4060 hydraulic system needs adequate flow for both circuits simultaneously — low RPM robs the steering of pressure when the loader is working hard. This single habit change eliminates most steering jerkiness complaints.

DIY Fix

Confirm hydraulic fluid level and replace filters if overdue — a partially clogged filter starves the steering circuit first. To bleed air from steering lines, jack the front end up and turn the wheel lock-to-lock slowly 5–6 times with engine running. This purges trapped air and often resolves the notchy feel completely.

If steering remains notchy after fluid service and bleeding, have the dealer test steering orbital and priority valve pressure. These components are not economical DIY rebuilds — dealer bench work is the better call. DIY cost: $200–$350 fluid and filters. Dealer cost: $500–$1,200 if orbital or priority valve needs replacement.

🔧 Recommended Parts — Hydraulic Filters & Fluid

Fresh fluid and clean filters resolve the majority of L4060 hydraulic and steering complaints. The L4060 HST has two hydraulic filters — suction and return — both need replacing at service intervals.

Kubota Super UDT2 Transmission/Hydraulic Fluid — View on Amazon →
Hydraulic Suction Filter HHTA0-37710 — View on Amazon →
HST Return Filter HHTA0-59900 (2-pack) — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Power Loss and Fuel System Restriction

Symptoms

Noticeable power drop under load — tilling, heavy brush hog work, hills
Engine surging or hesitating under load
More frequent DPF regens when engine is being lugged
Water separator bowl showing contamination or cloudiness

Root Causes

Clogged fuel filter or water contamination in fuel
Restricted air intake from dirty primary or secondary air filter elements
Heavy DPF soot load from incomplete regen cycles mimicking power loss
Note: the L4060 V2403 is naturally aspirated — no turbo wastegate to suspect

Air Restriction

Check primary and secondary air filters. Look for packed chaff around the air box — especially common in mowing and brush hog work.

Fuel Delivery

Replace fuel filter HH1J1-43172 and drain water separator. Use fresh clean diesel — keep tank above half to reduce condensation.

DPF Soot Load

If power loss coincides with DPF lamp, allow a complete regen at 2,300–2,500 RPM before assuming a fuel or air problem.

DIY Fix

Replace the fuel filter element (HH1J1-43172) and drain any water from the separator. Check and clean the primary air filter — replace both primary and secondary elements if they are at or near the 1,000-hour mark or visibly contaminated. Use fresh quality diesel and treat with a biocide if algae is suspected from long storage.

Ensure DPF regen is being allowed to complete at rated RPM before chasing fuel or air system fixes — a high soot load produces very similar symptoms to fuel starvation. DIY cost: $80–$150 for fuel and air filters. Dealer cost: $250–$500 including diagnostics.

🔧 Recommended Parts — Engine Filters

Engine Oil Filter HH164-32430 (fits Grand L series) — View on Amazon →
Fuel Filter HH1J1-43172 — View on Amazon →
Air Filter Kit TD270-93232 + TD270-93220 (FridayParts — fits L4060DT) — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #4 — DPF and Regeneration Warning Lights

Symptoms

DPF regen indicator illuminated on IntelliPanel cluster during operation
PM level warning lamp on — indicating elevated soot accumulation
Engine derate — noticeable reduction in power and ground speed
Frequent regen requests during light mowing or slow loader work

Root Causes

Extended low-RPM light-load operation preventing exhaust from reaching DPF burn-off temperature
Repeated interruption of requested regen cycles before completion
Extended idling accumulating soot without sufficient heat to burn it off
In rare cases: failed DPF temperature or pressure sensor requiring dealer diagnosis

📋 L4060 DPF Regen — Step by Step

When regen lamp illuminates — keep working, do not park or shut down
Maintain engine at 2,300–2,500 RPM with a real load on the tractor
Allow auto-regen to complete — typically 20–40 minutes
If PM level lamp requests parked regen — park in open area away from combustibles
Follow parked regen procedure in operator’s manual — do not interrupt
After completion — lamp should extinguish and full power restored

⚠️ Warning: If the L4060 enters a forced derate from ignored DPF warnings, a dealer scan tool is required to clear the fault and restore full power. DPF replacement can cost $800–$1,500+ in parts alone. Address regen warnings immediately — never disable the DPF inhibit switch as your permanent solution.

See our full Kubota DPF Regen Failures guide for all error codes and forced regen procedures.

Problem #5 — Electrical and Safety Interlock Faults

Symptoms

No-crank despite good battery — dash lights on, starter completely silent
Engine dies unexpectedly when operator shifts in seat or bumps range lever
Intermittent no-start with no apparent pattern
PTO won’t engage despite switch being on

Root Causes

PTO, HST range, or seat safety switch out of adjustment or failed
Corrosion at battery terminals or main frame grounds interrupting start circuit
Damaged starter solenoid connector or wiring

✅ Check These Before Assuming a Failed Switch

PTO switch in OFF position?
HST range lever in neutral?
Operator seated firmly on seat switch?
Battery terminals clean and tight?
Main ground straps clean and corrosion-free?

Most L4060 no-start calls trace back to operator procedure or corroded grounds — not failed switches.

DIY Fix

Clean and tighten battery terminals and apply dielectric grease. Inspect all main ground straps — corroded grounds cause more L4060 electrical gremlins than any failed component. Test safety switches with a multimeter and replace any that don’t close reliably. Switch replacement is $20–$60 per switch and takes under an hour.

See our Kubota Safety Switch Guide and Ground Strap Cleaning Guide for full procedures. DIY cost: $20–$60. Dealer cost: $150–$400 including diagnosis.

Problem #6 — Cooling System and Engine Overheating

Symptoms

Temperature gauge climbing toward red during mowing, loader work, or hillside operation
Loss of power as engine protection systems engage
Coolant boil-over or steam if ignored
Coolant level dropping between services

Root Causes

Radiator screen and condenser packed with chaff — most common cause in mowing applications
Low coolant level or incorrect mixture ratio
Sticky thermostat failing to open fully
Failing water pump or damaged hose/clamp

💡 Prevention — Clean the Radiator Screen Daily

During mowing season, chaff packs the radiator screen in hours — not days. Blowing out the screen with compressed air from the fan side outward takes 3 minutes and prevents the most common cause of L4060 overheating. Make it part of your end-of-day routine.

DIY Fix

Start with the free fix — blow out the radiator screen and condenser with compressed air from the fan side outward. Clean the removable screen after every mowing session. Top up coolant with the correct long-life ethylene glycol mix at 50/50, check for hose leaks and loose clamps.

If overheating persists after cleaning, replace the thermostat ($30–$60) and inspect the water pump. Both are straightforward DIY jobs. See our Kubota Overheating Guide for step-by-step diagnosis. DIY cost: $40–$150. Dealer cost: $300–$900+ if radiator replacement is needed.

Problem #7 — Cab A/C Weak Performance (HSTC Models)

Symptoms

A/C not cooling effectively — especially in hot weather or direct sun
Compressor cycling frequently on and off
Cabin getting dusty or musty — weak airflow from vents

Root Causes

Plugged cabin recirculation or fresh-air filter reducing airflow through evaporator
Dirty condenser fins reducing heat rejection
Low refrigerant charge from slow leak

1️⃣

Check Cab Filters First

Replace cab recirculation and fresh-air filters — plugged filters kill airflow before refrigerant is ever the issue.

2️⃣

Clean the Condenser

Blow condenser fins clean with gentle air or water. Packed chaff cuts cooling capacity significantly.

3️⃣

Refrigerant — Dealer Only

Recharge requires gauges, vacuum pump, and correct spec refrigerant. DIY top-offs risk overcharge damage.

DIY cost: $40–$100 for cab filters plus free condenser cleaning. A/C recharge at an HVAC shop runs $150–$300. Dealer cost: $250–$1,200+ for full A/C diagnosis and leak repair.

🔧 Recommended Parts — Engine Oil & Diagnostics

Shell Rotella T6 5W-40 Full Synthetic — View on Amazon →
OBD2 Diesel Scan Tool — reads DPF and engine fault codes — View on Amazon →
Kubota 4-Pin OBD Adapter — required for L4060 connection — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

L4060 OEM Part Numbers Reference

Component	OEM Part Number	Notes
Engine Oil Filter	HH164-32430	Grand L series — change every 200 hrs
Fuel Filter Element	HH1J1-43172	Replace every 400–500 hrs
Primary Air Filter	TD270-93232	Clean at 100 hrs, replace at 1,000 hrs
Secondary Air Filter	TD270-93220	Replace only — never clean secondary
Hydraulic Suction Filter	HHTA0-37710	Replace at 50 hrs initial, then 400 hrs
HST Return Filter	HHTA0-59900	Replace at 50 hrs initial, then 200 hrs
Transmission/Hydraulic Fluid	Super UDT2	11.4 US gal capacity — change at 400 hrs

Always confirm part numbers by model and serial number at Kubota’s official parts lookup. Kubota supersedes part numbers periodically.

L4060 Fluid Capacities and Specifications

System	Capacity	Fluid Spec	Change Interval
Engine Oil	8.7 US qt / 8.2L	API CJ-4 or better diesel oil	50 hrs initial, then 200 hrs
Engine Coolant	7.9 US qt / 7.5L	Long-life ethylene glycol 50/50	Every 2 years or 2,000 hrs
Transmission/Hydraulic	11.4 US gal	Kubota Super UDT2	Every 400 hrs
Front Axle Gear Case	6.9 US qt	GL-5 80W-90 gear oil	Every 400–500 hrs

L4060 vs L3901 vs L4701 — Problems and Reliability Comparison

Category	L4060 (Grand L)	L3901 (Standard L)	L4701 (Standard L)
Platform	Grand L — heavier, more features	Standard L — simpler	Standard L — heavier than L3901
Emissions	DPF — no DEF	DPF — no DEF	DPF — no DEF
Top problem themes	Hydraulic drift, steering feel, DPF habits, A/C maintenance	Overheating, regen complaints, HST jerkiness, safety switches	Fewer complaints — loader stability advantage over L3901
Owner reliability sentiment	Very positive — “Grand L workhorse”	“Good but basic” — more stability complaints	Strong — often recommended for heavy loader work
Best suited for	Premium cab, heavy loader, serious PTO work	Smaller properties, lighter use	Mid-size farms, heavier loader work

See related guides: L3901 Problems · L4701 Problems · L3901 vs L4701 Comparison

L4060 Dealer vs DIY Cost Comparison

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid + filters (400 hr)	$200–$350	$600–$1,000	$400–$650
Fuel + air filter service	$80–$150	$250–$500	$170–$350
DPF parked regen (no parts)	$0–$50	$250–$600+	$250–$550
Safety switch diagnosis + replace	$20–$60	$150–$400	$130–$340
Cooling system — hoses + thermostat	$40–$150	$300–$700	$260–$550
Cab filters + condenser clean	$40–$100	$250–$500	$210–$400

Based on typical U.S. dealer rates of $120–$180/hr. Estimates only. Use our Tractor Repair vs Replace Calculator for major repair decisions.

L4060 Maintenance Schedule

Interval	Service Items
50 Hours	Change engine oil and filter • Replace HST filter • Check front axle oil level • Check all fluid levels • Torque wheel bolts • Check loader mounting bolts
100 Hours	Grease all chassis, loader, and 3-point pivot points • Check engine oil, coolant, transmission/hydraulic fluid levels • Inspect fan belt, hoses, fuel lines • Check brake and clutch pedals
200 Hours	Change engine oil and filter • Clean or replace air filter elements • Check battery terminals and electrolyte • Inspect HST and brake pedal linkages
400–500 Hours	Replace fuel filter • Change transmission/hydraulic fluid • Replace suction and hydraulic return filters • Change front axle gear oil
1,000 Hours / 2 Years	Replace engine coolant • Full hydraulic/transmission service repeat • Replace air filter elements • Detailed inspection of all systems per manual

🔧 Complete L4060 Service Kit — All Filters

Keep all four filters on hand so you’re ready for the 50-hour and 400-hour services without a parts run.

Engine Oil Filter HH164-32430 — View on Amazon →
Fuel Filter HH1J1-43172 — View on Amazon →
Air Filter Kit TD270-93232 + TD270-93220 — View on Amazon →
Hydraulic Suction Filter HHTA0-37710 — View on Amazon →
HST Return Filter HHTA0-59900 (2-pack) — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions

Is the Kubota L4060 a reliable tractor?

Yes — the L4060 has a strong reliability record among Grand L owners. Long-term owners consistently praise its durability past 1,000 hours. Most reported issues are operational (DPF habits, hydraulic service intervals) rather than design failures. It’s viewed as a premium workhorse when maintained on schedule.

Does the L4060 require DEF fluid?

No. The L4060 uses a DPF-only Tier 4 Final system — no DEF tank to fill. You will however need to allow the DPF regeneration cycles to complete regularly. The trade-off: no DEF management, but you must understand and respect the regen process.

Why does my L4060 steering feel jerky when using the loader?

This is the most common L4060 complaint and the fix is usually free. Increase engine RPM to 2,000–2,500 when doing combined loader and steering work. The hydraulic system needs adequate flow for both circuits simultaneously — low RPM starves the steering circuit when the loader is demanding pressure. If jerkiness persists at proper RPM, check fluid level and replace hydraulic filters.

How often does the L4060 need hydraulic fluid changed?

Every 400–500 hours for the main transmission/hydraulic sump. The L4060 holds 11.4 US gallons — have plenty of Kubota Super UDT2 on hand. The HST return filter changes at 50 hours initially then every 200 hours. The suction filter changes at 50 hours initially then every 400 hours. See our Hydraulic Fluid Change Guide.

L4060 vs L4701 — which is more reliable?

Both have strong reliability reputations. The L4701 is a simpler machine with fewer systems to maintain and fewer owner complaints overall. The L4060 has more sophistication — HST+, IntelliPanel, optional cab — but rewards owners who stay on the maintenance schedule. If you want a capable tractor without cab complexity, the L4701 is a solid choice. See our L4701 Problems Guide for comparison.

What transmission fluid does the L4060 use?

Kubota Super UDT2 universal trans-hydraulic fluid is the specified fluid for the L4060 common transmission/hydraulic sump. The front axle gear case uses GL-5 80W-90 gear oil — approximately 6.9 US quarts. Always fill to the level plug rather than by volume alone.

My L4060 3-point hitch drifts down — is this a big repair?

Not necessarily. Start with the cheap fixes first — verify hydraulic fluid level and spec, replace filters if overdue, and bleed air from the system by cycling the 3-point and loader repeatedly. This resolves the majority of drift complaints. If drift persists after fluid service and affects only one function, a cylinder reseal kit ($50–$150) is the next step before considering control valve work.

Related Kubota Grand L and Standard L Guides

Kubota L3901 Problems Guide →

7 most common L3901 issues with DIY fixes and costs

Kubota L4701 Problems Guide →

Complete L4701 troubleshooting with service intervals

L3901 vs L4701 Comparison →

Side-by-side specs and which standard L is right for you

Kubota DPF Cleaning Guide →

All Tier 4 models — parked regen and error code procedures

Kubota Hydraulic Fluid Change Guide →

Step-by-step for the 400-hour transmission/hydraulic service

Kubota 3-Point Hitch Won’t Lift →

Complete hydraulic lift diagnosis for all L series models

The Kubota L4060 is a premium Grand L tractor that rewards owners who take maintenance seriously. The hydraulic system is more complex than the standard L series — but it’s also more capable. Learn the DPF regen process, stay on the 200 and 400-hour service intervals, and run the engine at proper RPM and this tractor will work hard for you well past 2,000 hours. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
