⚡ Quick Answer

The Kubota L4760 is a premium Grand L series tractor sharing the same L60 platform as the L4060 and L5060. The standout L4760 complaint — unique compared to its siblings — is ECU and electrical faults including the P0605 code that can leave the tractor completely dead. Other recurring issues include DPF regen habits, hydraulic weakness, and HST transmission concerns. Key specs: V2403-CR-E4 engine, 47.2 engine HP, 38.5 PTO HP, DPF-equipped Tier 4 Final — no DEF required.

⚠️ DPF Warning — L4760 Owners Must Read This

The L4760 uses a Diesel Particulate Filter (DPF) with an underhood exhaust system and particulate matter accumulation display — no DEF required. The system needs regular regeneration cycles to burn off accumulated soot. Light-load operation at low RPM prevents auto-regen from completing. Ignored DPF warnings lead to power derates and expensive dealer service. See our full Kubota DPF Cleaning Guide.

L4760 Problems — Quick Reference Table

Problem	Severity	DIY Difficulty	DIY Cost	Dealer Cost
ECU / electrical fault (P0605)	High	Medium	$20–$300	$400–$3,500
No-start / hard start	High	Easy–Medium	$20–$300	$300–$3,500
Hydraulic weakness or leaks	Medium	Easy–Medium	$20–$250	$250–$2,000
HST / transmission problems	Medium	Easy–Medium	$30–$300	$300–$4,000
Front axle / steering issues	Medium	Easy	$15–$300	$250–$2,500
DPF / emissions complaints	High	Medium	$0–$200	$300–$3,000
Loss of power	Medium	Easy	$20–$150	$150–$1,500

The Kubota L4760 sits at the top of the Grand L60 platform — sharing its bones with the L4060 and L5060 but stepping up to 47HP and the same premium HST+ transmission, IntelliPanel cluster, and optional cab. It’s a serious machine built for demanding loader work and heavy PTO implements.

But the L4760 has a standout problem that owners report more than any of its L60 siblings — ECU and electrical faults including the P0605 code that can leave the tractor completely dead. We give this issue the deep-dive it deserves, alongside the other 6 most common L4760 problems, confirmed part numbers, fluid capacities, and a complete maintenance schedule.

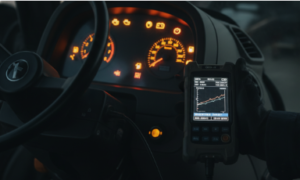

Problem #1 — ECU and Electrical Faults (P0605 Code)

⚠️ L4760 Signature Problem: ECU and electrical faults are the most consistently reported L4760-specific issue — appearing in owner forums repeatedly since 2019. The P0605 code can leave the tractor completely dead with no warning.

Symptoms

Tractor cranks but will not fire — engine turns over but no start
Dead ignition — no power at all when key is turned
Intermittent shutdown during operation with no warning
Dash warning lights and P0605 fault code present on scan
Problem often appears after battery changes or moisture exposure

What P0605 Means

P0605 is an OBD-II code adapted for Kubota’s diesel ECU. It means the ECU/PCM has failed its internal ROM (Read Only Memory) self-check test. This is triggered by low voltage, poor ground connections, or ECU memory corruption. The ECU runs a self-diagnostic every startup — if voltage is unstable or grounds are dirty the ECU fails its own test and locks out the tractor.

📋 P0605 Diagnosis — Step by Step (Work in This Order)

Scan for codes — confirm P0605 with a Kubota-compatible OBD2 scanner
Test battery voltage — must be above 12.6V static and above 10V while cranking. Load-test the battery — a weak battery triggers P0605
Inspect all grounds — clean every ground strap and connection with a wire brush. Apply dielectric grease. This is the most common cause
Check high-amp battery fuses — inspect fuse box for blown fuses or heat damage
Inspect wiring harness — look for corrosion, moisture intrusion, or damaged connectors at ECU plugs
Reseat ECU connectors — unplug and firmly reseat all ECU connector plugs
Clear code and retest — if code returns immediately after cleaning grounds and checking voltage, ECU replacement is likely needed

💡 Pro Tip: The vast majority of L4760 P0605 cases are resolved by cleaning ground connections and replacing a weak battery — not ECU replacement. Always exhaust the cheap fixes before spending $1,800+ on an ECU. A battery and ground cleaning costs under $50 and fixes this issue more often than not.

⚠️ Warning: ECU replacement on the L4760 costs $1,800–$2,000 for the part alone plus $300–$500 labor — and requires programming. DIY sourcing can drop it to $1,200–$2,000 but still requires dealer programming. Exhaust all electrical diagnosis before authorizing ECU replacement.

See our Kubota Ground Strap Cleaning Guide and Kubota Fuse Box Guide. DIY cost: $20–$300. Dealer cost: $400–$3,500.

Problem #2 — No-Start and Hard Start Issues

Symptoms

Engine cranks normally but refuses to fire
Intermittent starting — works sometimes, fails others
Hard cold starts requiring extended cranking
Fault codes present on dash or scan tool

Root Causes

Weak battery — most common cause of intermittent no-start
Corroded battery terminals or failed ground connections
Fuel delivery restriction — clogged filter or water contamination
Safety switch fault — seat, PTO, or range switch out of adjustment
ECU fault — see Problem #1 above

✅ No-Start Checklist — Check These First

Battery above 12.6V at rest — load tested?
Battery terminals clean and tight?
PTO off, range in neutral, operator seated firmly?
Fuel level adequate — filter recently replaced?
Any fault codes on dash display?
All fuses intact in fuse box?

DIY Fix

Load-test the battery first — voltage at rest does not reveal cranking capacity. Clean all terminals and ground straps. Replace fuel filter if overdue. Test safety switches with a multimeter. See our Kubota Won’t Start Guide for complete diagnosis. DIY cost: $20–$300. Dealer cost: $300–$3,500.

🔧 Recommended Tools — Diagnostics

Reading the P0605 code and diagnosing L4760 electrical faults requires a diesel-capable OBD2 scanner and the correct Kubota adapter. These pay for themselves on the first use.

OBD2 Diesel Scan Tool — reads P0605 and all Kubota fault codes — View on Amazon →
Kubota 4-Pin OBD Adapter — required for L4760 connection — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Hydraulic Weakness and Leaks

Symptoms

Weak or slow loader lift response
3-point hitch drifts down during operation
Noisy hydraulics — whining or moaning under load
Fluid seepage around hose fittings or cylinder rods

Root Causes

Low hydraulic/transmission fluid — combined sump holds 8.7 qt
Clogged hydraulic filter at or beyond 300-hour replacement interval
Air in hydraulic circuit after maintenance
Leaking seals, hoses, or fittings
Internal pump wear in high-hour machines

Check Fluid Level

Check combined transmission/hydraulic sump at sight glass. Top off with Kubota Super UDT2 only. Combined capacity 8.7 US qt.

Replace Filter

Hydraulic filter HHTA0-37710 — replace at 50 hrs initial then every 300 hrs. A clogged filter starves the system first.

Bleed Air

Cycle loader and 3-point lock-to-lock repeatedly with engine running to purge air introduced after maintenance.

See our Kubota Hydraulic Fluid Change Guide. DIY cost: $20–$250. Dealer cost: $250–$2,000.

Problem #4 — HST and Transmission Problems

Symptoms

Poor speed control — tractor surges or hesitates
Loss of drive in one or both directions
Whining or grinding from transmission area
Jerking or slipping feel under load

Root Causes

Low or contaminated HST fluid
Clogged suction screen or HST filter
Pedal linkage out of adjustment
Abrupt pedal inputs causing system stress
Internal HST wear in high-hour machines

⚡ HST Tip — Smooth Inputs Matter

The L4760 HST+ responds to how fast you move the pedal. Aggressive direction changes stress the system and cause jerky hesitation. Use smooth gradual pedal transitions especially when loaded. Combined with fresh Super UDT2 and a clean filter this eliminates most L4760 transmission complaints.

DIY Fix

Verify fluid level and spec — top off with Super UDT2 only. The L4760 uses a combined transmission/hydraulic sump of 8.7 US qt. Replace HST filter if overdue. Inspect and adjust pedal linkage per operator manual. See our Kubota HST Transmission Jerking Guide. DIY cost: $30–$300. Dealer cost: $300–$4,000.

🔧 Recommended Parts — Hydraulic & Engine Filters

Engine Oil Filter HH1C0-32430 (fits L4760) — View on Amazon →
Hydraulic Filter HHTA0-37710 — View on Amazon →
Kubota Super UDT2 Transmission/Hydraulic Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #5 — Front Axle and Steering Issues

Symptoms

Excessive steering play or wandering
Axle seal leaks — oil around front wheel ends
Grinding or whining noise from front axle in 4WD
Vibration through steering wheel under load

Root Causes

Low front axle case oil — 5.3 qt capacity, change every 300 hours
Failed axle seals or worn wheel bearings
Worn steering linkage or tie rod ends
Insufficient greasing at steering pivot points

💡 Front Axle Note — Capacity Correction

The L4760 front axle case holds 5.3 US quarts — not the 11.4 gallon figure that appears in some spec sheet versions. That larger number reflects a combined system total. Fill to the level plug, not by volume. Change every 300 hours with SAE 80W-90 gear oil or Kubota-approved axle lubricant.

DIY Fix

Check front axle oil level and top off if low. Grease all steering pivot points and front axle fittings at every 50-hour service. Inspect axle seals for leaks and replace if seeping. See our Kubota Front Axle Fluid Guide. DIY cost: $15–$300. Dealer cost: $250–$2,500.

Problem #6 — DPF and Emissions Complaints

Symptoms

DPF warning lights on IntelliPanel cluster
Particulate matter accumulation display showing elevated levels
Reduced power — engine derate from ignored warnings
Excessive exhaust heat during parked regen

Root Causes

Soot loading from extended low-RPM light-load operation
Repeated interruption of auto-regen cycles
Failed regen strategy from sensor fault
Restricted exhaust path

📋 L4760 DPF Regen — Step by Step

When regen lamp illuminates — keep working, do not park or shut down
Maintain engine at rated RPM with real load on the tractor
Allow auto-regen to complete — typically 20–40 minutes
If PM level lamp requests parked regen — park in open area away from combustibles
Follow operator manual procedure — do not interrupt
After completion — lamp extinguishes and full power restores

See our Kubota DPF Regen Failures Guide. DIY cost: $0–$200. Dealer cost: $300–$3,000.

Problem #7 — Loss of Power

Symptoms

Sluggish performance under load — mowing, tilling, hills
Poor mowing results — bogging in heavy grass
Engine RPM drops more easily than when tractor was new
Black smoke from exhaust indicating incomplete combustion

Root Causes

Dirty fuel filter restricting flow
Clogged primary or secondary air filter
Elevated DPF soot load mimicking fuel starvation
Engine fault code present

Air Filter

Clean primary TD270-93232 at 100 hrs. Replace both primary and secondary TD270-93220 at 800 hrs. Never clean secondary.

Fuel Filter

Replace HH1J1-43172 at 300-hour intervals. Drain water separator at every pre-operation check.

DPF Load

Allow complete regen at rated RPM before chasing fuel or air issues. High soot load mimics fuel starvation identically.

DIY cost: $20–$150 for filters. Dealer cost: $150–$1,500 including diagnostics.

🔧 Recommended Parts — Air & Fuel Filters

Fuel Filter HH1J1-43172 (fits L4760) — View on Amazon →
Air Filter Kit TD270-93232 + TD270-93220 (FridayParts — fits L4760) — View on Amazon →
Shell Rotella T6 5W-40 Full Synthetic — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

L4760 OEM Part Numbers Reference

Component	OEM Part Number	Notes
Engine Oil Filter	HH1C0-32430	Change every 200 hrs or annually
Fuel Filter	HH1J1-43172	Replace every 300 hrs
Primary Air Filter	TD270-93232	Clean at 100 hrs, replace at 800 hrs
Secondary Air Filter	TD270-93220	Never clean — replace only at 800 hrs
Hydraulic Filter	HHTA0-37710	Replace at 50 hrs initial then every 300 hrs
Transmission/Hydraulic Fluid	Super UDT2	8.7 qt combined sump — change at 300 hrs

Always confirm part numbers by model and serial number at Kubota’s official parts lookup.

L4760 Fluid Capacities and Specifications

System	Capacity	Fluid Spec	Change Interval
Engine Oil	8.7 US qt / 8.2L	API-rated diesel engine oil — verify viscosity in manual	50 hrs initial, then 200 hrs
Engine Coolant	8.7 US qt / 8.2L	Long-life ethylene glycol 50/50	Every 2 years
Transmission/Hydraulic (combined)	8.7 US qt / 8.2L	Kubota Super UDT2	50 hrs initial, then 300 hrs
Front Axle Case	5.3 US qt / 5.0L	SAE 80W-90 gear oil	Every 300 hrs

L4760 vs L4060 vs L5060 — Problems and Reliability

Category	L4760	L4060	L5060
Engine HP	47.2 HP	45.3 HP	52.6 HP
DPF System	Yes — no DEF	Yes — no DEF	Yes — no DEF
Standout complaint	ECU/P0605 electrical faults	Hydraulic drift, steering feel	Same L60 platform issues
Owner reliability	Good — ECU sensitivity to voltage	Good — hydraulics key focus	Good — same platform
Best suited for	Mid-large farms, loader and PTO	Mid-size farms, versatile use	Larger farms, heavier PTO work

See related: L4060 Problems · L6060 Problems · L4701 Problems

L4760 Dealer vs DIY Cost Comparison

Repair	DIY Cost	Dealer Cost	Savings
ECU diagnosis — battery + grounds	$20–$150	$400–$3,500	$380–$3,350
Hydraulic fluid + filter service	$20–$250	$250–$2,000	$230–$1,750
Air + fuel filter service	$20–$150	$150–$1,500	$130–$1,350
DPF parked regen (no parts)	$0–$200	$300–$3,000	$300–$2,800
Front axle fluid service	$15–$60	$250–$500	$235–$440
HST fluid + filter service	$30–$300	$300–$4,000	$270–$3,700

Based on typical U.S. dealer rates of $120–$180/hr. Use our Tractor Repair vs Replace Calculator for major decisions.

L4760 Maintenance Schedule

Interval	Service Items
50 Hours	Change engine oil and filter • Change transmission fluid • Service hydraulic filter • Check all fluid levels • Grease all fittings • Check wheel bolt torque
100 Hours	Inspect and adjust daily checks • Clean primary air filter element • Check battery condition and terminals • Inspect brake and clutch pedal linkages
200 Hours	Change engine oil and filter • Inspect HST pedal linkage • Check fan belt tension • Check battery electrolyte
300 Hours	Change transmission/hydraulic fluid • Replace hydraulic filter • Replace fuel filter • Change front axle case oil • Service rear axle
800 Hours	Replace primary and secondary air filter elements
2 Years	Replace engine coolant with fresh long-life antifreeze • Full system inspection per operator’s manual

🔧 Complete L4760 Service Kit — All Filters

Engine Oil Filter HH1C0-32430 — View on Amazon →
Fuel Filter HH1J1-43172 — View on Amazon →
Air Filter Kit TD270-93232 + TD270-93220 — View on Amazon →
Hydraulic Filter HHTA0-37710 — View on Amazon →
Kubota Super UDT2 Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions — Kubota L4760 Problems

What is the P0605 code on the Kubota L4760?

P0605 means the ECU has failed its internal ROM self-check test. It is most commonly caused by low battery voltage, corroded ground connections, or moisture intrusion at ECU connectors. Before authorizing ECU replacement — which costs $1,800–$2,000 for the part alone — always load-test the battery and thoroughly clean every ground strap and connection. Most P0605 cases are resolved this way at minimal cost.

Is the Kubota L4760 reliable?

Yes — the L4760 has a generally strong reliability record as part of the proven L60 Grand L platform. The ECU sensitivity to voltage issues is the most notable concern, but it is manageable with proper battery maintenance and clean ground connections. Owners who stay on the maintenance schedule report solid performance well past 1,000 hours.

Does the L4760 have a DPF system?

Yes — the L4760 uses an underhood exhaust system with a DPF muffler and particulate matter accumulation display on the IntelliPanel cluster. No DEF fluid is required. The DPF needs regular regeneration cycles to function properly — light-load operation at low RPM for extended periods prevents auto-regen from completing.

What transmission fluid does the L4760 use?

Kubota Super UDT2 is the specified fluid for the L4760 combined transmission/hydraulic sump. The sump capacity is 8.7 US quarts. Change at 50 hours initially then every 300 hours. Do not substitute with generic hydraulic fluid — Super UDT2 formulation is critical for proper HST and hydraulic function.

How does the L4760 compare to the L4060?

The L4760 and L4060 share the same Grand L60 platform with very similar components and maintenance requirements. Also the L4760 produces 47HP versus the L4060’s 45HP. The L4760 shows more ECU and electrical fault reports in owner forums while the L4060 draws more complaints about hydraulic drift and steering feel. Both are strong tractors when maintained properly. See our L4060 Problems Guide.

What is the front axle fluid capacity on the L4760?

The L4760 front axle case holds 5.3 US quarts of SAE 80W-90 gear oil. Note that some spec sheet versions show an incorrect larger figure — the confirmed capacity from owner manuals and parts data is 5.3 quarts. Always fill to the level plug rather than by volume alone. Change every 300 hours.

Can I fix the L4760 P0605 code myself?

Yes — in most cases. The majority of P0605 faults are caused by low battery voltage or corroded ground connections, not a failed ECU. Load-test your battery, clean every ground strap and connection thoroughly, reseat ECU connectors, clear the code and retest. If the code returns immediately after all electrical connections are clean and the battery is confirmed healthy, then ECU replacement becomes the likely next step — but exhaust the cheap fixes first.

Related Grand L and Standard L Guides

Kubota L4060 Problems Guide →

Step down in the Grand L — complete L4060 troubleshooting

Kubota L6060 Problems Guide →

Step up from L4760 — complete L6060 troubleshooting

Kubota L4701 Problems Guide →

Standard L alternative — complete L4701 troubleshooting

Kubota DPF Cleaning Guide →

All Tier 4 Grand L models — parked regen procedures

Kubota Ground Strap Cleaning Guide →

Fix electrical gremlins before they become ECU problems

Kubota Hydraulic Fluid Change Guide →

Step-by-step for the 300-hour transmission/hydraulic service

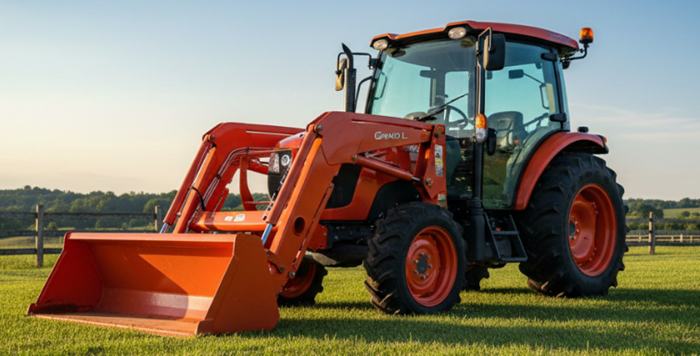

The Kubota L4760 is a capable Grand L tractor that rewards disciplined maintenance. The ECU voltage sensitivity is the one area that catches owners off guard — keep your battery healthy, grounds clean, and electrical connections moisture-free and this issue rarely becomes a problem. Stay on the 50, 200, and 300-hour service intervals, allow DPF regens to complete, and this tractor will work reliably for years. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
