Kubota Fuse Box Problems: Diagnose & Replace

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer:

Kubota fuse box problems cause immediate, dramatic electrical failures — dead lights, no crank, no accessories. Most are caused by a single blown fuse that costs under $5 to fix. Find your fuse box under the hood left side (B/L/M series) or under the operator platform (BX series). Test fuses with a multimeter — 12V on both sides means good, 12V supply and 0V load means blown. Never substitute a higher amperage fuse. Applies to BX, B, L, M and Grand L series.

Your Kubota is perfectly reliable one morning — the next, it won’t crank, the lights are dead, and not a single accessory works. The most common culprit is a blown fuse inside the Kubota fuse box. Armed with basic tools and knowledge, you can resolve most issues for under $5 instead of paying $100–$150 for dealer diagnostics. This guide covers precise fuse box locations, fuse diagrams, testing and replacement steps, corrosion repair, and how to deal with persistent fuse issues on all Kubota BX, B, L, M and Grand L series models.

1. Kubota Fuse Box Location Guide — All Series

Knowing the exact fuse box location is the first step to fast repairs. Here’s how to find the fuse box for every major Kubota series.

BX Series (BX2380, BX2680, BX23S)

Primary fuse box under the operator platform or behind the left side panel. Most BX models have a secondary fuse panel close to the battery. Remove plastic cover by releasing clip or screw fasteners — avoid excessive force to prevent breaking tabs.

B Series (B2301, B2601, B3350)

Main fuse box underneath the hood, mounted to the left side near the battery. Look for a black rectangular box with a cover that either clips or screws into place.

L Series (L2501, L3301, L3901, L4701)

Fuse panels under the hood, attached to the firewall or left inner fender. Cab versions may include an additional fuse box in the cab interior near the operator seat.

M Series (M5, M6, M7)

Multiple fuse locations — primary box under the hood, cab fuse panel behind the operator seat, and sometimes an auxiliary panel for implements mounted externally.

Grand L Series (L3560, L4060, L5060)

Main fuse box under the hood left side. May feature a secondary panel in the cab beside the operator station for accessory circuits.

💡 Pro Tip: If you can’t find the fuse box, trace the heavy gauge wires from the battery — fuse boxes are always within a few inches of the main power source. Never force the cover open — use gentle prying with a plastic trim tool to avoid breaking tabs.

2. Kubota Fuse Box Diagram & Amperage Chart

Each Kubota fuse box cover usually displays a diagram with position numbers, circuit labels, and recommended amperage. When the diagram is missing, refer to your owner’s manual or Kubota parts diagrams online.

Fuse Rating	Blade Color	Common Circuit
5A	Tan	Instrument panel, sensors
7.5A	Brown	Accessory, HVAC fan
10A	Red	Headlights, fuel pump
15A	Blue	Starter, ignition switch
20A	Yellow	Glow plugs, PTO
25A	Clear/Natural	Main accessories
30A	Green	Power feed, high current circuits

⚠️ Critical: Never replace a blown fuse with a higher amperage rating. This could cause wire fires, melt insulation, or destroy sensitive circuitry. Use only the correct size listed in your diagram or manual.

3. How to Test Fuses — 3 Methods

Visual Inspection

Quick — No Tools Needed

Remove fuse and hold to light — look for broken or melted metal strip. Fast but misses hairline breaks.

Continuity Test

Most Reliable Method

Set multimeter to continuity mode, touch probes to both fuse tabs — beep means good, silence means blown.

Voltage Test

In-Circuit — No Removal

Key ON — check voltage on both sides of fuse. 12V both sides = good. 12V supply + 0V load = blown.

💡 Pro Tip: Always disconnect the battery before testing or replacing fuses to prevent accidental shorts. See our Kubota Battery Replacement Guide for safe battery handling procedures.

4. Fuse Replacement — 9 Steps

What You’ll Need:

Fuse puller tool or non-marring needle-nose pliers • Digital multimeter • OEM-quality blade fuses (ATC/ATO type, 5A–30A) • Electrical contact cleaner spray • Fine sandpaper (600–1200 grit) • Dielectric grease • Shop rags and safety gloves.

Turn off all electrical accessories — switch ignition fully OFF. Power down headlights, PTO switches, wipers, and radio. Prevents surges when removing fuses.

Disconnect the battery — loosen negative (black) terminal clamp using 10mm wrench and set aside. Always disconnect battery for safety.

Locate and open the fuse box — follow the model-specific instructions in Section 1, release retaining clips gently, and lift cover to expose fuses.

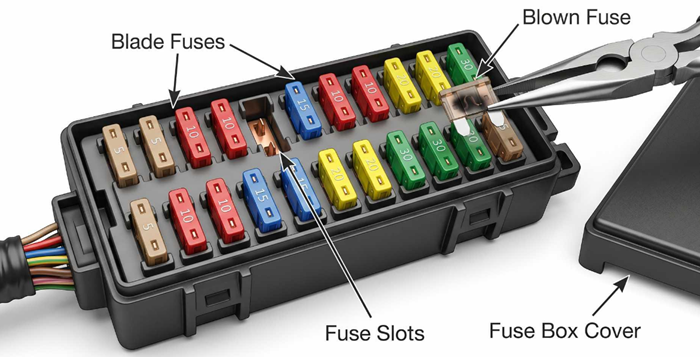

Identify and remove the blown fuse — examine each fuse with visual check or multimeter. Use fuse puller for easier removal in confined boxes. Blown fuses commonly cause instrument cluster problems including dead gauges and warning lights.

Clean fuse holder terminals — spray contact cleaner on terminals. Use fine sandpaper or soft brush to remove oxidation, then wipe dry. Apply dielectric grease to cleaned terminals.

Select correct replacement fuse — choose same amperage, color, and type as the failed fuse. OEM or Bussmann/Littelfuse fuses guarantee performance. Never substitute a higher amperage rating.

Insert new fuse firmly — push replacement fuse completely into its slot. Ensure proper seating for a secure connection.

Reconnect battery and test circuit — reattach battery cable and test the electrical system. If tractor powers up and circuit works, repair succeeded.

Investigate further if fuse blows again — a recurring blown fuse signals a deeper system fault. Move to the troubleshooting section below for advanced diagnostics.

⚠️ Critical: Never use wire, foil, or other substitutes in place of a proper fuse. This removes all safety from the circuit and can result in catastrophic electrical damage or fire.

🔧 Emergency Fuse Kit — Keep One on the Tractor:

A stocked fuse kit stored in the tractor resolves most electrical failures in under 5 minutes for under $5 in parts.

Blade Fuse Assortment 150pc + Fuse Puller — ATC/ATO 5A–30A

Full range of Kubota fuse sizes including fuse puller tool — covers every circuit on BX, B, L and M series (~$16)

View

Digital Multimeter — Continuity & Voltage Fuse Testing

Most reliable fuse test method — continuity beep = good, silence = blown (~$25)

View

DuraTech 3pc Small Parts Organizer — Waterproof Fuse Storage

14 compartments, removable dividers, transparent lid — perfect emergency fuse kit storage (~$25)

View

Kubota Shop Manual — Fuse Box Diagrams & Wiring

Model-specific fuse box diagrams and circuit labels when cover diagram is missing

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

5. Fuse Keeps Blowing — Advanced Troubleshooting

When fuse box problems recur after replacement, you have a deeper system fault. Here’s how to isolate and fix it systematically.

Identify the circuit — what fails when the fuse blows? Lights, starter, PTO, fuel pump, ignition switch? Blown headlight fuses (typically 10–15A) are among the most common. See our Kubota headlight problems guide.

Disconnect all loads — unplug or switch off all items protected by the fuse (headlights, PTO, starter) and insert a new fuse.

Turn on ignition — if the fuse blows with everything unplugged, you have a wiring short in the harness itself.

Reconnect each component one by one — when the fuse fails after reconnecting a single item, that’s your problem component.

Inspect wiring harness — trace the wire run for chafed insulation or pinch points under the battery, alongside implements, or near the steering column.

Check for water intrusion or corrosion — moisture causes shorts. Look for wet or white/green corroded connectors and bundles. See our ground strap cleaning guide.

💡 Pro Tip: Persistent fuse blows are often caused by aftermarket accessory overload or a failed relay. For charging circuit issues see our Alternator Testing Guide. For ignition or starter circuit faults see Starter Motor Troubleshooting and Ignition Switch Problems.

6. Repairing Kubota Fuse Box Corrosion

Symptoms of fuse box corrosion include intermittent electrical failures, visible white or green powder on terminals, fuses that are hard to remove, or circuits that work inconsistently. Common in tractors stored outside or operated in humid climates.

Step 1–2: Prep

Disconnect battery. Remove all fuses and photograph positions to restore them correctly.

Step 3–4: Clean

Spray terminals with contact cleaner — use baking soda solution for heavy corrosion. Scrub with soft wire brush or old toothbrush. Avoid bending terminals.

Step 5–7: Protect

Dry completely with compressed air or shop rags. Apply dielectric grease to all cleaned terminals. Inspect cover seal — replace if cracked or missing.

⚠️ Critical: If fuse terminals are deeply pitted or melted, or the plastic box is cracked, the entire fuse box must be replaced. Aftermarket boxes cost $30–$60, OEM Kubota parts $60–$120.

7. Preventive Maintenance — Annual Fuse Box Checklist

Visual Check

Check for signs of corrosion or moisture. Confirm fuse diagram matches contents. Inspect cover seal for cracks or wear.

Physical Check

Test fuse seating — ensure none are loose. Apply a small dab of dielectric grease to terminals. Document any changes or additions to wiring.

Emergency Kit

Restock fuse assortment annually. Verify multimeter battery. Keep kit in dry tractor compartment for easy field access.

More preventive tips in our Complete Kubota Tractor Maintenance Guide.

🛠️ Fuse Box Repair Supplies:

Clean terminals and apply dielectric grease at every service — prevents 70–80% of fuse box corrosion failures.

CRC Electrical Contact Cleaner — Terminal Cleaning

Spray directly into fuse terminals and connectors to dissolve corrosion and oxidation (~$8–12)

View

Dielectric Grease — Fuse Terminal Corrosion Protection

Apply to all terminals after cleaning — seals out moisture and prevents future corrosion (~$8–12)

View

Wire Terminal Connector Kit — Replace Corroded Pins

For deeply corroded connector pins found during fuse box service (~$15–30)

View

Nitrile Gloves 100-Pack — Hand Protection

Protect hands during electrical service and contact cleaner use (~$10–15)

View

Shop Towels — Dry Terminals After Cleaning

Wipe down fuse box terminals and connectors during service (~$15–20)

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions

Where is the fuse box on a Kubota BX2380?

The fuse box on a Kubota BX2380 is typically under the operator platform, accessed from the left side panel. A secondary panel may exist near the battery. Remove the plastic cover by releasing the clip fasteners — do not force it or you risk breaking the tabs. If you can’t locate it, trace the heavy gauge wires from the battery positive terminal.

Can I use a higher amperage fuse if the right one keeps blowing?

No — using a higher amperage fuse may cause wiring to overheat, risking fire or major component damage. Repeated blowing signals a wiring fault or failed part that must be diagnosed. Troubleshoot the root cause using the 6-step process in Section 5 rather than increasing fuse amperage.

How do I know what amperage fuse to use?

Use the fuse box diagram on the inside of the fuse box cover, your tractor owner’s manual, or match the color and size of the original fuse. The amperage chart in Section 2 covers the most common Kubota circuits — 5A (tan) for instruments, 10A (red) for headlights, 15A (blue) for starter and ignition, 20A (yellow) for glow plugs and PTO.

Can I test a fuse without removing it?

Yes — with a multimeter set to DC volts, test voltage across the exposed tabs while the fuse is installed and the key is in ON position. 12V on both sides means good. 12V supply side and 0V load side means blown. Some Kubota blade fuses have small probe points on top specifically for this purpose.

Why does my light fuse keep blowing?

Lights that continually blow fuses typically suffer from wiring shorts, corroded sockets, or excessive aftermarket accessories. Begin by disconnecting all loads and testing the circuit per Section 5. If unresolved, inspect for pinched wires or water intrusion in the headlight wiring harness. See our Kubota headlight problems guide.

How much does it cost to replace a Kubota fuse box?

Replacement costs are $30–$60 for aftermarket fuse boxes and $60–$120 for OEM Kubota dealer parts. DIY labor is free with basic hand tools. Professional installation can add $70–$100. Only replace the entire fuse box if terminals are deeply pitted or melted, or the plastic housing is cracked — most issues are resolved by cleaning and replacing individual fuses.

Are all blade fuses interchangeable?

No — while blade fuses may fit physically, only match the amperage and type (standard ATC/ATO vs micro vs mini) for safe operation. Never substitute a slow-blow fuse for a fast-blow fuse unless specified in the manual. The color coding system makes matching straightforward — always verify amperage matches the fuse box diagram before installation.

Related Kubota Electrical Guides

Kubota Won’t Start — Complete Guide →

All no-start causes including blown fuses, battery, and safety switches

Kubota Ignition Switch Problems →

Ignition switch faults that cause fuse circuit failures

Kubota Starter Motor Troubleshooting →

Blown starter fuse vs actual starter failure diagnosis

Kubota Alternator Testing Guide →

Charging circuit faults that cause repeated fuse failures

Kubota Ground Strap Problems →

Poor grounds cause intermittent fuse failures and electrical gremlins

Kubota Headlight Problems →

Blown 10A headlight fuse — most common Kubota fuse failure

Kubota Battery Replacement Guide →

Safe battery disconnect procedure for fuse box service

Complete Kubota Maintenance Guide →

Full electrical system preventive maintenance schedule

🚜 Kubota starter relay problems? See our complete Kubota Starter Relay Guide — listen test, voltage test, bypass test and replacement procedure. Costs $8–25 DIY vs $75–150 dealer.

🚜 Kubota clicking but won’t start? See our complete Kubota Starter Solenoid Clicking Guide — battery, solenoid and ground strap diagnosis with OEM part numbers for BX, B, L and M series.

Kubota fuse box problems are the #1 cause of sudden electrical failures — but most are solved for under $5 in under 15 minutes. Use the exact amperage fuse specified in your diagram. Never substitute a higher rating. Clean terminals with contact cleaner and apply dielectric grease at every annual service — this single habit prevents most fuse box corrosion failures. Keep a stocked emergency fuse kit in the tractor at all times. For more Kubota DIY guides, OEM part numbers, and troubleshooting help visit TractorPartsCentral.com.
