Kubota Starter Solenoid Clicking: Diagnose & Fix in 30 Minutes

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer:

Kubota starter solenoid clicking is caused by weak battery voltage, corroded connections, or failed solenoid contacts — in that order of likelihood. Rapid clicking = battery or cables (80% of cases). Single loud click = solenoid good, starter motor failed. Test battery voltage first (must hold above 10.5V cranking) before replacing any parts. DIY repair costs $35–85 vs $200–350 dealer service.

Few starter problems are as confusing as a sharp Kubota starter solenoid clicking sound — it leaves owners guessing whether the problem is the battery, connections, or the solenoid itself. The solenoid is the critical electrical relay between your battery and starter motor, but clicking noises can mean several different things. Understanding which component has failed saves time and prevents unnecessary parts replacement.

This guide lets you diagnose your Kubota starter solenoid step-by-step and fix the problem yourself in under 30 minutes. DIY diagnosis is free with tools you likely already own. Solenoid replacement averages $35–85 for parts while professional service runs $200–350 total. For a complete starter system diagnosis see our complete starter motor troubleshooting guide. If solenoid is good but starter is bad, see our starter motor replacement guide. Clicking can also indicate starter relay problems rather than solenoid failure.

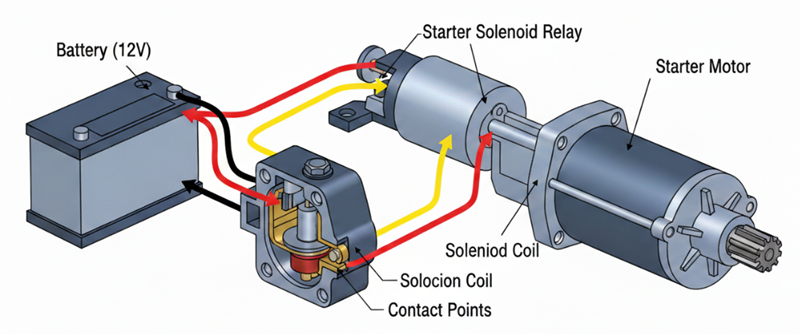

1. How the Kubota Starter Solenoid Works

The Kubota starter solenoid acts as a high-current relay, letting a small 2–5 amp signal from your ignition switch trigger the starter’s massive 150–280 amp current draw. This protects your ignition switch from handling extreme current that would quickly burn out the contacts and wiring.

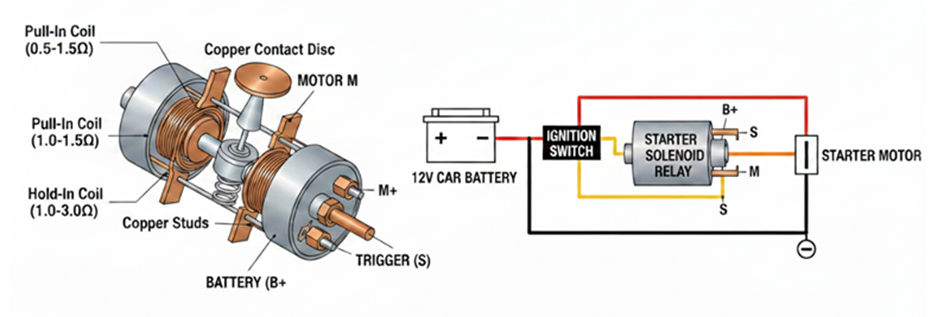

Inside the solenoid housing, two separate electromagnetic coils work together: the pull-in coil creates a strong magnetic field that rapidly engages the starter drive gear (Bendix) and pulls the main contact plunger closed, while the hold-in coil uses less current to keep the gear engaged throughout the starting cycle. Without a functioning solenoid, the starter can’t engage the flywheel — all you hear is clicking as the plunger attempts to engage but fails.

Solenoid Components

Component	Spec	Function
Pull-in coil	0.5–1.5Ω	Rapidly engages plunger and closes main contacts
Hold-in coil	1.0–3.0Ω	Maintains plunger engagement with less current
Main contacts	150–280A rated	Heavy-duty copper surfaces passing starter current
Plunger	—	Physically links battery power to starter motor terminal
Return spring	—	Releases plunger when power removed, disengages starter

💡 Why Solenoids Click: Clicking happens when the pull-in coil activates and the plunger begins to move, but the circuit doesn’t complete properly — usually due to weak voltage reaching the coil, burned main contacts, or coil failure preventing full magnetic force. Rapid clicking often indicates voltage drop from corroded battery cables and terminals rather than a bad solenoid.

2. Decode the Clicking — What Your Solenoid Is Telling You

Different clicking patterns provide specific diagnostic clues. Learning to recognize these patterns helps you narrow down the problem before breaking out test equipment — potentially saving 15–20 minutes of diagnostic time by pointing you directly to the most likely failure.

Clicking Pattern	Likely Cause	Diagnostic Tip
Rapid clicking (5+ per second)	Low battery voltage or high resistance in cables	Test battery — likely reads below 12.0V or drops below 10V under load
Single loud click	Solenoid engaging but starter motor not turning — internal failure or stuck Bendix	Solenoid is likely fine — problem is downstream at starter motor
Double-click per attempt	Voltage drop under load causes solenoid to engage then immediately release	Inspect and clean all cable connections and ground points
Click with dimming lights	High resistance drawing excessive current — bad connection or corroded ground	Check all wiring connections and ground strap condition
Click with burning smell	Overheated solenoid contacts or wiring from excessive resistance	Stop immediately — disconnect battery and inspect for damage
No click at all	No power reaching solenoid trigger terminal — ignition switch, safety switch, or wiring fault	Test ignition switch output and all safety switch continuity

⚠️ Warning: Never keep cranking if you smell burning or see smoke — disconnect the battery immediately at the negative terminal. Continuing to crank with overheated components can cause permanent damage requiring complete starter system replacement. Allow 30 seconds minimum between cranking attempts.

3. Complete Solenoid Diagnosis in 30 Minutes — 10 Steps

💡 Pro Tip: Field data from Kubota dealerships shows 80% of starter solenoid clicking problems are caused by battery or connection issues — not actual solenoid failure. Always test and clean battery connections before replacing the solenoid.

What You’ll Need

Digital multimeter ($15–40) • Jumper wire 12–14 gauge with alligator clips • Metric wrench set (10mm, 12mm, 14mm) • Wire brush • Safety glasses and insulated gloves • Test light or remote starter switch (optional). Time: 20–40 minutes. Skill: Beginner to intermediate. See our essential testing tools guide.

Verify Battery Voltage at Rest

Multimeter set to DC volts with engine off and key out — must read at least 12.4V (12.6–12.7V ideal). Anything under 12.3V means battery problems, not solenoid. At 12.0V, battery is ~50% discharged and won’t provide adequate cranking power. See our battery voltage testing guide. Also verify your ignition switch is delivering full voltage to the solenoid.

Check Voltage Under Load

Monitor battery voltage with multimeter connected while attempting to crank — must stay above 10.5V. Drops below 10V indicate battery or main cables are weak and must be addressed before solenoid diagnosis. This load test reveals capacity under real-world conditions — some batteries show good resting voltage but collapse under load due to sulfated plates. See our battery maintenance guide.

Inspect and Clean All Connections & Grounds

Remove battery terminal connections, clean with wire brush until shiny metal is visible, reinstall tightly. Check ground strap connections at both battery negative terminal and engine/frame mounting. Many solenoid failures are actually poor ground connections creating voltage drop. See our ground strap guide.

Test Voltage at Solenoid Trigger Terminal

With ignition key held in START position, measure voltage at the small solenoid trigger wire terminal — should show 12V or close to battery voltage. No voltage indicates ignition switch, safety switch circuit (seat, PTO, neutral), or wiring break between ignition switch and solenoid. Work backwards through the circuit to find the open point.

Test Voltage at Solenoid Battery Terminal

Measure voltage at the large solenoid input terminal where the main battery cable connects — should match battery voltage within 0.2V. Drops over 0.3V indicate bad positive cable or connection creating resistance. This heavy cable must carry 150–280 amps during cranking, so any corrosion or loose connection creates significant voltage loss.

Test Voltage at Motor Terminal During Clicking

With key in START and clicking occurring, check voltage at the starter motor cable side of the solenoid (output terminal). Should read same as battery terminal when contacts are good. Low reading or zero voltage means solenoid’s internal contacts have burned or failed and cannot pass current to the starter motor.

Measure Voltage Drop Across Solenoid Under Load

Connect multimeter with one lead on the battery terminal and other on the motor terminal, then attempt to crank. A functioning solenoid shows under 0.5V drop across the contacts. Anything over 0.5V indicates worn or pitted internal contacts needing replacement. Drop over 1.0V means contacts are severely degraded.

Bypass Test — Jump Large Terminals

Using a heavy jumper wire (12 gauge minimum) with battery disconnected, briefly connect the large battery and starter terminals on the solenoid. Reconnect battery — if starter cranks normally, solenoid contacts have failed internally. If starter still doesn’t crank, the starter motor itself has failed. This definitively separates solenoid problems from starter motor problems.

⚠️ Warning: Always disconnect battery negative terminal and ensure tractor is in neutral before bypass tests. The starter will engage immediately and powerfully — keep hands, tools, and clothing clear of all moving parts.

Resistance Test on Removed Solenoid

If solenoid is removed, use multimeter on ohms to measure pull-in coil resistance between battery terminal and trigger terminal (typical: 0.5–1.5Ω) and hold-in coil between motor terminal and trigger terminal (typical: 1.0–3.0Ω). Infinite resistance (“OL”) = open coil winding — failed. Zero or near-zero resistance = shorted coil — also failed. Either requires replacement.

Bench Test Solenoid Operation

With solenoid removed, connect 12V positive to trigger terminal and ground the solenoid case. It should engage with a loud metallic click, plunger extending firmly 1/4 to 1/2 inch. Check continuity (under 0.1Ω) between the two large main terminals while engaged — confirms internal contacts are closing properly. Plunger should snap back rapidly when power is removed.

4. Model-Specific Solenoid Information

BX Series (BX1880, BX2380, BX2680)

Many BX models integrate the solenoid into the starter motor requiring complete starter replacement. Part number 6A320-58510 covers many BX applications. OEM integrated unit: $385–450. Aftermarket complete units: $90–140. Some later BX models offer separate solenoid replacement — verify by serial number.

B Series (B2301, B2601, B3350)

Most B Series allow separate solenoid replacement — most DIY-friendly. Part #6A320-58510 fits B2601 and similar. OEM: $46–69. Aftermarket: $28–55. Mounts directly to starter motor body with two bolts, accessible from right side of engine. Replacement takes 15–20 minutes.

L Series (L2501, L3301, L3901, L4701)

L2501 uses part #17332-63011. L3901 uses part #17381-63010. OEM: $68–99. Aftermarket: $39–70. L Series solenoids handle 220–280A starting loads vs 150–250A for BX/B models. Sold as separate serviceable components on most configurations.

M Series (M5, M6, M7)

Complex wiring with multiple safety interlocks. Professional diagnosis recommended for intermittent issues. Separate solenoids: $90–129 OEM. Many M Series require complete starter assembly replacement ($800–1200). Commercial use with frequent starts may cause earlier failure.

Part Numbers & Resistance Specs by Model

Model	Part Number	Type	Pull-In Ω	Hold-In Ω	OEM Cost
BX2380	6A320-58510	Integrated	0.7–1.3	1.2–2.8	$49–72
B2601	6A320-58510	Separate	0.5–1.2	1.0–2.5	$46–69
L2501	17332-63011	Separate	0.6–1.4	1.5–3.0	$68–85
L3901	17381-63010	Separate	0.6–1.5	1.3–2.7	$74–99

5. Recommended Tools & Replacement Parts

🔧 Replacement Parts:

Confirm separate vs integrated solenoid design before ordering — check model chart above.

Universal Starter Solenoid 12V — Tractor Applications

Replaces failed solenoid relay on most B and L series (~$12–15)

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

🔋 Battery Testing & Diagnostic Tools:

Test battery and solenoid before replacing parts — 80% of clicking is battery or connection related.

Digital Multimeter — Voltage & Resistance Testing

Measure resting voltage, cranking voltage, solenoid drop, and coil resistance (~$25–40)

View

Battery Load Tester — Test Capacity Under Cranking Load

Reveals batteries that show good resting voltage but collapse under load (~$25–40)

View

Heavy Duty Jumper Cables — Jump Start & Bypass Testing

Verify battery condition and perform bypass tests (~$25–35)

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

🧹 Battery Maintenance & Safety:

Clean terminals first — corrosion creates false solenoid failures and wastes $50–150 in parts.

Battery Terminal Cleaning Brush — Remove Corrosion

Clean terminals to bare metal before any electrical diagnosis (~$8–12)

View

Battery Terminal Corrosion Spray — Clean & Protect

Neutralize acid corrosion and prevent future buildup (~$10–15)

View

Nitrile Gloves 100-Pack — Battery Acid Protection

Essential when cleaning battery terminals and connections (~$10–15)

View

Shop Towels — Clean Battery Terminals & Connections

Wipe down terminals and solenoid body during diagnosis (~$15–20)

View

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

6. DIY vs Professional Replacement

✅ DIY Replacement

Simple 15–30 minute repair for separate solenoid designs on B and L series. Requires basic metric wrenches and confirmed diagnosis. Cost: $35–85 parts only. Saves $120–265 over professional labor.

Best for: Clear solenoid failure confirmed by voltage drop or resistance testing, separate solenoid design, owners comfortable with basic electrical connections.

🔧 Professional Service

Best for integrated solenoids requiring complete starter removal, complex wiring issues, or unclear diagnosis with intermittent symptoms. Cost: $200–350 total including diagnosis, labor, and parts. Includes warranty.

Best for: Integrated solenoid designs, complex intermittent problems, M series tractors, time-sensitive situations requiring guaranteed fix.

Repair	DIY Cost	Dealer Cost	Savings
Separate solenoid (B/L series)	$35–85	$200–350	$120–265
Integrated solenoid/starter (BX)	$90–140	$385–550	$295–410

7. Solenoid Replacement — Step by Step

What You’ll Need

Metric socket set (10mm, 12mm, 14mm) • Torque wrench 10–80 ft-lbs • Replacement solenoid (confirm part number above) • Dielectric grease • Smartphone for photos of wire routing • Safety glasses and insulated gloves. Time: 15–30 minutes. Skill: Beginner.

Disconnect battery negative terminal — prevents accidental shorts or cranking during service. Tuck cable end away from battery post.

Locate solenoid — mounted atop the starter motor, typically right side of engine block near transmission bell housing.

Photograph all wire connections — take multiple clear photos from different angles showing terminal positions and wire routing before touching anything. Critical reference during reassembly.

Disconnect small trigger wire — usually a push-on spade connector or 8–10mm nut. Handle carefully to avoid bending terminal.

Disconnect large battery and motor cables — using 12–14mm socket. Note which cable goes to which terminal matching your reference photos.

Remove solenoid mounting bolts — typically two bolts using 10–12mm socket. Note: some integrated designs cannot be separated from the starter motor body.

Install new solenoid — align mounting holes, tighten bolts to 10–12 ft-lbs. Do not over-tighten — can crack solenoid housing.

Reconnect large cables — battery cable connects first to terminal closest to solenoid mounting, motor cable to opposite terminal. Tighten to 10–12 ft-lbs. Apply dielectric grease to connections.

Reconnect trigger wire — to correct terminal matching your photos. Push-on connectors should seat firmly and not pull off easily.

Reconnect battery negative terminal — tighten securely. Terminal should not rotate by hand when properly tightened.

Test operation — turn key to START. Starter should engage immediately with no clicking. If clicking persists, recheck all connections against your reference photos immediately.

8. Preventive Maintenance — Keep Your Solenoid Working Longer

Simple preventive maintenance can extend solenoid lifespan from typical 1,500–2,500 hours to 3,000–5,000 hours or more. Review our electrical system maintenance guide for full preventive steps.

Monthly Tasks

Charge battery fully at least monthly. Clean all starter and ground connections every 3 months. Check battery voltage at rest (12.6V+) and under load (above 10.5V). Verify safety switches operate without sticking.

Operating Practices

Never crank continuously for more than 15 seconds. Allow 30 seconds minimum between cranking attempts. Address hard-starting causes immediately rather than compensating with extended cranking. Fix high-resistance connections promptly.

Seasonal Checks

Before winter — load test battery and replace if weak. Clean and protect all electrical connections with dielectric grease before storage. Check solenoid mounting bolts for tightness — vibration loosens hardware over time.

? Frequently Asked Questions

Why does my Kubota starter solenoid keep clicking?

Clicking is caused by weak battery voltage dropping below the threshold for full solenoid engagement, or poor ground connections creating high resistance. Field data shows only about 20% of clicking cases involve an actually failed solenoid — the vast majority are battery or connection problems. Test battery voltage at rest (should be 12.6V+) and under load (should stay above 10.5V during cranking) before replacing any parts.

Where is the starter solenoid located on a Kubota tractor?

The starter solenoid is mounted directly on top of the starter motor, which sits low on the right side of the engine block near the transmission bell housing. On BX series you may need to reach under the front of the tractor. On B and L series it’s generally more accessible from the right side with hood open. Look for a small cylindrical component with one or two small wires (trigger) and two heavy gauge cables (battery and motor). Consult your model’s parts diagram if unsure — see our free Kubota parts diagrams.

How do I test a Kubota starter solenoid?

Use the 10-step procedure in Section 3. Key tests: check trigger wire voltage with key in START (should read 12V+), measure voltage drop across solenoid main terminals during engagement (should be under 0.5V), and test coil resistance if solenoid is removed. Pull-in coil should measure 0.5–1.5Ω and hold-in coil 1.0–3.0Ω. A bench test with 12V applied to trigger terminal should produce a loud click and firm plunger extension.

Can I bypass a bad Kubota starter solenoid temporarily?

Yes, you can use a heavy jumper wire (12 gauge minimum) to directly connect the starter and battery terminals on the solenoid — but this is strictly for emergency diagnosis only, never regular use. Bypassing eliminates the ignition switch control and all safety interlocks including seat switch, PTO, and neutral safety. Always disconnect battery first, ensure tractor is in neutral, keep clear of moving parts, and replace the solenoid promptly rather than relying on any bypass.

What causes starter solenoid contacts to burn out?

Burned contacts result from repeated extended cranking creating excessive electrical arcing, or high resistance in battery cables forcing solenoid to pass higher current than designed. Each cranking cycle creates small amounts of arcing that gradually erodes contact surfaces. Prevent damage by keeping battery fully charged, all connections clean and tight, never cranking longer than 15 seconds, and allowing 30-second cooling periods between attempts.

Is the solenoid part of the starter or separate on my Kubota?

It depends on your specific model and year. On many BX models the solenoid is integrated into the starter assembly requiring complete starter replacement ($385–450 OEM, $90–140 aftermarket). On most B and L series the solenoid is a separate bolt-on component replaceable for $35–85. Check the part number table in Section 4, or consult your model’s parts diagram at TractorPartsCentral parts diagrams before ordering.

My Kubota zero turn just clicks — is this the same diagnosis?

Yes — the same diagnosis applies. Rapid clicking = battery or connections. Single click = solenoid good, starter motor failed. Zero turn mowers add one additional layer: blade engage switches and PTO safety switches that are more numerous than on tractors and fail frequently. If battery tests good and solenoid bypass test shows starter cranks, work through every safety switch on the zero turn systematically. See our Kubota safety switch guide.
