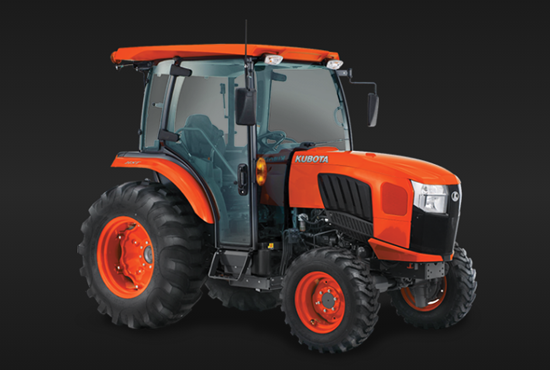

Kubota L5460 Problems: 7 Most Common Issues & Fixes

Thank you for reading this post, don't forget to subscribe!

⚡ Quick Answer

The Kubota L5460 is a mid-range Grand L series tractor powered by the V2403-CR-TE4 turbocharged common-rail diesel — a smaller displacement engine than the L5060’s V3307. The standout L5460 complaint is frequent DPF and EGR regen warnings interrupting work cycles — the smaller V2403 engine under load triggers forced regens more often than the larger L5060 engine. Key specs: V2403-CR-TE4 engine, 57.5 engine HP, 46.5 PTO HP, DPF + EGR Tier 4 Final — no DEF required.

⚠️ DPF + EGR Warning — L5460 Owners Must Read This

The L5460 uses a DPF muffler combined with an EGR system — no DEF fluid required. The V2403’s smaller displacement means it works harder under load than the L5060’s V3307, triggering forced regens every 20-30 hours in typical use. Owners report DPF warnings interrupting work more frequently on the L5460 than any other Grand L model. Always allow regen to complete and never interrupt a parked regen cycle. See our full Kubota DPF Cleaning Guide.

L5460 Problems — Quick Reference Table

Problem	Severity	DIY Difficulty	DIY Cost	Dealer Cost
DPF / EGR regen warnings	High	Medium	$0–$100	$500–$1,500
Hydraulic weakness / slow lift	Medium	Easy–Medium	$100–$250	$400–$800
HST transmission slipping	Medium	Easy–Medium	$150–$300	$500–$1,200
Engine overheating	Medium	Easy	$50–$150	$300–$600
Hard starting / no start	Medium	Easy	$80–$200	$250–$500
PTO failure	Medium	Easy–Medium	$100–$250	$400–$700
Electrical faults / dash warnings	Medium	Medium	$150–$400	$500–$900

The Kubota L5460 fills a unique spot in the Grand L series — more power than the L5060 at 57.5 engine HP but using the smaller V2403-CR-TE4 turbocharged engine rather than the larger V3307 found in the L5060 and L6060. This engine difference is the key to understanding the L5460’s standout complaint.

The V2403 works harder under load than the V3307, triggering DPF and EGR regen cycles more frequently — owners report forced regens every 20-30 hours in typical use, more often than any other Grand L model. This guide covers all 7 most common L5460 problems with confirmed part numbers, step-by-step diagnostics, and honest dealer vs. DIY cost comparisons.

Problem #1 — DPF and EGR Regen Warnings

⚠️ L5460 Signature Problem: Frequent DPF and EGR regen warnings are the most consistently reported L5460-specific complaint. The smaller V2403 displacement working under load triggers forced regens every 20-30 hours — more frequently than the L5060 or L6060. Cab model owners also report more frequent dash error codes tied to the EGR system.

Symptoms

DPF warning lights appearing frequently — every 20-30 hours of use
Forced regen interrupting work cycles more often than expected
Power derate from ignored DPF warnings
Cab model dash error codes related to EGR system
Parked regen requests during or after sustained heavy loader work

Root Causes

V2403 smaller displacement working harder under load — inherent to this engine
EGR valve soot buildup from extended light-duty or idle operation
Repeated regen cycle interruptions accelerating soot buildup
Faulty DPF pressure or temperature sensor triggering false warnings

📋 L5460 DPF Regen — Step by Step

When regen lamp illuminates — keep working at rated RPM, do not park or shut down
Maintain engine under real load for 30+ minutes to allow passive regen to complete
If parked regen requested — park in open area away from combustibles
Never interrupt a parked regen — incomplete regens compound soot buildup
Scan for fault codes if warnings persist after correct regen procedure
Persistent regen failures — dealer EGR and DPF inspection may be needed

💡 L5460 Operating Tip: The L5460’s frequent regen cycle is a known characteristic of the V2403-CR-TE4 under load — not necessarily a fault. Operators who run sustained PTO and loader work at rated RPM report far fewer regen interruptions than those doing primarily light-duty or short work cycles. Plan heavier work sessions to allow regens to complete naturally.

See our Kubota DPF Regen Failures Guide. DIY cost: $0–$100. Dealer cost: $500–$1,500.

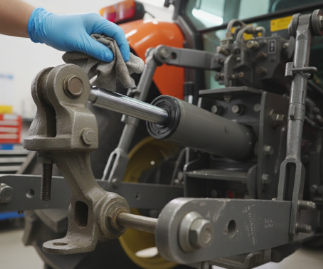

Problem #2 — Hydraulic Weakness and Slow Lift

Symptoms

Loader arms drift down under load when parked
Slow raise on implements — 3-point hitch labors under heavy implements
Weak power across all hydraulic functions simultaneously
Hydraulic pump whining — especially when cold

Root Causes

Low or contaminated hydraulic/transmission fluid — combined sump 13.5 US gal
Clogged hydraulic filter restricting pump inlet flow
Air in hydraulic system from low fluid event or maintenance
Worn hydraulic pump in high-hour machines

Check Fluid Level

Check combined sump at sight glass cold. Total capacity 13.5 US gal. Top off with Super UDT2 only. Low fluid is the most common hydraulic weakness cause.

Replace Filter

Replace hydraulic filter HHTA0-37710 if overdue. A clogged filter starves the pump and causes all hydraulic weakness complaints.

Bleed Air

Cycle loader and 3-point lock-to-lock 10+ times with engine running. Test system pressure at ports — should read 2,500 PSI.

See our Kubota Hydraulic Fluid Change Guide and Kubota Loader Drift Guide. DIY cost: $100–$250. Dealer cost: $400–$800.

🔧 Recommended Parts — Engine & Hydraulic Filters

Engine Oil Filter HH164-32430 (fits L5460 V2403) — View on Amazon →
Hydraulic Filter HHTA0-37710 — View on Amazon →
Kubota Super UDT2 Transmission/Hydraulic Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — HST Transmission Slipping

Symptoms

HST slips in high range — tractor loses speed going uphill under load
Hard shifting between ranges — notchy or resistant gear changes
Loss of drive in one or both directions
Whining from transmission area under load

Root Causes

Low or old HST fluid — combined sump shared with hydraulics
Clogged HST filter restricting circuit flow
Worn clutch pack from high hours or overloading
Linkage adjustment out of specification

💡 HST Operating Tip

Use smooth gradual pedal inputs especially when changing direction under load. Abrupt HST pedal transitions stress the system and accelerate wear on the L5460. Combined with fresh Super UDT2 and a clean filter this resolves most HST complaints without parts replacement.

DIY Fix

Check combined fluid level and condition — top off with Super UDT2 only. Replace hydraulic filter HHTA0-37710 if overdue. Inspect and adjust pedal linkage per operator manual. See our Kubota HST Transmission Guide. DIY cost: $150–$300. Dealer cost: $500–$1,200.

Problem #4 — Engine Overheating

Symptoms

Temperature gauge spikes during heavy sustained use
Steam from radiator or coolant overflow tank
Power reduction as engine thermal protection activates
Coolant level dropping between services

Root Causes

Clogged radiator or pre-screen — debris common in field conditions
Low coolant — overdue for 2-year replacement
Stuck thermostat — open or closed failure
EGR cooler blockage adding heat load to cooling system

Clean Radiator

Blow fins clean from inside out with compressed air. In chaff or dusty conditions clean every 8-10 hours. Most common overheating cause.

Check Coolant

Verify coolant level — capacity 9.9 US qt. Use long-life ethylene glycol 50/50. Replace every 2 years regardless of appearance.

Test Thermostat

Remove and test in hot water — should open at rated temp. Replace if stuck. See our Thermostat Guide.

See our Kubota Overheating Guide. DIY cost: $50–$150. Dealer cost: $300–$600.

Problem #5 — Hard Starting and No Start

Symptoms

Cranks but won’t fire — especially in cold weather
Slow labored cranking — battery below minimum CCA
Hard start that improves once engine is warm
Air in fuel system after filter change or fuel run-out

Root Causes

Weak battery — most common cause of cold cranking failure
Failed glow plug or preheat relay — reduces cold start ability
Air in fuel lines from overdue filter change
Fuel gelling in cold weather — diesel thickens below 32°F

✅ Hard Start Checklist — Check These First

Battery above 12.6V static — load tested?
Terminals clean and tight — grounds clean?
Using winterized diesel with anti-gel additive in cold weather?
Fuel filter recently replaced — air bled from system?
Glow plug lamp illuminating and holding for correct time?

See our Kubota Won’t Start Guide and Glow Plug Guide. DIY cost: $80–$200. Dealer cost: $250–$500.

🔧 Recommended Parts — Fuel & Air Filters

Fuel Filter 1J800-43170 (fits L5460 V2403) — View on Amazon →
Air Filter Kit TA040-93230 + TA040-93250 (primary + secondary combo) — View on Amazon →
Shell Rotella T6 5W-40 Full Synthetic — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #6 — PTO Failure and Disengagement

Symptoms

PTO won’t engage when switch is activated
PTO disengages randomly during operation
PTO engages but lacks full power under implement load
Clicking or buzzing from PTO solenoid area

Root Causes

Faulty PTO clutch solenoid — most common cause
Low voltage at solenoid from corroded connections
Safety switch fault — seat, PTO, or neutral switch out of adjustment
Low hydraulic/transmission fluid affecting clutch pack engagement

💡 PTO Quick Check

Test voltage at the PTO solenoid with a multimeter — should show 12V when PTO switch is activated. If voltage is correct but PTO won’t engage — solenoid replacement is likely needed. If voltage is low — clean connections and grounds first before replacing the solenoid.

DIY Fix

Test switch continuity and voltage at solenoid. Clean all PTO circuit connections. Verify operator presence safety switches are functioning correctly. Replace solenoid if voltage test confirms it is receiving power but not engaging. See our Kubota PTO Problems Guide. DIY cost: $100–$250. Dealer cost: $400–$700.

Problem #7 — Electrical Faults and Dash Warnings

Symptoms

Check engine light with engine derate
Error codes on digital dash — more common on cab models
No start — intermittent starting failure
Alternator warning light — battery not charging

Root Causes

Corroded ground straps — most common cause of random dash warnings
Failing alternator — test should show 13.5V+ output
Bad crank or cam position sensor
Wiring harness chafing or rodent damage

✅ Electrical Quick Checks

Scan for fault codes with OBD2 scanner and Kubota 4-pin adapter
Test battery voltage — above 12.6V static
Test alternator output — above 13.5V with engine running
Clean every ground strap and connection thoroughly
Inspect wiring harness for chafing or rodent damage
Clear codes and retest after ground cleaning

See our Kubota Ground Strap Guide and Kubota Alternator Guide. DIY cost: $150–$400. Dealer cost: $500–$900.

🔧 Recommended Tools — Diagnostics

OBD2 Diesel Scan Tool — reads all L5460 fault codes — View on Amazon →
Kubota 4-Pin OBD Adapter — required for L5460 connection — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

L5460 OEM Part Numbers Reference

Component	OEM Part Number	Notes
Engine Oil Filter	HH164-32430	V2403-CR-TE4 specific — change every 200 hrs
Fuel Filter	1J800-43170	Replace every 400 hrs
Primary Air Filter	TA040-93230	Clean at 100 hrs, replace per manual
Secondary Air Filter	TA040-93250	Never clean — replace only
Hydraulic Filter	HHTA0-37710	Replace at 50 hrs initial then every 300 hrs
Hydraulic/Transmission Fluid	Super UDT2	Combined sump 13.5 US gal — change every 300 hrs

Note: L5460 uses V2403-CR-TE4 engine — oil filter HH164-32430 differs from L5060/L6060 which use HH1C0-32430. Always confirm by serial number at Kubota’s official parts lookup.

L5460 Fluid Capacities and Specifications

System	Capacity	Fluid Spec	Change Interval
Engine Oil	8.7 US qt with filter	10W-40 or SAE 15W-40 API-rated diesel oil	50 hrs initial, then 200 hrs
Engine Coolant	9.9 US qt	Long-life ethylene glycol 50/50	Every 2 years
Hydraulic/Transmission (combined)	13.5 US gal	Kubota Super UDT2	50 hrs initial, then 300 hrs
Front Axle Case	2.6 US qt	SAE 80W-90 gear oil	Every 300 hrs

L5460 vs L5060 vs L6060 — Problems and Reliability

Category	L5460	L5060	L6060
Engine	V2403-CR-TE4 turbo	V3307-DI-T	V3307-CR-TE4
Engine HP	57.5 HP	52.6 HP	60.1 HP
DPF System	DPF + EGR — no DEF	DPF only — no DEF	DPF + EGR — no DEF
Standout complaint	Frequent DPF regen every 20-30 hrs	Hydraulic hitch drift	Fuel delivery issues
Oil filter	HH164-32430	HH1C0-32430	HH1C0-32430
Better buy	Best balanced power/price in Grand L	Budget/light duty — fewer regen issues	Maximum Grand L power

See related: L5060 Problems · L6060 Problems · L4760 Problems

L5460 Dealer vs DIY Cost Comparison

Repair	DIY Cost	Dealer Cost	Savings
DPF parked regen (no parts)	$0–$100	$500–$1,500	$500–$1,400
Hydraulic fluid + filter service	$100–$250	$400–$800	$300–$550
HST fluid + filter service	$150–$300	$500–$1,200	$350–$900
Coolant flush + thermostat	$50–$150	$300–$600	$250–$450
Battery + hard start service	$80–$200	$250–$500	$170–$300
Ground cleaning + electrical	$150–$400	$500–$900	$350–$500

Based on typical U.S. dealer rates of $120–$180/hr. Use our Tractor Repair vs Replace Calculator for major decisions.

L5460 Maintenance Schedule

Interval	Service Items
50 Hours	Change engine oil and filter • Check transmission/hydraulic fluid • Clean HST filter • Check battery • Check tire pressure • Grease all fittings
100 Hours	Change engine oil and filter • Replace HST filter • Inspect primary air filter • Check DPF% on dash • Check all fluid levels
200 Hours	Change engine oil and filter • Inspect belts • Check battery condition • Inspect fuel lines and connections
300 Hours	Change transmission/hydraulic fluid • Replace hydraulic filter • Replace fuel filter • Change front axle case oil • Full grease service
400 Hours	Change engine oil and filter • Transmission fluid and filter • Fuel filter • Full inspection per operator manual
2 Years / Annual	Replace engine coolant • Replace air filter elements • Battery load test • DPF and EGR inspection • Belt adjustment or replacement

🔧 Complete L5460 Service Kit — All Filters

Engine Oil Filter HH164-32430 — View on Amazon →
Fuel Filter 1J800-43170 — View on Amazon →
Air Filter Kit TA040-93230 + TA040-93250 — View on Amazon →
Hydraulic Filter HHTA0-37710 — View on Amazon →
Kubota Super UDT2 Fluid — View on Amazon →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

? Frequently Asked Questions — Kubota L5460 Problems

Why does my L5460 trigger DPF warnings so frequently?

The L5460’s V2403-CR-TE4 smaller displacement engine works harder under load than the larger V3307 in the L5060 and L6060, triggering forced regens more often — typically every 20-30 hours. This is a known characteristic of this engine under sustained load, not necessarily a fault. Running at rated RPM under real work load allows passive regens to complete naturally and reduces forced regen interruptions significantly.

Does the L5460 require DEF fluid?

No. The L5460 uses a DPF and EGR emissions system — no DEF fluid is required and there is no DEF tank to fill. The EGR system recirculates exhaust gases without needing liquid urea. You do need to manage DPF regen cycles carefully and more frequently than other Grand L models.

Does the L5460 use the same filters as the L5060?

Not all of them. The L5460 uses a different engine — V2403-CR-TE4 — than the L5060’s V3307. This means the oil filter is different: L5460 uses HH164-32430 while L5060 uses HH1C0-32430. The air filters are also different — L5460 uses TA040-93230 and TA040-93250. The hydraulic filter HHTA0-37710 and fuel filter 1J800-43170 are the same across both models.

What hydraulic fluid does the L5460 use?

Kubota Super UDT2 is the specified fluid for the L5460 combined hydraulic and transmission sump. The total system capacity is 13.5 US gallons. Change at 50 hours initially then every 300 hours. Never substitute with generic hydraulic fluid — the Super UDT2 formulation is critical for proper HST and hydraulic function.

L5460 vs L5060 vs L6060 — which should I buy?

The L5460 offers the best power-to-price balance at 57.5HP — more than the L5060 but less than the L6060. The tradeoff is more frequent DPF regen cycles from the smaller V2403 engine. If regen management is a concern, the L5060 or L6060 with the larger V3307 engine will suit you better. For balanced performance in a mid-size operation the L5460 is a capable choice. See our L5060 Problems Guide and L6060 Problems Guide.

What is the engine oil capacity of the L5460?

The L5460 engine oil capacity is 8.7 US quarts with filter — note this is different from the L5060 which holds 9.9 US quarts due to the larger V3307 engine. Use a 10W-40 or SAE 15W-40 API-rated diesel engine oil. Change engine oil and filter at 50 hours initially then every 200 hours.

Is the Kubota L5460 a reliable tractor?

Yes — the L5460 has a solid reliability record as a balanced Grand L performer. The frequent DPF regen cycle is the main management challenge but is not a reliability failure — it is a characteristic of the V2403 under sustained load. Owners who stay on the maintenance schedule and manage regen cycles correctly report reliable performance well past 1,500 hours.

Related Grand L Series Guides

Kubota L5060 Problems Guide →

Step down from L5460 — hydraulic drift and HST issues

Kubota L6060 Problems Guide →

Step up from L5460 — complete L6060 troubleshooting

Kubota L4760 Problems Guide →

Grand L60 platform — ECU P0605 electrical faults

Kubota DPF Cleaning Guide →

All Tier 4 Grand L models — parked regen procedures

Kubota Hydraulic Fluid Change Guide →

Step-by-step for the 300-hour hydraulic service

Kubota PTO Problems Guide →

Complete PTO troubleshooting for all Grand L models

The Kubota L5460 is a balanced Grand L performer that rewards understanding its V2403 engine’s DPF requirements. The more frequent regen cycle is the key management challenge — run at rated RPM under real load, never interrupt a regen, and stay on the maintenance schedule. Owners who understand the emissions system report solid reliable performance for years. For more Kubota DIY guides, parts cross-references, and troubleshooting help visit TractorPartsCentral.com.

This article contains affiliate links. TractorPartsCentral.com is a participant in the Amazon Services LLC Associates Program. When you purchase through our links, we may earn a small commission at no additional cost to you. All product recommendations are based on fit, quality, and owner feedback.
