⚡ Quick Answer

The most common Kubota M4800 problems are fuel starvation causing power loss under load, transmission whine in lower gears, weak 3-point hitch lift, and age-related starter and electrical faults. The M4800 uses a 4-cylinder diesel with gear and shuttle transmission only — no HST. Confirmed filters: oil filter HH164-32430, air filter inner/outer R1401-42270, and hydraulic filter. Fuel filter — verify at dealer by serial number. Use Super UDT2 for hydraulic/transmission fluid. The M4800 is an older work tractor — most symptoms start as maintenance issues and become expensive only when the tractor keeps working with dirty fuel, low fluid, or worn components.

✓ Kubota M4800 — No DPF / No DEF / Gear Only

The M4800 uses a 4-cylinder Kubota diesel — no DPF, no DEF, no emissions aftertreatment. Transmission is gear and partially synchronized shuttle only — no HST option. All transmission complaints are gear whine, clutch wear, shuttle engagement, and linkage adjustment — not hydrostatic problems. The M4800, M4700, and M4900 are the same generation M-series platform family with different configurations rather than totally different tractors. Available as 2WD and 4WD (M4800SU) with ROPS configurations.

Kubota M4800 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Fuel starvation / power loss	Falls on its face under load	Easy	$20–$100	$200–$600
Transmission whine	Loud in 1st, 2nd, 3rd gear	Easy–Medium	$60–$300	$2,500–$6,000
Weak 3-point hitch lift	Hitch barely lifts at lowest position	Easy–Medium	$60–$400	$400–$1,500
Starter / electrical fault	Weak crank, intermittent start	Easy–Medium	$0–$300	$200–$700
Front hub / axle wear	Wobble, cracked hub — stop immediately	Medium	$300–$1,000	$1,200–$2,500
Smoking / knocking under load	Raw fuel smell then smoke in heavy grass	Easy–Dealer	$50–$3,000+	$1,500–$5,000+
Hydraulic / steering weakness	Slow loader, heavy steering when warm	Easy–Medium	$60–$400	$400–$4,000

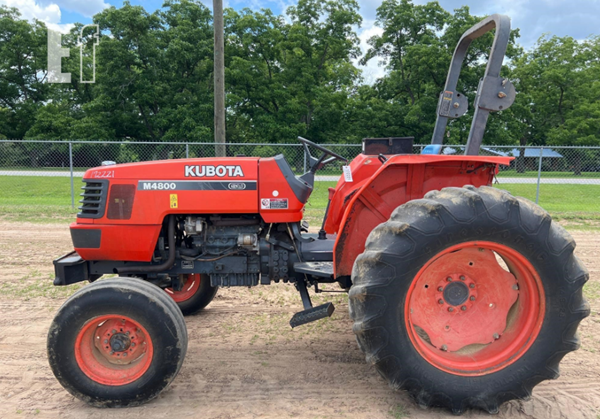

The Kubota M4800 is a 4-cylinder gear-drive utility tractor in the M-series family alongside the M4700 and M4900. Owner discussions on OrangeTractorTalks and TractorByNet show a consistent pattern — the M4800’s problems are classic old-school work tractor wear rather than design defects. Most start as maintenance items and become expensive only when the tractor keeps working with dirty fuel, low hydraulic fluid, or worn components.

One owner described the M4800 “starting to lose power under any load” while it “idles and moves on flat ground without a miss” — textbook fuel starvation from a blocked pickup or clogged filter. Another reported the “3-point hitch at its lowest position is right on the floor” — classic hydraulic fluid or linkage adjustment issue. A third described a “loud transmission whine in gears 1st, 2nd and 3rd” that had been present since new — normal gear noise on older M-series machines that responds to oil condition before internal diagnosis.

🔌 Kubota M4800 Specs & Fluid Reference

Spec	Value
Engine	Kubota 4-cylinder diesel — M-series utility platform
Transmission	Partially synchronized gear — shuttle — no HST option
Engine oil type	15W-40 diesel — API CF or higher
Engine oil capacity	Approximately 2 gal (M4800SU) — verify with dipstick
Hydraulic / transmission fluid	Kubota UDT or Super UDT2 — never substitute generic hydraulic oil
Configurations	2WD and 4WD (M4800SU) — ROPS — early to mid 2000s production

Problem #1 — Fuel Starvation / Power Loss Under Load (Most Common)

⚠️ Most Common M4800 Complaint: Owner language: “started losing power under any load” and “idles and moves on flat ground without a miss.” The engine can sustain idle on residual fuel but can’t meet high RPM demand under load — classic fuel starvation. A blocked tank pickup, clogged sediment bowl, or air leak in fuel lines causes exactly this pattern.

Symptoms

RPMs decrease despite throttle input under any load
Runs fine at idle and on flat ground — falls on its face in brush or hills
Power loss that gets progressively worse under sustained work
Fuel cup looks full but tractor starves under load

📋 Diagnosis — Step by Step

Verify tank venting — a blocked tank vent cap creates vacuum that starves fuel delivery under load
Inspect and clean sediment bowl and tank pickup screen — debris at the pickup is the most common cause on older M-series machines

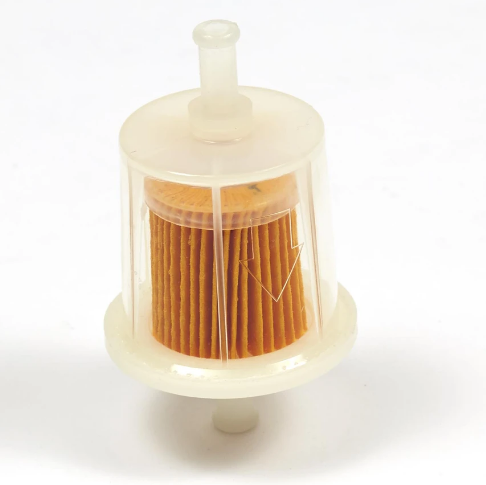

Replace fuel filter — first service step on any fuel delivery complaint
Inspect fuel hoses and clamps for air leaks — even a small air leak causes starvation under sustained load
Blow out or replace fuel lines — old lines crack internally and restrict flow without showing external damage
If problem persists after fuel system service — have injectors checked for wear or delivery imbalance

See our Kubota Fuel System Bleeding Guide and Kubota Fuel Pump Guide. DIY cost: $20–$100. Dealer cost: $200–$600.

Problem #2 — Transmission Whine / Noisy Gears

💡 M4800 Pattern: Owner language: “loud transmission whine in gears 1st, 2nd, and 3rd — even when new.” Some gear noise is normal on older M-series gear tractors. The question is whether the whine is getting worse, accompanied by metal in drained oil, or causing hard shifting — those distinguish normal gear noise from a developing internal problem.

Symptoms

Loud whine in lower gears — especially 1st, 2nd, and 3rd
Whine present at purchase or developing gradually over time
Hard or imprecise gear engagement
Creep or reverse not engaging cleanly

✓ Fix — In Order:

Check transmission oil level and condition — low or contaminated fluid causes gear whine on the M4800
Drain and inspect oil for metal particles — fine metal dust is normal wear; chunks or glitter patterns indicate active internal damage
Change transmission fluid with Super UDT2 — wrong viscosity fluid worsens shift quality and noise
Check clutch free play and linkage adjustment — imprecise engagement often traces to clutch adjustment before internal wear
If whine is getting progressively worse or metal is present — dealer diagnosis before internal failure escalates repair cost

See our Kubota Transmission Problems Guide. DIY cost: $60–$300. Dealer cost: $2,500–$6,000 for internal rebuild.

🔧 Recommended Parts — M4800 Filter Kit

Oil Filter HH164-32430 — confirmed M4800 engine oil filter — View on Amazon →
Air Filter Inner/Outer R1401-42270 — confirmed M4800 air filtration — View on Amazon →
Hydraulic Filter — confirmed M4800 hydraulic filter — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for M4800 diesel — View on Amazon →

Fuel filter part number not confirmed from public sources — verify at Kubota dealer using M4800 serial number. See our Kubota Filter Cross-Reference Master Chart. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Weak 3-Point Hitch Lift

Symptoms

“3-point hitch at its lowest position is right on the floor” — barely lifts a bush hog high enough to transport
Hitch raises slowly under load or stops short of full height
Hitch drifts down on its own after raising
Weak lift alongside weak loader — confirms hydraulic system issue

📋 Diagnosis — Step by Step

Check hydraulic fluid level first — even modest fluid loss causes weak hitch on the M4800’s large system
Replace hydraulic filter — a clogged filter restricts flow to hitch and loader simultaneously
Inspect draft and position control linkage adjustment — misadjusted feedback linkage causes premature relief and limited travel
Cycle hitch to bleed air — air in the system causes soft, inconsistent lift
If hitch drifts down after raising — internal leakage in lift control valve or cylinder requires dealer diagnosis

See our Kubota 3-Point Hitch Guide and Kubota Hydraulic Fluid Guide. DIY cost: $60–$400. Dealer cost: $400–$1,500.

Problem #4 — Starter / Electrical Faults

Symptoms

Weak or slow cranking — especially when cold
Intermittent start — works most days then nothing
Starter clicks but doesn’t engage
Battery repeatedly goes flat

✓ Fix — In Order:

Load test battery — must hold above 9.6V during cranking. Clean and tighten all terminals first
Clean all ground straps — battery negative to chassis, engine block to chassis. Most M4800 electrical faults clear after ground cleaning
Check neutral safety switch and PTO switch — confirm full neutral and PTO fully disengaged before deeper diagnosis
Voltage-drop test starter cables — replace corroded or swollen cable ends
Bench test starter — if it cranks after tapping the starter body, worn brushes or solenoid contacts confirmed

See our Kubota Won’t Start Guide and Kubota Ground Strap Guide. DIY cost: $0–$300. Dealer cost: $200–$700.

Problem #5 — Front Hub / Axle Wear

⚠️ Safety Issue — Stop Immediately: Owner language: “center hub portion of the front hub cracked and the wheel almost fell off.” A cracked or wobbling front hub is a serious safety hazard. Stop using the tractor immediately if you see any front wheel wobble or loose hub — do not drive to the shop, trailer it.

Symptoms

Front wheel wobble or vibration during operation
Visible cracks in hub casting around stud holes
Loose wheel that tightens temporarily then loosens again
Grinding or rumbling from front axle area

✓ Fix: Stop using the tractor immediately if any wobble is present. Inspect spindle bearings, hub bearings, wheel studs, and races. Check torque on all front hub fasteners — loose fasteners cause hub stress and cracking. Replace the hub assembly or bearings if any crack or wear is found. On the M4800 this is a common consequence of heavy loader use on an aging front axle. See our Kubota 4WD Guide.

DIY cost: $300–$1,000. Dealer cost: $1,200–$2,500.

Problem #6 — Smoking and Knocking Under Heavy Load

⚠️ Stop Running Immediately: Owner language: “smelling of raw fuel and eventually it will start smoking and knocking” when mowing heavy grass. A sharp mechanical knock means stop the tractor. Running on a knocking engine converts a repair into a rebuild.

Verify clean air intake — a restricted air filter causes black smoke and power loss that mimics fuel problems
Replace fuel filter and drain contaminated fuel first
Check coolant level and radiator condition — overheating under sustained load causes exactly this pattern
Inspect fan belt tension and radiator fins for blockage
If knock is present after fuel and air system service — injector or internal engine diagnosis is dealer-level work

DIY cost: $50–$3,000+. Dealer cost: $1,500–$5,000+.

Problem #7 — Hydraulic and Steering Weakness

Symptoms

Slow loader response — especially after warming up
Heavy or stiff steering when warm
Noisy pump — whining or cavitation sounds
Weak hitch and loader simultaneously — confirms system-wide issue

✓ Fix — In Order:

Check hydraulic fluid level and condition — top up with Super UDT2 if low
Replace hydraulic filter — first step on any age-related hydraulic weakness
Inspect suction hoses for cracks or loose clamps — air ingestion causes cavitation whine and weak pressure
Cycle all functions to bleed air — raise and lower loader and hitch 10+ times after fluid service
If whining pump persists after service — pump pressure test before replacing pump

See our Kubota Hydraulic Pump Guide and Kubota Power Steering Guide. DIY cost: $60–$400. Dealer cost: $400–$4,000.

🔧 Recommended Tools & Cross-Reference Guides

Digital Multimeter — voltage drop and circuit diagnosis — View on Amazon →
Hydraulic Pressure Gauge — pump output testing — View on Amazon →
Lucas Red N Tacky Grease — front axle and linkage lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on M4800 filters — View Guide →
Hydraulic Filter Cross-Reference Guide — M4800 hydraulic filter alternatives — View Guide →
Kubota Fuel Filter Interchange Guide — M4800 fuel filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota M4800 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Fuel filter + tank pickup clean	$20–$80	$200–$500	$180–$420
Hydraulic fluid + filter service	$100–$300	$400–$800	$300–$500
Ground clean + battery cables	$0–$60	$150–$400	$150–$340
Front hub / bearing replacement	$300–$1,000	$1,200–$2,500	$900–$1,500
Hydraulic pump rebuild/replace	$400–$1,500	$1,500–$4,000	$1,100–$2,500
Transmission internal rebuild	Not practical DIY	$2,500–$6,000+	Dealer only

Use our Tractor Repair vs Replace Calculator for major repair decisions on older M4800 machines.

Kubota M4800 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid • Inspect under tractor for new leaks • Drain water separator
50–100 Hours	Change engine oil and filter HH164-32430 • Replace fuel filter • Clean battery terminals and grounds • Check clutch free play • Inspect front hub fastener torque
200 Hours	Replace hydraulic filter • Replace air filter inner/outer • Inspect suction hose condition • Check alternator output • Inspect front axle for play or wear
400 Hours	Drain and refill hydraulic fluid with Super UDT2 • Clean tank pickup screen • Replace battery cables • Inspect transmission oil for metal particles • Inspect all fuel hoses

Frequently Asked Questions — Kubota M4800 Problems

How does the M4800 compare to the M4700 and M4900?

The M4700, M4800, and M4900 are the same generation M-series platform family with different configurations rather than totally different tractors. Common problems, fluid types, and service approaches are very similar across all three. Always verify filter and service parts by serial number — specific part numbers differ between models despite their shared platform lineage. See our M4700 Problems Guide and M4900 Problems Guide for comparison.

Does the M4800 have HST?

No — the M4800 uses a partially synchronized gear transmission with shuttle only. There is no HST option on the M4800. All transmission complaints are gear noise, clutch wear, shuttle engagement, and linkage adjustment — not hydrostatic pump or pedal issues.

Is the M4800 transmission whine a serious problem?

Not necessarily — some gear noise is normal on older M-series gear tractors and owners report the M4800 has “always had a loud transmission whine” even from new. The key questions are whether the whine is getting progressively worse, whether metal particles appear in the drained oil, and whether shifting is getting harder. If all three are stable, change the transmission fluid with Super UDT2 and monitor. If any are worsening, get dealer diagnosis before internal failure escalates cost.

What are the confirmed filter part numbers for the M4800?

Confirmed M4800 filters: oil filter HH164-32430, air filter inner/outer R1401-42270, and hydraulic filter — all linked in the parts section above. Fuel filter part number was not confirmed from public sources — verify at a Kubota dealer using your M4800 serial number. See our Kubota Filter Cross-Reference Master Chart for verified OEM-equivalent savings.

Is the M4800 a reliable tractor?

The M4800 has a solid reputation as a durable work tractor. The problems that generate complaints are classic age-related wear items — fuel system maintenance, hydraulic fluid and filter service, corroded electrical connections, and front axle wear from heavy loader use. None are design failures. Stay current on hydraulic fluid and filter service with Super UDT2, inspect the front hub fastener torque annually, and replace the fuel filter on a 100-hour cycle. Owners who maintain the M4800 properly report reliable service well past 3,000 hours.

Related Kubota M Series & Parts Guides

Kubota MX4700 Problems Guide →

M series platform sibling

Kubota M4900 Problems Guide →

M series next step up

Kubota M5040 Problems Guide →

M series utility tractor

Kubota Filter Cross-Reference Chart →

Save 30–60% on M4800 filters

Kubota Won’t Start Guide →

Complete no-start diagnosis

Used Kubota Inspection Guide →

Essential checklist for any used M4800

The M4800’s most important maintenance habits are staying current on hydraulic fluid and filter service with Super UDT2, cleaning all grounds annually, replacing the fuel filter on a 100-hour cycle, and inspecting front hub fastener torque every season. Most M4800 complaints start as deferred maintenance — address them early and this tractor runs reliably well past 3,000 hours. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
