⚡ Quick Answer

The most common Kubota M5400 problems are hydraulic failure from air in the system after service, overheating stalls from failed clutch seals, and hard shifting from misaligned shifter linkage. The M5400 uses a 5-cylinder diesel with gear transmission only — no HST. Confirmed filters: oil filter HH164-32430, fuel filter, air filter inner/outer R1401-42270, and hydraulic filter HHTA0-37710. Use Super UDT2 for hydraulic/transmission fluid — 42.3 quarts capacity. Always prime the hydraulic pump after any fluid service — air in the system is the most common cause of complete hydraulic loss on the M5400.

✓ Kubota M5400 — No DPF / No DEF / Gear Only

The M5400 uses a Kubota 5-cylinder 2.7L diesel — no DPF, no DEF, no emissions aftertreatment. Transmission is 8-speed partially synchronized or 12-speed creeper gear only — no HST option. All transmission complaints are gear shifting, clutch wear, and linkage adjustment — not hydrostatic problems. The M5400 is a 1990s to early 2000s older M-series utility tractor — a different platform from the newer M5040 and M5660 Grand M4 series. Available as 2WD and 4WD with ROPS configurations. Check serial number at our Kubota Serial Number Lookup for open recalls including the documented steps recall on some M series units.

Kubota M5400 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Complete hydraulic failure	No 3-point, steering, or loader	Easy–Medium	$0–$400	$400–$3,000
Overheating / stalling under load	Screeches to halt when hot	Medium	$300–$600	$2,000–$4,000
Hard shifting / won’t shift into gear	Intermittent — happens seasonally	Easy	$0–$100	$800–$2,000
Clutch seal failure	Linked to overheating stalls	Medium	$300–$600	$2,000–$4,000
Steps recall	Steps snap off during use	Easy	Free via dealer	Free recall
Quick attach plate failure	Dump problems, pin lockage	Easy	$100–$300	$300–$600
Electrical / battery faults	No-start, battery drain	Easy	$0–$200	$200–$600

The Kubota M5400 is a 5-cylinder gear-drive utility tractor produced from the 1990s through the early 2000s. Owner discussions on OrangeTractorTalks and TractorByNet show that the M5400’s most dramatic-sounding problem — complete hydraulic failure — is almost always an air-in-system issue after service, not a failed pump. The fix takes 20 minutes once you know the correct priming procedure.

One owner described the M5400 as having “no hydraulics at all — the pump apparently isn’t picking up fluid” after a service — classic air lock that primes out by jacking the left rear and cycling the controls. Another described the tractor screeching “to a halt and stalling the engine” when hot — confirmed clutch seal failure. A third reported intermittent hard shifting “a couple times a year” — fixed by adjusting the shifter support linkage. All three are DIY repairs.

🔌 Kubota M5400 Specs & Fluid Reference

Spec	Value
Engine	Kubota 2.7L 5-cylinder diesel — 58 gross HP, 54 net HP, 50 PTO HP
Transmission	8-speed partially synchronized or 12-speed creeper — gear only — no HST
Engine oil type	15W-40 diesel — API CF or higher
Hydraulic / transmission fluid	Kubota Super UDT2 — capacity 42.3 quarts (40L) — never substitute generic hydraulic oil
Front axle fluid	Super UDT2 or SAE 80/90 gear oil — verify capacity in operator manual
Production years	1990s to early 2000s — 2WD and 4WD (M5400DT) — ROPS configurations

Problem #1 — Complete Hydraulic Failure (Most Common)

⚠️ Most Common M5400 Complaint: Owner language: “I have no hydraulics at all now — the pump apparently isn’t picking up fluid.” This sounds catastrophic but is almost always air in the system after a fluid service — not a failed pump. The M5400’s hydraulic suction port is on the right side of the tractor. Jacking the left rear raises the right side suction port and lets fluid flow to the pump.

Symptoms

No 3-point lift, no loader movement, no power steering — all hydraulics dead simultaneously
Symptoms appeared immediately after a fluid or filter service
Engine runs normally — only hydraulics affected
Pump audibly whining or cavitating — not building pressure

📋 Hydraulic Priming Procedure — M5400 Specific

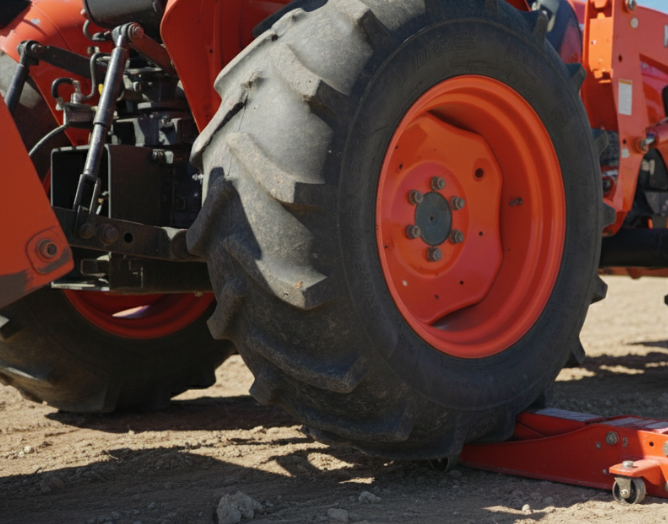

Jack up the left rear of the tractor — this raises the right side where the suction port is located, allowing fluid to flow toward the pump by gravity
Verify hydraulic fluid level is correct — top up with Super UDT2 if needed before priming
Cycle all hydraulic controls repeatedly — move loader, 3-point, and remotes through full travel to draw fluid through the system and purge air
Pour fluid into pressure lines if needed — on stubborn air locks, carefully pour Super UDT2 directly into the pump inlet or pressure line to prime manually
Lower tractor and test — hydraulics should restore once air is fully purged
If still no pressure after priming — check hydraulic filter HHTA0-37710 for blockage before diagnosing pump failure

See our Kubota Hydraulic Fluid Guide and Kubota Hydraulic Pump Guide. DIY cost: $0–$400. Dealer cost: $400–$3,000.

Problem #2 — Overheating / Stalling Under Load

⚠️ M5400 Specific Pattern: Owner language: “When I work it and it’s getting hot it screeches to a halt and stalls the engine.” This abrupt shutdown under heat is a confirmed clutch area seal and bearing failure pattern on the M5400 — not engine overheating. Failed seals allow fluid into the clutch area causing drag and heat buildup that locks up the drivetrain under load.

Symptoms

Tractor runs normally when cold — shuts down abruptly when hot under load
Screeching or grinding sound just before stall
Problem disappears after cooling down — returns under sustained work
Burning smell from clutch area

✓ Fix: Inspect and replace clutch seals and bearings in the clutch area — the M5400 has two seals that are commonly found failed together. Replace both seals and bearings as a set rather than individually. Owner reports confirm the problem resolves after seal and bearing replacement with no recurrence after 40+ hours of operation. This is a medium-difficulty job requiring tractor splitting — see our Kubota Clutch Replacement Guide.

DIY cost: $300–$600. Dealer cost: $2,000–$4,000.

🔧 Recommended Parts — M5400 Filter Kit

Hydraulic Filter HHTA0-37710 — confirmed M5400 hydraulic filter — View on Amazon →
Oil Filter HH164-32430 — confirmed M5400 engine oil filter — View on Amazon →
Fuel Filter — confirmed M5400 fuel filter — View on Amazon →
Air Filter Inner/Outer R1401-42270 — confirmed M5400 air filtration — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for M5400 diesel — View on Amazon →

See our Kubota Filter Cross-Reference Master Chart for OEM-equivalent savings. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Problem #3 — Hard Shifting / Won’t Shift Into Gear

Symptoms

Won’t shift into gear — happens intermittently, a couple times a year
Problem is seasonal — more common in certain temperatures
Affects specific gears or ranges rather than all gears
Shifting feels vague or requires excessive force

✓ Fix — Shifter Support Linkage Adjustment:

Locate the shifter support linkage — the support bracket that holds the gear shifter in alignment
Move the first shifter support back slightly — even a small misalignment in the support causes intermittent binding under certain temperatures or conditions
Test through all gear ranges — confirm smooth engagement before returning to service
If adjustment doesn’t resolve — check clutch free play and transmission oil level and condition before assuming internal wear

See our Kubota Clutch Adjustment Guide. DIY cost: $0–$100. Dealer cost: $800–$2,000.

Problem #4 — Clutch Seal Failure

Closely linked to Problem #2 — failed clutch seals are the confirmed root cause of the M5400’s heat-related stalling pattern. The M5400 has two seals in the clutch area that fail together over time, allowing fluid to contaminate the clutch pack and causing the heat-under-load shutdown.

Symptoms

Clutch engagement feels inconsistent or soft
Fluid weeping from clutch area
Overheating and stalling under sustained load — see Problem #2
Burning smell during heavy PTO work

✓ Fix: Replace both clutch seals and bearings as a complete set — the M5400 has two seals that are typically found failed together. Owner reports confirm no recurrence after 40+ hours following a complete seal and bearing replacement. Requires splitting the tractor. Budget time for this job — it is a half-day to full-day project for a competent DIY mechanic.

DIY cost: $300–$600. Dealer cost: $2,000–$4,000.

Problem #5 — Steps Recall

⚠️ Safety Issue: Owner language: “There has been a recall on some of the M series with the steps breaking off.” Steps snapping off during use is a serious fall hazard. Check your M5400 serial number against the recall list before using the tractor.

✓ Fix: Check your serial number using our Kubota Serial Number Lookup Tool for open recalls. If your M5400 is affected, contact your Kubota dealer — steps replacement is covered under the recall at no charge. Do not use the tractor as a step while recall work is pending.

DIY cost: Free via recall. Dealer cost: Free via recall.

Problem #6 — Quick Attach Plate Failure

Symptoms

Bucket won’t dump fully or dumps erratically
Quick attach pins won’t lock or unlock cleanly
Loader feels loose or unstable at the bucket connection

💡 Known Design Issue: Owner language: “The quick attach mounting plate is a bad design.” The OEM quick attach plate on the M5400 loader has documented design complaints around pin engagement and dump function. Upgrading to a quality aftermarket plate resolves most complaints. Confirm compatibility with your specific M5400 loader model before ordering.

See our Kubota Loader Bucket Adjustment Guide. DIY cost: $100–$300. Dealer cost: $300–$600.

Problem #7 — Electrical / Battery Faults

Symptoms

No-start or slow crank on an older M5400
Battery repeatedly goes flat
Intermittent electrical faults that change with temperature

✓ Fix: On the M5400 electrical complaints almost always trace to age-related ground corrosion, weak battery, or corroded terminals — not wiring failures. Clean every ground point on the tractor — battery negative to chassis, engine block to chassis. Load test battery. Measure alternator output — must show 13.8–14.4V with engine running. Check all fuses before tracing further into the wiring harness. See our Kubota Ground Strap Guide and Kubota Won’t Start Guide.

DIY cost: $0–$200. Dealer cost: $200–$600.

🔧 Recommended Tools & Cross-Reference Guides

Digital Multimeter — voltage drop and circuit diagnosis — View on Amazon →
Hydraulic Pressure Gauge — pump output testing — View on Amazon →
Lucas Red N Tacky Grease — linkage and pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on M5400 filters — View Guide →
Hydraulic Filter Cross-Reference Guide — M5400 hydraulic filter alternatives — View Guide →
Kubota Fuel Filter Interchange Guide — M5400 fuel filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota M5400 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic priming / air bleed	$0	$200–$500	$200–$500
Hydraulic fluid + filter service	$150–$400	$500–$900	$350–$500
Shifter linkage adjustment	$0–$50	$200–$500	$200–$450
Clutch seals + bearings	$300–$600	$2,000–$4,000	$1,700–$3,400
Hydraulic pump rebuild/replace	$200–$500	$1,500–$3,000	$1,300–$2,500
Transmission service/shift fix	$100–$300	$800–$2,000	$700–$1,700

Use our Tractor Repair vs Replace Calculator for major repair decisions on older M5400 machines.

Kubota M5400 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid • Inspect under tractor for leaks • Check clutch engagement feel
50–100 Hours	Change engine oil and filter HH164-32430 • Replace fuel filter • Clean battery terminals and grounds • Check clutch free play • Verify hydraulic fluid level
200 Hours	Replace hydraulic filter HHTA0-37710 • Replace air filter inner/outer • Inspect suction hose condition • Check alternator output • Inspect shifter linkage alignment
400 Hours	Drain and refill 42.3 qt hydraulic system with Super UDT2 • Prime pump after refill using left-rear jack procedure • Replace battery cables • Inspect clutch area for seal weeping • Check recall status at serial number lookup

Frequently Asked Questions — Kubota M5400 Problems

Why does my M5400 have no hydraulics after a fluid service?

Air entered the system when you opened it for service — the M5400 hydraulic suction port is on the right side of the tractor. Jack up the left rear to raise the right side suction port, cycle all hydraulic controls repeatedly to purge air, and top up with Super UDT2. This resolves the vast majority of complete hydraulic loss complaints on the M5400 without any parts replacement.

How does the M5400 compare to the M5040 and M5660?

The M5400 is a different and older platform from the M5040 and M5660. The M5040 and M5660 are part of Kubota’s newer Grand M4 series with more horsepower, larger wheelbase, and different turning radius. The M5400 is a 1990s to early 2000s machine with a 5-cylinder engine and older-generation gear transmission. Service approaches, fluid types, and basic maintenance are similar across the M-series family but filter part numbers and specifications differ — always verify by serial number.

Does the M5400 have HST?

No — the M5400 uses an 8-speed partially synchronized or 12-speed creeper gear transmission only. There is no HST option. All transmission complaints on this model are gear shifting, clutch wear, and linkage alignment — not hydrostatic pump or pedal issues.

Is there a recall on the M5400?

Yes — there is a documented recall on some M-series tractors including M5400 units for steps that snap off during use. Check your serial number using our Kubota Serial Number Lookup Tool or contact your Kubota dealer. Steps replacement is covered at no charge under the recall.

Is the M5400 a reliable tractor?

The M5400 has a solid reputation as a durable older work tractor. The problems that generate complaints are maintenance items and age-related wear — hydraulic priming after service, clutch seal replacement, shifter linkage adjustment, and ground cleaning. None are design failures. Stay current on hydraulic fluid and filter service with Super UDT2, keep grounds clean, and inspect the clutch area annually for seal weeping. Owners who maintain the M5400 properly report reliable service well past 3,000 hours.

Related Kubota M Series & Parts Guides

Kubota M5040 Problems Guide →

Newer Grand M4 series sibling

Kubota M5660 Problems Guide →

M series utility tractor

Kubota M4900 Problems Guide →

Same era M series platform

Kubota Filter Cross-Reference Chart →

Save 30–60% on M5400 filters

Kubota Hydraulic Pump Guide →

Rebuild vs replace decision guide

Used Kubota Inspection Guide →

Essential checklist before buying used

The M5400’s most important maintenance habits are always priming the hydraulic pump after any fluid service using the left-rear jack procedure, staying current on hydraulic fluid and filter service with Super UDT2, inspecting clutch seals annually, and checking the recall status by serial number. Most M5400 complaints resolve with simple maintenance — the complete hydraulic loss that sounds like pump failure is almost always just air in the system. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
