⚡ Quick Answer

The most common Kubota M6800 problems are hydraulic weakness when hot, water-contaminated hydraulic oil, fuel starvation after warm-up, steering failure, and clutch/shuttle wear. The M6800 uses a 4-cylinder diesel with gear and power shuttle transmission — no HST. Confirmed hydraulic filter: HH330-82630. Use Super UDT2 for hydraulic/transmission fluid. Water contamination of the hydraulic system is the single most destructive M6800 failure pattern — milky fluid that looks like coffee creamer means drain, flush, and inspect seals immediately before running the tractor further.

✓ Kubota M6800 — No DPF / No DEF / Gear and Power Shuttle Only

The M6800 uses a Kubota V3300-E 3.3L 4-cylinder diesel — no DPF, no DEF, no emissions aftertreatment. Transmission is gear and power shuttle only — no HST option. All transmission complaints are clutch wear, shuttle engagement, pedal adjustment, and gear feel — not hydrostatic problems. The M6800 was produced from 1997 to 2005 in 2WD and 4WD (M6800DT) configurations with open station and cab options. The M6800S is a sub-variant — verify parts by serial number. Note: the M6800 is a 4-cylinder engine — different from the M5700’s 5-cylinder despite being in the same M-series family.

Kubota M6800 Problems — Quick Reference Table

Problem	Symptom Pattern	DIY Difficulty	DIY Cost	Dealer Cost
Hydraulic weakness when hot	Works cold, fades after hours	Easy–Medium	$60–$500	$500–$3,500
Fuel starvation when warm	Power loss after 5–15 min running	Easy	$20–$200	$200–$700
Steering failure / jerky steering	Foam at dipstick, steering gone	Easy–Medium	$100–$400	$400–$2,000
Slow 3-point lift	Must wait for hitch to rise at row end	Easy–Medium	$60–$400	$400–$2,000
Clutch / shuttle wear	Frequent adjustment, slip under load	Medium–Dealer	$400–$1,500	$2,000–$5,000
Quick coupler / loader blockage	Intermittent loader, changes after coupler work	Easy	$20–$150	$200–$500
Water-contaminated hydraulic oil	Milky fluid, weak hydraulics when warm	Easy–Medium	$150–$400	$400–$1,500

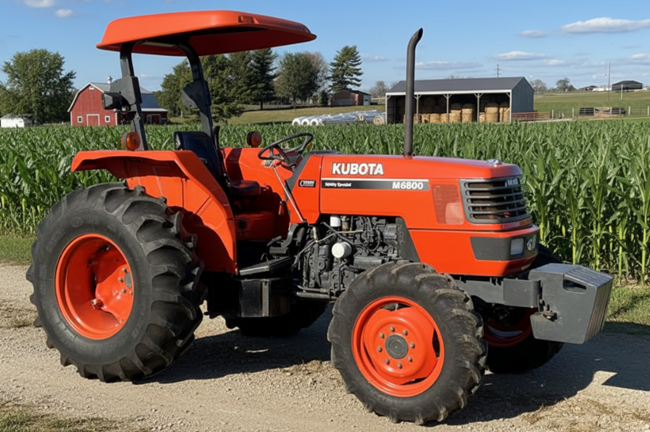

The Kubota M6800 is a 70.9 HP utility tractor produced from 1997 to 2005 with a 4-cylinder V3300-E diesel and gear or power shuttle transmission. Owner discussions on OrangeTractorTalks and TractorByNet show the M6800’s problems cluster heavily around hydraulic system health — water contamination, heat-related weakness, and steering loss dominate the complaint threads.

One owner described hydraulics that were “extremely weak and intermittent” with steering and PTO acting up after hours of work. Another found the oil “looked like coffee creamer” after the tractor sat — classic water contamination from a compromised seal or boot. A third described fuel starvation that kicked in after 5 to 15 minutes of running — like the tractor was “on life support.” All three patterns have clear DIY diagnosis paths.

🔌 Kubota M6800 Specs & Fluid Reference

Spec	Value
Engine	Kubota V3300-E 3.3L 4-cylinder diesel — 70.9 HP
Transmission	Gear and power shuttle — no HST
Engine oil capacity	Approximately 3 gallons — verify with dipstick
Engine oil type	15W-40 diesel — API CF or higher
Hydraulic / transmission fluid	Kubota Super UDT2 — verify capacity in operator manual
Production years	1997–2005 — 2WD and 4WD (M6800DT) — M6800S sub-variant

Problem #1 — Hydraulic Weakness When Hot (Most Common)

⚠️ Most Common M6800 Complaint: Owner language: “extremely weak and intermittent” hydraulics after several hours of work, with steering and PTO acting up. The M6800’s hydraulic system weakens under heat when fluid is degraded, filters are restricted, or a quick coupler is blocking flow. Works fine cold — degrades progressively as operating temperature rises.

Symptoms

Tractor works normally when cold — hydraulics fade after 1–3 hours of work
Loader lifts slowly or stops responding under sustained use
3-point becomes sluggish or dead when hot
Steering fades — feels heavy or unresponsive after extended use
Hydraulic oil noticeably hot — hotter than normal

📋 Diagnosis — Step by Step

Check hydraulic fluid level and condition — low fluid or degraded fluid is the most common cause of heat-related hydraulic weakness
Replace hydraulic filter HH330-82630 — a clogged filter causes exactly this pattern of cold-normal, hot-weak performance
Inspect all quick couplers — one owner traced flaky hydraulics to a quick coupler that had lost its internal valve, preventing the other valve from opening correctly. Replace any coupler with a missing or damaged internal valve
Check suction hoses and fittings for air leaks — air ingress causes heat-related weakness and aeration
Verify loader valve circuit position — incorrect valve position starves one circuit while running others normally
If weakness persists after fluid and filter service — pressure test the pump and flow-test the priority valve before condemning either component. See our Kubota Hydraulic Pump Guide

See our Kubota Hydraulic Fluid Guide. DIY cost: $60–$500. Dealer cost: $500–$3,500.

Problem #2 — Fuel Starvation When Warm

💡 M6800 Pattern: Owner language: runs fine for 5 to 15 minutes then loses power and throttle response like it was “on life support.” This pattern — fine cold, fails warm — is classic fuel starvation from a heat-expanded restriction. The fuel filter, separator, tank pickup, or a partially blocked shutoff valve expands under heat and cuts off flow.

Symptoms

Power loss after 5–15 minutes of running — not immediate
Surging or hunting throttle response when warm
Poor throttle response under load after warm-up
Engine restarts fine after cooling — then fails again at same interval

✓ Fix — In Order:

Replace fuel filter — a filter that flows adequately cold but restricts when warm-expanded is the most common cause of this exact pattern
Drain water separator — water in the separator causes intermittent starvation that worsens with heat
Inspect tank outlet and lines for air leaks — suction-side air leaks cause exactly this warm-fail cold-fine pattern
Verify fuel flow from tank — remove the outlet line and confirm strong gravity flow before blaming the lift pump
Clean shutoff valve and strainer circuit if equipped — a partially blocked shutoff valve that opens adequately cold but restricts warm is a known M6800 failure mode

See our Kubota Fuel System Bleeding Guide. DIY cost: $20–$200. Dealer cost: $200–$700.

🔧 Recommended Parts — M6800 Filter Kit

Kubota M6800 Complete Maintenance Filter Kit — oil, fuel, air, and hydraulic filters confirmed for M6800 — View on Amazon →
Hydraulic Filter HH330-82630 — confirmed M6800 hydraulic filter — View on Amazon →
Super UDT2 2.5 Gallon — hydraulic/transmission fluid — View on Amazon →
Shell Rotella T6 15W-40 — engine oil for M6800 V3300 diesel — View on Amazon →

See our Kubota Filter Cross-Reference Master Chart for OEM-equivalent savings. As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

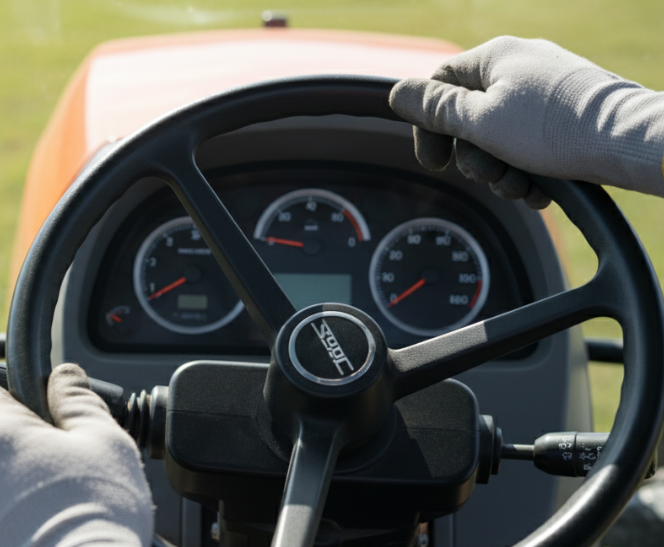

Problem #3 — Steering Failure / Jerky Steering

⚠️ Warning Sign — Act Immediately: Owner language: “steering became jerky, foam came out of the dipstick boot, then hydraulic steering went out completely.” Foam at the dipstick means air is in the hydraulic system. On the M6800 this often traces to water contamination or a bad suction-side seal. Stop using the tractor and inspect before the contaminated fluid destroys the pump.

Symptoms

Jerky or inconsistent steering feel — especially after washing or wet conditions
Foam visible at dipstick or fill port
Progressive steering loss that goes from jerky to completely dead
Milky or foamy hydraulic fluid when dipstick is pulled

📋 Fix — Step by Step

Stop running the tractor immediately if fluid is foamy or milky — contaminated fluid causes pump and valve damage within hours
Drain and flush the entire hydraulic system — do not just top up over contaminated fluid
Replace hydraulic filter HH330-82630 and suction screen
Inspect shift boots, fill caps, and all seals for water entry points — the M6800 shift boot is a known water ingress point after washing or heavy rain
Check suction side hoses and fittings for air leaks
Refill with fresh Super UDT2 and cycle all functions to purge remaining air
If steering remains intermittent after flush — steering priority valve inspection at dealer level

See our Kubota Power Steering Guide. DIY cost: $100–$400. Dealer cost: $400–$2,000.

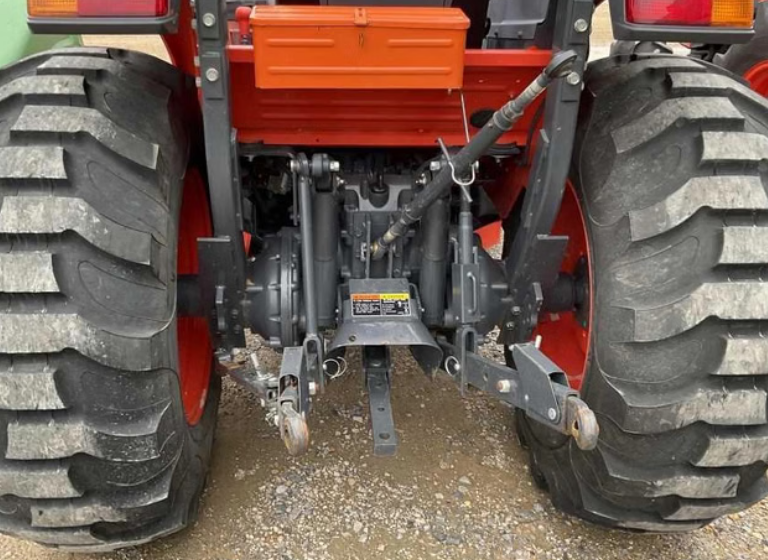

Problem #4 — Slow 3-Point Hitch Lift

💡 Known M6800 Issue: Owner language: “lift was so slow I had to wait for it to rise before turning at row ends.” Dealers told one owner it was “the nature of the beast” — but slow lift that gets progressively worse is not normal and has clear DIY diagnosis steps before accepting that answer.

Symptoms

3-point hitch rises very slowly — especially at idle
Slow return from lowered position
Lift response improves at higher RPM but never feels strong
Slow lift alongside normal loader performance — points to rockshaft circuit restriction

✓ Fix — In Order:

Confirm correct hydraulic fluid level — low fluid reduces available flow to the rockshaft circuit first
Replace hydraulic filter HH330-82630 — a partially clogged filter reduces flow under sustained demand
Check loader/selector valve position — incorrect valve position diverts flow away from the hitch circuit
Time lift response at 1,800 and 2,500 RPM — significant improvement at higher RPM confirms a flow/volume issue rather than a valve leak
If lift is slow at all RPMs with correct fluid and clean filter — rockshaft circuit restriction testing or worn lift cylinder at dealer level

See our Kubota 3-Point Hitch Guide. DIY cost: $60–$400. Dealer cost: $400–$2,000.

Problem #5 — Clutch / Shuttle Wear

Symptoms

Clutch pedal needs adjustment every few hundred hours
Eventually needs clutch replacement around 600 hours on heavy-use machines
Shuttle engagement problems — hesitation or creep
Slipping under drawbar load despite recent adjustment

📋 Diagnosis — Step by Step

Inspect clutch pedal free play and linkage adjustment — adjust to spec before any internal diagnosis
Check for worn pins and bushings in the linkage — worn linkage causes adjustment that won’t hold
Road test under drawbar load — if engine RPM flares while ground speed drops, the clutch is slipping and needs replacement
If clutch slips under load despite correct adjustment — tractor splitting and clutch pack replacement. See our Kubota Clutch Replacement Guide

DIY cost: $400–$1,500. Dealer cost: $2,000–$5,000.

Problem #6 — Quick Coupler / Loader Circuit Blockage

💡 Easy Win Before Expensive Diagnosis: One M6800 owner traced completely flaky hydraulics to a quick coupler that had lost its internal valve — this prevented the other valve from opening correctly, causing intermittent loader and hitch problems that mimicked pump failure. Always check couplers before any hydraulic pump diagnosis.

Inspect all quick couplers for missing or damaged internal valves — replace any coupler that doesn’t click and seat firmly
Verify all loader hoses are connected to the correct ports
Test with the loader completely removed from the hydraulic circuit if intermittent function persists

DIY cost: $20–$150. Dealer cost: $200–$500.

Problem #7 — Water-Contaminated Hydraulic Oil

⚠️ Stop Running Immediately: Owner language: fluid “looked like coffee creamer.” Milky or creamy hydraulic fluid means water has entered the system. Running the tractor on contaminated fluid destroys the pump, valves, and cylinder seals within hours. This is the single most destructive M6800 failure pattern — it underlies multiple other complaints including steering loss and heat-related weakness.

Common Entry Points on M6800

Shift boots — water enters through cracked or missing shift lever boots during washing or rain
Fill caps — loose or damaged fill caps allow water entry during power washing
Suction side seals — degraded seals on suction hoses pull water in from wet conditions
Outdoor storage — long-term outdoor storage with compromised seals concentrates water over time

✓ Fix: Drain and flush the entire hydraulic system — do not top up over contaminated fluid. Replace hydraulic filter HH330-82630 and suction screen. Inspect all boots, caps, and seals and replace any that show cracking or damage. Refill with fresh Super UDT2. Cycle all functions to purge remaining contamination. Check fluid condition after 10 hours — if it turns milky again the water entry point has not been found.

DIY cost: $150–$400. Dealer cost: $400–$1,500.

🔧 Recommended Tools & Cross-Reference Guides

Digital Multimeter — electrical diagnosis — View on Amazon →
Hydraulic Pressure Gauge — pump and charge pressure testing — View on Amazon →
Lucas Red N Tacky Grease — linkage and front axle pivot lubrication — View on Amazon →
Nitrile Gloves — hydraulic and fuel system work — View on Amazon →
Kubota Filter Cross-Reference Master Chart — save 30–60% on M6800 filters — View Guide →
Hydraulic Filter Cross-Reference Guide — M6800 hydraulic filter alternatives — View Guide →

As an Amazon Associate, TractorPartsCentral earns from qualifying purchases.

Dealer vs DIY Cost — Kubota M6800 Common Repairs

Repair	DIY Cost	Dealer Cost	Savings
Hydraulic fluid + filter service	$100–$300	$400–$800	$300–$500
Water contamination flush	$150–$400	$400–$1,500	$250–$1,100
Fuel filter + bleed	$20–$80	$200–$500	$180–$420
Hydraulic pump rebuild/replace	$300–$1,000	$1,500–$3,500	$1,200–$2,500
Clutch / shuttle internal rebuild	$400–$1,500	$2,000–$5,000	$1,600–$3,500

Kubota M6800 Maintenance Schedule

Interval	Service Items
Every Use	Check engine oil • Check hydraulic fluid color and level • Inspect shift boots for water entry • Check under tractor for new leaks
50–100 Hours	Change engine oil and filter • Replace fuel filter • Clean battery terminals and grounds • Check clutch free play • Inspect all quick couplers
200 Hours	Replace hydraulic filter HH330-82630 • Replace air filter • Inspect suction hose condition • Check alternator output • Inspect front axle seals
400 Hours	Drain and refill hydraulic fluid with Super UDT2 • Inspect all boots and seals for water entry points • Change front axle fluid • Replace battery cables • Check hydraulic fluid for milky contamination

Frequently Asked Questions — Kubota M6800 Problems

Why does my M6800 have weak hydraulics when hot but fine when cold?

Heat-related hydraulic weakness on the M6800 almost always traces to degraded fluid, a clogged filter, or a quick coupler with a missing internal valve. Change the hydraulic fluid with Super UDT2, replace filter HH330-82630, and inspect all quick couplers before any pump diagnosis. A pump that performs adequately cold but fails under heat is often responding to restricted flow rather than internal wear.

What does milky hydraulic fluid mean on a M6800?

Milky or creamy hydraulic fluid means water has entered the system — most commonly through a cracked shift boot, loose fill cap, or degraded suction-side seal. Stop running the tractor immediately. Drain and flush the entire system, replace the filter, inspect all seals and boots for the entry point, and refill with fresh Super UDT2. Running on water-contaminated fluid causes rapid pump and valve damage.

Does the M6800 have HST?

No — the M6800 uses a gear and power shuttle transmission only. There is no HST option. All transmission complaints are clutch wear, shuttle engagement, pedal adjustment, and gear feel — not hydrostatic pump or pedal issues.

How does the M6800 compare to the M5700 and M7040?

The M6800 and M5700 are similar-era M-series utility tractors but with different engines — M6800 uses a 4-cylinder V3300, M5700 uses a 5-cylinder. The M7040 is a later-generation machine with a newer engine family and updated hydraulic design. Parts, filter numbers, and specifications are not interchangeable across these models — always verify by serial number. See our M5700 Problems Guide and M7040 Problems Guide.

Is the M6800 a reliable tractor?

The M6800 is a capable and durable utility tractor. Its problems are almost entirely maintenance-related — water contamination from neglected seals and boots, degraded hydraulic fluid, clogged filters, and clutch wear from heavy use. None are design failures. The key is staying current on hydraulic fluid and filter service, inspecting shift boots and fill caps regularly, and replacing the fuel filter on a 100-hour cycle. M6800 owners who maintain these items properly report reliable service well past 3,000 hours.

🚜 Own a Kubota M8200? See our complete Kubota M8200 Problems Guide — fuel system bleed procedure, hydraulic remote diagnosis, known front axle steering line fix and confirmed filter part numbers for all M8200 and M8200DT models.

🚜 Own a Kubota M9000? See our complete Kubota M9000 Problems Guide — fuel starvation fix, grabby clutch diagnosis, A/C troubleshooting and confirmed filter part numbers for all M9000 and M9000DTC models.

Related Kubota M Series & Parts Guides

Kubota M5700 Problems Guide →

Same era M series — 5-cylinder

Kubota M7040 Problems Guide →

Newer generation M series

Kubota M6060 Problems Guide →

M series utility tractor

Kubota Filter Cross-Reference Chart →

Save 30–60% on M6800 filters

Kubota Hydraulic Pump Guide →

Pump diagnosis before expensive repairs

Used Kubota Inspection Guide →

What to check before buying a used M6800

The M6800’s most critical maintenance habits are checking hydraulic fluid color at every use — milky fluid means stop immediately — staying current on fluid and filter service with Super UDT2, inspecting shift boots and fill caps regularly for water entry, and replacing the fuel filter on a 100-hour cycle. Water contamination is the single most destructive M6800 failure pattern and is entirely preventable with regular inspections. See our Kubota Filter Cross-Reference Master Chart for verified filter savings. For more DIY guides visit TractorPartsCentral.com.
