Kubota PTO clutch adjustment is a vital maintenance task that many DIY tractor owners encounter when facing common problems like PTO slipping under load, chattering noises, or difficulties in engagement and disengagement. These issues often hinder the performance of the tractor’s power take-off system, impacting the operation of implements such as mowers, tillers, and rotary cutters.  If adjustment doesn’t solve engagement issues, inspect for PTO shaft problems including bent shafts or worn bearings.

The PTO clutch transmits engine power to attached implements by engaging and disengaging the driven PTO shaft. As the clutch wears over time, the clearance between friction surfaces changes, which affects performance and may produce slipping or chatter. Proper adjustment of the PTO clutch pack and linkage restores correct operation and prevents damage.

Adjustment is typically a routine maintenance task that most Kubota tractor owners can perform with basic mechanical skills and tools. However, understanding the symptoms that indicate adjustment versus replacement is crucial for avoiding unnecessary repairs. This guide will take you step-by-step through the adjustment process, highlighting variations found on popular Kubota B-series, L-series, and MX-series tractors.

Expect to spend about 1-2 hours for a thorough adjustment when following proper safety and diagnostic procedures. If your PTO issues persist despite adjustment, replacement or professional servicing may be necessary. For troubleshooting when your PTO won’t engage, see Kubota PTO Won’t Engage? How to Troubleshoot the Problem.

Your Kubota tractor’s PTO clutch system operates using various mechanisms to control power delivery to implements. The most common types include:

• Dry Disc Clutches: Utilize a set of friction discs and plates similar to automotive clutches. These dry clutches engage via pressure plates that clamp the discs together.
• Wet Clutches: Submerged in lubricating oil, wet clutches offer smoother engagement and improved cooling. They rely on hydraulic or mechanical pressure to engage friction plates inside the clutch pack.
• Independent vs Live PTO: Independent PTO clutches allow the operator to engage the PTO shaft independent of tractor movement, while live PTO types tie the PTO operation to tractor transmission movement.

Key components of the PTO clutch system include:

• Clutch Pack: Comprises friction plates and discs arranged alternately to transmit torque when pressed together.
• Pressure Plate: A heavy plate that applies force to the clutch pack, engaging the PTO drive.
• Release Bearing: Facilitates disengagement by releasing pressure on the clutch pack when PTO is switched off.
• Adjustment Mechanism: Cable or rod linkages that control clutch free play and engagement tension, varying by model series.

Over time, the friction materials wear thin, increasing the clearance or ‘free play’ in the clutch. This wear can cause the PTO to slip under load or chatter during engagement. Proper adjustment reduces excessive free play, ensuring full contact within the clutch pack for optimal power transfer.

Signs that adjustment is needed include slipping PTO under moderate loads, delayed engagement when the lever or pedal is pressed, or difficulty fully disengaging the PTO clutch. In contrast, a burning smell, grinding noises, or inability to hold engagement typically indicate worn clutch components requiring replacement rather than adjustment.

Working with PTO clutches involves mechanical components under tension and potentially hot surfaces, so adhering to safety protocols is essential:

• Ensure the tractor is parked on a flat, stable surface and engage the parking brake firmly to prevent any accidental movement.
• Turn off the engine and remove the ignition key to prevent unauthorized or accidental starting. Wait for all moving parts, including PTO shafts and clutch mechanisms, to stop completely before beginning work.
• Disconnect and remove any attached implements or PTO-driven equipment to free the PTO shaft and reduce obstructions.
• Wear appropriate personal protective equipment (PPE) such as safety goggles, gloves, and sturdy boots to protect against sharp edges, hot parts, and hydraulic fluid leaks.
• Be cautious of hot engine and clutch components if the tractor has been running recently. Use heat-resistant gloves if necessary.
• Never work beneath the tractor without properly supporting it with jack stands or blocks if removal of covers or underneath access is required.
• Consult the specific safety warnings and instructions outlined in your Kubota tractor’s operator manual for model-specific hazards.

A meticulous pre-adjustment inspection ensures that the clutch issue is actually due to misadjustment and not underlying mechanical failure. Perform these detailed checks:

• Operate the PTO engagement lever or pedal several times with the engine off. It should have smooth and free movement without sticking or excessive resistance.
• Visually inspect the cable or rod linkages for signs of wear such as fraying cables, kinks, cracked or stretched rods, missing bushings, or broken springs that can affect clutch operation.
• Examine the clutch housing for damage that might expose clutch components to dirt and debris. Dirt accumulation can degrade clutch performance.
• Start the tractor engine and engage the PTO without any implement attached. Listen for noises such as grinding or chatter, and note delayed or incomplete clutch engagement.
• Verify the problem is related to the mechanical clutch system rather than hydraulic PTO actuation or electrical safety switch faults. Consult safety switch troubleshooting guides as needed to rule out these causes.

If any linkage or component damage is found during inspection, repair or replacement should precede adjustment. Confirming the issue is adjustment-related saves time and extends the life of the clutch pack.

Step 1: Locate Adjustment Points

The location and type of PTO clutch adjustment mechanism depends on your Kubota tractor series:

• B-Series models (e.g., B2301, B2601): These typically feature a cable-operated adjustment. The adjustment point is usually near the operator’s seat, close to the PTO engagement lever or along the cable routing near the rear fender. Some models require partial seat removal for clear access.
• L-Series models (e.g., L2501, L3301, L3901): These use a rod linkage adjustment mechanism. The adjustment nuts are often found near the clutch pedal arm or underneath the rear fender close to the transmission housing. Access may require removing guards or panels.
• MX-Series and others: May have hydraulic or electric PTO actuators; consult your owner’s manual specifically for these models as adjustment differs significantly.

Refer to your tractor’s service manual or operator guide for detailed illustrations and instructions to precisely locate these points. Locating the mechanism correctly saves time and avoids unnecessary disassembly.

Step 2: Measure Current Free Play

Measuring free play is crucial to determining the amount of adjustment needed:

• Free play is defined as the amount of pedal or lever movement before the PTO clutch begins to engage.
• Using a feeler gauge or ruler, measure the clearance at the PTO pedal or lever from rest position to point where resistance is felt.
• The typical free play specification for Kubota PTO clutches is between 0.8 to 1.2 inches (20 to 30mm), though specifications vary by model. Always verify for your specific model.
• If the free play is greater than specified, the clutch pack is likely not fully engaging, causing slipping. If free play is too little, the clutch may drag and fail to disengage properly.
• Carefully record your measurement before proceeding.

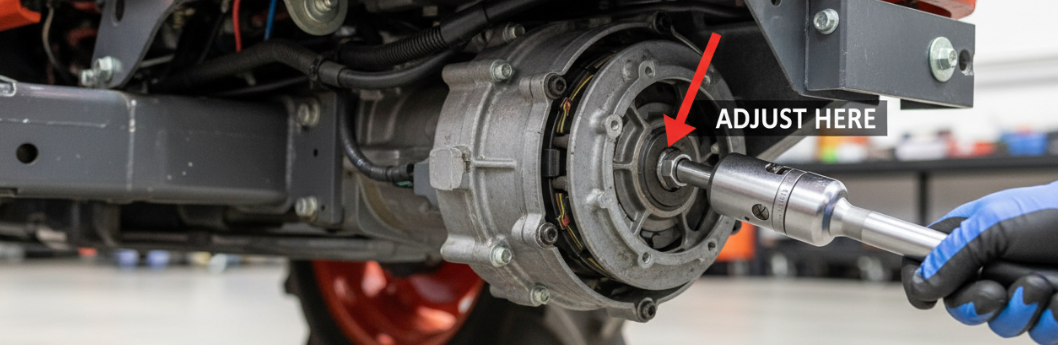

Step 3: Access Adjustment Mechanism

Many Kubota tractors have protective covers or guards that need removal to access adjustment nuts:

• Use your socket set and screwdrivers to remove any seat panels, floor plates, or fender guards as needed.
• Identify the locknut (usually a fixed hex nut) and the adjacent adjustment nut on the cable or rod linkage.
• The locknut holds the adjustment nut in place to prevent loosening during tractor operation.
• Clean the area to remove dirt, grease, and corrosion that may hinder turning.

Step 4: Make the Adjustment

Important: Loosen the locknut carefully first to allow adjustment without damaging threads.

• Turning the adjustment nut clockwise typically reduces free play by tightening the cable or rod, increasing clutch pack engagement pressure.
• Turning the adjustment nut counterclockwise increases free play and loosens clutch pressure.
• Make small adjustments of about 1-2 turns at a time, then re-measure free play.
• If your PTO frequently slips under load, gradually reduce free play to its lower specification limit.
• If the PTO clutch refuses to disengage fully, increase free play slightly within specification.
• Never force adjustment nuts; if seized, apply penetrating oil and allow time to loosen.
• After each minor adjustment, measure free play to avoid over-tightening.

Consult your model’s service manual for exact torque specifications when retightening the locknut to avoid thread damage or loosening during operation.

Step 5: Re-measure Free Play

Verify that the adjustment brought the free play into the targeted range:

• Use the feeler gauge or ruler to measure again, aiming for 0.8 to 1.2 inches (20-30mm).
• If necessary, make minor refinements by repeating locknut loosening and adjustment turning.
• Consistency in measurements confirms proper adjustment; inconsistent readings may indicate worn linkage or damaged nuts requiring replacement.

Step 6: Tighten Locknut

Once the desired free play is achieved, tighten the locknut securely:

• Use an appropriate wrench or socket to firmly lock the adjustment nut in place.
• If you have a torque wrench, tighten to the manufacturer’s recommended torque specification; typically between 15-30 Nm (11-22 ft-lbs) depending on model.
• Ensure the locknut does not move the adjustment nut out of position during tightening.
• Double-check the free play after final tightening.

Step 7: Test Operation (No Load)

With engine running and no implement connected to the PTO shaft, conduct a functional test:

• Engage and disengage the PTO repeatedly to feel for smooth and prompt movement.
• Listen carefully for unusual sounds such as grinding, chatter, or squealing that may indicate misadjustment or component wear.
• Confirm that the PTO shaft fully stops spinning when disengaged.
• If you notice irregular operation, revisit adjustment steps or further inspect clutch components.
• If adjustment doesn’t solve engagement issues, inspect for PTO shaft problems including bent shafts or worn bearings. See our complete PTO repair guide.

Testing your PTO clutch under realistic conditions with implements attached is critical to confirm successful adjustment:

• Attach a light to moderate load implement such as a rotary cutter or tiller.
• Start the engine and bring it to recommended PTO engagement RPM (often around 2,600-3,000 RPM, verify for your model).
• Slowly engage the PTO clutch, increasing load gradually while observing tractor behavior and listening for slipping or chatter.
• Successful engagement means the PTO drives the implement smoothly without RPM drops or noise.
• If slipping persists, allow tractor to cool, recheck clutch free play and linkage, or consider clutch pack wear.

Progressive loading helps prevent stress on the clutch pack and gives early warning of uncorrected issues.

Frequent adjustment-related problems and their most common causes include:

• Adjustment won’t hold or locknut backs out: Usually due to stripped threads on nuts or loose locknuts. Replacing worn nuts and using medium-strength threadlocker can help maintain settings.
• Cannot achieve specified free play: Linkage cables or rods may be stretched, kinked, or damaged requiring replacement rather than adjustment.
• Adjustment lasts briefly and problem recurs: Clutch friction pack worn beyond adjustment limits. Clutch replacement is advised.
• PTO continues to slip despite minimal free play: Indicates severe clutch wear or contamination inside clutch housing.
• Excessive chatter still present after adjustment: May be hydraulic PTO issues, worn release bearing, or damaged clutch plates. Inspect these components.
• Adjustment nuts seized or corroded: Use penetrating oil liberally and tap gently with a hammer. Persistent seizure may require part replacement.
• Different engagement points hot vs cold: Temperature variance causes expansion affecting clearance; adjust clutch after normal operating temperature.

Faulty electrical safety PTO switches or hydraulic system malfunctions also mimic clutch adjustment problems. Refer to relevant safety switch articles and hydraulic system guides for comprehensive diagnosis.

Careful operation and routine maintenance greatly extend your Kubota PTO clutch lifespan:

• Smooth PTO engagement: Avoid sudden lever or pedal application which can shock and wear clutch surfaces prematurely.
• Regular linkage inspection: Check cables, rods, bushings, and springs for wear every 50 hours and lubricate pivot points to maintain ease of movement.
• Keep clutch adjustment current: Adjust every 50-100 hours or if slipping begins to prevent further damage.
• Proper storage: Store tractor indoors or cover to protect the clutch system from moisture and contaminants.
• Load management: Do not exceed PTO or implement rated power; overloading causes clutch slippage and overheating.

While many Kubota PTO clutch adjustments are DIY-friendly, professional service is recommended when:

• Repeated slipping persists despite proper clutch adjustment.
• There are burning smells, smoke, or signs of clutch overheating.
• The clutch pack or housing are physically damaged or require replacement.
• Your tractor has complicated hydraulic or electrical PTO systems beyond basic mechanical clutches.

Professional clutch replacement typically costs $150-300 depending on parts and labor, compared to minimal DIY costs for adjustment tools. If your tractor is under warranty, dealer servicing may be preferable to preserve coverage.
