Kubota Starter Relay Problems: Diagnose & Fix

When a Kubota tractor won’t start and there’s no click or crank, the issue may not be the starter motor or solenoid—it could be the starter relay. Kubota starter relay problems are often overlooked, but they can cause complete no-start conditions and intermittent failures. This guide covers how to diagnose, test, and replace a faulty starter relay, including step-by-step procedures, troubleshooting tips, and preventive maintenance advice. Understanding the difference between the relay, solenoid, and starter motor is crucial for accurate diagnosis and repair. If the starter doesn’t engage, also check for starter relay problems.

Understanding the Starter Relay

The starter relay is a small electrical switch that controls the high current needed to activate the starter solenoid and motor. When the ignition key is turned, the relay closes, sending power to the solenoid, which then engages the starter motor. Unlike the solenoid, which also mechanically engages the starter gear, the relay is purely an electrical switch and is typically located in the fuse box, near the battery, or on the firewall, depending on the Kubota model.

Inside the relay, a coil creates a magnetic field when energized by a low current from the ignition switch. This magnetic field pulls a switch (contact) closed, which allows a much larger current to pass through the relay’s high-current terminals, powering the solenoid circuit. When the key returns to the off position, the coil de-energizes and the contacts open, breaking the circuit. This design protects the ignition switch from carrying high current loads and simplifies wiring.

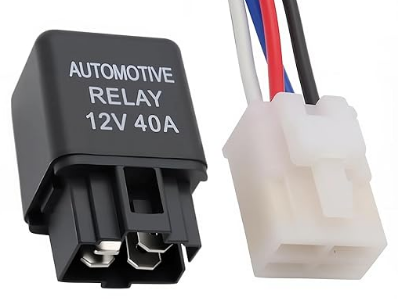

Kubota starter relays typically have coil voltage ratings of 12V DC matching the tractor’s electrical system. Common amperage ratings for the relay contacts range from 30 to 40 amps, enough to handle the solenoid’s power demand. The relay’s coil resistance often lies between 50-120 ohms, which influences the current drawn when energized. Using a relay with improper voltage or amperage ratings can cause premature failure or insufficient operation.

Kubota’s B-series, L-series, and M-series models generally use 4-pin or 5-pin relay configurations depending on system complexity. The 5-pin relays add an extra terminal for functions like an indicator light or additional grounding. Knowing the exact relay type is important when replacing components to ensure proper operation and fit.

Relay failure is often due to a combination of heat cycling, vibration, corrosion, and electrical arcing across contacts. Over time, these stresses degrade relay components, causing intermittent or permanent failures. Environmental factors such as moisture intrusion in the fuse box can accelerate corrosion of terminals and sockets, reducing electrical conductivity and causing starting trouble. Maintenance includes inspection and cleaning to extend relay lifespan.

Symptoms of Starter Relay Problems

Complete Failure

No click or crank when turning the key, despite other electrical components functioning normally
Intermittent failure where the tractor starts sometimes and other times will not respond
Sudden failure causing the tractor to stop cranking abruptly during use

Partial Failure

A weak or faint clicking sound coming from the relay area, distinguishable from the louder solenoid click
The relay casing may become hot to the touch after several start attempts indicating internal resistance
Starting only after multiple key turns or when the relay is lightly tapped or jiggled to temporarily restore contact

Timeline and Progression

Starter relay problems can develop gradually or occur suddenly. Gradual failures often begin with weak or inconsistent clicks and intermittent starting issues that worsen over weeks or months. Sudden failures tend to happen without warning, often due to internal contact welding or sudden coil burnout. Recognizing early signs such as clicking noises or heat buildup during start attempts can prevent being stranded due to no-start conditions.

Related Symptoms to Rule Out

Single loud “click” sound usually indicates solenoid operation, not relay failure (see starter solenoid clicking article)
Grinding or spinning noises associated with the starter motor engaging improperly (refer to starter motor replacement guide)
Complete silence often points to battery, cable, or ignition switch issues instead of the relay

Diagnosing Starter Relay Problems

Diagnosing Kubota starter relay problems requires a systematic approach to verify the relay is the source of the fault and to avoid misdiagnosis.

Verify Battery & Cables

First, check the battery voltage with a multimeter; a fully charged battery should read 12.6 volts or higher. Inspect battery cable terminals for corrosion, tightness, and damage because poor connections often mimic starter relay problems by reducing voltage to the starter circuit. A clean and tight connection is essential for accurate relay diagnosis.

Locate the Starter Relay

Refer to your Kubota model service manual or wiring diagram to locate the starter relay—this is usually inside the fuse box or mounted near the battery or firewall. Identify the relay by counting the pins (4 or 5) and matching wire colors. Misidentifying the relay with other similar relays in the box is a common error to avoid.

Listen Test

Turn the ignition key to the start position and listen closely for a relay click near the relay location. Hearing a distinct, firm click means the relay coil is energizing and the relay is likely functional. A faint or no click suggests coil or control circuit issues. Remember, the relay click is softer than the solenoid click, so differentiating the sounds is important.

Voltage Test at Relay

With a multimeter or test light, check for 12 volts at the low-current control circuit terminal (coil input) when the key is turned to start. No voltage here typically indicates a faulty ignition switch or safety interlock. If voltage is present but there is no relay click, the relay coil is defective. This is critical for isolating the root cause properly.

Bypass Test

As a diagnostic measure, use a jumper wire to connect the relay’s power input terminal directly to its output terminal. If the starter engages, it confirms the relay is faulty. Only use this bypass for diagnosis, not as a permanent solution.

Relay Swap Test

Swap the suspect relay with a relay of identical specifications from another system (e.g., horn or headlights). If the tractor starts with the swapped relay, the original relay is defective. Take care to only swap relays with matching pin configurations to avoid electrical damage.

⚠️ Important: Always disconnect the battery before performing any electrical tests or replacement. Failure to do so can cause shorts, injury, or damage.

Common Mistakes When Diagnosing Relay Problems

Diagnosing starter relay problems can be challenging, and many common pitfalls can lead to incorrect conclusions or unnecessary replacements.

Confusing the relay with the starter solenoid: The relay is an electrical switch located near the fuse box, while the solenoid is mounted on the starter motor and responsible for mechanical engagement. Pay careful attention to symptom differences.
Failing to check grounding points and wiring harnesses often causes intermittent issues that mimic relay failure. Ensure all grounds and wiring connections are secure and corrosion-free.
Using improper test procedures, such as applying voltage incorrectly or not testing under actual start conditions, can yield false results. Follow a systematic testing sequence.
Overlooking safety switch issues, such as seat or neutral switches, that can cut control circuit voltage to the relay, leading to a no-start condition often mistaken for relay failure.

Tools & Safety

Tools Needed:

Digital multimeter
Test light
Jumper wires
Basic wrench set
Needle nose pliers

Parts Needed:

Replacement relay (match pin configuration)
Electrical contact cleaner
Dielectric grease

Safety Precautions: Disconnect the battery before replacement. Do not bypass the relay for regular use. Ensure the tractor is in neutral or park.

Replacement Procedure

Replacing a faulty starter relay is a straightforward process that can be completed in under an hour with basic tools.

Obtain Correct Replacement

Match the relay’s voltage, amperage, and pin configuration. Common Kubota relay part numbers include 19077-65510 and 19077-65513. OEM and aftermarket options are available.

Disconnect Battery

Remove the negative terminal first and wait for the system to discharge.

Remove Old Relay

Locate and access the relay. Note wire positions or take a photo. Unplug or unbolt the relay and inspect the socket for corrosion, burn marks, or melted plastic. If the socket is damaged, it must be repaired or replaced before installing the new relay.

Clean Connections

Use contact cleaner on the socket terminals. Check for burnt or melted terminals and repair wiring if damaged. Ensure wire routing doesn’t create stress on connections.

Install New Relay

Insert the new relay in the correct orientation. Ensure a solid connection and apply dielectric grease to the terminals to prevent future corrosion.

Test System

Reconnect the battery and test the start function multiple times. Check for heat after several starts and verify all related circuits work properly.

Troubleshooting Persistent Issues

If the new relay still doesn’t solve the problem, check the safety switches, ignition switch, and wiring harness. Persistent relay failure may indicate voltage spikes or an undersized relay.

Intermittent issues are often caused by corroded sockets or loose grounds. Inspect the entire wiring harness for damage, chafing, or wear. Pay special attention to areas where wires pass through the firewall or near heat sources.

If the relay socket shows signs of overheating (melted plastic, discolored terminals), the socket itself may need replacement. A damaged socket can cause repeated relay failures even with new components.

Preventive Maintenance

Regular maintenance can prevent starter relay problems. Keep relay connections clean, check the relay during annual service, and apply dielectric grease to terminals. Inspect the fuse box for moisture intrusion and replace the relay proactively after 10+ years of service.

Cost Comparison

Option	Cost
Relay (DIY)	$8-25
DIY Time	30-60 minutes
Dealer Diagnosis	$50-100
Professional Replacement	$75-150

Conclusion

Key Takeaways

The starter relay is a critical but often overlooked component in Kubota tractors that controls current to the starter solenoid.
Diagnose relay problems with a systematic approach, including listen tests, voltage tests, and bypass tests.
Replacement is straightforward and cost-effective at $8-25, making DIY repair a smart choice.
Don’t confuse relay symptoms with solenoid or starter motor issues—accurate diagnosis saves time and money.

Accurate diagnosis of Kubota starter relay problems saves time and money. By following the systematic testing approach and replacement procedure outlined above, you can quickly restore reliable starting performance to your tractor.

Need more help with your Kubota? Visit TractorPartsCentral.com for comprehensive guides

Frequently Asked Questions

What’s the difference between starter relay and solenoid?

The starter relay is an electrical switch that controls the high current to the solenoid, while the solenoid also mechanically engages the starter motor. The relay is typically located in the fuse box and makes a soft click, while the solenoid is mounted on or near the starter motor and produces a louder click.

Where is the starter relay on my Kubota?

The starter relay is usually found in the fuse box, near the battery, or on the firewall. B-series models typically have it in the fuse box, L-series on the firewall, and M-series locations vary. Refer to the wiring diagram for your specific model to confirm the exact location.

How do I test a starter relay with a multimeter?

Test for 12V at the control circuit (small wires) when the key is turned to start. No voltage indicates an ignition switch or safety switch issue. If voltage is present but there’s no click, the relay coil is defective and needs replacement.

Can I bypass the starter relay temporarily?

Yes, you can use a jumper wire to bypass the relay for diagnostic purposes only. If the starter engages when bypassed, the relay is confirmed faulty. However, do not use this as a permanent solution—always replace the faulty relay to maintain proper circuit protection.
