⚡ Quick Answer

Kubota lists the BX, B, L, Grand L, and LX tractors in this guide as Category I, and the MX5400, MX6000, M5660, and M7060 as Category I & II.
Suprisingly Kubota doesn’t sell its own rear quick hitch, but its “Performance Matched” sheets approve certain Land Pride quick hitches (QH05, QH10, QH15, QH20) for specific tractors. Kubota publishes no model-specific pin sizes, no recommended top link length, and nothing on how a quick hitch affects lift capacity, so those are covered below as general guidance and checks you do yourself.

What Is a Quick Hitch and Why Do Owners Upgrade?

A standard 3-point hitch means climbing off the tractor, lining up each lower arm with the implement pins, sliding the pins through the balls, adding lynch pins, and then adjusting the top link. A quick hitch is a frame or set of hooks on your lower arms and top link that captures the implement’s pins when you back into it, so changing implements is faster and mostly done from the seat once everything is set up.

The Three Common Quick Hitch Styles

• Pat’s Easy Change style: hook blocks that clamp onto your existing lower arm balls and move the hook points rearward, usually with a telescoping stabilizer bar between the arms. The top link connects to the implement as usual.
• Frame (U-frame / iMatch style): a full frame with fixed lower hooks and a top hook at set heights. The implement needs pins at matching dimensions, which is what “quick hitch compatible” means. John Deere’s iMatch is the best-known example, and many brands copy the geometry.
• Generic bolt-on adapters: slip-on ends or frames with adjustable top hooks, sold by many brands.

Downsides to Know Before You Buy

A quick hitch moves the implement farther back from the tractor, so it can reduce lift height and shorten PTO shaft overlap. The amount varies by product, so measure instead of assuming. Frame-style hitches need implements with matching pin and top-hook geometry, and older implements often need brackets or bushings changed. Moving the hook points rearward also changes the top link geometry, which may call for a longer or adjustable top link.

Hitch Categories Explained

How to Identify Your Category

Measure the lower link ball spacing center to center, and measure the implement’s lower pins. About 28 inches and 7/8 inch pins point to Category 1. About 34 inches and 1-1/8 inch pins point to Category 2. Use a caliper for the pins instead of guessing by eye.

What Happens When You Mix Categories

A Category 1 implement can be used on a tractor with Category 2 balls by using conversion bushings, which are sold for this purpose. A Category 2 implement on a Category 1 tractor is usually not workable: the pins are too large, and the implement is typically too heavy for a compact tractor to lift and control.

Hitch Category and Lift Capacity by Kubota Model

Notes by Series

• BX: Kubota lists Category I. You may see “Category 1 narrow” at retailers, but we couldn’t tie that term to a Kubota document. The BX2380, BX2680, and BX23S lift 680 lb at 24 inches, so a quick hitch’s own weight counts against that. Kubota says you cannot attach a backhoe to the BX2680.
• B, L, Grand L, and LX: Category I, with lift ratings that give more room than the BX. See the table for the numbers by model.
• MX5400 and MX6000: Listed as Category I & II. The MX5400 manual says Category 1 is standard. Switching to Category 2 means removing the lower-link and top-link collars and using a different rear top-link pin, and the manual gives no sizes or part numbers. Kubota’s accessory catalog lists generic reducer bushings, but not as fitting the MX.
• M5660 and M7060: Listed as Category I & II, not Category 2 only. Confirm which pins and collars your tractor has before you order a frame or bushings.

What Kubota Says About Quick Hitches

• Kubota doesn’t sell its own rear quick hitch that we could find.
• Kubota’s “Performance Matched” sheets approve Land Pride QH05, QH10, QH15, and QH20 quick hitches for specific tractors. The BX1880 is matched only for the QH05, and the QH20 is not matched for the L3560, L4060, or L4760. (This follows our reading of the sheets, which don’t define their shaded cells.)
• Kubota doesn’t say that adding a quick hitch changes the tractor’s lift capacity or implement ratings. It also publishes nothing on PTO shaft overlap or length limits with a quick hitch.
• For top link length, Kubota’s manuals say only that it “varies according to the type of implement.”

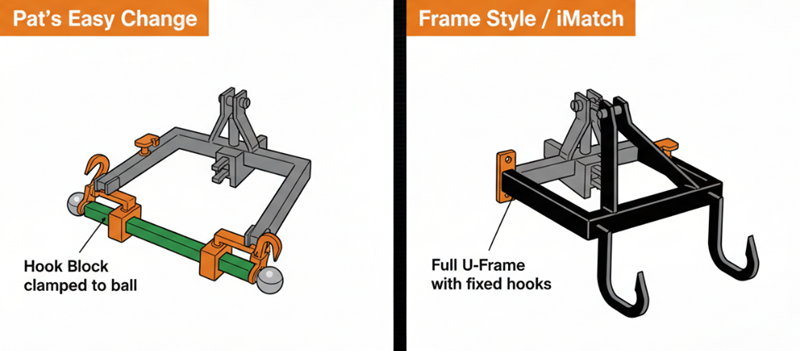

Pat’s Easy Change vs Frame-Style Quick Hitch

Top Link Compatibility: The Issue Many Owners Miss

When you add a quick hitch, the lower hook points move rearward. If you keep the stock top link, many implements will sit nose-up or nose-down, with too little adjustment range to level them. Kubota gives no model-specific recommended length, only that it varies by implement, so use this simple method:

• Hook one representative implement with your current hitch and mark the top link length at your working depth.
• Measure how much length your new quick hitch adds.
• Add that amount to your current top link length, and order a top link with an adjustment range that covers it. Ordering it before the hitch arrives saves waiting.

An adjustable top link covers most setups. A hydraulic top link lets you change the implement angle from the seat, which owners with frequent implement changes like.

Implement Compatibility

Implements That Usually Work Well

Rotary cutters, finish mowers, rear blades, and ballast boxes labeled “quick-hitch compatible” are designed with matching pin and top-hook geometry. Ballast boxes with standard Category 1 mounting generally fit because their rectangular frames match the standard dimensions.

Implements That Often Need Modification

• Box blades: older or economy box blades often have the top-link tabs in the wrong position or different lower pin spacing. The common fix is a new top-hook bracket or a slotted plate. It’s a one-time change.
• Tillers: some have low or offset top-link mounts that don’t match a frame hitch’s top hook height.
• PTO-driven implements (snowblowers, post-hole diggers, tillers): the hitch adds length and can reduce PTO shaft overlap. Check overlap at both full raise and full drop before running the PTO. If the shaft is marginal at full drop, it can separate, which is a serious hazard.
• Backhoes: Kubota backhoes mount to their own subframe, not to the 3-point. Don’t use a quick hitch with one. Kubota says a backhoe cannot be attached to the BX2680.

Installation: Set Up Your Quick Hitch Correctly

Always follow the instructions that come with your specific hitch. These are the general steps and checks that apply to most.

Frame-Style Quick Hitch

• Park on level ground, set the brake, lower the 3-point fully, and shut the engine off.
• Confirm the lower balls are clean and rotate freely.
• Pin the hitch’s lower bosses to the tractor’s lower balls with the correct category pins and secure them with lynch pins.
• Attach the top bracket to the top link rocker with the supplied pin.
• Set the sway chains or stabilizers so the frame has a little side movement but can’t hit the tires or PTO shaft.
• Hook one implement, adjust the top link to level it at working depth, and mark that top link setting.

Pat’s Easy Change Style

Slide each hook unit over the lower arm ball, shim out play, and tighten to the maker’s instructions. Set the stabilizer bar to hold the spacing you want. Check PTO shaft clearance and lift-arm travel at both full raise and full lower. The step most owners skip is checking PTO shaft overlap at full implement drop before running a PTO implement.

Common Mistakes

Buying a hitch for the wrong category, over-tightening the stabilizers so the frame binds (or leaving them so loose it slams side to side), and forgetting the added length when checking PTO overlap.

Common Buyer Mistakes

• Buying a Category 2 frame for a Category I tractor. The wide 34 inch spacing doesn’t suit compact Category 1 implements.
• Assuming every quick hitch fits every implement. Older and economy implements often differ from the standard geometry.
• Ignoring the hitch’s weight on a BX. With 680 lb of lift at 24 inches, the hitch and implement weights add up fast.
• Losing lift height. The hitch pushes the implement rearward, which can reduce transport height. Test before you work or load a trailer.
• Skipping the PTO overlap check. Measure it, don’t guess.

Quick Decision Guide

• BX series: a Category 1 frame or Pat’s style, a longer top link, and a hard look at hitch weight against the 680 lb rating.
• B, L, Grand L, and LX: a standard Category 1 frame if your implements are modern, or a Pat’s style hitch if they’re older. Add a top link that covers the range you measured.
• MX5400 and MX6000: match the hitch to your implement set. Category 1 implements need bushings or the manual’s conversion; larger implements need a Category 2 hitch.
• M5660 and M7060: confirm the pins and collars on your tractor before buying a frame or bushings.

📐 Not sure which Kubota series you have? Our Kubota Model Number Decoder breaks down every letter and digit in the model name.

What We Could Not Verify

• Pin sizes by model: no Kubota document ties lower and top link pin sizes to a specific tractor.
• Top link length by model: Kubota says only that it varies by implement.
• MX5400 and MX6000 lift at the lift points: not stated in any Kubota document we could read.
• Effect of a quick hitch on lift capacity or PTO overlap: Kubota publishes nothing on either.
• Category 0 dimensions: not verified from the standards.
• Whether the Performance Matched sheets’ shaded cells mean “not approved”: the sheets don’t define the shading.

🔎 How We Verified This Page

Category and lift figures come from Kubota spec sheets and brochures (dated roughly 2015 to 2020), Kubota’s Performance Matched sheets, and the MX5400 operator’s manual. The category dimensions come from ISO 730 and ASABE S217, read from unofficial copies, so check them against a licensed copy if you need exact numbers. The operator’s manuals we used are Kubota’s text hosted by third parties, not by kubotausa.com.

Where Kubota’s documents disagree, we show both values. Where Kubota doesn’t say, we say so instead of borrowing a figure from another model.

? Frequently Asked Questions — Kubota Quick Hitch

Related Guides

⚖️ Need the BX2680’s real numbers? See our complete Kubota BX2680 Weight Guide — Kubota’s listed weight, loader lift, towing limits, and dimensions, with what Kubota doesn’t say.

Match the hitch to your tractor’s category, your implements, and your lift rating, and measure the things Kubota doesn’t publish. For more Kubota guides and specs visit TractorPartsCentral.com.
