Kubota Starter Motor Replacement: Complete DIY Guide-Save $200

Replace Your Kubota Starter in 90 Minutes

When your Kubota starter motor replacement becomes necessary, you’re facing a decision: pay a shop $450-650 for parts and labor, or tackle the job yourself and save $200-300. The good news? Replacing a starter motor is one of the most straightforward electrical repairs on a tractor, requiring basic tools and about 90 minutes of your time. This guide walks you through everything you need to know—from choosing between OEM and aftermarket parts to the complete step-by-step installation procedure.

Before diving into replacement, it’s crucial to confirm your diagnosis. Most starter motor failures present with specific symptoms: a single loud click with no cranking, grinding noises during cranking attempts, or intermittent operation that temporarily improves after tapping the starter. If you’re experiencing rapid clicking sounds or complete silence when turning the key, proper troubleshooting may reveal that your battery, solenoid, or connections are the actual culprits rather than the starter motor itself. Replacing a good starter won’t fix problems elsewhere in the electrical system, so accurate diagnosis saves both time and money.

The typical DIY starter replacement costs $150-280 for quality aftermarket parts, or $280-420 for OEM Kubota starters, compared to shop totals of $450-650. You’ll recover your tool investment (if needed) in a single repair, and gain the confidence to handle similar electrical repairs in the future. Most importantly, you’ll eliminate the downtime of scheduling service appointments and waiting for shop availability—critical during peak farming seasons when every day counts.

When Starter Motor Replacement Is Necessary

Understanding when replacement is truly necessary versus when diagnosis and cleaning might solve the problem can save you significant money. Starter motors rarely fail suddenly without warning—they typically give advance notice through degrading performance over weeks or months. Before replacing the starter motor, verify that the problem isn’t a failing ignition switch that prevents voltage from reaching the starter,

Clear indicators that replacement is necessary:

Single loud click with no cranking: The solenoid engages (you hear the click) but the motor doesn’t turn. This indicates internal failure of the starter motor itself—worn brushes, damaged armature, or failed field coils. The electrical circuit is completing properly (hence the click), but the motor cannot convert electrical energy into mechanical rotation.
Grinding or whirring sounds: The bendix drive mechanism has failed, causing improper engagement with the flywheel ring gear. Continued operation in this condition will damage the expensive flywheel ring gear, turning a $200 starter replacement into a $500+ flywheel job. Address this immediately.
Intermittent operation improved by tapping: The classic “tap the starter with a wrench” temporary fix indicates worn brushes that occasionally lose contact with the commutator. While tapping can get you running in an emergency, the brushes will continue degrading until the starter fails completely—usually at the least convenient moment.
Slow cranking with good battery: If your battery tests perfectly, cables and connections are clean and tight, and ground straps are good, but cranking is consistently slow, the starter motor likely has internal resistance from worn components. This causes excessive current draw (often 400+ amps versus the normal 150-280 amps) and will eventually burn out wiring or damage the battery.
Smoke or burning smell during cranking: This indicates serious internal problems—insulation failure, short circuits, or mechanical binding causing the motor to draw excessive current. Stop cranking immediately and disconnect the battery to prevent fire risk. This starter needs immediate replacement.

Situations where replacement may NOT be necessary:

Rapid clicking sounds: This almost always indicates weak battery or poor connections, not starter failure. The solenoid is trying to engage but insufficient current causes it to release and try again rapidly. Test your battery first.
Complete silence: Often caused by failed starter solenoid, bad ignition switch, or safety switch issues rather than motor failure.
External corrosion or dirty connections: Sometimes what appears to be starter failure is actually high resistance from corroded terminals or poor ground connections. Clean all connections and test voltage at the starter before condemning the motor.

A proper voltage drop test during cranking can definitively identify whether the starter motor is the problem or if electrical issues elsewhere are to blame. This diagnostic step—detailed in our starter troubleshooting guide—takes just 10 minutes and can save you from replacing a good starter unnecessarily.

OEM vs. Aftermarket Starters: Making the Right Choice

One of the most important decisions in your Kubota starter motor replacement project is choosing between OEM (Original Equipment Manufacturer) and aftermarket parts. Both options have legitimate applications depending on your priorities, budget, and how long you plan to keep your tractor. Understanding the real-world differences helps you make an informed decision rather than simply defaulting to the cheapest or most expensive option.

Two-Column Comparison: OEM vs. Aftermarket

OEM Kubota Starters	Quality Aftermarket Starters
Cost: $280-420 depending on model Warranty: 12-24 months through Kubota dealers Quality: Factory specifications, proven reliability Fit: Guaranteed perfect fit, all mounting holes align Availability: Must order through dealer, 1-5 day wait typical Best For: Newer tractors under warranty, commercial operations, maximum longevity priority	Cost: $150-280 for quality brands (DB Electrical, TYC, ARCO) Warranty: 12-36 months depending on brand, some lifetime warranties Quality: Reputable brands meet or exceed OEM specs, budget brands vary Fit: Quality brands fit perfectly, verify compatibility by serial number Availability: Amazon/auto parts stores, often same-day or overnight delivery Best For: Older tractors, budget-conscious owners, DIY repairs, backup inventory

OEM Kubota Starters

Quality Aftermarket Starters

Cost: $280-420 depending on model

Warranty: 12-24 months through Kubota dealers

Quality: Factory specifications, proven reliability

Fit: Guaranteed perfect fit, all mounting holes align

Availability: Must order through dealer, 1-5 day wait typical

Best For: Newer tractors under warranty, commercial operations, maximum longevity priority

Cost: $150-280 for quality brands (DB Electrical, TYC, ARCO)

Warranty: 12-36 months depending on brand, some lifetime warranties

Quality: Reputable brands meet or exceed OEM specs, budget brands vary

Fit: Quality brands fit perfectly, verify compatibility by serial number

Availability: Amazon/auto parts stores, often same-day or overnight delivery

Best For: Older tractors, budget-conscious owners, DIY repairs, backup inventory

Real-world reliability data: Quality aftermarket starters from established manufacturers like DB Electrical typically provide 85-95% of OEM lifespan at 50-60% of the cost. For a starter that might last 2,500 hours with OEM parts, a good aftermarket unit will deliver 2,000-2,400 hours—still 5-10 years of service for most hobby farmers and rural property owners. The cost savings of $130-200 often justifies the slightly shorter lifespan, especially on older tractors where the reduced cost allows you to keep a spare on hand.

When OEM makes sense: If your tractor is under warranty (any aftermarket electrical components may void coverage), used commercially where maximum uptime is critical, or you plan to keep it 20+ years, OEM parts offer peace of mind and proven longevity. The factory engineering tolerances and quality control minimize the already-low risk of premature failure.

When aftermarket makes sense: For tractors 5+ years old, hobby farm use, or situations where the $150-200 savings matters, quality aftermarket starters are excellent choices. Brands like DB Electrical and TYC have earned strong reputations in the agricultural equipment market. Just avoid no-name budget brands from unfamiliar sellers—the $30-50 additional savings isn’t worth the reliability risk.

⚠️ Important: Always verify starter compatibility using your tractor’s serial number, not just the model designation. Kubota sometimes changes electrical components mid-year, and installing an incompatible starter can cause no-start conditions or even electrical damage. Reputable parts suppliers can look up the correct part by serial number.

Tools and Materials Needed

Having all necessary tools and materials ready before starting your Kubota starter motor replacement makes the job proceed smoothly and prevents mid-project trips to the store. Most items are common tools you likely already own, with total costs under $50 if purchasing everything new.

Complete Tool List

Essential Tools (Required):

Socket set with ratchet: 10mm, 12mm, 13mm, 14mm, 17mm sockets (sizes vary by model—BX series typically uses 12mm and 13mm, L series often requires 14mm and 17mm)
Combination wrenches: Same sizes as sockets for tight spaces where ratchet won’t fit
Wire brush: For cleaning terminals and mounting surfaces ($3-5)
Electrical contact cleaner: Spray cleaner for electrical connections ($6-8)
Dielectric grease: Protects electrical connections from moisture ($4-6)
Shop rags or paper towels: For cleaning and preventing contamination
Work gloves: Protect hands and prevent electrical shorts
Safety glasses: Essential when working underneath equipment

Helpful Additions (Recommended):

Flashlight or headlamp: Starter location is often in shadow ($10-25)
Extension bars: 3-inch and 6-inch extensions for socket access ($8-12)
Universal joint for socket: Helpful for angled bolt access ($6-10)
Penetrating oil (PB Blaster, Liquid Wrench): For rusty mounting bolts ($6-8)
Digital camera or phone: Document wire connections before removal (free!)
Magnetic parts tray: Keep bolts and washers organized ($5-8)
Torque wrench: For proper installation torque (14-18 ft-lbs typical) ($25-50—optional but ideal)

Materials and Supplies:

New starter motor: OEM ($280-420) or quality aftermarket ($150-280)
Anti-seize compound: For mounting bolt threads (optional, $6-8)
Electrical tape: If you need to mark wires ($3-5)
Zip ties: Securing loose wires away from hot/moving parts ($4-6)

💡 Pro Tip: Apply penetrating oil to mounting bolts 30-60 minutes before starting the job if your tractor sees outdoor storage or harsh weather. This single step prevents rounded bolt heads and broken fasteners—the most common installation complications. Spray each bolt, let it soak, then spray again right before removal.

Step-by-Step Kubota Starter Motor Replacement

This procedure applies to most Kubota BX, B, and L series tractors. While specific details vary by model, the general process remains consistent. Total time: 60-90 minutes for first-time DIY installation, 30-45 minutes once you’ve done it before.

⚠️ Critical Safety Warning: ALWAYS disconnect the battery negative cable before working on starter motors. The large power cable is always hot (electrically live) and can arc violently if tools contact it while grounded. Arc flash can cause severe burns and start fires. Take this seriously—disconnect the battery first, every single time, no exceptions.

Preparation Phase (Steps 1-4)

Park Safely and Prepare the Work Area

Park on level ground, engage parking brake, lower all implements, and shut off the engine. Allow the engine to cool completely (30+ minutes if recently operated) to prevent burns from hot exhaust components near the starter. Chock the wheels front and rear to prevent any movement.

Why this matters: Hot exhaust manifolds and pipes run close to starter mounting locations on many models. Third-degree burns from brief contact with 300°F+ exhaust components are preventable with simple patience.

Disconnect Battery Negative Cable

Open the hood and locate the battery. Using a 10mm wrench, loosen the negative (-) terminal connection and remove the cable. Secure it away from the terminal so it cannot accidentally contact. Some technicians wrap the cable end in a shop rag secured with a rubber band for extra insurance.

What can go wrong: If you skip this step and your wrench contacts the hot starter terminal while grounded against the engine block or frame, you’ll create a direct short across the battery—potentially welding the wrench in place, causing severe burns, and damaging electrical components. Don’t learn this lesson the hard way.

Document Existing Connections

Before removing anything, take clear photos of all wire connections to the starter from multiple angles. Use your phone camera—these images will be invaluable during reassembly. Pay special attention to which terminals have which wires, as mixing them up will prevent starting or damage components.

Pro tip: Take photos from above, below, and both sides. What seems obvious during disassembly becomes confusing 30 minutes later when you’re holding the new starter and can’t remember which wire went where. Two minutes of photography saves 20 minutes of troubleshooting.

Access the Starter Motor

Locate the starter motor on your engine (usually lower left side of engine block, near the flywheel housing). On some models you can reach it from above; on others you’ll need to work from underneath. BX series owners often find better access from underneath, while L series may require removing side shields or working from above with extensions.

Model-specific notes: BX series: Best access from underneath, consider using ramps or jack stands. B series: Usually accessible from above with good lighting. L series: May require removing battery box or side panels for clear access—check your specific model’s WSM (Workshop Service Manual).

Removal Phase (Steps 5-10)

Remove Solenoid Small Wire Connection

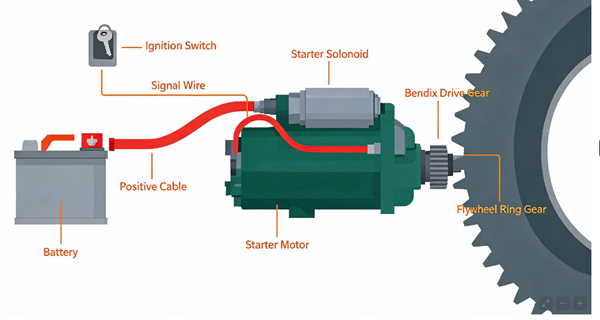

The small wire (usually purple, gray, or yellow) connects to the solenoid terminal. This is the signal wire from the ignition switch. Remove the connector by squeezing the tab (if push-on connector) or removing the small nut (usually 8mm or 10mm) if it’s a ring terminal. Note the terminal location and wire color.

What you’re doing: This low-current wire tells the solenoid when to engage. Without battery power connected, there’s no shock hazard, but proper documentation ensures correct reconnection.

Remove Large Power Cable

The large cable (usually 4-6 gauge red or orange wire) connects directly from the battery to the starter solenoid. Remove the nut securing this cable—typically 12mm, 13mm, or 14mm depending on model. Support the cable as you remove the nut to prevent strain on the connection. Even with battery disconnected, treat this cable with respect—it’s designed to carry 200+ amps.

Common mistake: Don’t let this heavy cable drop and pull on connections once freed. Support its weight and secure it out of your way with a wire tie or rest it on a clean surface.

Apply Penetrating Oil to Mounting Bolts (If Needed)

If you didn’t pre-treat mounting bolts and they show rust, apply penetrating oil now and wait 10-15 minutes. This patience prevents rounded bolt heads and broken fasteners. Spray liberally, let it soak, then spray again. Tap the bolt heads gently with a wrench to help penetration work into threads.

Prevention note: Broken mounting bolts on some models require engine removal for extraction—a $1,500+ mistake avoided with a $7 can of PB Blaster and 15 minutes of patience.

Remove Upper Mounting Bolt

Most starters mount with two bolts—one upper, one lower. Start with the upper bolt (usually more accessible). Use appropriate socket size (12mm, 13mm, or 14mm common), and be prepared for some resistance. If the bolt won’t budge easily, do NOT force it—apply more penetrating oil and wait. A six-point socket provides better grip than twelve-point and reduces rounding risk.

Tip: Once the bolt starts moving, work it back and forth (tighten slightly, then loosen) to break up corrosion rather than trying to remove it in one continuous motion. This technique prevents breakage on severely rusted fasteners.

Support Starter and Remove Lower Mounting Bolt

With upper bolt removed, the starter is held only by the lower bolt. Support the starter weight with one hand while removing the lower bolt with the other (or have a helper support it). Starters weigh 8-15 pounds depending on model—don’t let it fall and damage bendix drive or mounting surfaces.

Working alone: If you don’t have a helper, use a bungee cord or rope to support the starter weight before removing the final bolt. Loop it through the upper mounting hole and secure to nearby frame member.

Remove Old Starter

With both bolts removed, carefully pull the starter away from the engine. It may stick slightly due to the pilot hole alignment—wiggle gently while pulling straight back. Do not pry against the flywheel housing or transmission case (soft aluminum that damages easily). Once clear, rotate the starter as needed to maneuver it past frame members and hoses.

Inspection opportunity: With the starter removed, inspect the flywheel ring gear teeth through the opening (use flashlight). Look for damaged, chipped, or worn teeth. If present, you’ve found your grinding noise source—the ring gear will need replacement or the flywheel will need to be flipped (if worn on one side only).

Installation Phase (Steps 11-18)

Clean Mounting Surfaces

Use wire brush to clean both the engine mounting surface and the new starter mounting face. Remove all rust, corrosion, old gasket material, and debris. Clean surfaces ensure proper electrical grounding and correct starter positioning. The starter grounds through its mounting—contamination here causes starting problems and damages the new starter.

Why this matters: Poor mounting surface contact increases electrical resistance, causing voltage drop that makes cranking weak or impossible. This five-minute cleaning step prevents 80% of “new starter doesn’t work” problems.

Prepare Mounting Bolts

If reusing original bolts (acceptable if not damaged), clean threads with wire brush and apply small amount of anti-seize compound to threads (optional but recommended). Never use locking compounds like threadlocker—starters may need future removal for service. Keep anti-seize away from the first two threads that enter the engine block—you don’t want it migrating into the block.

Torque specifications: Kubota starters typically require 14-18 ft-lbs torque. Overtightening can crack the starter housing or strip aluminum threads in the engine block. If you don’t have a torque wrench, “snug plus 1/4 turn” works—firmly seated but not gorilla-tight.

Position New Starter

Maneuver the new starter into position, aligning the starter nose pilot with the hole in the flywheel housing. The starter will only go in one way—don’t force it. If resistance is met, the bendix drive may be indexed incorrectly—rotate the starter gear by hand until it slides in smoothly. The mounting holes should align perfectly with the engine block threaded holes.

Alignment tip: The starter should slide home with minimal pressure. If you’re fighting it, something is wrong—back it out and inspect for interference. Forcing misaligned starters damages mounting ears and cracks housings.

Install Upper Mounting Bolt

While supporting the starter, thread the upper mounting bolt by hand to ensure proper thread engagement. Never use power tools to start threads—hand-start first to prevent cross-threading. Once hand-tight, use a socket and ratchet to snug the bolt, but don’t fully tighten yet. Leave it slightly loose so the starter can self-align when the second bolt goes in.

Critical: Cross-threaded bolts in aluminum engine blocks are expensive repairs requiring Helicoil installation or block replacement. Always hand-start fasteners into aluminum—this patience prevents $500+ mistakes.

Install Lower Mounting Bolt

Hand-start the lower bolt, thread it in until hand-tight, then use your ratchet to snug it. With both bolts now holding the starter, check that the starter sits flush against the engine mounting surface with no gaps. If there’s a gap, something is misaligned—loosen both bolts and reseat the starter.

Final torque: Now tighten both bolts to specification—14-18 ft-lbs for most Kubota starters. Tighten in stages: upper to half-torque, lower to half-torque, then upper to full, then lower to full. This method ensures even clamping pressure and proper alignment.

Connect Large Power Cable

Reference your photos to ensure correct terminal location. Place the cable lug over the solenoid stud, install the nut (and washer if present), and tighten securely with appropriate wrench. This connection carries 200+ amps—it must be tight. Test by trying to rotate the cable lug by hand after tightening—it shouldn’t move at all. Apply small amount of dielectric grease to protect the connection from moisture and corrosion.

Torque specification: Solenoid terminals typically require 10-12 ft-lbs. Too loose causes arcing and heat damage; too tight can crack the solenoid housing. “Firmly snug” is the goal—enough that the terminal won’t rotate, but not gorilla-tight.

Connect Solenoid Small Wire

Reconnect the small signal wire to the solenoid trigger terminal, again referencing your photos. If it’s a push-on connector, you should hear/feel a positive click when fully seated. If it’s a ring terminal with nut, tighten securely (usually 8-10mm nut, hand-tight plus slight snug with wrench). Apply small dab of dielectric grease to protect connection.

Testing: Gently pull on the wire after connection—it shouldn’t come off. Loose connections here cause no-crank conditions that mimic more serious problems.

Reconnect Battery and Test

Reconnect the battery negative cable and tighten the terminal connection. Before attempting to start, do a visual double-check: Are both mounting bolts tight? Are both electrical connections secure? Are all wires clear of hot exhaust and moving parts? Once confirmed, turn the key to START position and listen. The engine should crank normally—smoothly, at proper speed (150-200 RPM), with no unusual sounds.

First-start expectations: The first crank may sound slightly different as new components seat together—this is normal. If it cranks but won’t start, check fuel shutoff solenoid reconnection (not part of this job, but commonly disturbed during access work). If it doesn’t crank at all, immediately proceed to the troubleshooting section below.

💡 Pro Tip: Before closing up everything, perform a complete visual inspection of all nearby electrical connections, hoses, and wires. The most common problem during starter replacement isn’t the starter itself—it’s accidentally disconnecting or loosening something else during the process. Two minutes of inspection prevents callbacks and comebacks.

Model-Specific Tips

While the general procedure applies across Kubota’s tractor line, specific models have unique considerations that can save significant time and frustration. Understanding these details before starting prevents surprises mid-project.

BX Series (BX1880, BX2380, BX2680)

Access considerations: Best access is typically from underneath the tractor due to compact engine compartment design. Consider using automotive ramps or jack stands for comfortable working position—lying on your back under the tractor for 60-90 minutes becomes exhausting without proper clearance. The loader must be fully lowered and ideally removed for adequate access, though removal isn’t absolutely necessary on all models.

Mounting details: BX series starters typically use 12mm mounting bolts with 14-16 ft-lb torque specification. The lower bolt can be particularly difficult to access—consider using a 6-inch extension bar with universal joint for better angle. The starter solenoid may be integrated with the starter motor (one-piece design) or separate depending on specific BX model and year.

Common complications: Frame members and steering linkage components create tight clearances during removal and installation. Test-fit the starter removal path before fully disconnecting to identify interference points. Many experienced BX owners find that removing the starter downward first, then rotating 90 degrees, provides the clearest exit path. Budget an extra 15-20 minutes compared to larger models due to access challenges.

B Series (B2601, B3350)

Access considerations: B series offers significantly better starter access than BX models—usually reachable from above with the hood raised. However, side panels may need removal on some configurations (particularly cab models) for adequate working room. Standard models with ROPS provide excellent top-side access.

Ground strap importance: B series tractors seem particularly susceptible to ground strap corrosion issues that mimic starter failure. The main engine ground strap connects from engine block to frame and commonly corrodes where it contacts the frame rail. Before condemning the starter, verify this ground with voltage drop test—you may save the cost of an unnecessary replacement. Check your ground strap maintenance guide for details.

Mounting details: B series typically uses 13mm mounting bolts with 16-18 ft-lb torque specification. The upper bolt is straightforward; the lower may require moderate-length extension (3-4 inches). Most B series use separate solenoid mounting (solenoid mounted away from starter motor), which means additional connections to document and manage during replacement.

L Series (L2501, L3301, L3901, L4701)

Access considerations: L series starters are usually positioned for reasonable top-side access once battery box removal provides clearance. On some L series models (particularly L01 series), removing the battery tray entirely (4-6 bolts) rather than just disconnecting the battery gives much better working room and is worth the extra 10 minutes. Larger L series models may have starter mounting on right side rather than left—consult your operator’s manual.

Mounting details: Larger L series tractors use 14mm or 17mm mounting bolts with higher torque specifications (16-20 ft-lbs) due to larger, heavier starter motors. These bolts can seize significantly in agricultural environments—pre-treatment with penetrating oil 30-60 minutes before removal is strongly recommended. The robust mounting design means less risk of stripping threads, but the larger bolts require proper six-point sockets to prevent rounding.

Current draw concerns: L series starters draw higher current (200-280 amps) than smaller models due to larger engine displacement and higher compression ratios. This makes cable and connection quality absolutely critical—even minor resistance causes significant performance impact. When replacing L series starters, inspect the main power cable from battery to solenoid carefully. If you see discoloration, melting, or damage, replace the cable at the same time. A $40 cable prevents comebacks and protects your new $300 starter.

M Series (M4, M5, M6, M7)

Professional consideration: M series tractors represent a significant step up in complexity from L series and below. These tractors often have:

Multiple interconnected safety switches (seat, PTO, range selector, parking brake) that must all function for starter engagement
More sophisticated wiring harness with complex diagnostic requirements
Tighter engine compartment packaging requiring more extensive disassembly for access
Integration with emissions systems on newer models that affects diagnostic procedures

While DIY replacement is certainly possible for mechanically experienced owners with proper tools and service documentation, M series troubleshooting often benefits from dealer diagnostic equipment that can interrogate the CAN bus system and identify fault codes. If you’re not completely comfortable with electrical diagnosis and don’t have access to a workshop service manual specific to your M series model, professional service may be the more economical choice when you factor in troubleshooting time and potential misdiagnosis costs.

Part Numbers and Pricing

Having correct part numbers before ordering prevents delays and ensures compatibility. These numbers are current as of 2025, but always verify using your tractor’s serial number with your parts supplier.

Kubota Starter Motor Specifications by Model

Model Series	OEM Part Number	Voltage	OEM Cost	Aftermarket Cost
BX1880, BX2380	6C140-59215	12V	$280-320	$150-200
BX2680	6C140-59216	12V	$285-330	$155-210
B2601, B2650	1G770-63012	12V	$310-360	$170-230
L2501, L3301	1G962-63012	12V	$350-400	$190-250
L3901, L4701	1G962-63013	12V	$375-420	$210-280

Note: Part numbers and pricing current as of 2025. Always verify compatibility using your tractor’s serial number. Aftermarket brands include DB Electrical, TYC, and ARCO—quality varies, research specific brand reputation before purchasing.

Additional costs to consider:

Professional installation: $150-250 labor (varies by region and dealer rates)
Shop diagnostic fee: $75-150 if diagnosis performed before replacement
Solenoid replacement (if needed): $45-80 OEM, $25-50 aftermarket
Cables and connections: $30-60 if replacement needed due to damage

Troubleshooting Post-Installation Problems

If your tractor doesn’t crank properly after Kubota starter motor replacement, methodical troubleshooting identifies the issue quickly. Most post-installation problems stem from connections rather than defective parts.

Starter Doesn’t Crank at All

Possible causes and solutions:

Battery cable not fully tightened: Check large power cable connection to solenoid—should be tight enough that you cannot rotate terminal by hand. Retighten and test.
Small trigger wire not connected: Verify solenoid signal wire is fully seated. Push-on connectors should click positively; ring terminals should be tight.
Poor ground: Verify starter mounting bolts are tight and mounting surfaces were cleaned properly. Test ground path with multimeter—should show less than 0.3V drop during cranking attempt.
Safety switch issue: Safety switches (seat, PTO, neutral) may have been disturbed during access work. Check that seat is compressed, PTO is disengaged, and transmission is in neutral.
Defective new starter: While rare with quality parts, it happens. Verify you have 12V+ at the large solenoid terminal during crank attempt. If yes but no cranking, the new starter is faulty—return for warranty replacement.

Starter Cranks Slowly

Possible causes and solutions:

Battery voltage low: Test battery voltage under load—should stay above 10.5V during cranking. If lower, battery is the problem, not your new starter.
High resistance connection: Perform voltage drop tests on power cable (battery to solenoid) and ground path. More than 0.5V drop indicates resistance from poor connections or damaged cables.
Dirty mounting surfaces: If you didn’t thoroughly clean mounting surfaces, remove starter and clean again. The starter grounds through its mounting—contamination here causes exactly this symptom.

Grinding or Unusual Noises

Possible causes and solutions:

Flywheel ring gear damaged: If grinding occurred with old starter and continues with new one, the flywheel ring gear has damaged teeth. This requires flywheel replacement or flipping (if wear is one-sided only)—a more extensive repair.
Starter not fully seated: If starter wasn’t pushed completely into pilot hole, bendix drive won’t align properly with ring gear. Remove starter, verify pilot alignment, and reinstall ensuring full seating.
Wrong part number: If you installed a starter intended for a different model, gear positioning may be incorrect. Verify part number compatibility via serial number lookup.

Intermittent Operation

Possible causes and solutions:

Loose connection: Intermittent operation almost always indicates loose or corroded connections. Recheck and retighten both large power cable and small signal wire. Apply dielectric grease to protect connections.
Failing solenoid: If solenoid is original and you only replaced the motor, solenoid may be intermittently failing. Consider solenoid diagnosis and replacement.

⚠️ Important: Never continue cranking for more than 15 seconds if the engine doesn’t start. Allow 30-60 seconds cool-down between crank attempts to prevent starter overheating. If the engine doesn’t start after several attempts, diagnose the no-start cause rather than continuing to crank. Excessive cranking can damage even a brand-new starter through heat buildup.

Preventive Maintenance to Extend Starter Life

A properly maintained starter motor should provide 2,000-3,000 hours of reliable service—5-10 years for most hobby farmers and rural property owners. Following these preventive maintenance practices maximizes your investment and minimizes unexpected failures during critical operations.

Monthly Maintenance Tasks

Battery maintenance: Keep battery fully charged and terminals clean. Low battery voltage is the #1 cause of premature starter failure because the starter draws excessive current trying to compensate for weak battery output. A $150 battery properly maintained protects your $300 starter.
Connection inspection: Visually inspect all starter connections monthly. Look for corrosion (green/white deposits), loose terminals, or damaged wire insulation. Catch problems early before they cause failures or damage.
Ground strap check: Verify ground straps are tight and free from corrosion. Many “starter failures” are actually poor grounds causing high resistance in the return path. Clean and tighten grounds as part of routine maintenance.

Seasonal Maintenance Tasks

Deep cleaning: Remove accumulated dirt, oil, and debris from around the starter. Contamination can hold moisture against the housing, accelerating corrosion and potentially creating ground faults.
Mounting bolt check: Verify mounting bolts remain tight. Vibration can gradually loosen them, creating poor grounding and misalignment issues. A quick check with a wrench takes 30 seconds and prevents problems.
Pre-winter preparation: Before cold weather, ensure battery is fully charged and load-tested. Cold temperatures dramatically increase starter load—an engine that turns over easily at 75°F requires 2-3X the power at 20°F. Weak batteries that “work fine” in summer fail in winter, and the resulting excessive current draw can damage starters.

Operating Practices That Extend Starter Life

15-second maximum cranking rule: Never crank continuously for more than 15 seconds. Starters are designed for intermittent operation (brief cranking cycles with cooling time between). Continuous cranking generates tremendous heat that breaks down internal insulation and can weld brush springs or damage commutator. If the engine doesn’t start in 15 seconds, diagnose why rather than keep cranking.
30-second cool-down between attempts: Wait at least 30 seconds (60 is better) between cranking attempts to allow heat dissipation. Think of it like running: short sprints with rest between is sustainable; continuous sprinting causes collapse. The same principle applies to starter motors.
Fix hard-starting issues promptly: If your tractor develops a hard-starting problem (requires extended cranking or multiple attempts), diagnose and fix the underlying cause immediately. Common culprits include glow plug failures, fuel system air leaks, low compression, or injector problems. Continued extended cranking to compensate for hard starting dramatically shortens starter life—what should last 3,000 hours may fail in 800-1,200 hours under these conditions.
Don’t use starting fluid: While tempting for cold weather starting, starting fluid (ether) causes extremely hard starts that shock the drivetrain and load the starter heavily. It also washes protective oil film from cylinder walls. Fix the actual cold-starting issue (glow plugs, battery capacity, fuel quality) rather than band-aiding with starting fluid.

💡 Pro Tip: Keep a log of starting behavior over time. If you notice gradual changes—slightly slower cranking, occasionally needing a second attempt, or intermittent delayed engagement—these are early warning signs of developing problems. Address them before complete failure occurs, avoiding the inconvenience of unexpected downtime during critical operations.

Related Resources

These comprehensive guides complement your Kubota starter motor replacement knowledge with related electrical system information:

Kubota Starter Motor Troubleshooting: Fix No-Crank Issues Fast – Complete diagnostic procedures to confirm your starter diagnosis before replacement. Learn voltage testing, sound diagnosis, and how to rule out battery, solenoid, and connection problems.
Kubota Starter Solenoid Clicking: Diagnose & Fix in 30 Minutes – Many “starter failures” are actually solenoid problems. This guide helps differentiate between motor and solenoid issues, potentially saving you the cost of unnecessary starter replacement.
Kubota Battery Maintenance: Extend Life & Save Money – Proper battery maintenance protects your starter investment and prevents 60% of starting problems. Learn professional-grade maintenance procedures that extend battery life 2-3X.
Test a Kubota Tractor Battery: Avoiding Cold Weather Failures – Learn proper battery testing procedures including load testing and voltage drop testing. Confirm your battery is good before spending money on other components.
Kubota Electrical Gremlins: Check and Clean the Ground Straps – Ground problems cause 30% of electrical failures including starter issues. This often-overlooked maintenance can solve mysterious electrical problems and protect new components.
Complete Electrical System Maintenance Guide – Comprehensive overview of tractor electrical system maintenance including alternator function, wiring inspection, and preventive care practices.
Kubota BX2380 Won’t Start: 5 Fixes Under $100 – Broader troubleshooting guide covering multiple no-start causes beyond just starter problems. Valuable for comprehensive diagnosis when symptoms are unclear.

Frequently Asked Questions

How long does Kubota starter motor replacement take?

Kubota starter motor replacement typically takes 60-90 minutes for first-time DIY installation, or 30-45 minutes once you’re familiar with the process. BX series models may require additional time (90-120 minutes) due to tighter access, while B and L series offer better access and faster replacement. Professional mechanics typically complete the job in 1-1.5 hours including diagnosis confirmation. The actual removal and installation takes only 20-30 minutes; most time is spent on access, cleaning, and proper connection procedures.

Can I replace a Kubota starter motor myself without special tools?

Yes, Kubota starter motor replacement requires only basic hand tools that most tractor owners already have: socket set with ratchet (10mm-17mm), combination wrenches, wire brush, and electrical contact cleaner. No special tools or diagnostic equipment are necessary for the physical replacement procedure. The most helpful optional tools are a torque wrench for proper installation torque (14-18 ft-lbs) and a digital multimeter if you want to verify electrical connections post-installation, but neither is strictly required. If you can change your oil and replace a battery, you can replace a starter motor.

Should I replace the solenoid when replacing the starter motor?

It depends on your starter configuration and the solenoid’s condition. On Kubota models with integrated solenoid/starter units (common on BX series), you’re replacing both automatically since they’re one assembly. On models with separate solenoids (common on B and L series), replacement isn’t mandatory if the solenoid tests good and shows no signs of failure. However, if your solenoid is original, shows signs of overheating (discoloration, melted plastic), has corroded terminals, or the tractor has high hours (2,000+), replacing it alongside the starter makes economic sense. You’re already doing the labor, and solenoid failure shortly after starter replacement means repeating much of the work. A quality aftermarket solenoid costs $25-50—cheap insurance against a comeback repair.

What’s the difference between OEM and aftermarket Kubota starter motors?

OEM Kubota starter motors ($280-420) are manufactured to factory specifications with proven reliability and guaranteed perfect fit, backed by 12-24 month warranty through Kubota dealers. Quality aftermarket starters from reputable brands like DB Electrical, TYC, and ARCO ($150-280) typically meet or exceed OEM specifications at 50-60% of the cost, often with comparable or longer warranties (12-36 months, some lifetime). Real-world reliability data shows quality aftermarket units provide 85-95% of OEM lifespan—still 2,000-2,400 hours versus 2,500 hours for OEM. The primary difference is brand reputation and warranty support; functional performance is nearly identical with quality aftermarket parts. Avoid no-name budget brands under $130—the $20-40 savings isn’t worth the reliability risk.

Why did my new Kubota starter motor fail so quickly?

Premature Kubota starter motor failure usually results from underlying electrical problems rather than defective parts. The most common causes: (1) Weak or failing battery forcing the starter to draw excessive current, eventually burning it out; (2) Poor ground connections creating high resistance that overheats the starter; (3) Hard-starting engine issues (glow plugs, compression, fuel problems) requiring extended cranking that exceeds design limits; (4) Corroded or loose cable connections causing voltage drop and excessive current draw; (5) Damaged flywheel ring gear causing mechanical binding; (6) Defective part (rare with quality brands but possible). Before condemning a failed new starter, test battery voltage under load, verify all connections are clean and tight, check ground strap continuity, and ensure the engine starts readily without extended cranking. Fix these issues before installing another starter, or the replacement will suffer the same fate.

Key Takeaways

DIY Kubota starter motor replacement saves $200-300 in labor costs and takes just 60-90 minutes with basic hand tools. The straightforward procedure makes this an excellent entry-level repair for building mechanical confidence.
Accurate diagnosis before replacement prevents wasted money and time. Confirm your starter is actually faulty through voltage testing and symptom analysis—60% of suspected starter failures are actually battery, solenoid, or connection problems. A misdiagnosis wastes $200-400 on unnecessary parts.
Quality aftermarket starters offer excellent value at 50-60% of OEM cost. Reputable brands like DB Electrical provide 2,000-2,400 hours of service (85-95% of OEM lifespan) for $150-280 versus $280-420 for OEM parts. For tractors 5+ years old or hobby farm use, aftermarket makes strong economic sense.
Proper installation requires clean mounting surfaces and correct torque. The starter grounds through its mounting; contaminated surfaces cause voltage drop and starting problems. Use 14-18 ft-lbs torque (or “snug plus 1/4 turn”) and hand-start all fasteners to prevent cross-threading in aluminum.
Battery health directly impacts starter life. Weak batteries force starters to draw excessive current, accelerating wear and causing premature failure. Maintain battery properly and keep it fully charged—a $150 battery protects your $300 starter investment. Most starters don’t fail from age; they fail from abuse caused by weak batteries and extended cranking. Check us out for more DIY repair info at TractorPartsCentral.com
